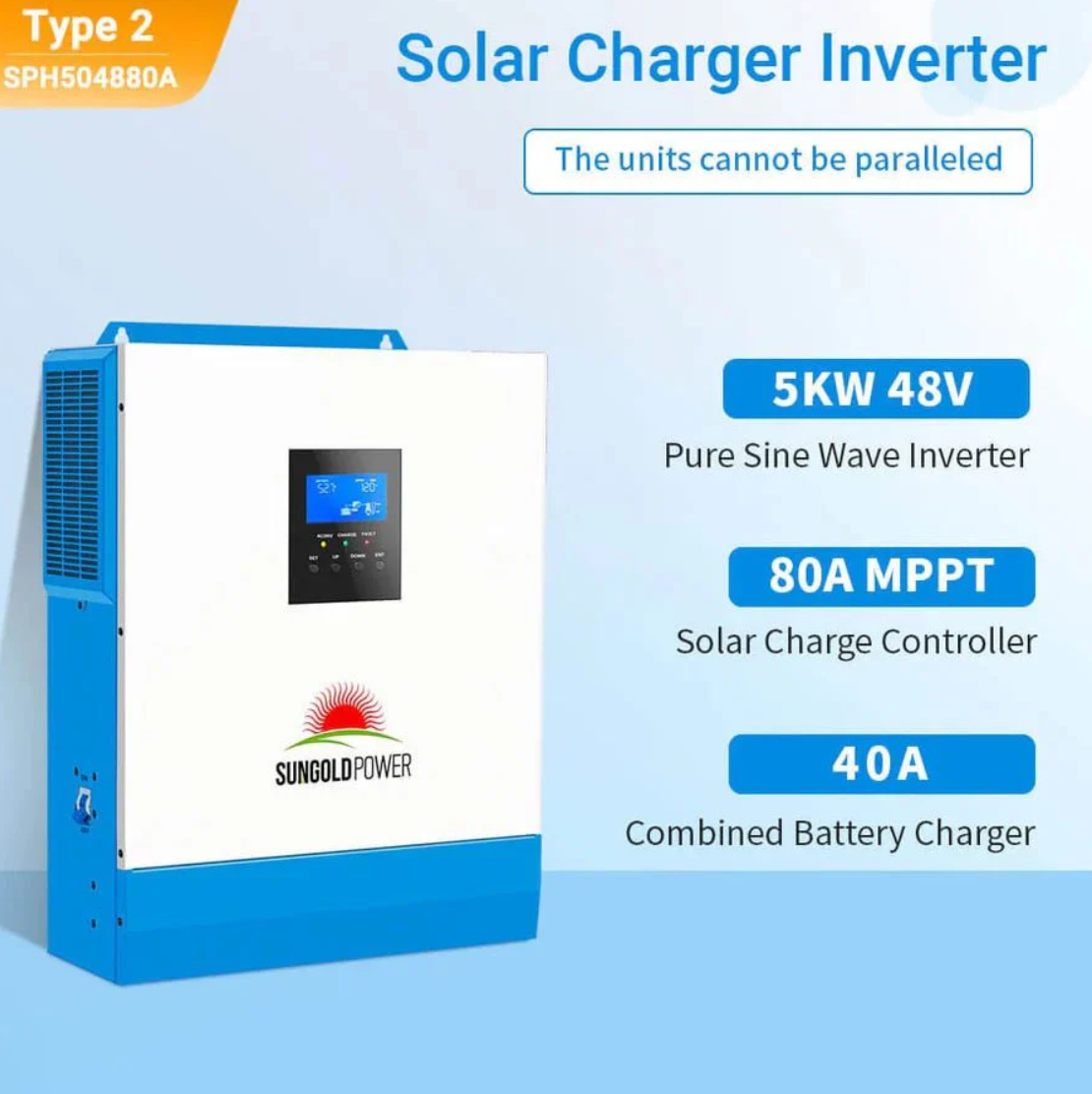

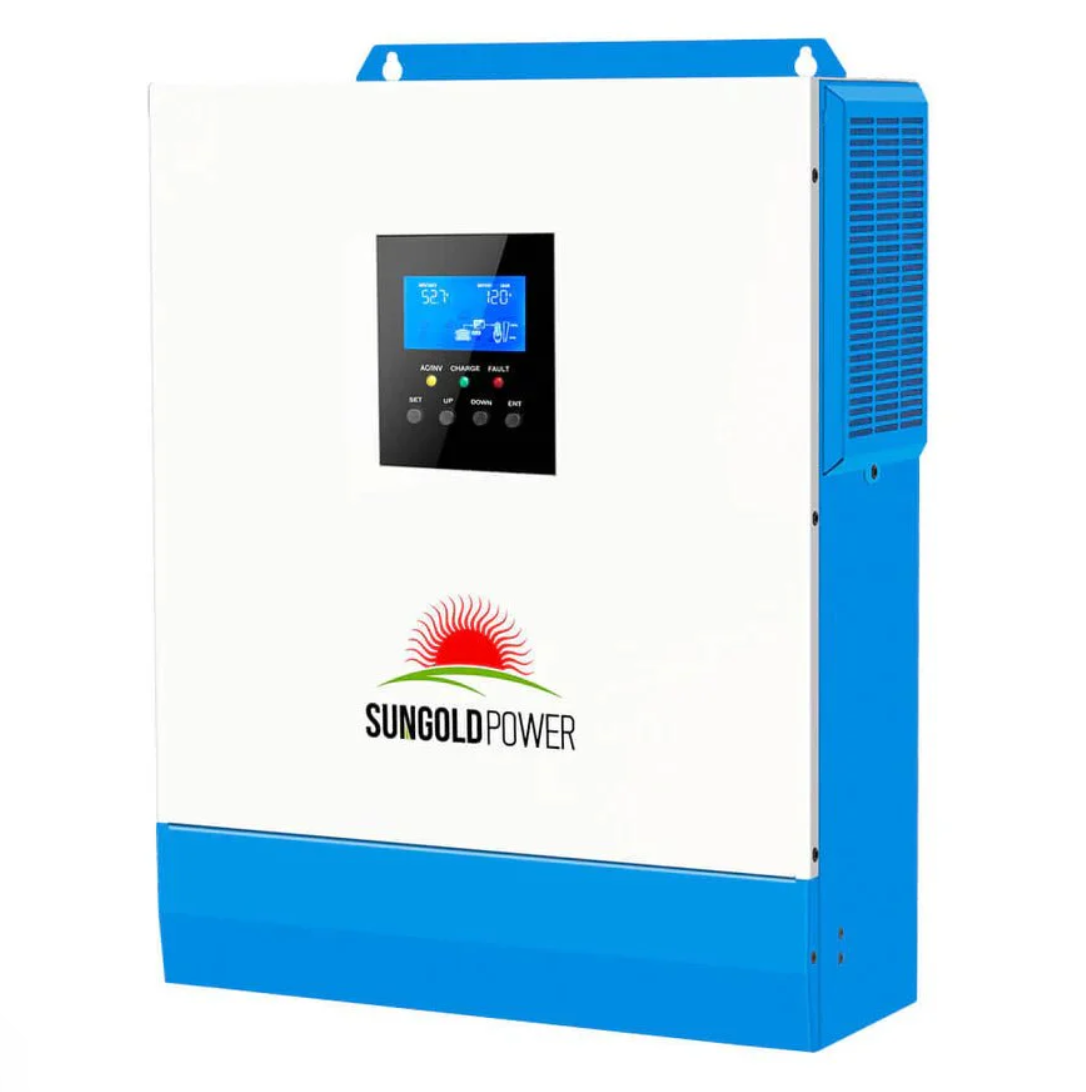

SunGoldPower Solar Inverter Charger | 5000W 48V DC–120V AC | 80A MPPT

High-Performance Off-Grid & Hybrid Solar Inverter for Reliable Energy Independence

The SunGoldPower SPH504880A is a 5000W 48V all-in-one solar inverter charger engineered for off-grid, hybrid, and backup solar energy applications. Integrating a pure sine wave inverter, built-in 80A MPPT solar charge controller, and AC battery charger, this hybrid inverter delivers stable, efficient, and reliable power for residential, commercial, and remote installations. Designed for seamless energy management, it ensures uninterrupted power for sensitive electronics, appliances, and essential equipment.

Key Features

5000W Pure Sine Wave Output: Clean, stable AC power suitable for household appliances, office equipment, and sensitive electronics.

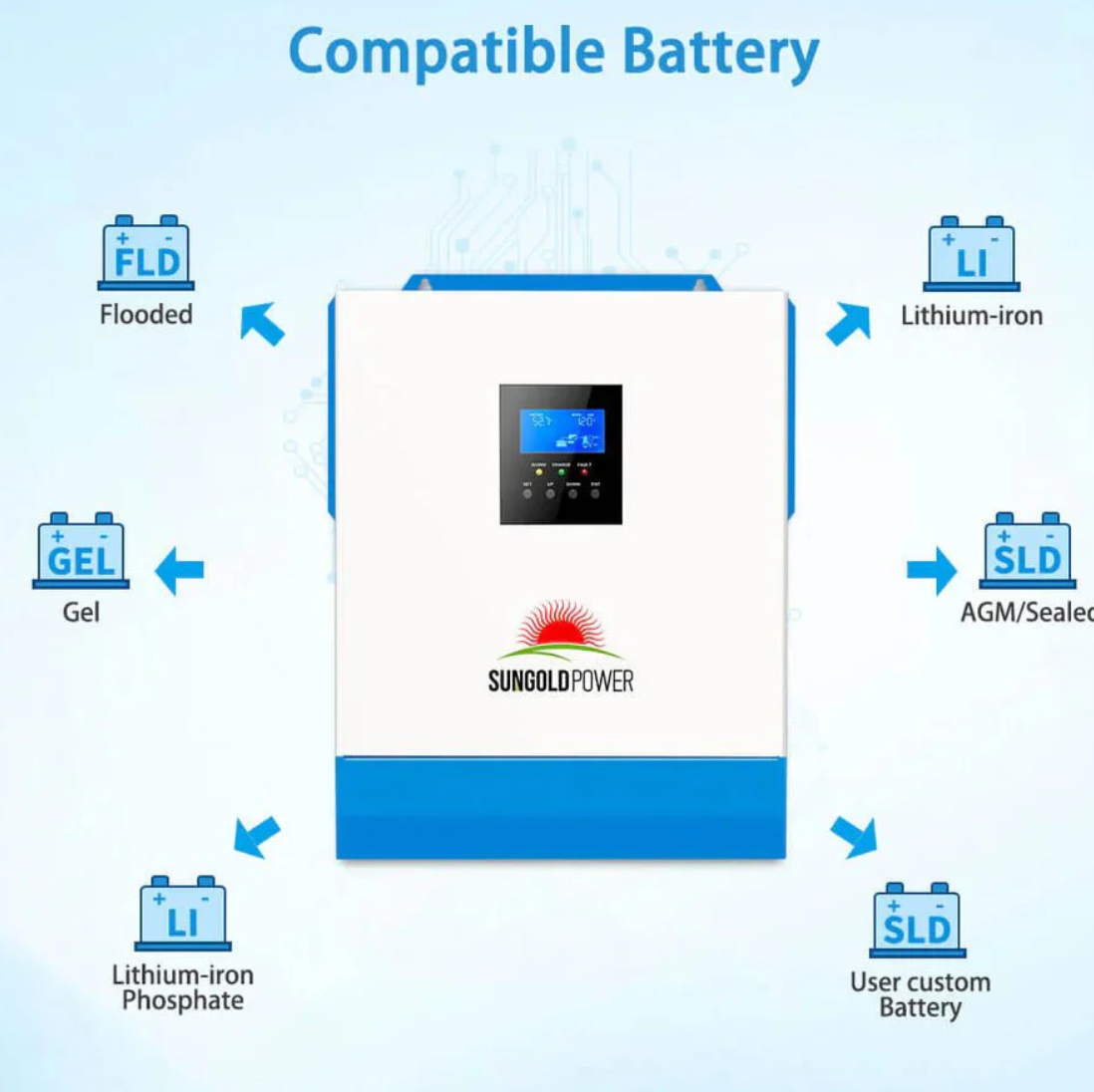

48V Battery Compatibility: Supports AGM, Sealed, Gel, Flooded, and Lithium batteries with flexible User Mode configurations.
Built-In 80A MPPT Solar Charger: Optimizes solar energy harvesting with dynamic tracking, maximizing battery charging efficiency.
AC Battery Charger: Charges batteries from grid or generator backup for continuous energy supply.

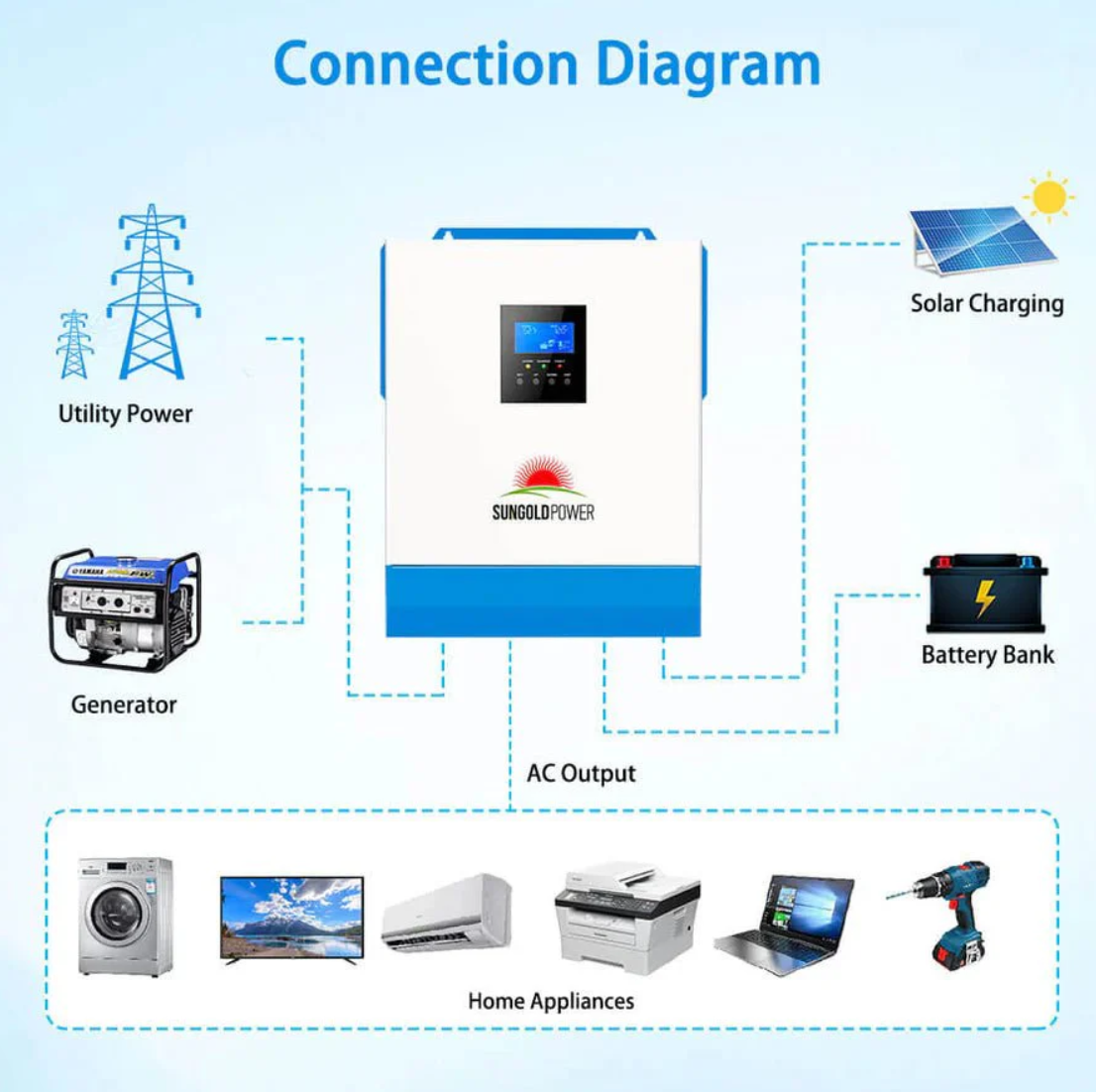

Flexible Input Sources: Works seamlessly with solar panels, utility/grid, or generator input.
Smart Switching Modes: Ensures uninterrupted power with automatic switching between solar, battery, and AC sources.
UPS Function: Instantly switches to battery supply in the event of utility or generator failure.
Reliable & Durable Design: High-efficiency, all-in-one unit for long-term off-grid and hybrid solar use.

Ideal Applications

Off-grid homes, cabins, and remote residences
Hybrid solar + battery systems
Residential and small commercial backup power
RVs, mobile offices, and off-grid workstations

What’s Included

1 × SunGoldPower SPH504880A 5000W 48V Solar Inverter Charger
1 × User Manual (English)

Manuals:

SunGoldPower 5000W 48V Solar Charger Inverter with Built-in 80A MPPT Controller Installation Guide & Owner Manual (PDF)

Specifications

Parameter	Specification
Inverter Output
Rated Output Power	5,000 VA / 5,000 W
Power Factor	1.0
Rated Output Voltage	120 VAC (100 / 105 / 110 VAC selectable)
Output Voltage Accuracy	±5%
Output Frequency	50 Hz ±0.3 Hz / 60 Hz ±0.3 Hz
Output Waveform	Pure Sine Wave
Typical Transfer (Switch) Time	10 ms
Motor Load Capability	4 HP
Overload Protection	102–125%: Alarm & shutdown after 5 min; 125–150%: Alarm & shutdown after 10 sec; >150%: Alarm & shutdown after 5 sec; Auto resume after 3 minutes; 5 consecutive overloads require inverter restart
Peak Power	10,000 VA
Parallel Capability	Up to 6 units
Battery
Rated Battery Voltage	48 VDC
Minimum Start Voltage	44 VDC
Battery Voltage Range	40–60 VDC ±0.6 V (Undervoltage alarm/shutdown & overvoltage alarm/recovery, LCD settable)
Supported Battery Types	Lead-acid & Lithium
Power Saving Mode	Activates when load ≤50 W
AC Charger
Maximum Charge Current	40 A
Charge Current Accuracy	±5 A
Charge Voltage Range	40–60 VDC
Short-Circuit Protection	Circuit breaker & fuse
Overcharge Protection	Alarm & charging stops after 1 min

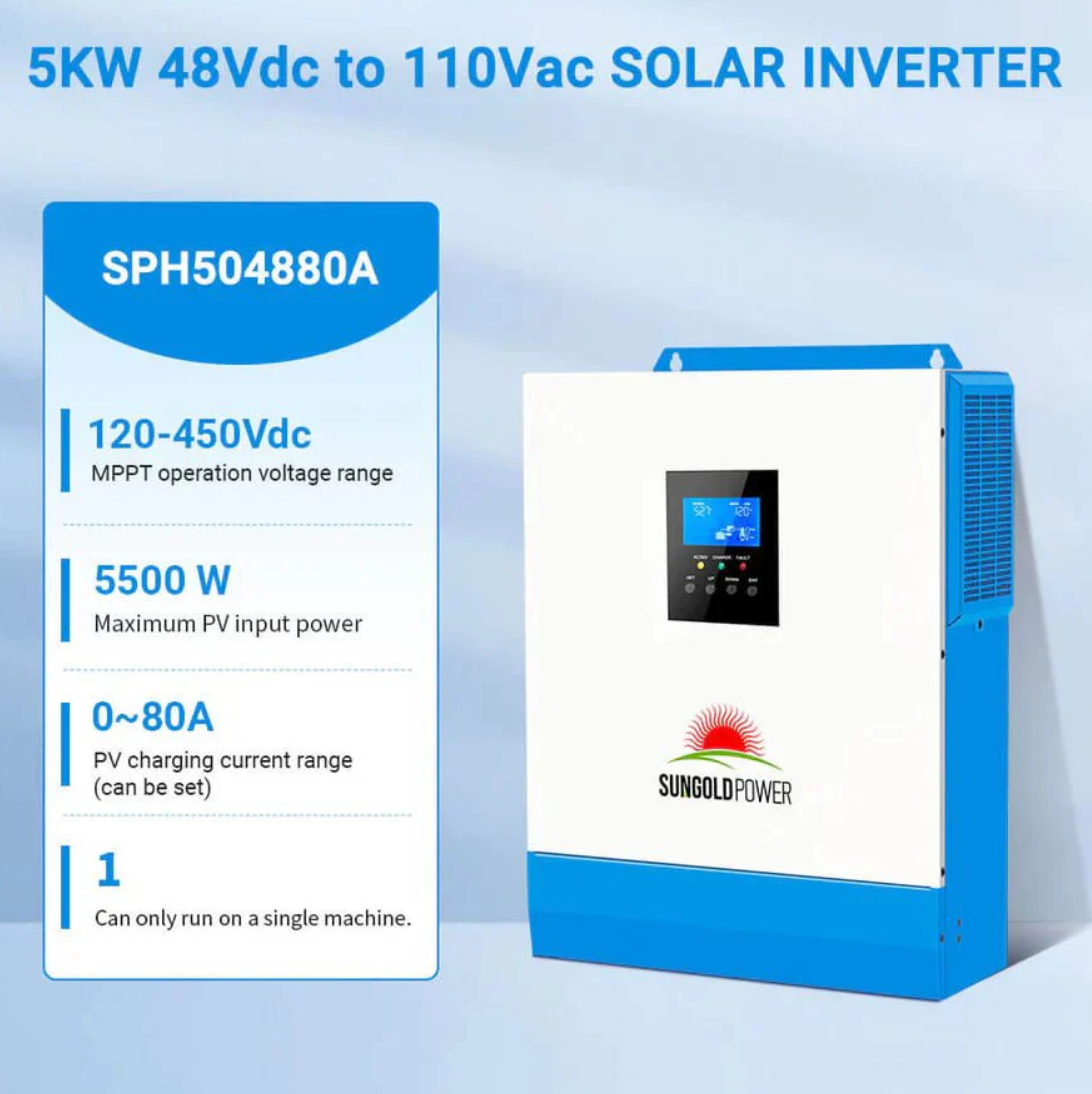

Solar Charger (MPPT)
Max PV Open-Circuit Voltage	500 VDC
MPPT Operating Voltage Range	120–450 VDC
Battery Voltage Range	40–60 VDC
Maximum PV Input Power	5,500 W
PV Charging Current (Adjustable)	0–80 A
Charge Short-Circuit Protection	Fuse
Wiring Protection	Reverse polarity protection
Environmental & Mechanical
Certifications	CE (IEC 62109-1) / FCC / SAA
EMC Compliance	EN 61000
Operating Temperature	14°F to 131°F
Storage Temperature	-13°F to 140°F
Humidity	5%–95% (Conformal coating protection)
Noise Level	≤60 dB
Cooling Method	Forced air cooling, variable speed

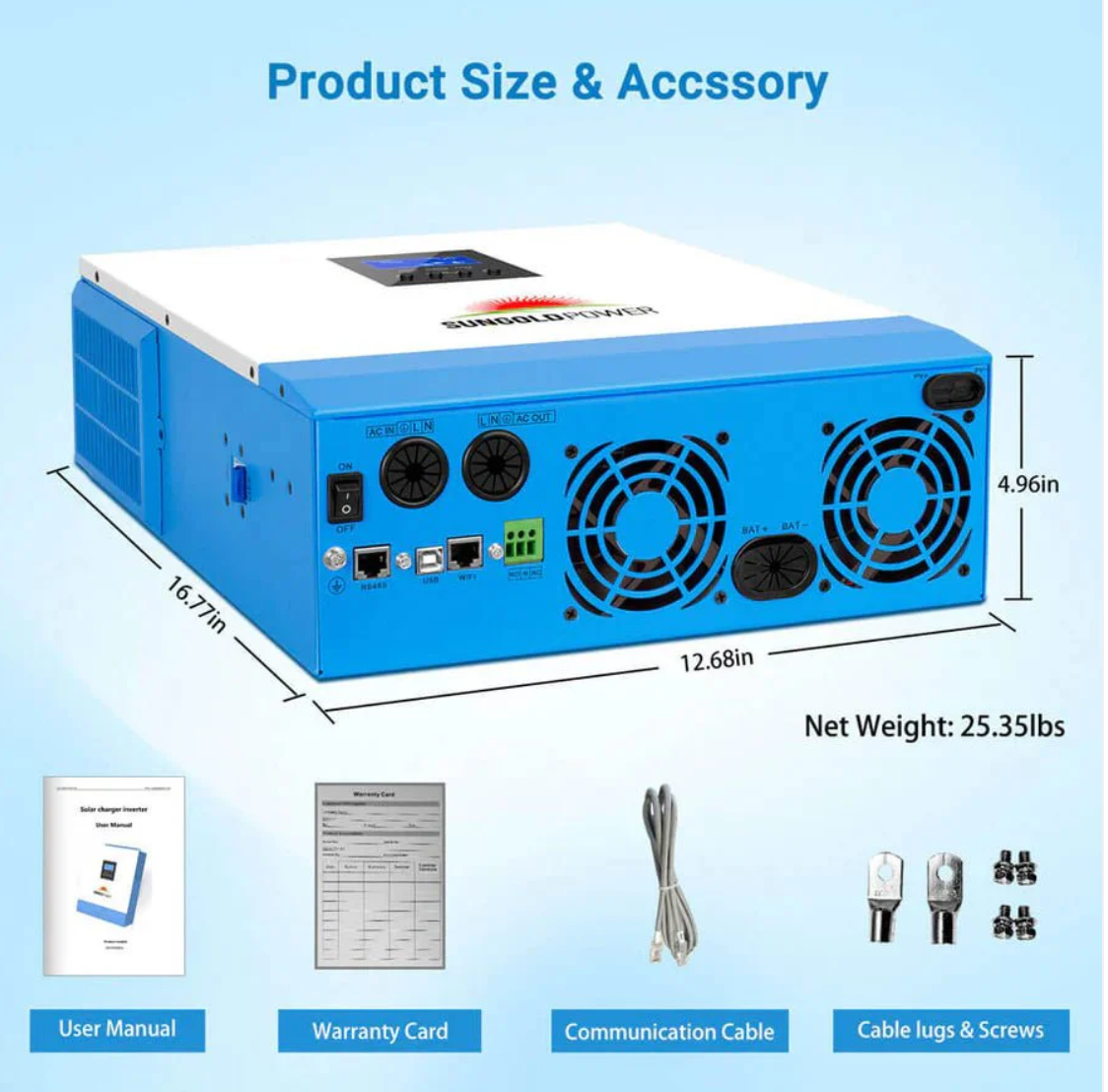

Dimensions (L × W × D)	16.77 × 12.68 × 4.96 in
Weight	25.35 lb
Communication

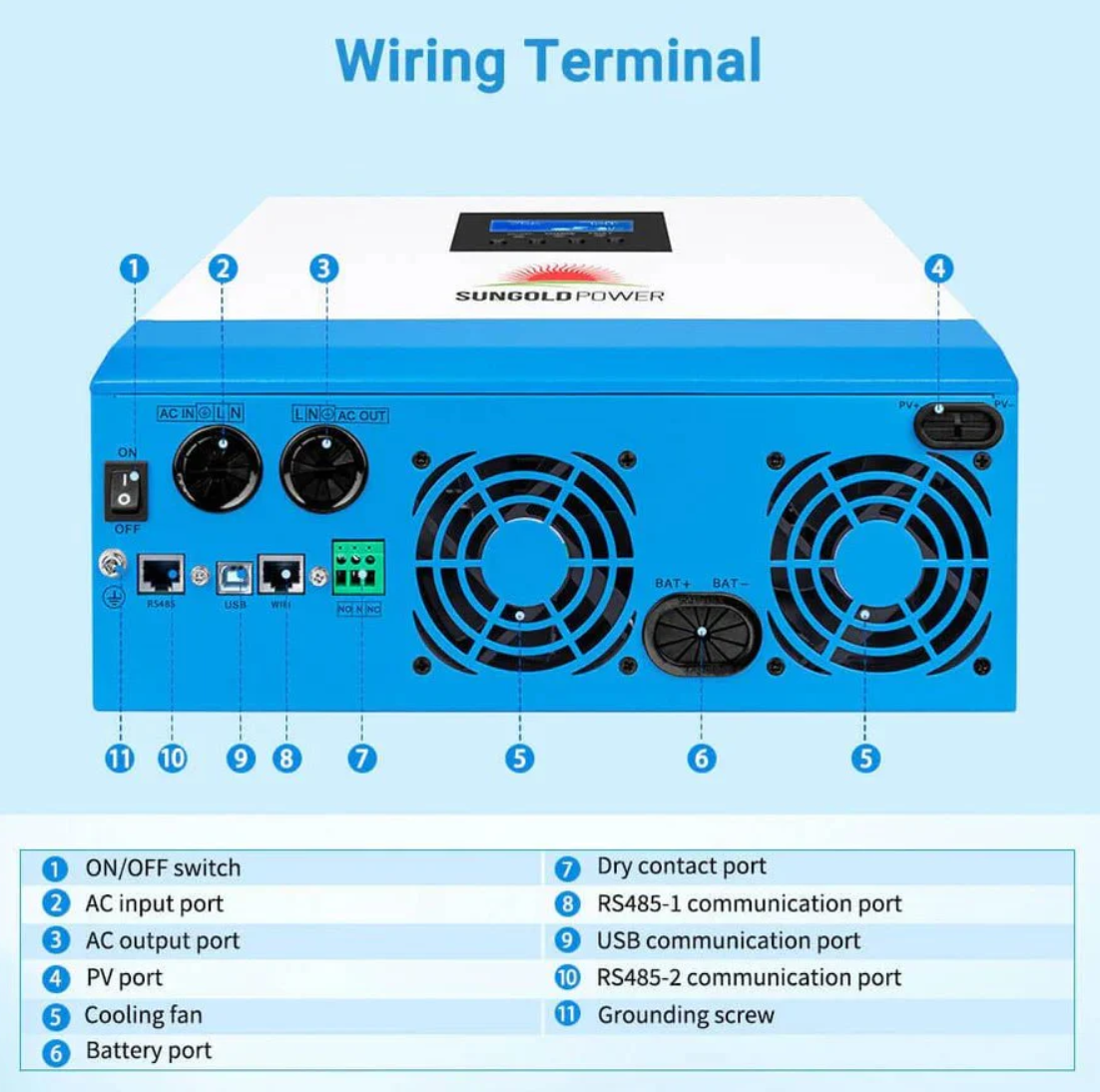

Communication Interfaces	USB / RS485 / WiFi / GPRS / Dry Contact

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
