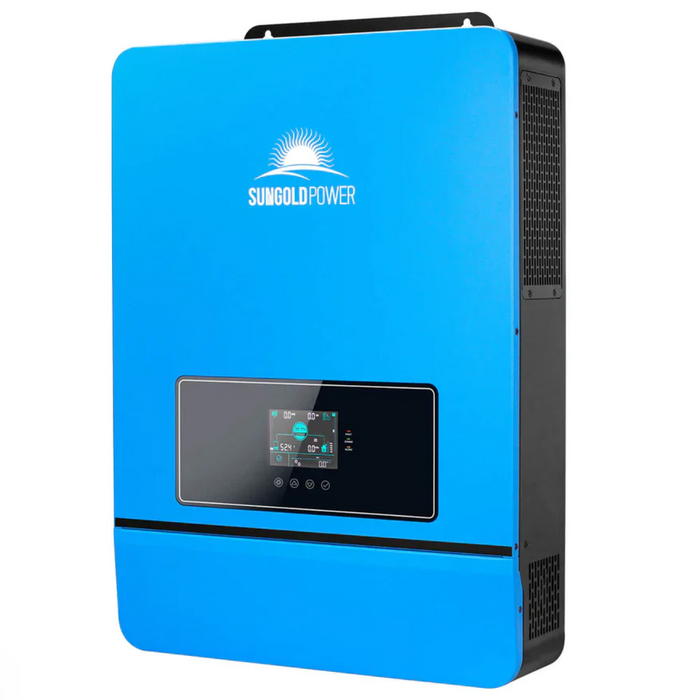

SunGoldPower Solar Inverter Charger | 10kW 48V DC–120/240V AC | Split-Phase

High-Performance 10kW Hybrid Solar Inverter with Dual MPPT & Wi-Fi Monitoring

The SunGoldPower SPH10048P is a 10kW 48V split-phase solar inverter charger built for off-grid, hybrid, and backup power systems. Delivering pure sine wave output for 120V/240V split-phase or 120V single-phase applications, it combines dual high-efficiency MPPT solar charge controllers, advanced smart energy management, and remote Wi-Fi monitoring for residential and commercial solar setups. UL1741-certified by ETL, this inverter ensures reliable, safe, and scalable power wherever you need it.

Key Features

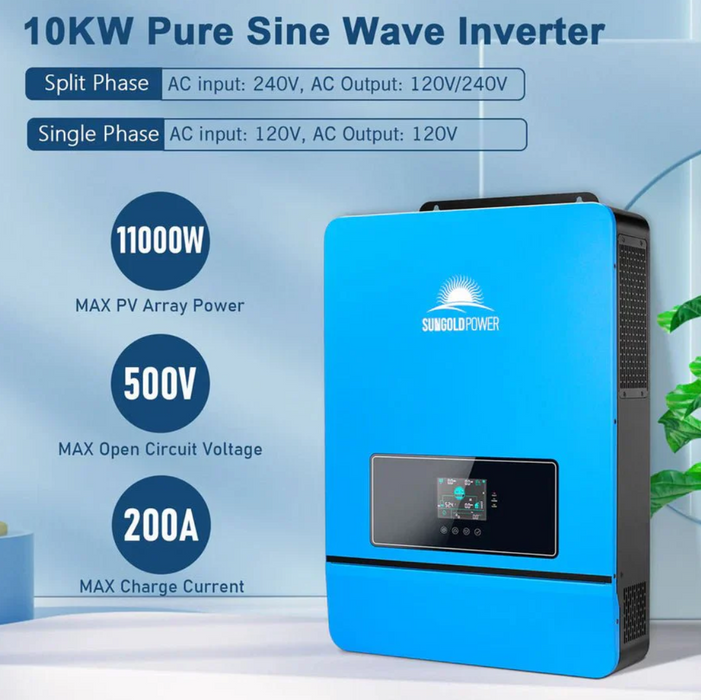

10kW Rated Output Power: Provides clean, stable pure sine wave electricity; supports up to 20,000W surge power for high-startup appliances.
Dual MPPT Solar Controllers: Supports up to 11,000W PV input with 500VDC max open circuit voltage and 22A per MPPT channel, optimizing solar energy harvest.
Split-Phase & Single-Phase Output: Supports 120V/240V split-phase or 120V single-phase for versatile residential and commercial applications.

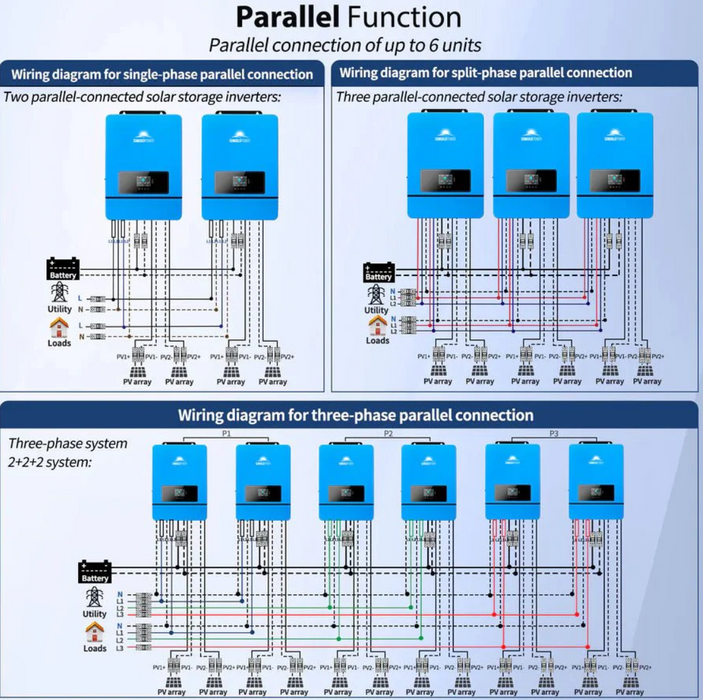

Parallel Expansion up to 6 Units: Scalable to 60kW total output; supports 208V three-phase, 120V single-phase, or 120/240V split-phase configurations.

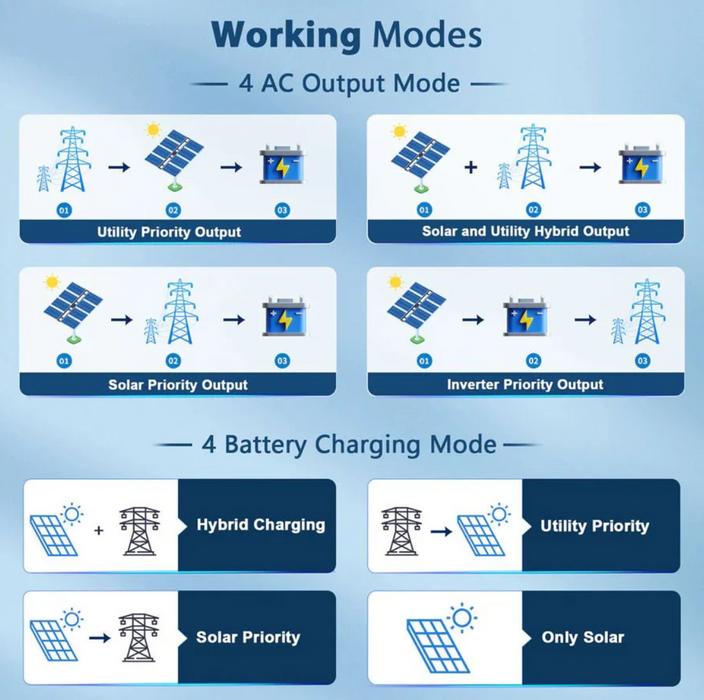

Smart Energy Management: Time-slot charging and discharging allows optimization of battery usage and electricity costs.

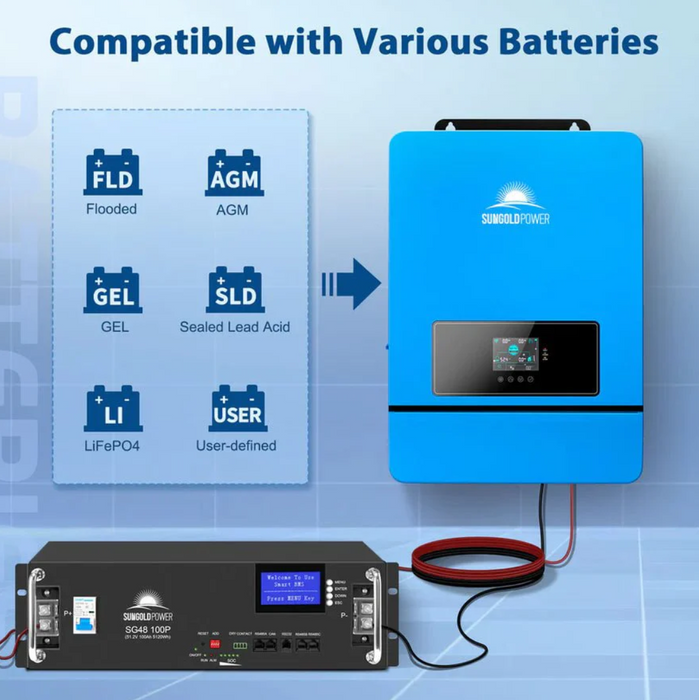

Battery Flexibility: Compatible with 48V Lithium, AGM, Gel, Sealed, and Flooded batteries; supports CAN/RS485 communication for battery management systems.

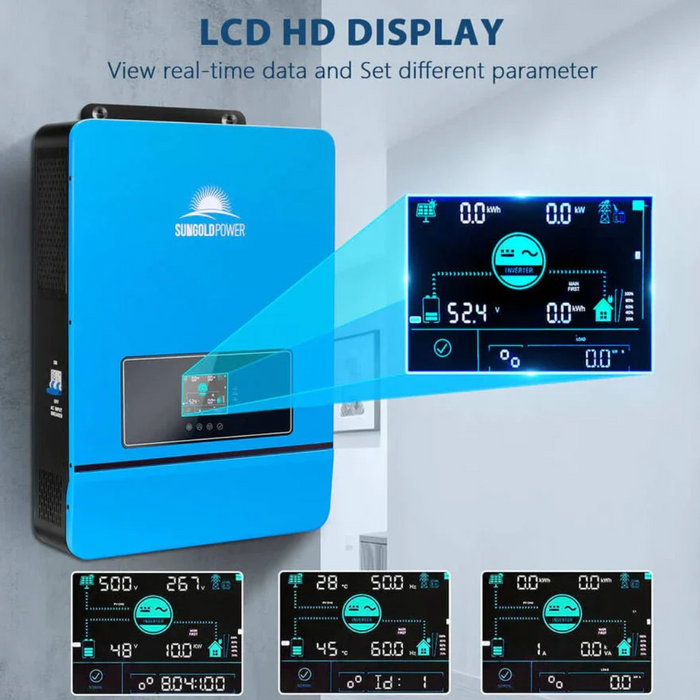

Wi-Fi Remote Monitoring: Built-in Wi-Fi module enables real-time monitoring, system status, and parameter control from your smartphone or tablet.
Comprehensive Protections: Includes safeguards against PV over-voltage, AC overloads, short circuits, and system faults.

Ideal Applications

Off-grid homes, cabins, and remote residences
Hybrid solar + battery systems
Residential and light commercial backup power
RVs, mobile offices, and off-grid workstations

What’s Included

1 × SunGoldPower SPH10048P 10kW 48V Solar Inverter Charger
1 × Wi-Fi Monitoring Module
1 × User Manual (English)

Manuals:

SunGoldPower 10KW 48V Split Phase Solar Inverter AC input 120V/240V AC output 120V/240V Installation Guide & Owner Manual (PDF)

Specifications

Parameter	Specification
Inverter Output
Rated Output Power	8,000 W
Maximum Peak Power	16,000 W
Rated Output Voltage	120 / 240 VAC (Split Phase / Single Phase)
Rated AC Frequency	50 / 60 Hz
Output Waveform	Pure Sine Wave
Typical Transfer (Switch) Time	10 ms
Motor Load Capacity	5 HP
Parallel Capability	Up to 6 units
Overload Protection	Auto resume after 3 minutes; 5 consecutive overloads require inverter restart; 102–110% ±10%: Shutdown after 5 min; 110–125% ±10%: Shutdown after 10 sec; >125% ±10%: Shutdown after 5 sec
Battery
Supported Battery Types	Li-ion / Lead Acid / User Defined
Rated Battery Voltage	48 VDC
Max MPPT Charging Current	200 A
Max Mains / Generator Charging Current	100 A
Max Hybrid Charging Current	180 A
PV Input (MPPT)
Number of MPPT Trackers	2
Maximum PV Array Power	11,000 W
Maximum Input Current	22 A / 22 A
Max PV Open-Circuit Voltage	500 VDC
MPPT Voltage Range	125–425 VDC
Mains / Generator Input
Input Voltage Range	90–140 VAC (Single Phase)
Input Frequency Range	50 / 60 Hz
Bypass Overload Current	63 A
Efficiency
MPPT Tracking Efficiency	99.9%
Maximum Battery Inverter Efficiency	92%
General Specifications
Dimensions (L × W × D)	17.7 × 25.6 × 5.1 in
Weight	53 lb
Protection Rating	IP20 (Indoor Use Only)
Operating Temperature	14°F–131°F (Derated above 113°F)
Noise Level	<60 dB
Cooling Method	Internal Fan
No-Load Power Consumption	95 W / 100 W
Communication
Embedded Interfaces	RS485 / CAN / USB / Dry Contact
Optional External Modules	Wi-Fi / GPRS
Certifications
Safety	IEC 62109-1, IEC 62109-2, UL 1741
EMC	EN 61000-6-1, EN 61000-6-3, FCC Part 15 Class B
ROHS Compliance	Yes

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
