SunGoldPower Off-Grid Solar Kit | 13kW 48V Split-Phase 120/240V | 25.6kWh LiFePO₄ Battery | 450W Panels (22-Pack)

High-Capacity Off-Grid Solar System for Large Homes, Cabins, and Remote Sites

The SunGoldPower SGR-13K25E Off-Grid Solar Kit is a complete, high-output energy solution designed for full off-grid living or reliable backup power. Featuring 22 high-efficiency 450W bifacial solar panels, dual 6.5kW split-phase inverters, and a 25.6kWh LiFePO₄ battery bank, this system delivers stable, high-capacity power for large homes, workshops, cabins, and small commercial applications. Built for durability, scalability, and easy installation, it provides clean energy storage and consistent performance in any off-grid environment.

Key Features

13kW Total Output: Dual 6,500W split-phase inverters deliver reliable 120V/240V power for heavy loads and whole-home usage.
High-Efficiency 450W Bifacial Panels: 22 × 450W N-Type monocrystalline panels capture sunlight from both sides for maximum energy generation.
25.6kWh LiFePO₄ Battery Storage: Five 100Ah 51.2V batteries provide safe, long-lasting energy storage with deep-cycle performance.
Expandable and Modular Design: Easily scale the system with additional panels or batteries as energy needs grow.
Integrated Safety Protection: Includes DC and PV breakers for complete system protection.
Complete Off-Grid Kit: Includes solar extension cables, mounting brackets, and a battery cabinet for professional installation.

Ideal Applications

Large off-grid homes and cabins
Remote commercial sites and workshops
Emergency backup power systems
Agricultural and farm installations
Remote communities and off-grid projects

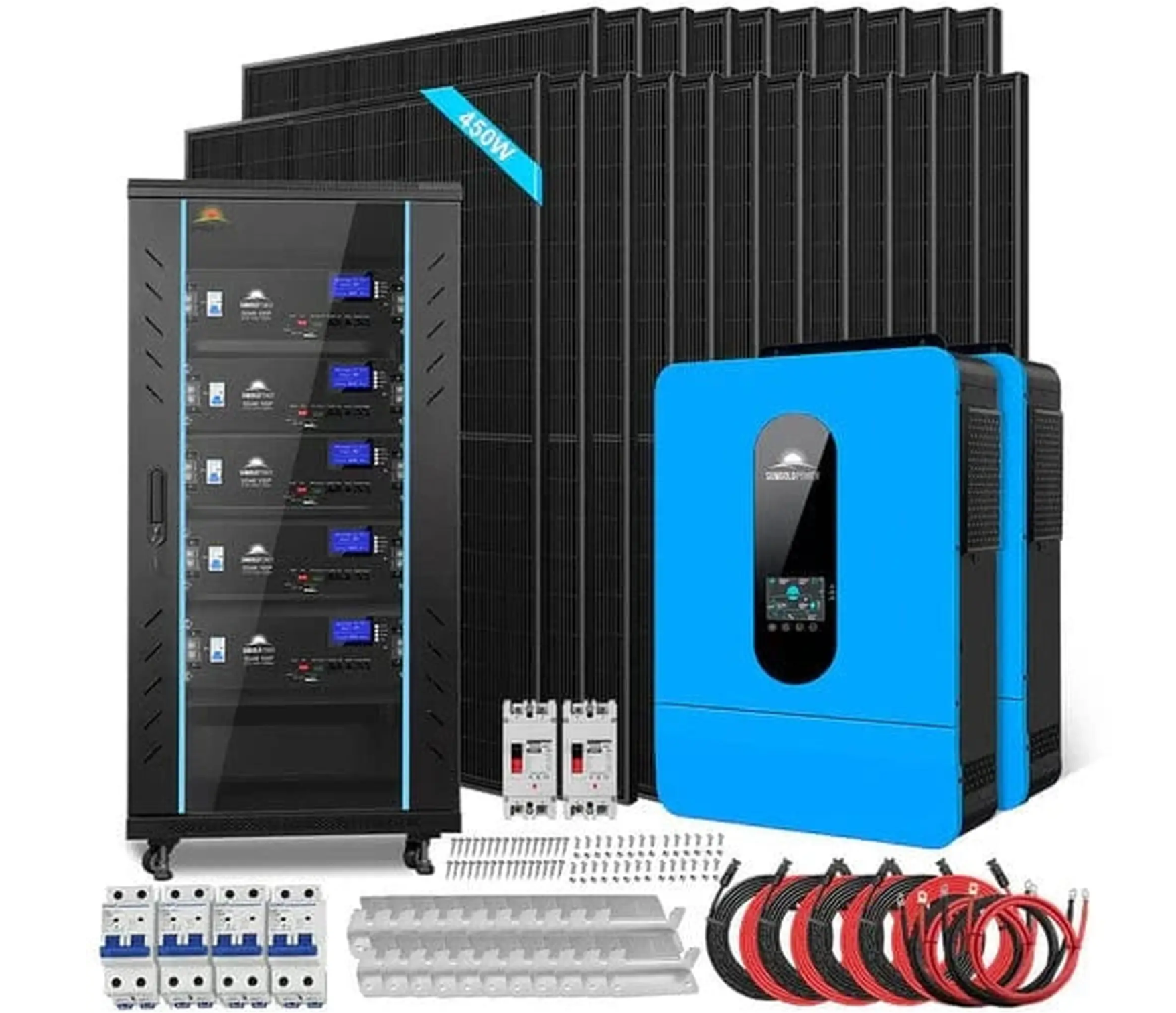

What’s Included

2 × 6,500W 48V DC to 120V/240V AC split-phase inverters
22 × 450W bifacial N-Type monocrystalline solar panels

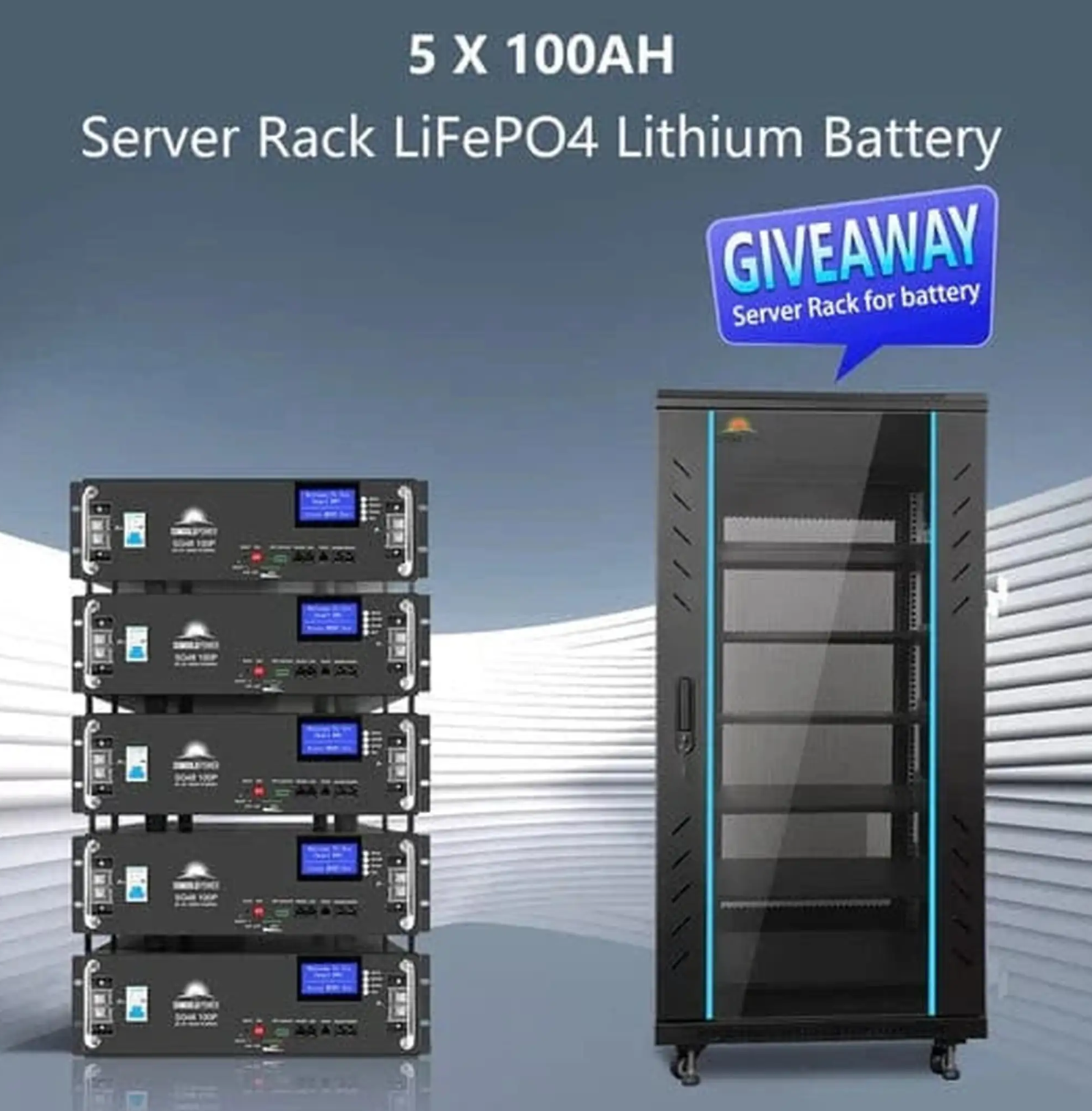

5 × 100Ah 51.2V LiFePO₄ batteries
1 × enclosed battery cabinet for 6 × 100Ah 51.2V batteries
4 × 50ft solar extension cable sets (inverter PV input)
2 × 2/0 AWG cables (inverter to busbar)
22 × mounting Z-brackets
2 × 200A DC breakers
4 × 25A PV breakers

Manuals:

6500W Solar Inverter Installation Guide & Owner Manual (PDF)

LifePo4 5.12KWH Lithium Battery Installation Guide & Owner Manual (PDF)

450 Watt Monocrystalline Solar Panels Installation Guide & Owner Manual (PDF)

Specifications

Parameter	Details

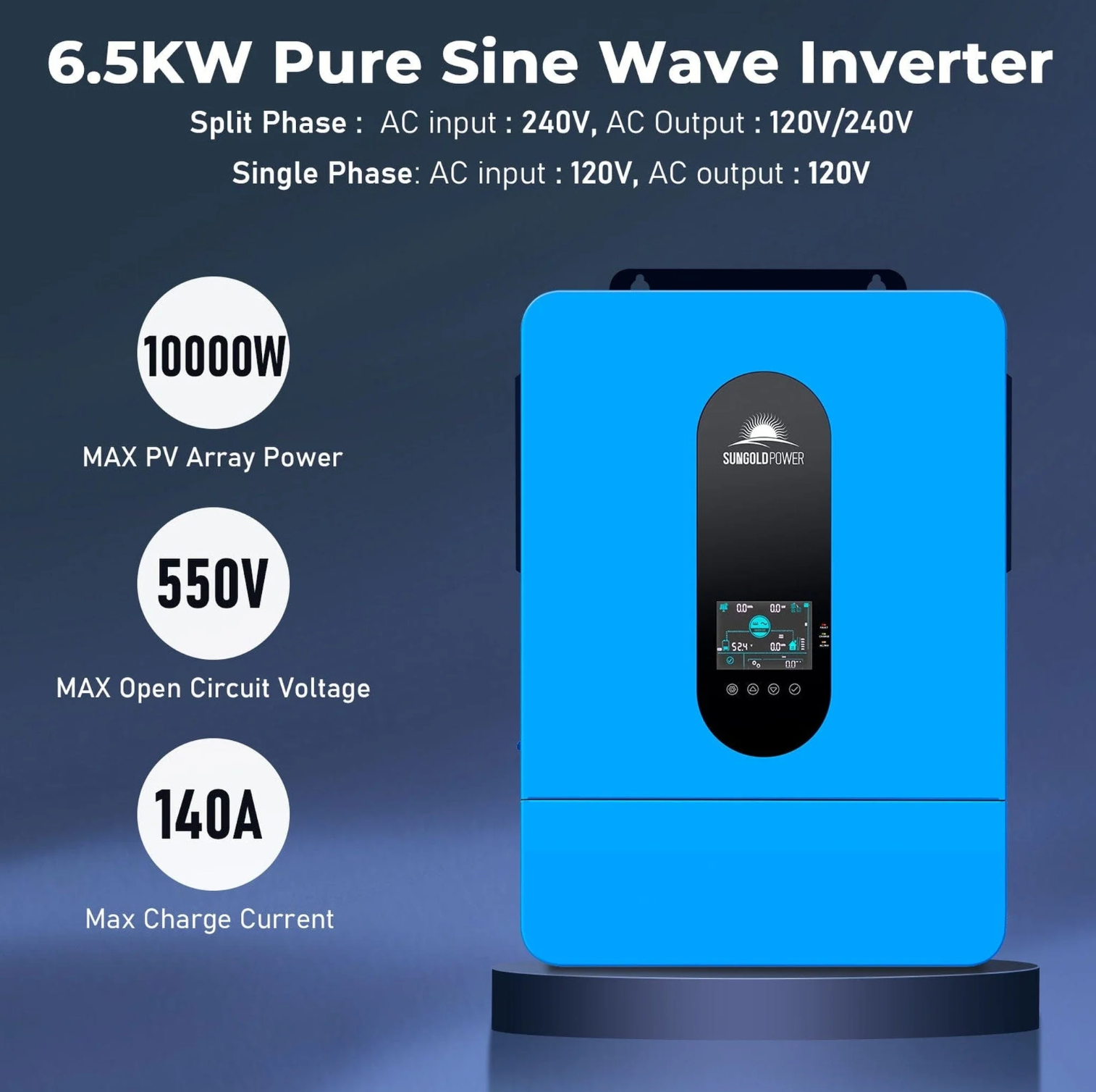

6,500 W Solar Inverter Specifications
AC Output	6.5 kW with Parallel Function
Output Waveform	Pure Sine Wave
AC Output Type	120/240 VAC (split phase/single phase)
Parallel Function	Up to 6 units parallel
Efficiency	93%
Max Charging Current	140 A
Maximum PV Array Power	5000 W + 5000 W
Dimension	23.0 × 16.2 × 5.3 inch
Weight	42 lb
Warranty	3 Years

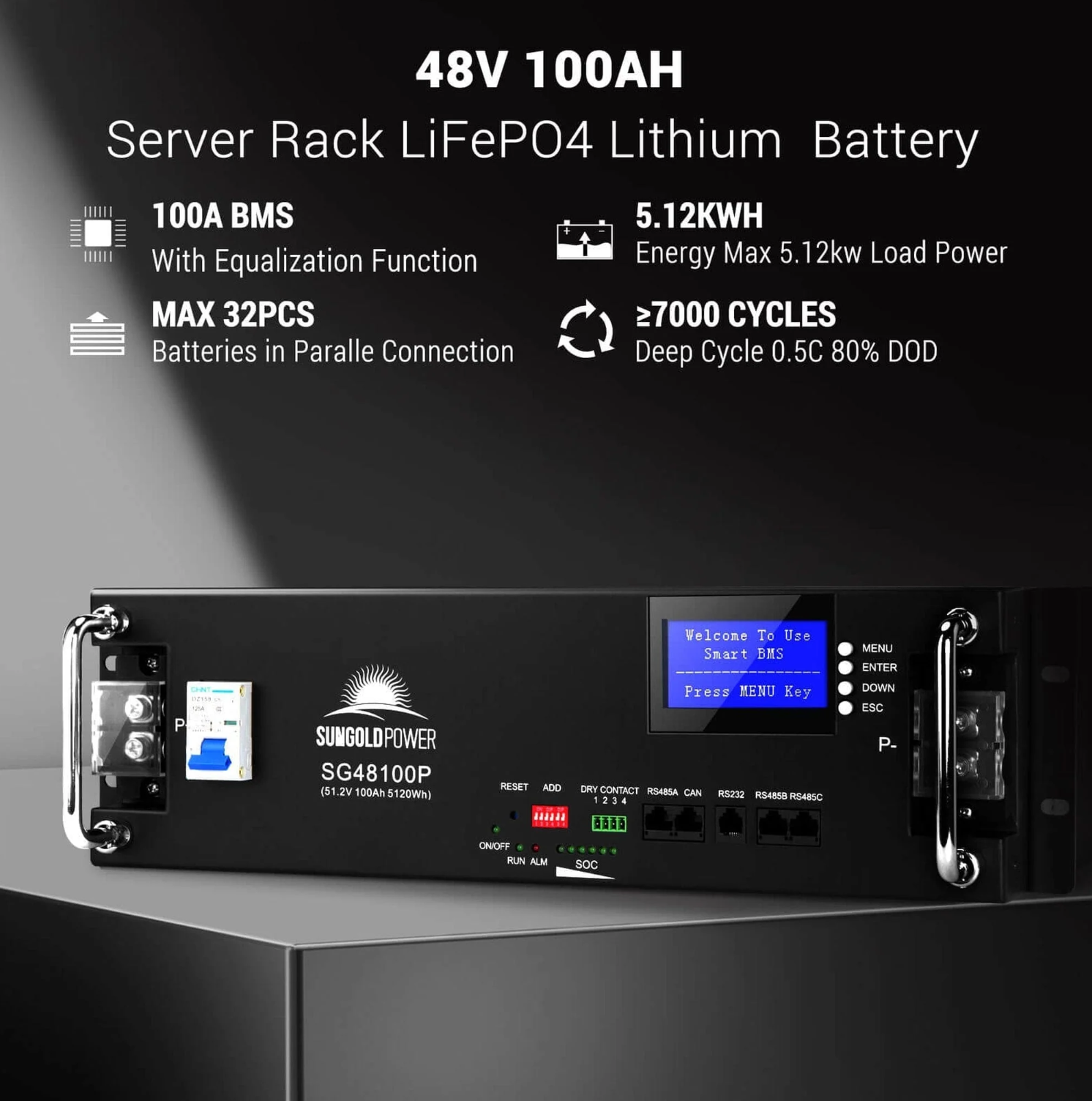

SG48100P LiFePO4 Battery Specifications
Nominal Voltage	51.2 V
Nominal Capacity	100 AH
Energy	5.12 kWh
Charge Cut-off Current	5 A
Max Continuous Charge Current	100 A
Discharge Cut-off Voltage	43.2 V
Cycle Life	≥7000
Communication Protocol	RS232 / RS485 / CAN, supports multiple protocols
Storage Temperature	14~+113 °F
Dimension	19.3 × 18.9 × 5.5 inch
Weight	93 lb
Warranty	10 Years
Certificates	UL1973, CE, UN38.3

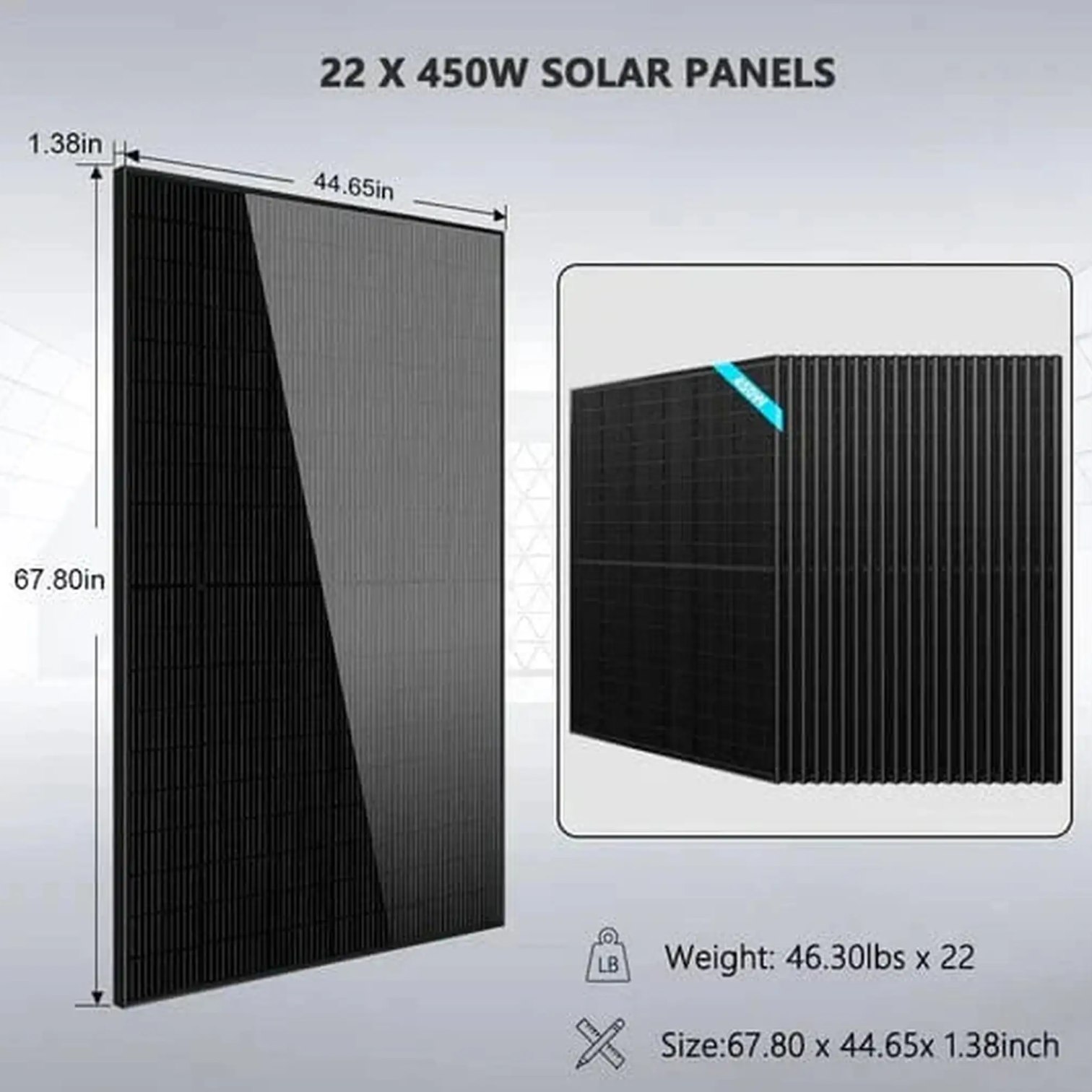

450 W Mono Solar Panel Specifications
Peak Power	450 W
Solar Cell	Bifacial N-Type
Product Tolerance	±3%
Maximum Power Current (Imp)	13.41 A
Maximum Power Voltage (Vmp)	33.57 V
Short Circuit Current (Isc)	14.04 A
Open Circuit Voltage (Voc)	39.54 V
Product Dimension	67.80 × 44.65 × 1.38 inch
Product Weight	46.3 lb
Warranty	25 Years
Certificates	UL61730, TUV, IEC, CEC, CE
Complete Solar Kit Specifications
Max Continuous Output	13,000 W
AC Output	120 V / 240 V
DC Voltage	48 V
Max Solar Input	2 × 5000 W + 2 × 5000 W
Total Watt of Panels	9,900 W
Per Panel Watt	450 W
Panel Quantity	22 pcs
Total Battery Capacity	25.6 kWh
Chemistry	Lithium
Battery Quantity	5 pcs
Battery Spec	48 V 100 AH

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
