SunGoldPower Off-Grid Solar Kit | 6kW 48V Split-Phase 120/240V | 10.24kWh LiFePO₄ Battery | 370W Panels (6-Pack)

Scalable Split-Phase Off-Grid Solar System for Homes, Workshops, and Backup Power

The SunGoldPower SGK-PRO64 Off-Grid Solar Kit is a complete energy solution for off-grid homes, remote facilities, and emergency backup power. This high-performance system combines a 6,000W 48V split-phase inverter/charger, a 10.24kWh LiFePO₄ battery bank, and six 370W monocrystalline solar panels to deliver reliable, clean 120V/240V power. Built for scalability and long-term use, it’s ideal for users who want a dependable off-grid setup that can grow with their energy needs.

Key Features:

6,000W Split-Phase Pure Sine Wave Inverter/Charger: Stable 120V/240V AC output, supporting standard household circuits and heavy-duty appliances with clean, low-harmonic power.
10.24kWh LiFePO₄ Battery Bank: Two 51.2V 100Ah batteries deliver long-lasting storage with over 6,000 cycles and built-in BMS protection.
High-Efficiency 370W Solar Panels: Six monocrystalline panels provide 2,220W total for consistent daily charging.
Advanced MPPT Solar Charging: Integrated MPPT controller optimizes solar input for faster and more efficient battery charging.
Expandable System Design: Supports additional batteries and solar panels to scale your energy system as needs increase.
DIY-Friendly Installation Kit: Includes all essential wiring, breakers, brackets, and accessories for quick setup.

Ideal Applications:

Full off-grid homes and cabins
Workshops, garages, and small industrial sites
Agricultural buildings and farm operations
Emergency backup power systems
Remote offices and mobile workstations

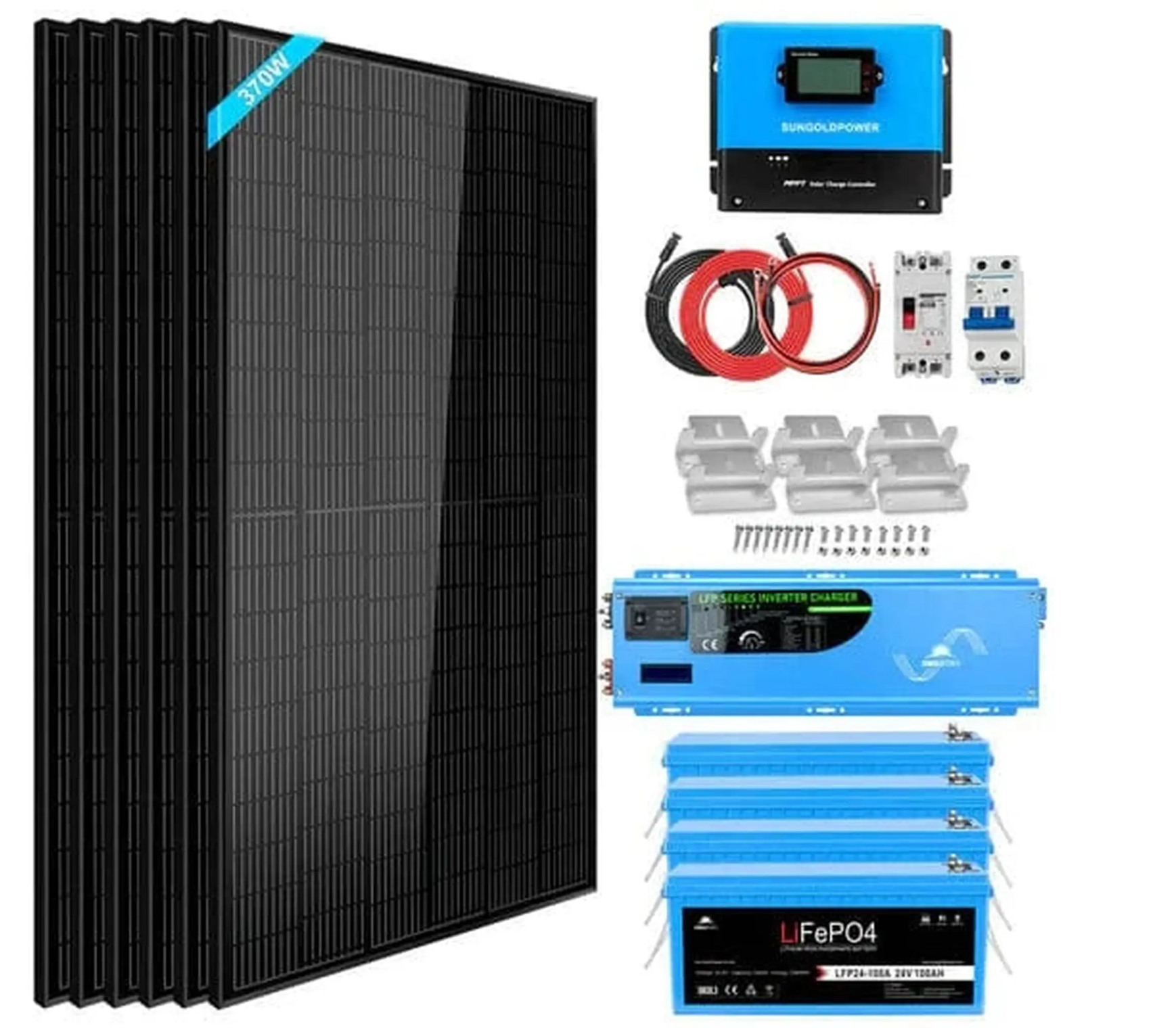

What’s Included:

1 × 6,000W 48V DC to 120V/240V AC inverter/charger (UL1741)
6 × 370W monocrystalline solar panels

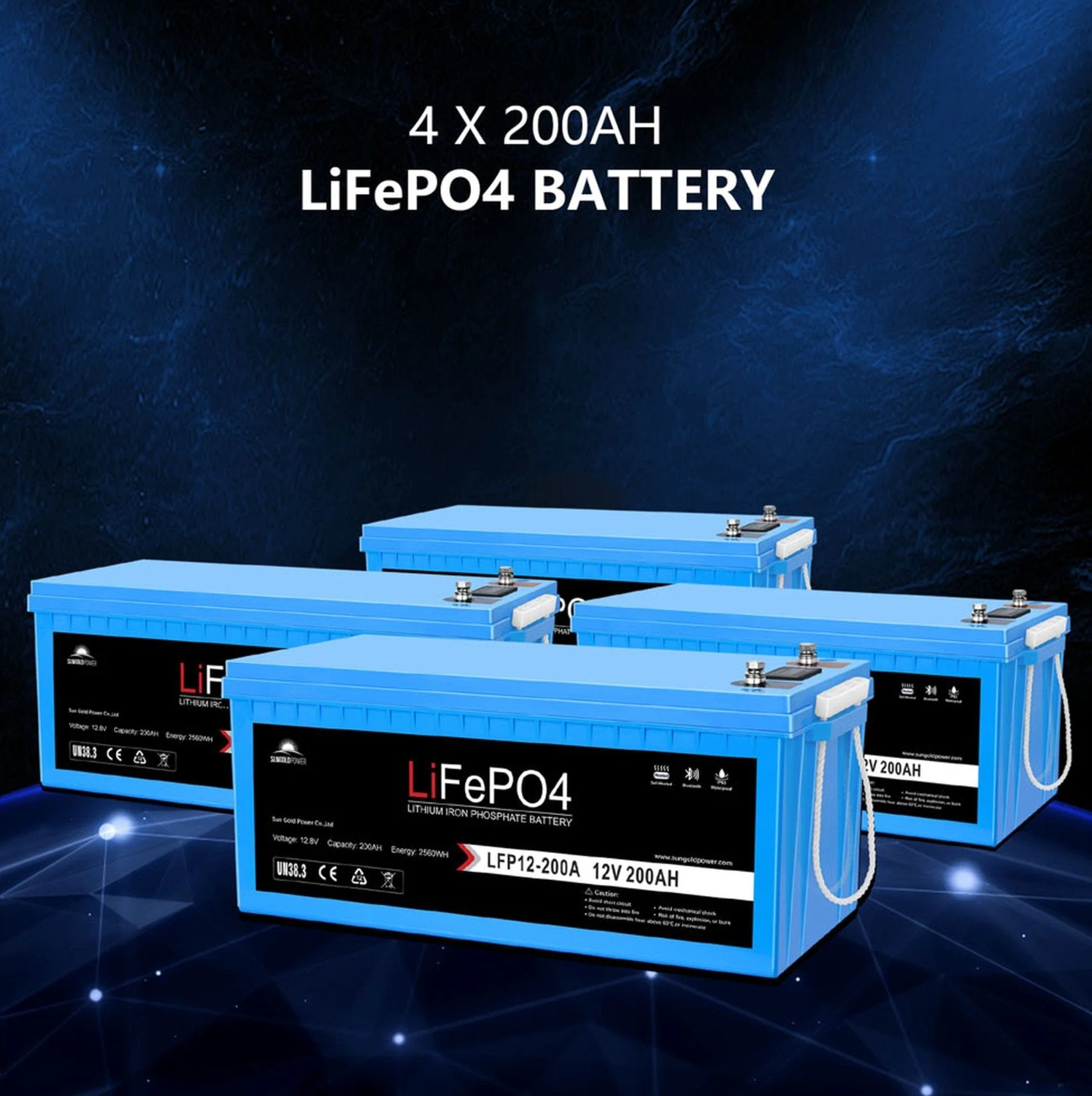

4 × 12V 200Ah LiFePO₄ batteries with Bluetooth
1 × 100A MPPT solar charge controller
1 × 50ft solar extension cable set (inverter PV input)
1 × battery-to-MPPT controller cable set
6 × mounting Z-bracket sets
1 × 200A DC breaker
1 × 25A PV breaker

Manuals:

6000W split phase Inverter/Charger Installation Guide & Owner Manual (PDF)

370 Watt Monocrystalline Solar Panels Installation Guide & Owner Manual (PDF)

Specifications

Parameter	Details

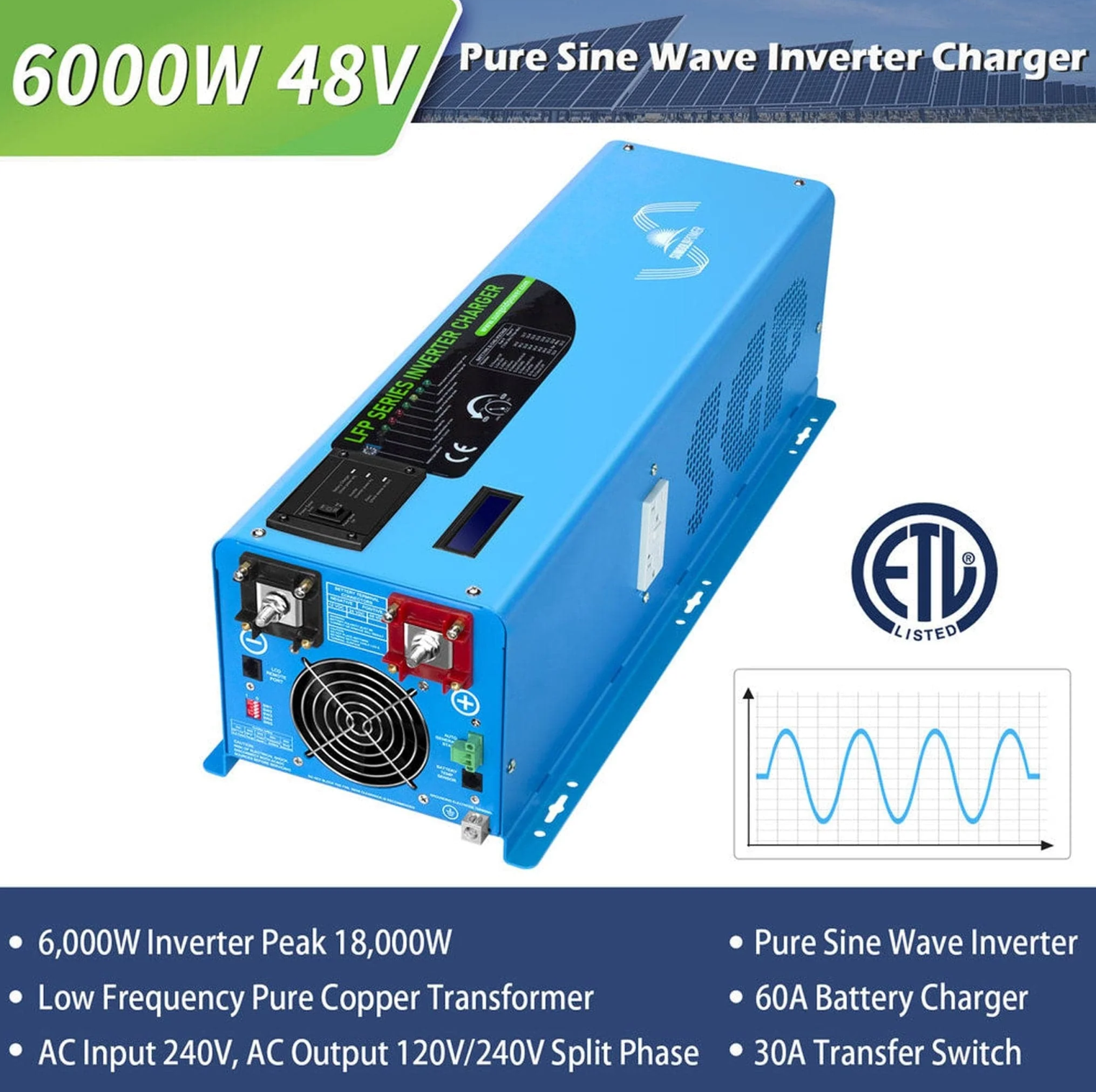

6,000 W Solar Inverter Specifications
AC Output Power	6000 W
Output Waveform	Pure Sine Wave
AC Output Voltage	120V / 240V
Efficiency	>88%
Nominal Input Voltage	48 VDC
Max Charging Current	60 ± 5 A
Dimensions	25.6 × 9.1 × 7.5 inch
Weight	75.8 lbs
Warranty	3 Years

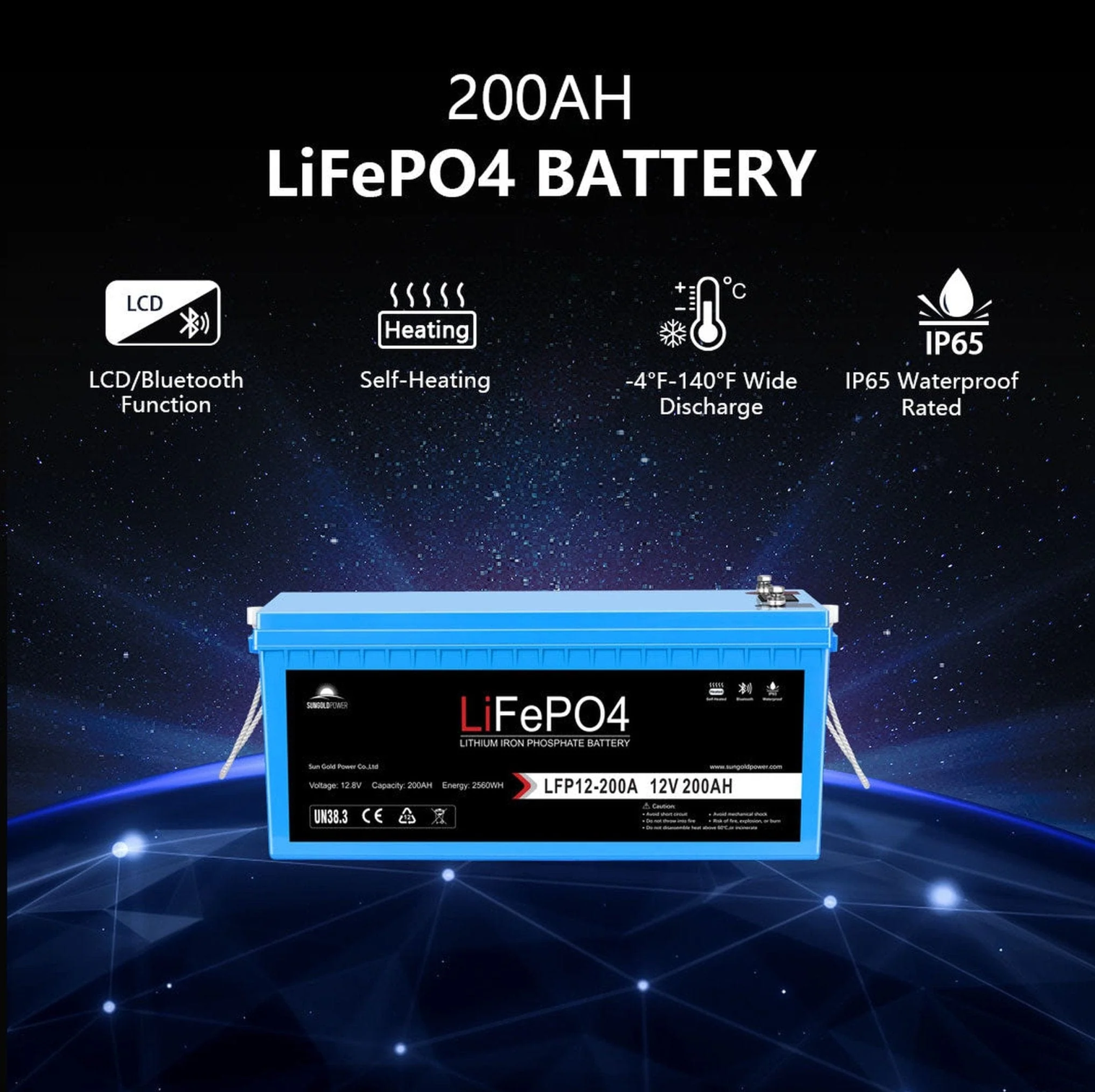

SG48100P LiFePO4 Battery Specifications
Nominal Voltage	12.8 V
Nominal Capacity	200 Ah
Energy	2560 Wh
Voltage Window	10.8 – 14.6 V
Max Continuous Charge Current	150 A
Peak Discharge Current	245 A
Cycle Life	>4000 cycles
Main Feature	Self Heating / IP65
Monitoring	LCD / Bluetooth
Dimensions	19.7 × 9.4 × 9.1 inch
Weight	48.5 lbs
Warranty	5 Years

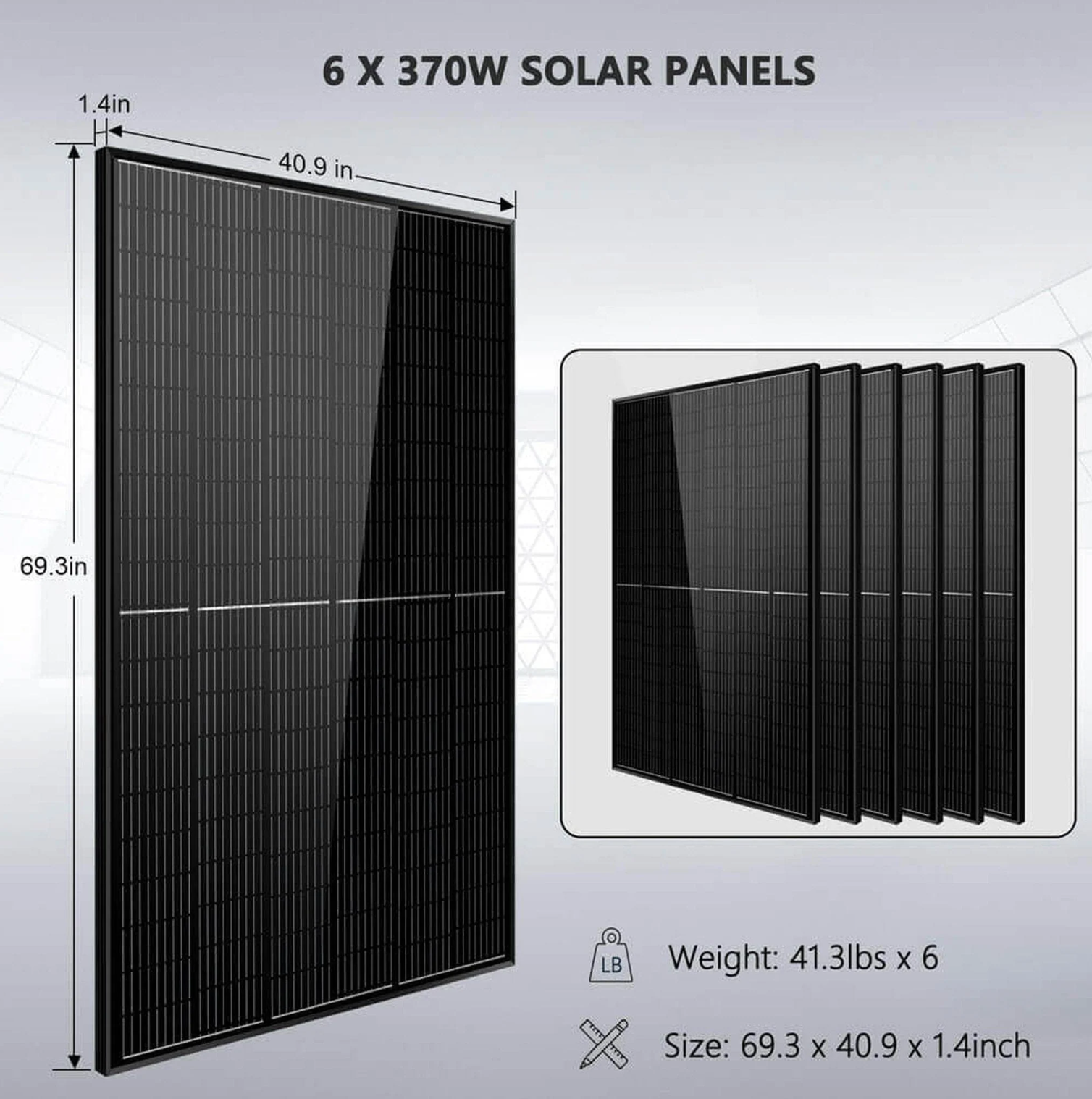

370 W Mono Solar Panel Specifications
Peak Power	370 W
Solar Cell Type	Monocrystalline
Product Tolerance	±3%
Maximum Power Current (IMP)	11.15 A
Maximum Power Voltage (VMP)	33.2 V
Short Circuit Current (ISC)	11.81 A
Open Circuit Voltage (VOC)	40.17 V
Dimensions	63.23 × 44.65 × 1.38 inch
Weight	41.8 lbs
Warranty	25 Years
Certificates	UL61730, TUV, IEC, CEC, CE

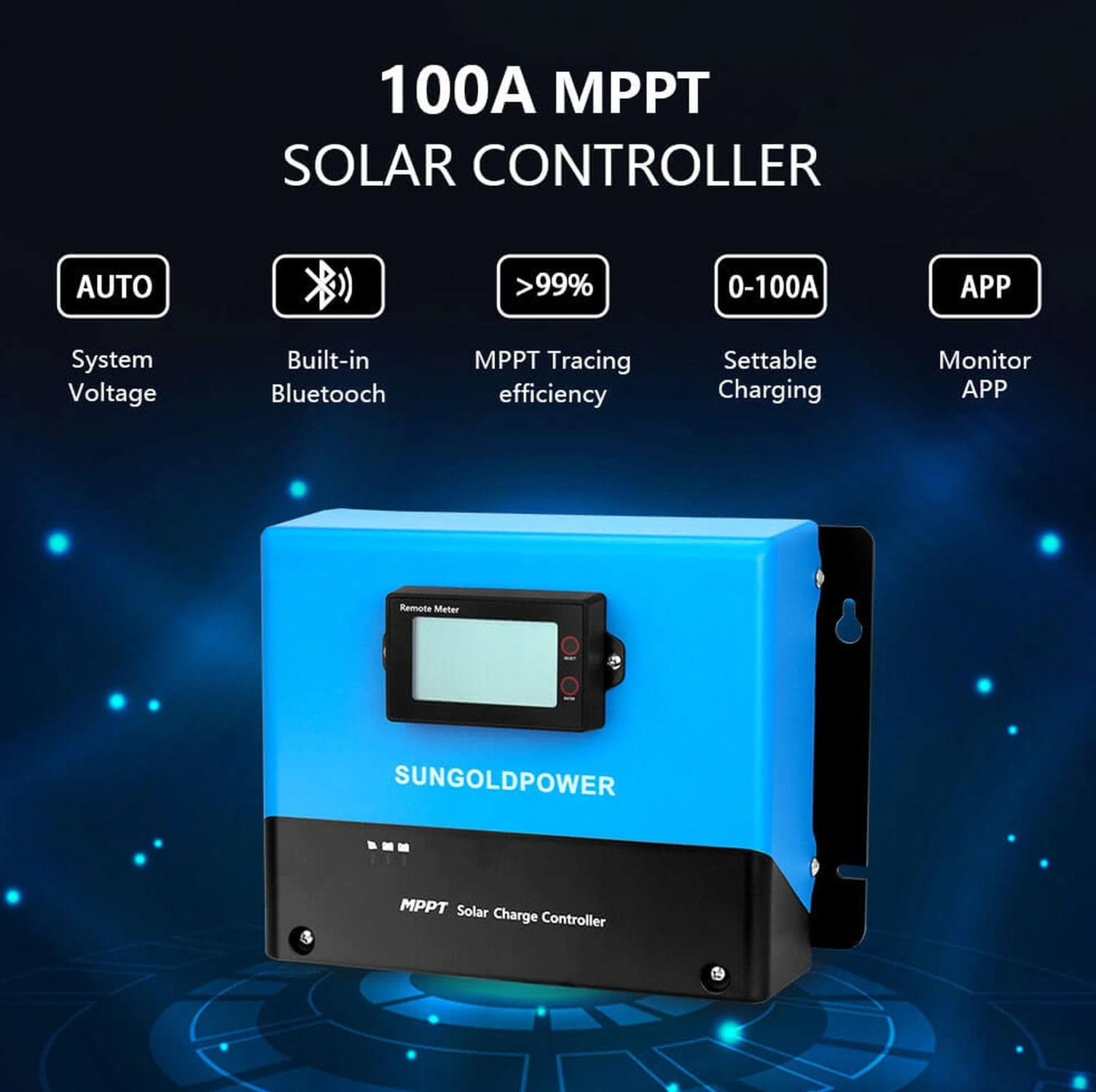

100A MPPT Solar Controller Specifications
System Voltage	12V / 24V / 36V / 48V Auto
Support	Bluetooth and APP monitoring
Max PV Open-Circuit Voltage	250 V
Max PV Short-Circuit Current	70 A
Rated Charging Current	100 A
Settable Charging Current	0 – 100 A
Solar Panel Power Support	12V – 1320 W, 24V – 2640 W, 36V – 3960 W, 48V – 5280 W
MPPT Tracing Efficiency	>99%
Dimensions	12.4 × 8.9 × 4.8 inch
Weight	12.5 lbs
Warranty	3 Years

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
