SunGoldPower Off-Grid Solar Kit | 4kW 12V Split-Phase 120/240V | LiFePO₄ Battery | 1200W Solar Panels

Reliable Split-Phase Off-Grid Solar System for Cabins, RVs, and Emergency Backup

The SunGoldPower SGK-PR4S Off-Grid Solar Kit is a powerful and versatile energy solution built for off-grid living, remote work sites, and backup power. Featuring a 4,000W 12V split-phase inverter, a high-capacity 12V LiFePO₄ battery bank, and 1,200W of solar panels, this kit delivers clean and stable 120V/240V power. Designed for dependable performance and easy installation, it’s ideal for users who need a compact, scalable system that can handle both everyday loads and emergency situations.

Key Features

4,000W Split-Phase Pure Sine Wave Inverter: Provides smooth 120V/240V AC output, supporting both standard and high-demand appliances with clean, low-harmonic power.
4.8kWh LiFePO₄ Battery (12V 400Ah): Durable lithium battery with over 6,000 cycles, built-in BMS protection, and long-lasting energy storage for reliable backup power.
High-Efficiency 300W Solar Panels: Four monocrystalline panels deliver 1,200W of total solar input, ensuring consistent charging and dependable daily energy production.
Advanced MPPT Solar Charging: Built-in MPPT technology maximizes solar harvest and improves charging efficiency in varying sunlight conditions.
Expandable System Design: Easily add more batteries or solar panels as energy needs grow over time.
Complete Plug-and-Play Setup: Includes all core components and wiring for fast installation with minimal setup.

Ideal Applications

Off-grid cabins and small homes
RVs, campers, and van life setups
Emergency backup power systems
Remote workshops, sheds, and agricultural sites
Mobile vendors, field stations, and outdoor events

What’s Included

1 × 4,000W 12V DC to 120V/240V AC split-phase inverter
4 × 300W monocrystalline solar panels
1 × 12V 400Ah LiFePO₄ battery (4.8kWh)
1 × 100A MPPT solar charge controller
4 × mounting Z-bracket sets
1 × 50ft solar extension cable set (inverter PV input)
1 × battery-to-MPPT controller cable set

Specifications

Specification	Details

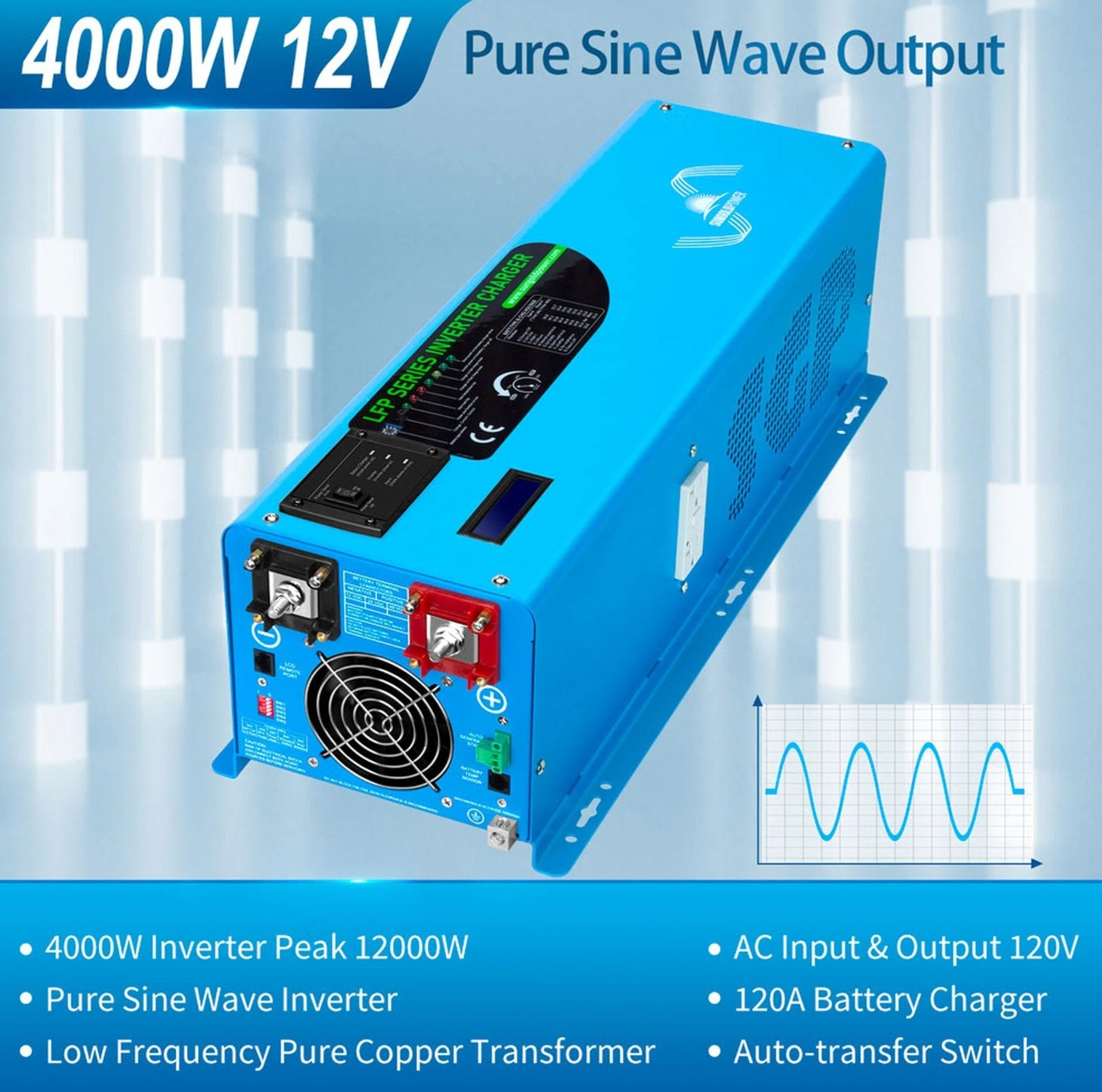

4,000 W Solar Inverter Specifications
AC Output Power	4000 W
Output Waveform	Pure Sine Wave
AC Output Voltage	120V / 240V, 50Hz / 60Hz
Efficiency	>88%
Nominal Input Voltage	12 VDC
Max Charging Current	120 ± 5 A
Dimensions	25.6 × 9.1 × 7.5 inch
Weight	58.9 lbs
Warranty	3 Years

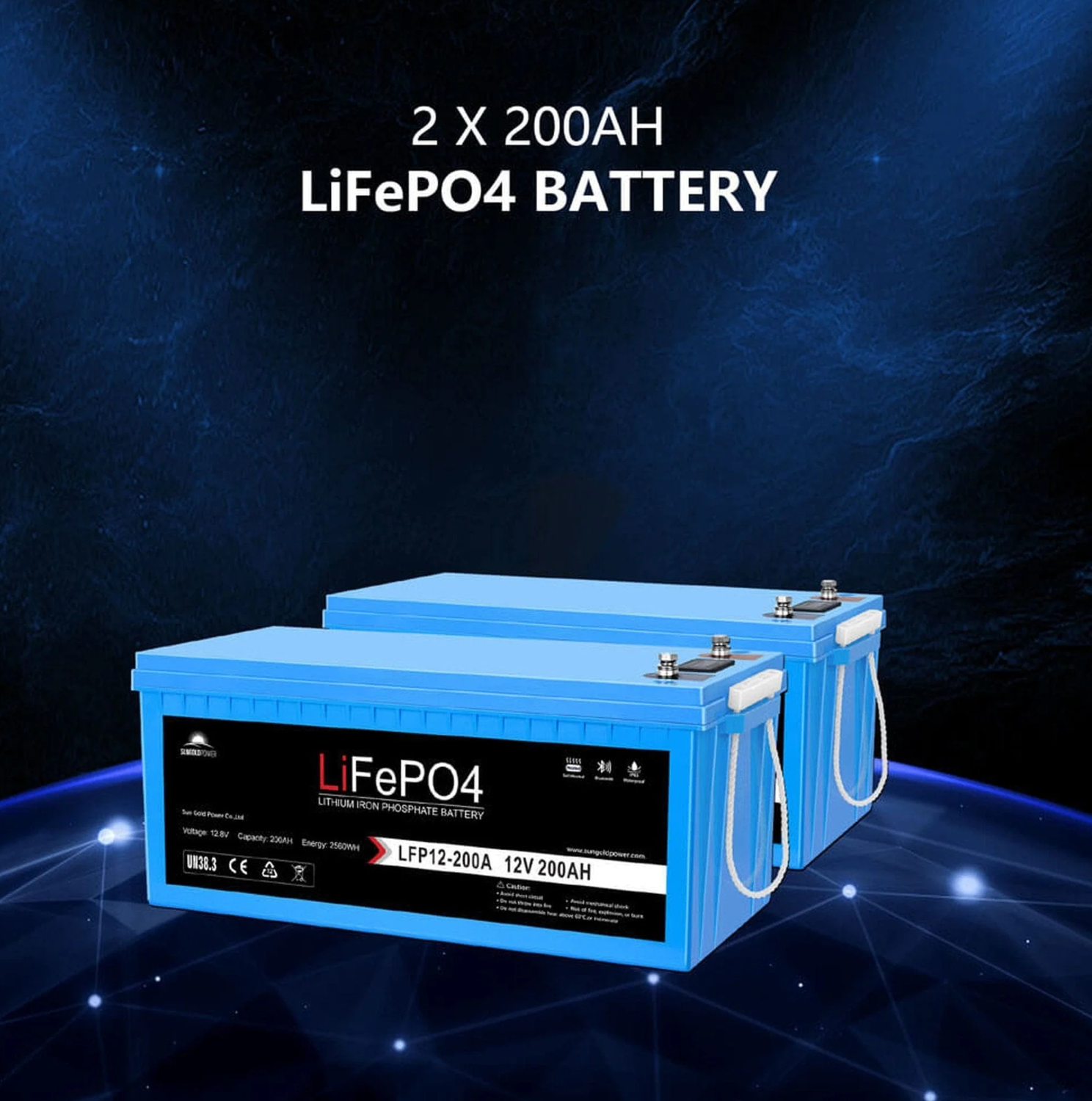

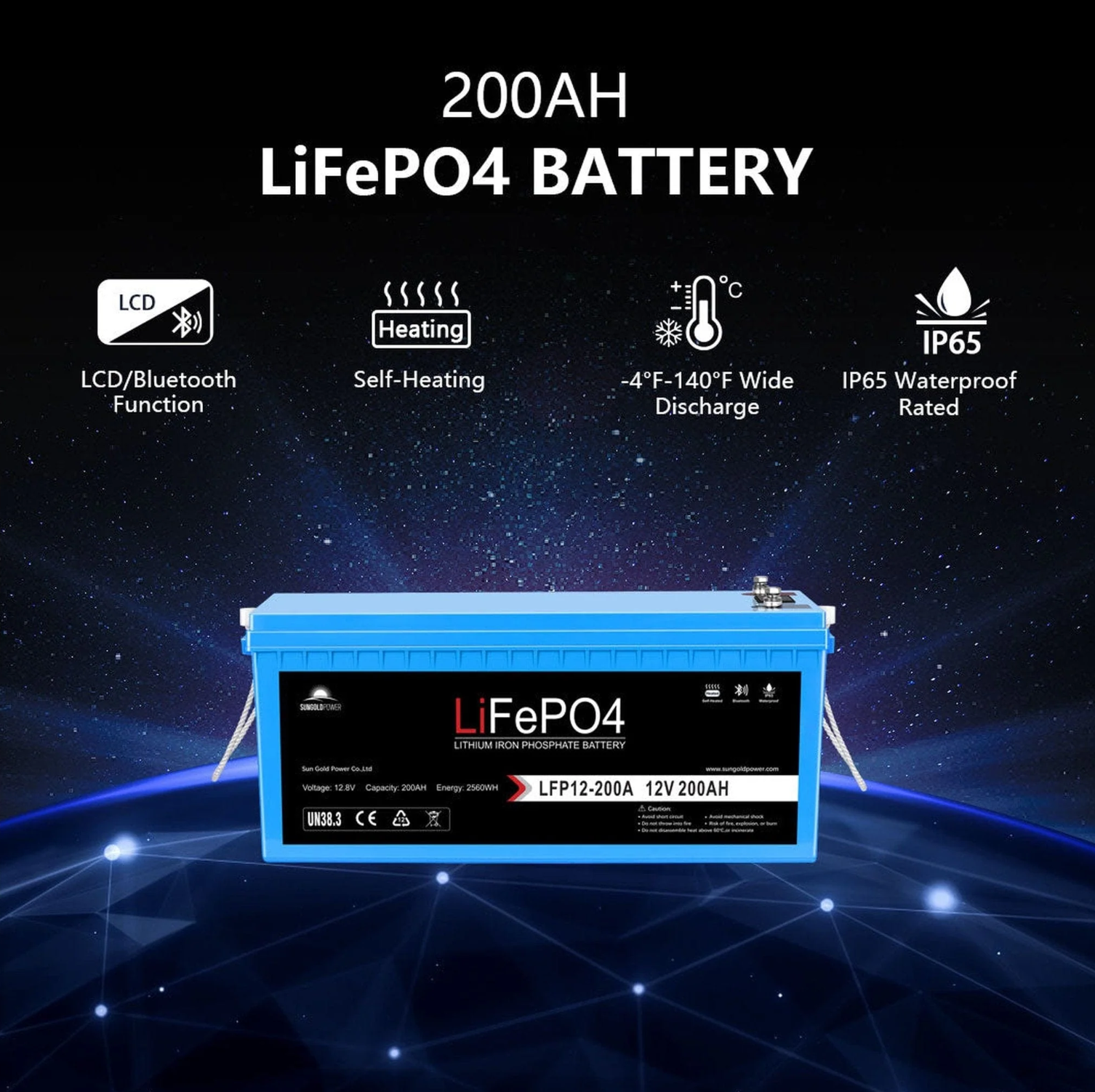

SG48100P LiFePO4 Battery Specifications
Nominal Voltage	12.8 V
Nominal Capacity	200 Ah
Energy	2560 Wh
Voltage Window	10.8 – 14.6 V
Max Continuous Charge Current	150 A
Peak Discharge Current	245 A
Cycle Life	>4000 cycles
Main Feature	Self Heating / IP65
Monitoring	LCD / Bluetooth
Dimensions	19.7 × 9.4 × 9.1 inch
Weight	48.5 lbs
Warranty	5 Years

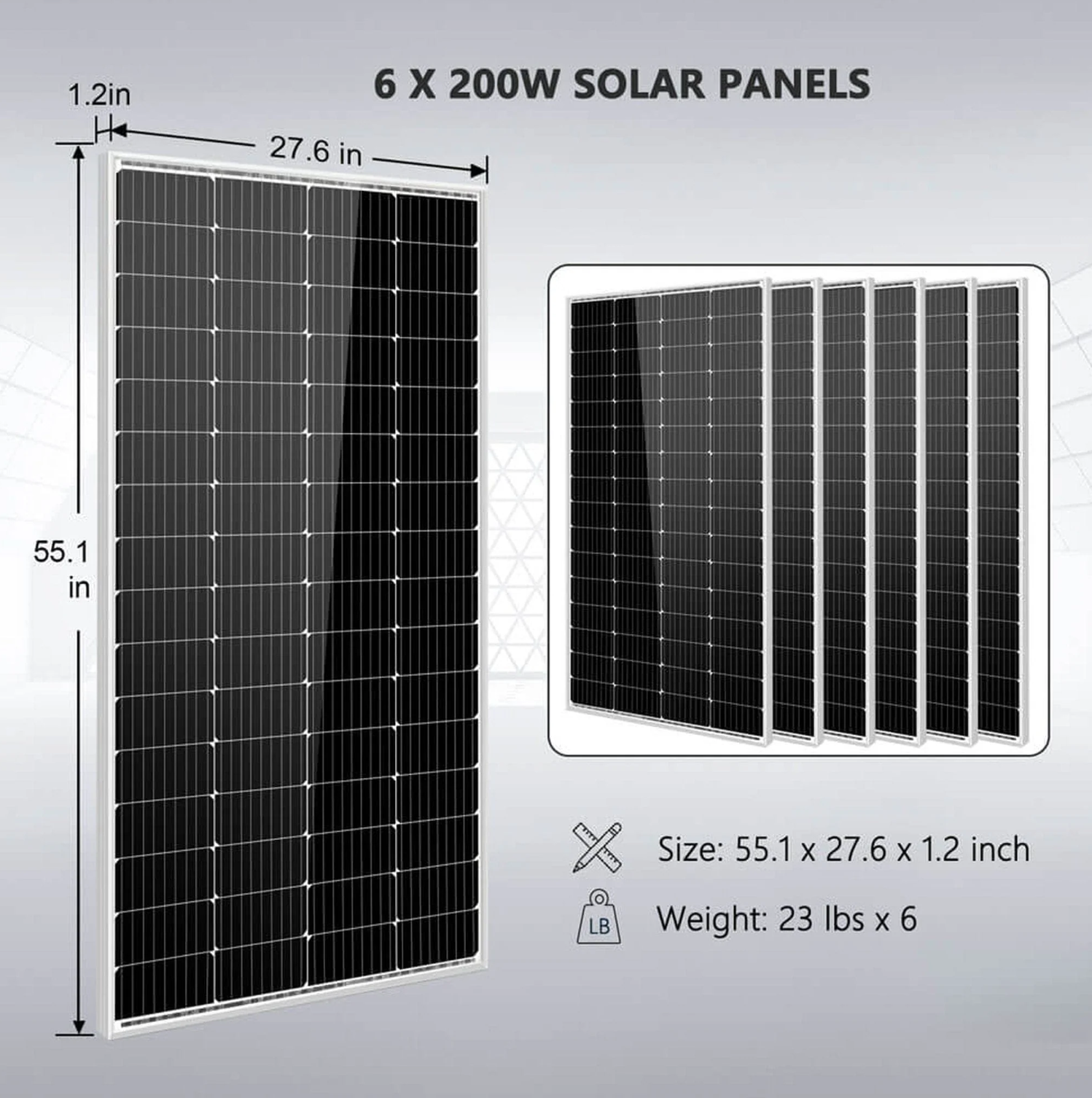

200 W Mono Solar Panel Specifications
Peak Power	200 W
Solar Cell Type	Monocrystalline
Product Tolerance	±3%
Maximum Power Current (IMP)	5.86 A
Maximum Power Voltage (VMP)	36.16 V
Short Circuit Current (ISC)	5.86 A
Open Circuit Voltage (VOC)	43.39 V
Dimensions	55.1 × 27.6 × 1.2 inch
Weight	23.32 lbs
Warranty	25 Years
100A MPPT Solar Controller Specifications
System Voltage	12V / 24V / 36V / 48V Auto
Support	Bluetooth and APP monitoring
Max PV Open-Circuit Voltage	250 V
Max PV Short-Circuit Current	70 A
Rated Charging Current	100 A
Settable Charging Current	0 – 100 A
Solar Panel Power Support	12V – 1320 W, 24V – 2640 W, 36V – 3960 W, 48V – 5280 W
MPPT Tracing Efficiency	>99%
Dimensions	12.4 × 8.9 × 4.8 inch
Weight	12.5 lbs
Warranty	3 Years
Complete Solar Kit Specifications
Max Continuous Output	4000 W
AC Output	120V / 240V
DC Voltage	12 V
Max Solar Input	4000 W
Total Panel Wattage	1200 W
Per Panel Wattage	200 W
Number of Panels	6 pcs
Total Battery Capacity	5.12 kWh
Battery Chemistry	Lithium
Battery Quantity	2 pcs
Battery Specification	12V 200 Ah

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
