SunGoldPower Hybrid Solar Kit | 11.4kW 48V Split-Phase | 51.2kWh Battery

High-Capacity Hybrid Energy Storage System for Large Homes, Commercial & Backup Power

The SunGoldPower SGH-11N5E-s Hybrid Solar Kit is a high-capacity, battery-based energy solution designed for large households, businesses, and demanding power applications. Built around a dual-inverter 22.8kW hybrid system and a massive 51.2kWh LiFePO₄ battery bank, this configuration delivers reliable backup power, scalable energy storage, and flexible operation for both on-grid and off-grid setups. Note: This configuration does not include solar panels, allowing you to integrate existing arrays or custom solar panel selections. Engineered for long-term performance and energy independence, the SGH-11N5E-s provides 120V/240V split-phase output and intelligent energy management to seamlessly balance battery storage, solar input (if added), grid power, or generator sources.

Key Features

22.8kW Hybrid Inverter System: Dual 11.4kW 48V split-phase hybrid inverters support grid-tied, off-grid, and backup operation.
51.2kWh LiFePO₄ Battery Storage: Ten 100Ah 51.2V lithium batteries deliver extensive, long-lasting energy storage for high-demand applications.
Whole-Home & Commercial Power Capability: Supports large homes, workshops, and commercial facilities with stable, continuous energy.
Expandable Battery System: Scalable battery architecture allows future capacity expansion.
Advanced Energy Management: Hybrid inverters intelligently manage power from batteries, solar input (optional), grid, or generators.
Complete, Safety-Focused System: Includes enclosed battery cabinets, heavy-duty cabling, and DC protection for professional-grade installation.
Reliable & Durable: Engineered for long-term performance, safety, and dependable backup power.

Ideal Applications

Large homes and estates
Commercial buildings and workshops
Hybrid on-grid and off-grid energy systems
Homes or businesses with existing solar arrays
Backup power for extended outages and critical loads

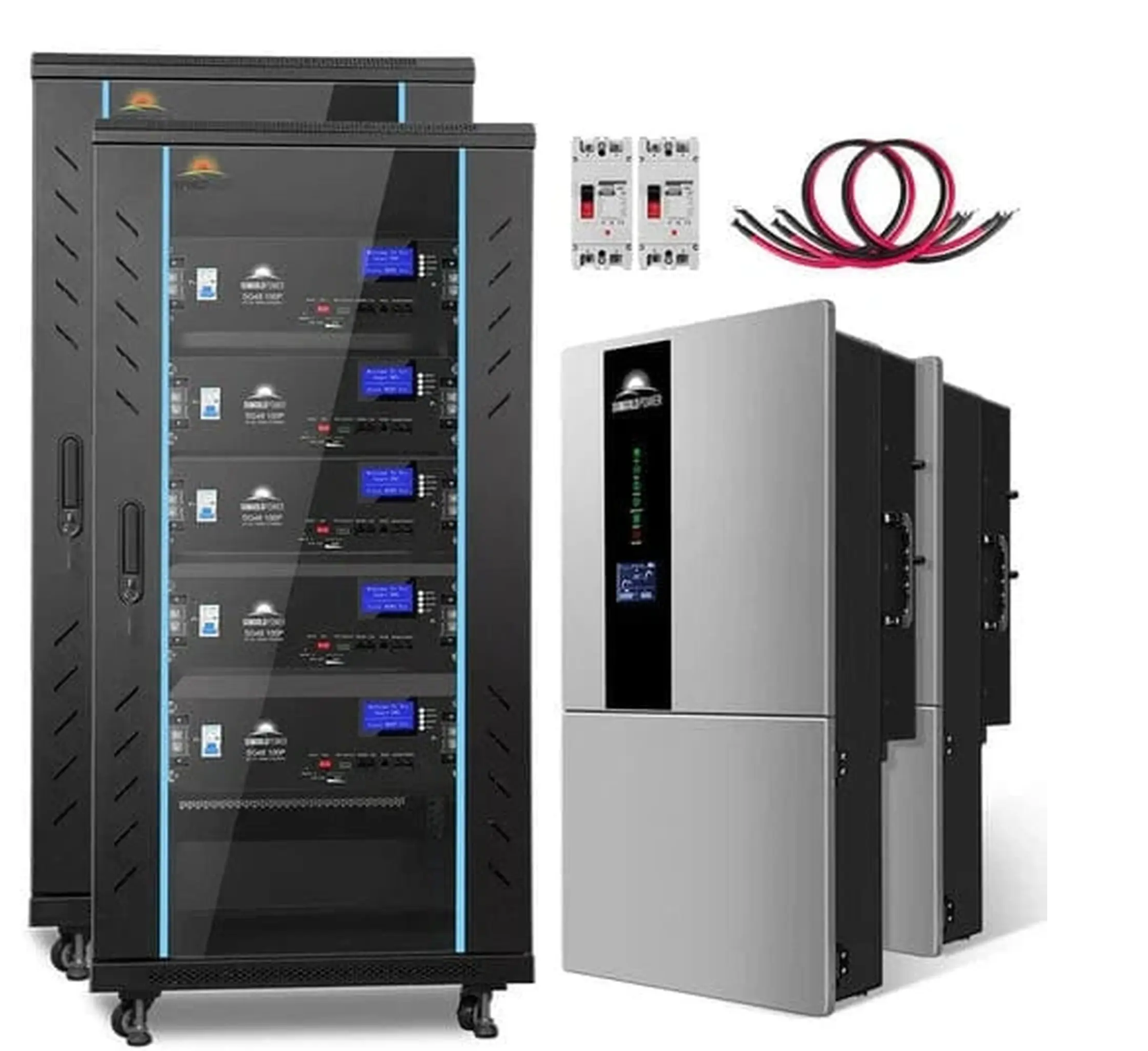

What’s Included

2 × 11.4kW 48V Split-Phase Hybrid Solar Inverters
10 × 100Ah 51.2V LiFePO₄ Batteries (51.2kWh total)

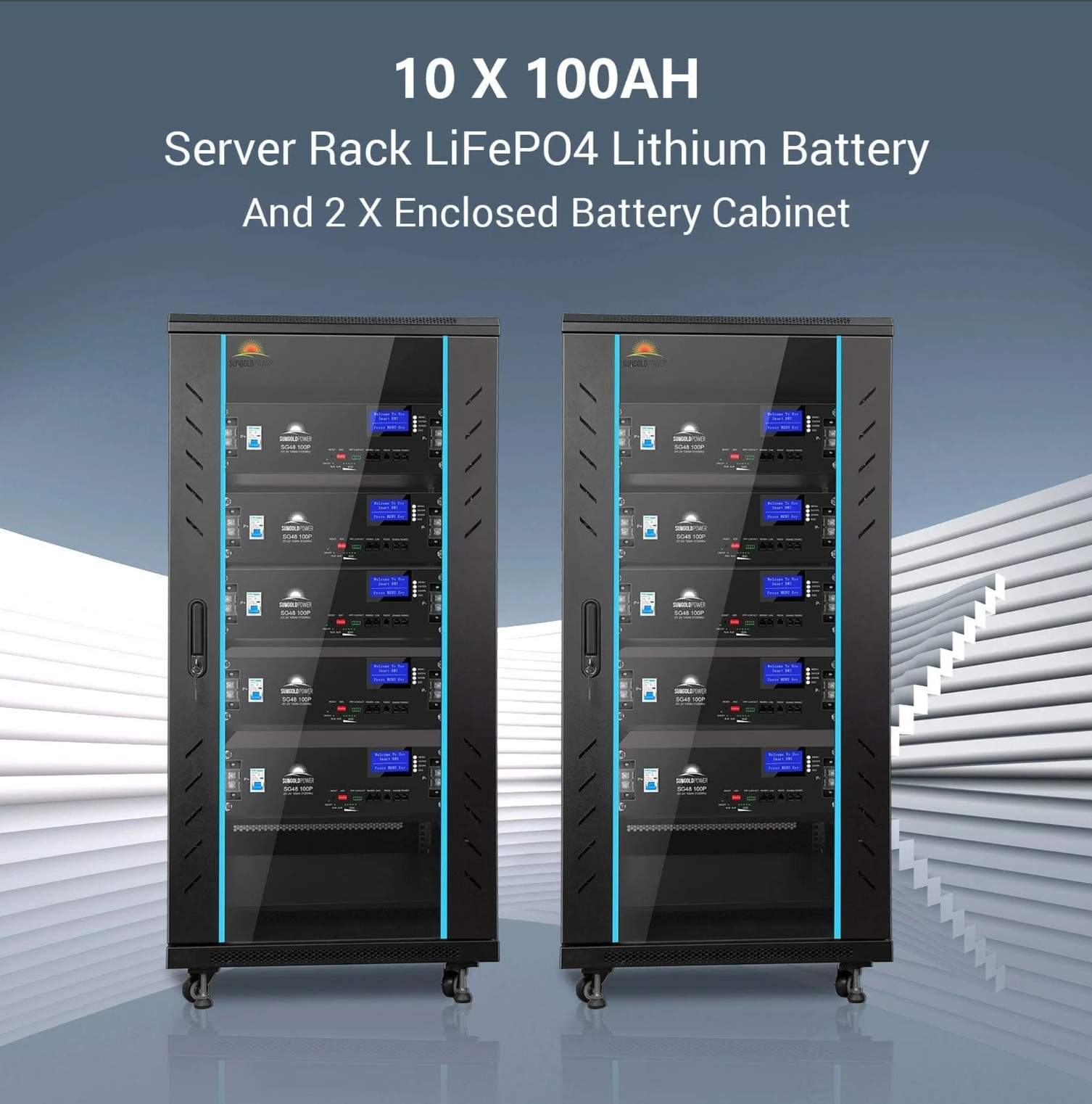

2 × Enclosed Battery Cabinets
2 × 2/0 AWG Battery Cables
2 × 200A DC Breakers

Manuals:

11.4KW 48V Split Phase Hybrid Inverter Installation Guide & Owner Manual (PDF)

LifePo4 5.12KWH Lithium Battery Installation Guide & Owner Manual (PDF)

450 Watts Solar Panels Installation Guide & Owner Manual (PDF)

Specifications

Parameter	Details

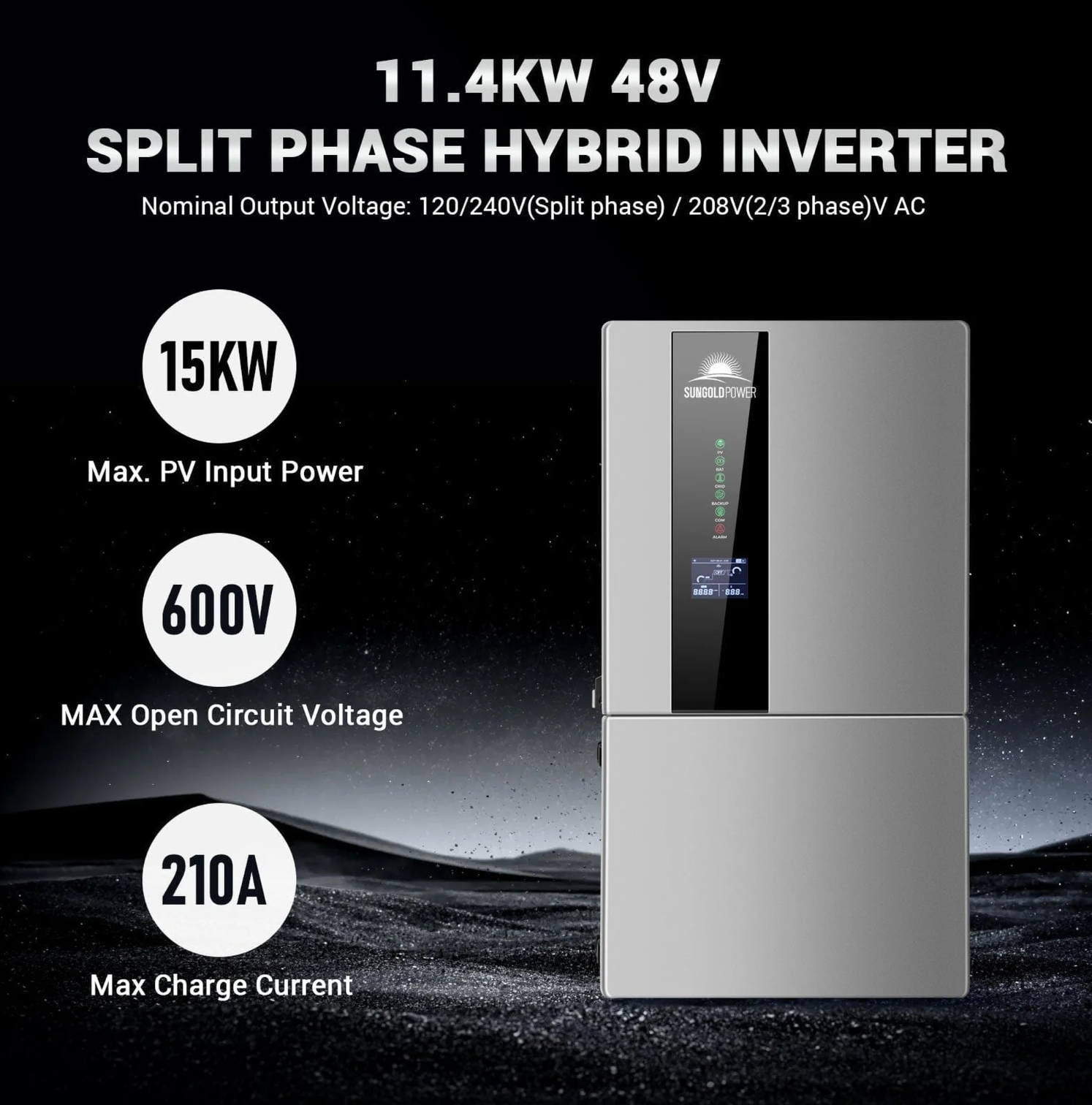

11.4 kW Hybrid Solar Inverter Specifications
AC Output Power	11,400 W
Output Waveform	Pure Sine Wave
AC Output Voltage	120/240 V (Split Phase) / 208 V (2/3 Phase) VAC
Max PV Input Voltage	600 VDC
Max PV Input Power	15,000 W
Max Charging Current	210 A
Max Input Current per MPPT	30 A / 22 A / 22 A
Number of MPPTs	3
Dimensions	16.5 × 31.5 × 9.4 in
Weight	88 lbs
Warranty	10 years
Certifications	UL 1741, CSA, C22.2, UL 1699B

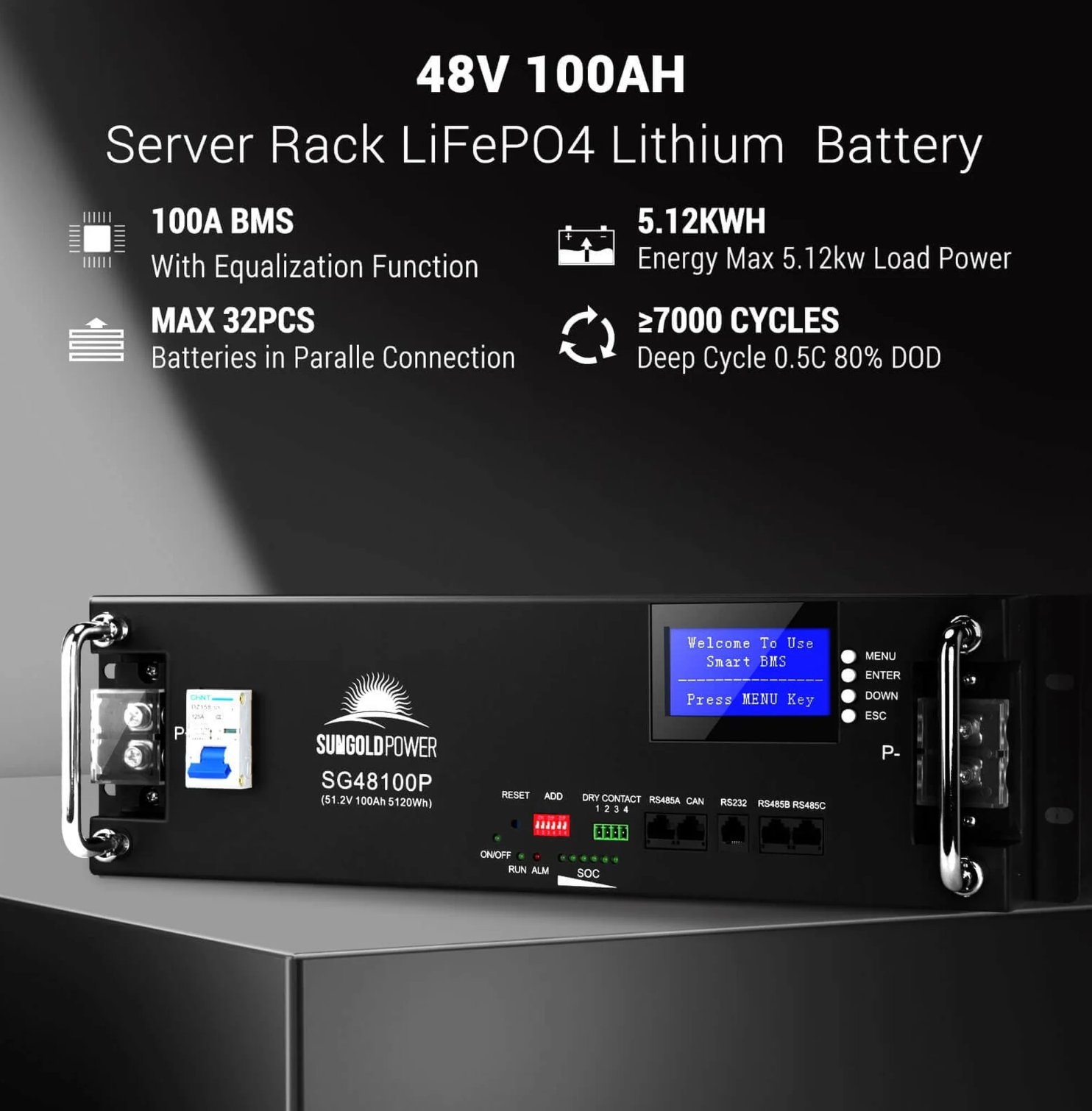

SG48100P LiFePO4 Specifications
Nominal Voltage	51.2 V
Nominal Capacity	100 Ah
Energy Capacity	5.12 kWh
Charge Cut-off Current	5 A
Max Continuous Charge Current	100 A
Discharge Cut-off Voltage	43.2 V
Cycle Life	> 7,000 cycles
Communication Protocols	RS232 / RS485 / CAN (multi-protocol support)
Storage Temperature	14° – 113°F
Dimensions	19.3 × 18.9 × 5.5 in
Weight	93 lbs
Warranty	10 years
Certifications	UL 1973, CE, UN38.3
450 W Bifacial / Mono Panel Specifications
Peak Power (Pmax)	450 W
Solar Cell Type	Bifacial N-Type
Production Tolerance	±3%
Maximum Power Current (Imp)	13.41 A
Maximum Power Voltage (Vmp)	33.57 V
Short Circuit Current (Isc)	14.04 A
Open Circuit Voltage (Voc)	39.54 V
Product Dimensions	67.80 × 44.65 × 1.38 in
Product Weight	46.3 lbs
Warranty	25 years
Certifications	UL 61730, TÜV, IEC, CEC, CE
Complete Solar Kit Specifications
Max Continuous Output	2 × 11.4 kW
AC Output Voltage	120/240 V (Split-phase) / 208 V (2/3 Phase) VAC
DC Voltage	48 V
Max PV Input Power	2 × 15,000 W
Total Wattage of Panels	16,200 W
Per Panel Wattage	450 W
Number of Panels	36 pcs
Total Battery Capacity	51.2 kWh
Battery Chemistry	Lithium
Number of Batteries	10 pcs
Battery Specification	48 V, 100 Ah each

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
