SunGoldPower Hybrid Solar Kit | 11.4kW 48V Split-Phase | 30.72kWh Battery

High-Capacity Hybrid Energy Storage System for Whole-Home & Backup Power

The SunGoldPower SGH-11N3E-s Hybrid Solar Kit is a powerful, battery-based hybrid energy solution designed for homes and businesses that need reliable, scalable energy storage and backup power. Built around an 11.4kW 48V split-phase hybrid inverter and a large 30.72kWh LiFePO₄ battery bank, this system delivers dependable power for on-grid, off-grid, and backup applications.

Note: This configuration does not include solar panels, allowing you to pair it with existing or custom solar arrays.

Engineered for flexibility and long-term reliability, the SGH-11N3E-s supports 120V/240V split-phase output and advanced energy management, enabling seamless coordination between solar input (if added), battery storage, grid, or generator power.

Key Features

11.4kW Split-Phase Hybrid Inverter: Supports grid-tied, off-grid, and backup operation with 48V 120V/240V split-phase output.
30.72kWh LiFePO₄ Battery Storage: Six 100Ah 51.2V lithium batteries provide safe, long-lasting energy storage with high cycle life.
Whole-Home Power Capability: Designed to supply medium to large homes with stable, uninterrupted energy.
Expandable Battery System: Battery capacity can be increased to meet higher or future energy demands.
Advanced Energy Management: Hybrid inverter intelligently manages power from batteries, solar input (optional), grid, or generator.
Complete, Safety-Focused System: Includes enclosed battery cabinet, heavy-duty wiring, and DC protection for secure installation.
Reliable & Durable: Engineered for long-term performance and dependable backup power.

Ideal Applications

Whole-home backup power and energy storage
Hybrid on-grid and off-grid energy systems
Homes with existing solar arrays
Small businesses and commercial facilities
Remote properties and off-grid locations

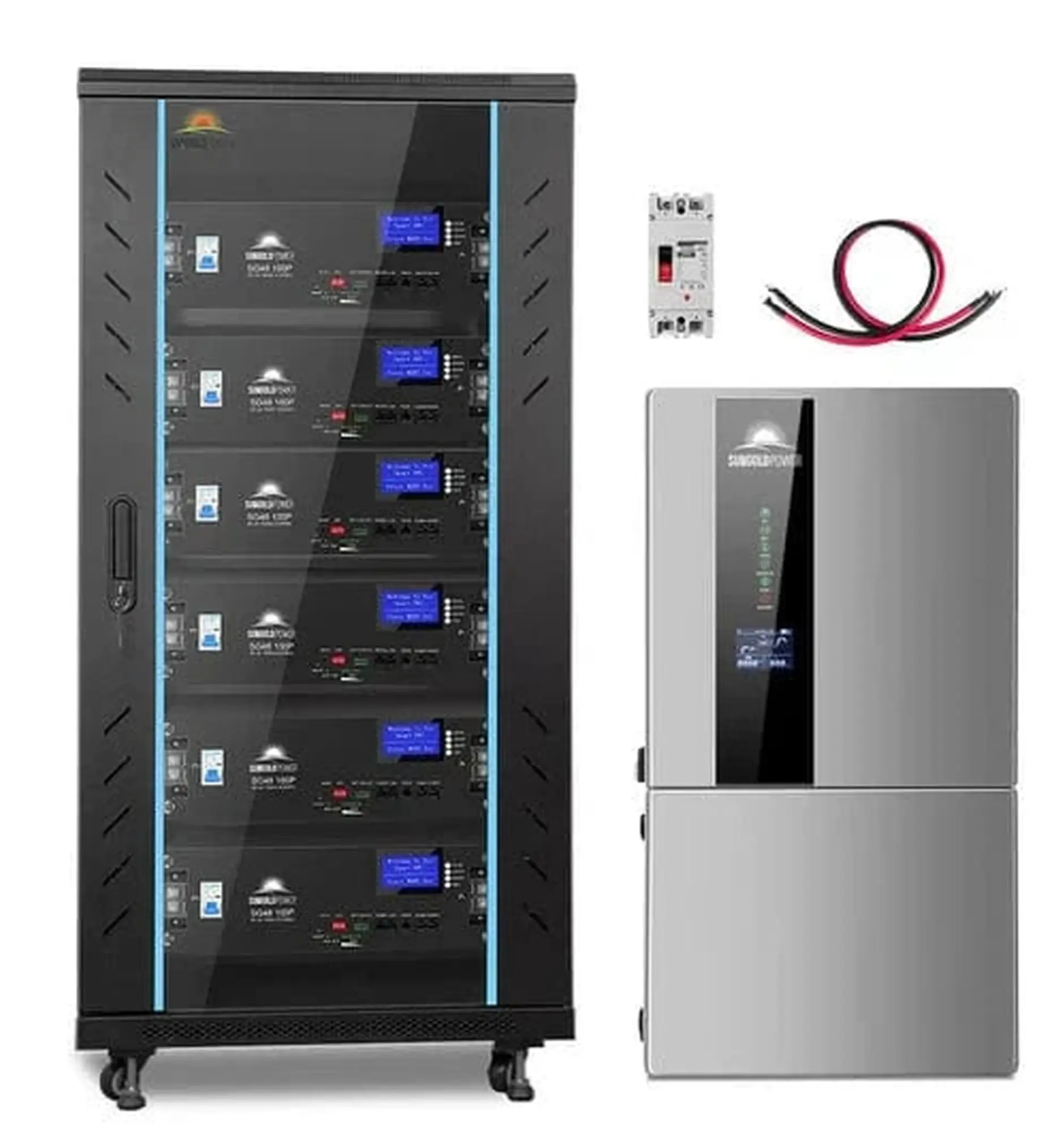

What’s Included

1 × 11.4kW 48V Split-Phase Hybrid Solar Inverter
6 × 100Ah 51.2V LiFePO₄ Batteries (30.72kWh total)

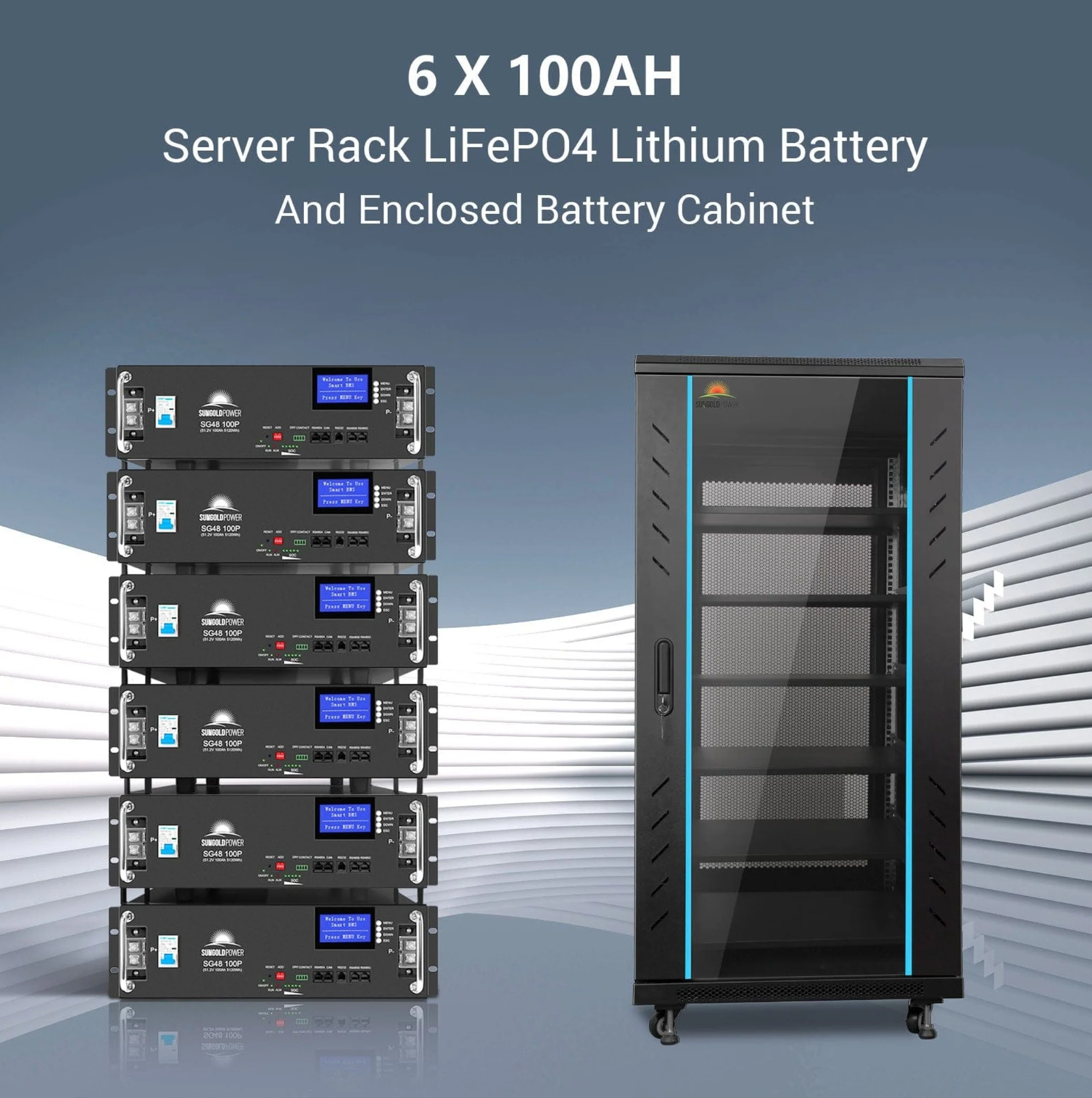

1 × Enclosed Battery Cabinet (for 6 batteries)
1 × 2/0 AWG Battery Cable
1 × 200A DC Breaker

Manuals:

11.4KW 48V Split Phase Hybrid Inverter Installation Guide & Owner Manual (PDF)

LifePo4 5.12KWH Lithium Battery Installation Guide & Owner Manual (PDF)

450 Watts Solar Panels Installation Guide & Owner Manual (PDF)

Specifications

Parameter	Details

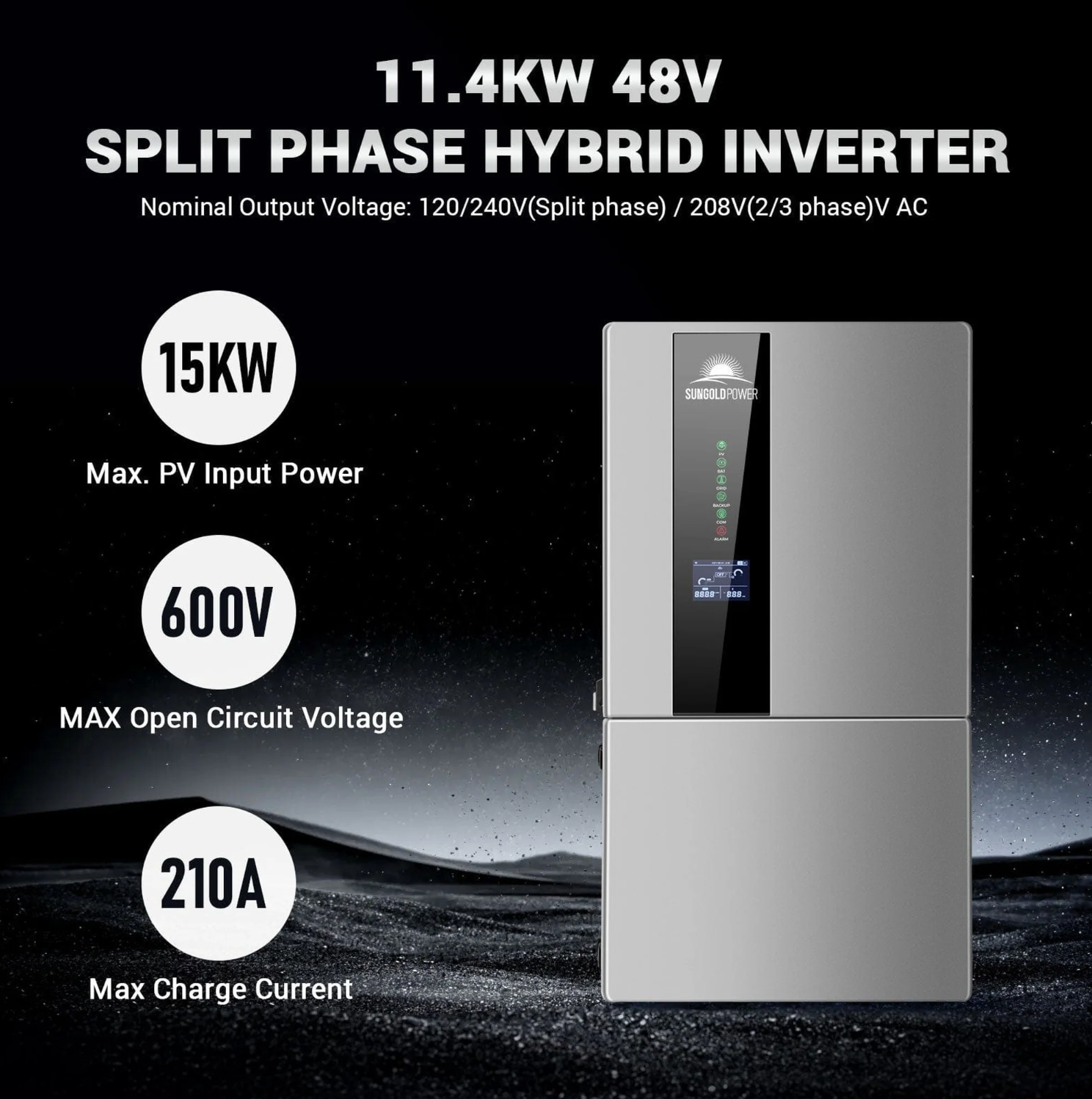

11.4 kW Hybrid Solar Inverter Specifications
AC Output Power	11,400 W
Output Waveform	Pure Sine Wave
AC Output Voltage	120/240 V (Split Phase) / 208 V (2/3 Phase) VAC
Max PV Input Voltage	600 VDC
Max PV Input Power	15,000 W
Max Charging Current	210 A
Max Input Current per MPPT	30 A / 22 A / 22 A
Number of MPPTs	3
Dimensions	16.5 × 31.5 × 9.4 in
Weight	88 lbs
Warranty	10 years
Certifications	UL 1741, CSA, C22.2, UL 1699B

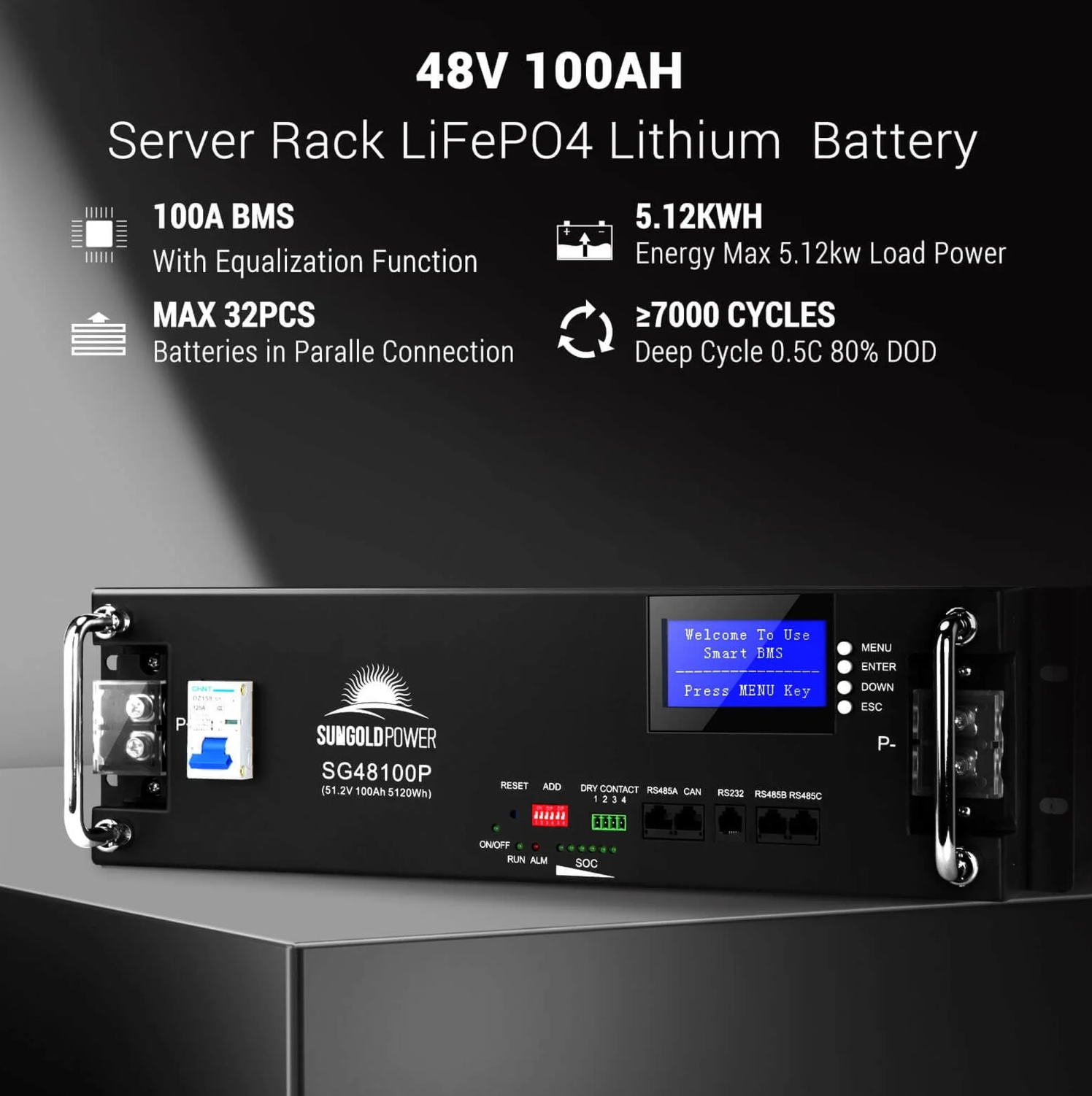

SG48100P LiFePO4 Specifications
Nominal Voltage	51.2 V
Nominal Capacity	100 Ah
Energy Capacity	5.12 kWh
Charge Cut-off Current	5 A
Max Continuous Charge Current	100 A
Discharge Cut-off Voltage	43.2 V
Cycle Life	> 7,000 cycles
Communication Protocols	RS232 / RS485 / CAN (multi-protocol support)
Storage Temperature	14° – 113°F
Dimensions	19.3 × 18.9 × 5.5 in
Weight	93 lbs
Warranty	10 years
Certifications	UL 1973, CE, UN38.3
Complete Solar Kit Specifications
Max Continuous Output	11.4 kW
AC Output Voltage	120/240 V (Split-phase) / 208 V (2/3 Phase) VAC
DC Voltage	48 V
Max PV Input Power	15,000 W
Total Wattage of Panels	12,600 W
Per Panel Wattage	450 W
Number of Panels	28 pcs
Total Battery Capacity	30.72 kWh
Battery Chemistry	Lithium
Number of Batteries	6 pcs
Battery Specification	48 V, 100 Ah each

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
