SunGoldPower Hybrid Solar Kit | 11.4kW 48V Split-Phase | 30.72kWh Battery | 450W Panels (28-Pack)

High-Capacity Hybrid Energy System for Whole-Home, Commercial & Off-Grid Power

The SunGoldPower SGH-11N3E Hybrid Solar Kit is a complete, high-performance energy solution designed for homes and businesses that require reliable, scalable, and energy-efficient power. Featuring an 11.4kW 48V split-phase hybrid inverter, 28 high-efficiency 450W bifacial N-type solar panels, and a robust 30.72kWh LiFePO₄ battery bank, this system delivers continuous solar power, dependable backup energy, and flexible operation for both on-grid and off-grid applications.

Engineered for energy independence and long-term reliability, the SGH-11N3E provides seamless power management, supports heavy electrical loads, and offers expandable battery capacity to meet growing energy demands.

Key Features

11.4kW Split-Phase Hybrid Inverter: Supports grid-tied, off-grid, and backup operation with 48V 120V/240V split-phase output.
28 × 450W Bifacial N-Type Solar Panels: High-efficiency bifacial monocrystalline panels capture sunlight from both sides for increased energy production.
30.72kWh LiFePO₄ Battery Storage: Six 100Ah 51.2V lithium batteries provide safe, long-lasting energy storage with high cycle life.
Whole-Home Power Capability: Designed to supply medium to large homes with stable, uninterrupted energy.
Advanced Energy Management: Hybrid inverter intelligently manages solar, battery, grid, and generator inputs for optimal efficiency.
Complete, Ready-to-Install System: Includes enclosed battery cabinet, solar extension cables, breakers, and heavy-duty wiring for secure installation.
Expandable & Future-Ready: Battery capacity can be expanded to support higher energy demands.

Ideal Applications

Whole-home solar power and energy independence
Hybrid on-grid and off-grid energy systems
Small businesses, workshops, and commercial facilities
Backup power during outages and emergencies
Remote properties and off-grid homes

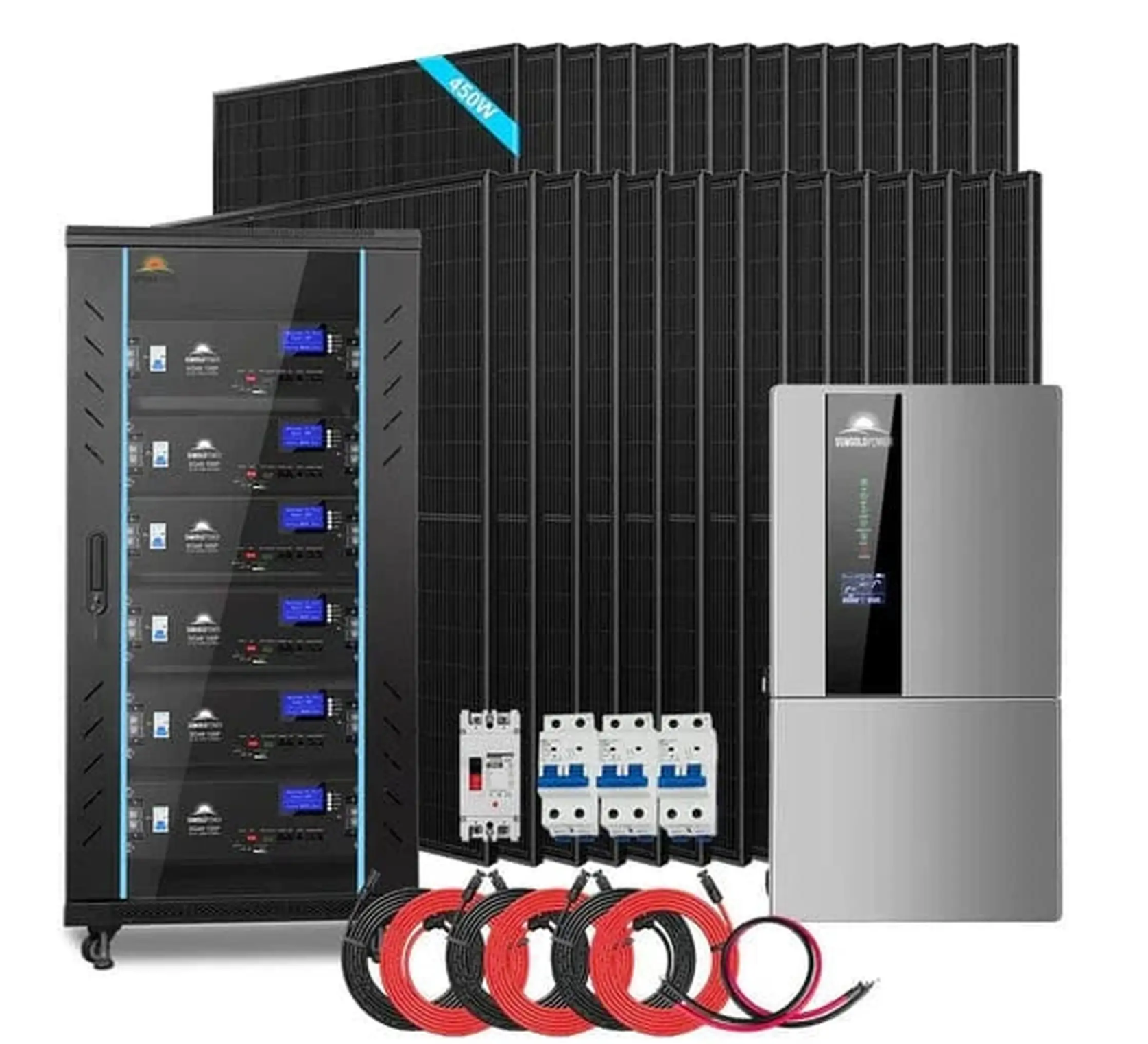

What’s Included

1 × 11.4kW 48V Split-Phase Hybrid Solar Inverter
28 × 450W Bifacial N-Type Monocrystalline Solar Panels

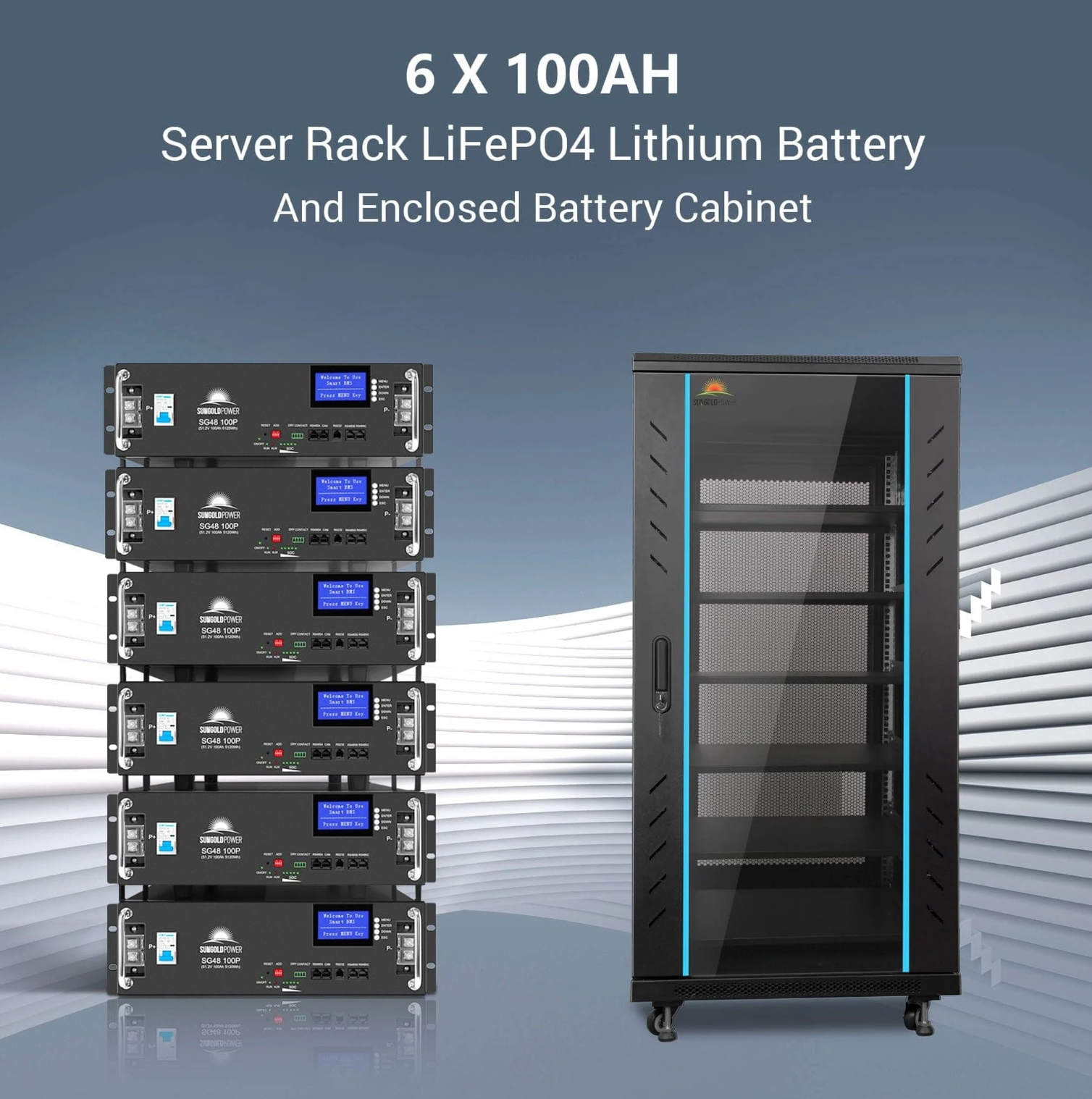

6 × 100Ah 51.2V LiFePO₄ Batteries (30.72kWh total)
1 × Enclosed Battery Cabinet (for 6 batteries)
3 Sets × 50 ft Solar Extension Cables (Inverter PV Input)
1 × 2/0 AWG Battery Cable
3 × 25A PV Breakers
1 × 200A DC Breaker

Manuals:

11.4KW 48V Split Phase Hybrid Inverter Installation Guide & Owner Manual (PDF)

LifePo4 5.12KWH Lithium Battery Installation Guide & Owner Manual (PDF)

450 Watts Solar Panels Installation Guide & Owner Manual (PDF)

Specifications

Specification	Value

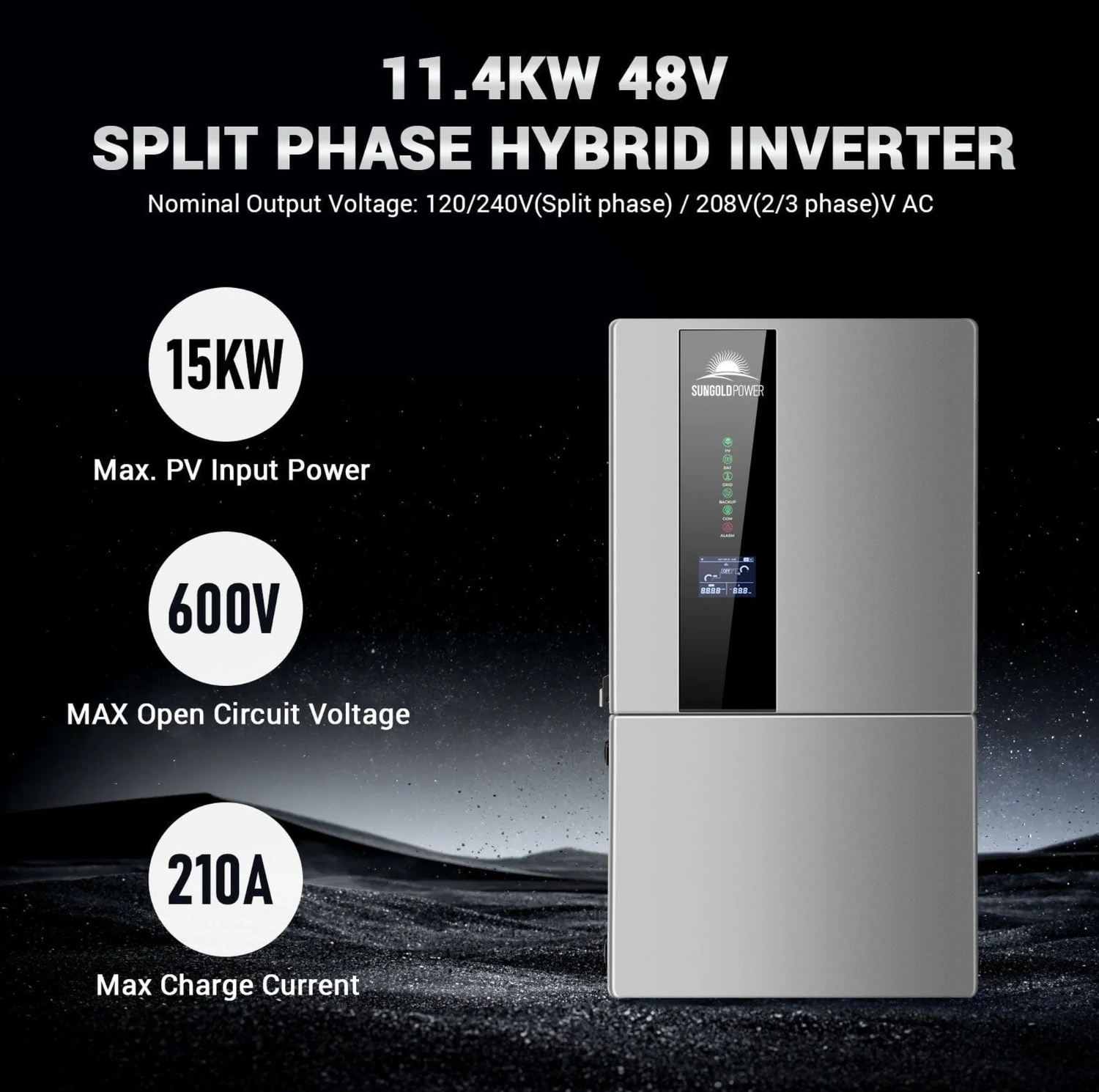

11.4 kW Hybrid Solar Inverter Specifications
AC Output Power	11,400 W
Output Waveform	Pure Sine Wave
AC Output Voltage	120/240 V (Split Phase) / 208 V (2/3 Phase) VAC
Max PV Input Voltage	600 VDC
Max PV Input Power	15,000 W
Max Charging Current	210 A
Max Input Current per MPPT	30 A / 22 A / 22 A
Number of MPPTs	3
Dimensions	16.5 × 31.5 × 9.4 in
Weight	88 lbs
Warranty	10 years
Certifications	UL 1741, CSA, C22.2, UL 1699B

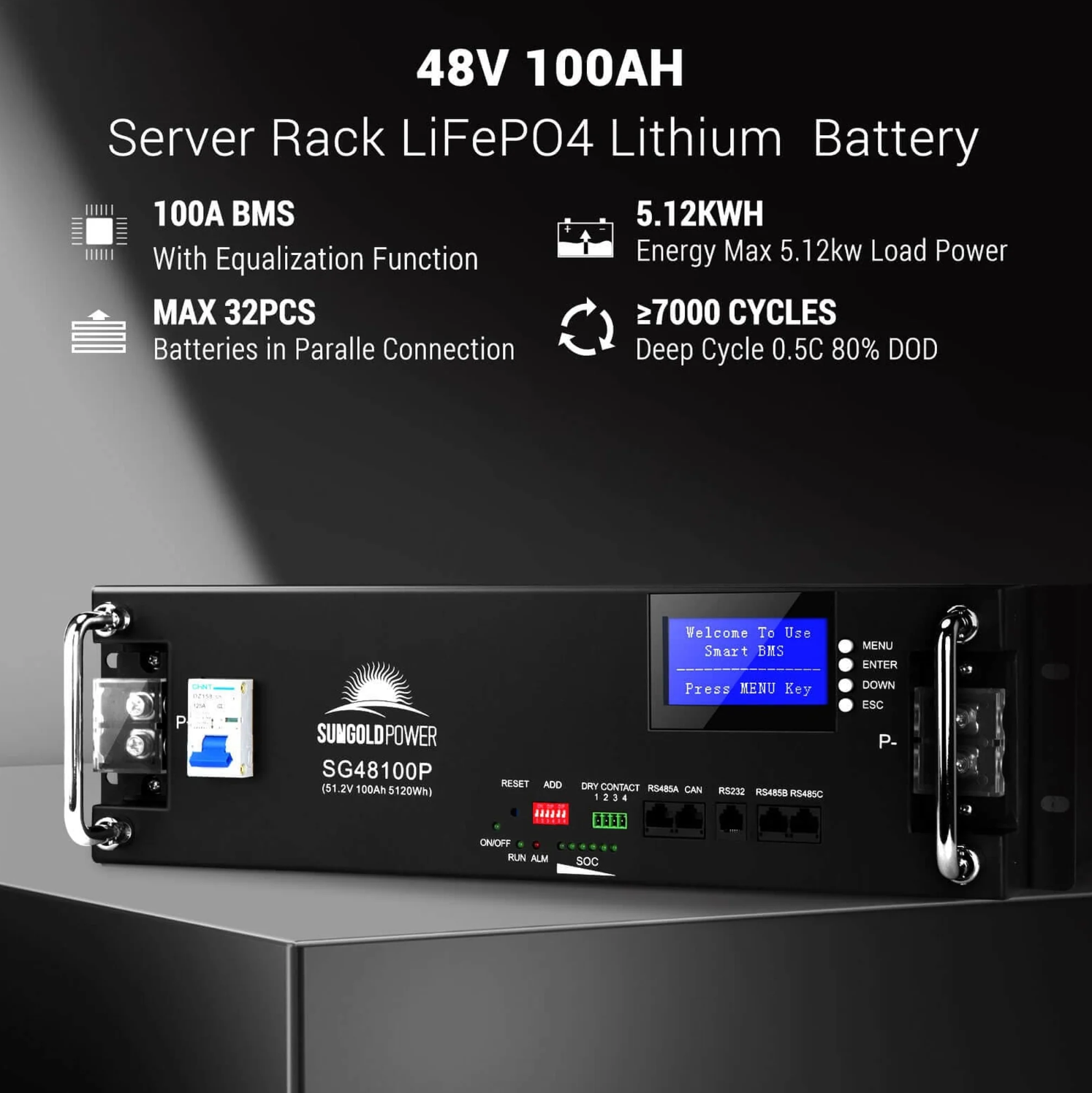

SG48100P LiFePO4 Specifications
Nominal Voltage	51.2 V
Nominal Capacity	100 Ah
Energy Capacity	5.12 kWh
Charge Cut-off Current	5 A
Max Continuous Charge Current	100 A
Discharge Cut-off Voltage	43.2 V
Cycle Life	> 7,000 cycles
Communication Protocols	RS232 / RS485 / CAN (multi-protocol support)
Storage Temperature	14° – 113°F
Dimensions	19.3 × 18.9 × 5.5 in
Weight	93 lbs
Warranty	10 years
Certifications	UL 1973, CE, UN38.3
450 W Bifacial / Mono Solar Panel Specifications
Peak Power (Pmax)	450 W
Solar Cell Type	Bifacial N-Type
Production Tolerance	±3%
Maximum Power Current (Imp)	13.41 A
Maximum Power Voltage (Vmp)	33.75 V
Short Circuit Current (Isc)	14.04 A
Open Circuit Voltage (Voc)	39.54 V
Product Dimensions	67.80 × 44.65 × 1.38 in
Product Weight	46.3 lbs
Warranty	25 years
Certifications	UL 61730, TÜV, IEC, CEC, CE
Complete Solar Kit Specifications
Max Continuous Output	11.4 kW
AC Output Voltage	120/240 V (Split-phase) / 208 V (2/3 Phase) VAC
DC Voltage	48 V
Max PV Input Power	15,000 W
Total Wattage of Panels	12,600 W
Per Panel Wattage	450 W
Number of Panels	28 pcs
Total Battery Capacity	30.72 kWh
Battery Chemistry	Lithium
Number of Batteries	6 pcs
Battery Specification	48 V, 100 Ah each

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
