SunGoldPower Hybrid Solar Kit | 11.4kW 48V Split-Phase | 20.48kWh Battery | 450W Panels (16-Pack)

Complete Hybrid Energy System for Whole-Home, Backup & Off-Grid Power

The SunGoldPower SGH-11N2E Hybrid Solar Kit is a powerful, all-in-one energy solution designed to provide reliable electricity for homes, businesses, and remote properties. Featuring an 11.4kW 48V split-phase hybrid inverter, 16 high-efficiency 450W bifacial N-type solar panels, and a robust 20.48kWh LiFePO₄ battery bank, this system delivers dependable solar generation, energy storage, and backup power in a single integrated package.

Engineered for flexibility and energy independence, the SGH-11N2E supports grid-tied, off-grid, and hybrid operation. Its expandable battery design and 120V/240V split-phase output make it ideal for powering standard household appliances, high-demand equipment, and critical loads with uninterrupted performance.

Key Features

11.4kW Hybrid Solar Inverter: Supports grid-tied, off-grid, and backup operation with 48V split-phase 120V/240V output.
16 × 450W Bifacial N-Type Solar Panels: High-efficiency bifacial monocrystalline panels capture sunlight from both sides for increased energy production.
20.48kWh LiFePO₄ Battery Storage: Four 100Ah 51.2V lithium batteries provide safe, long-lasting energy storage with high cycle life and expandability.
Whole-Home Power Capability: Designed to support medium to large homes with reliable, continuous energy availability.
Smart Energy Management: Hybrid inverter intelligently balances solar, battery, and grid power for optimized efficiency and uninterrupted supply.
Complete, Ready-to-Install System: Includes enclosed battery cabinet, cables, breakers, and essential components for a secure installation.
Expandable & Future-Ready: Battery capacity can be expanded to meet growing energy demands.

Ideal Applications

Whole-home solar power and energy independence
Hybrid on-grid and off-grid solar systems
Backup power for outages and emergencies
Small businesses and office energy solutions
Remote properties, cabins, and off-grid homes

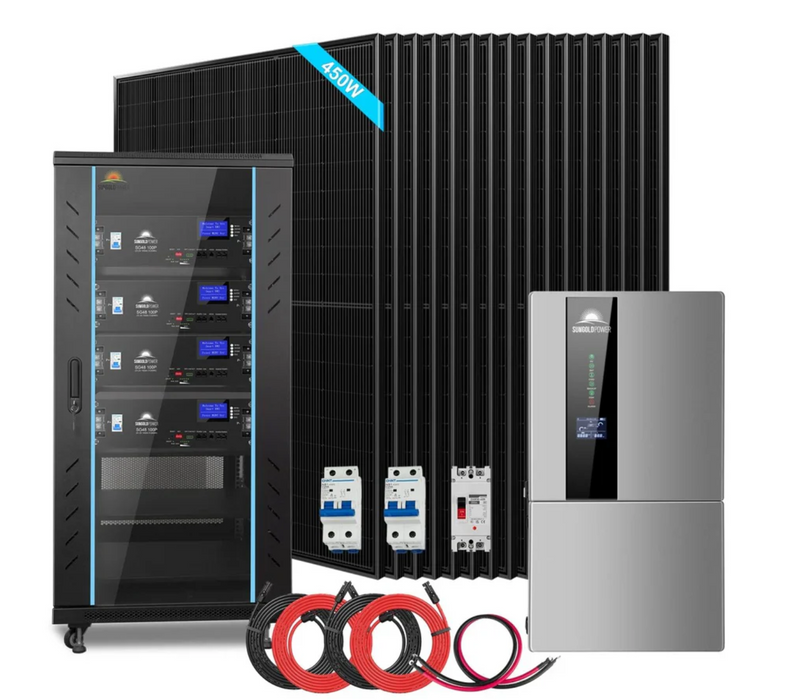

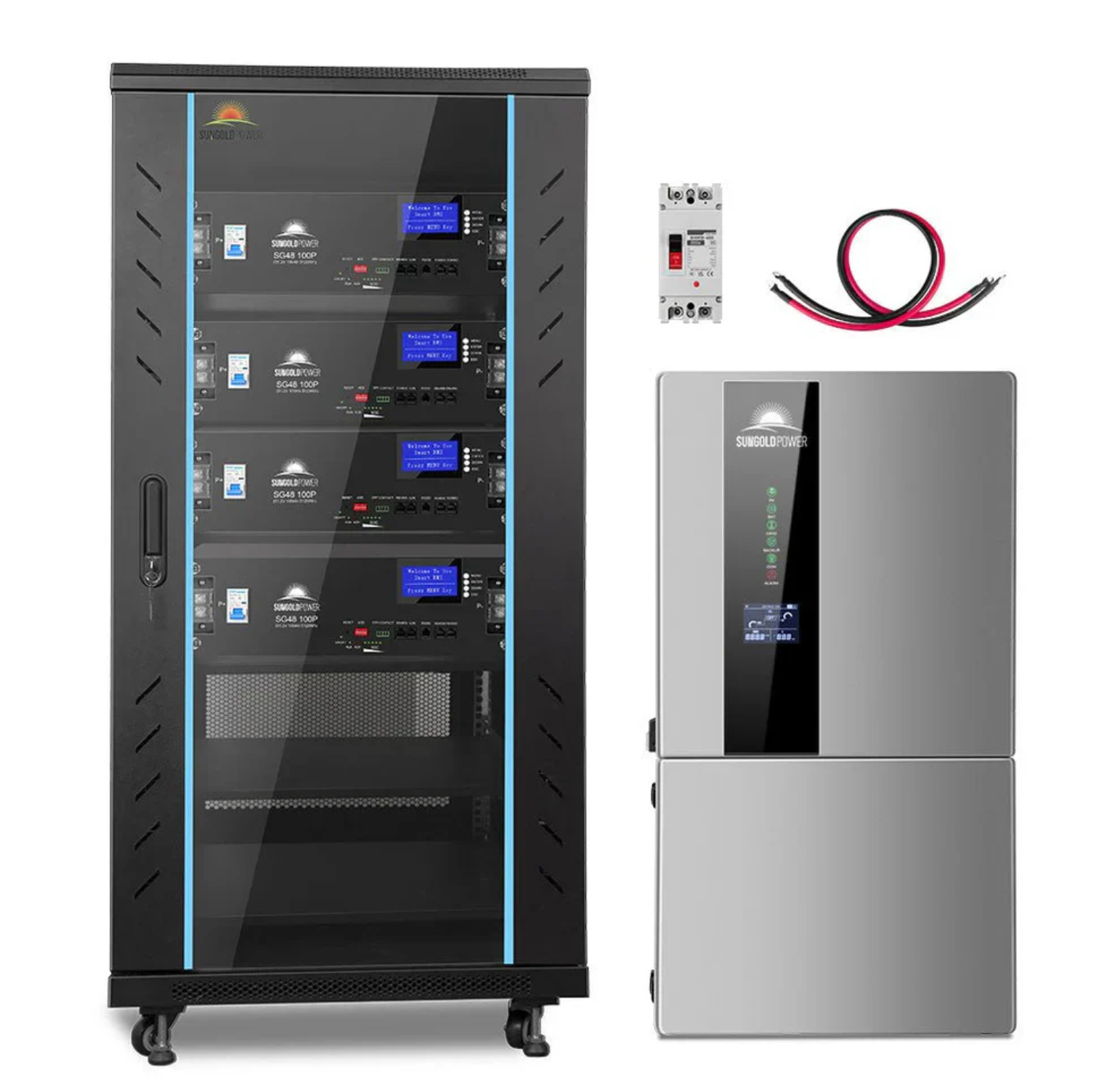

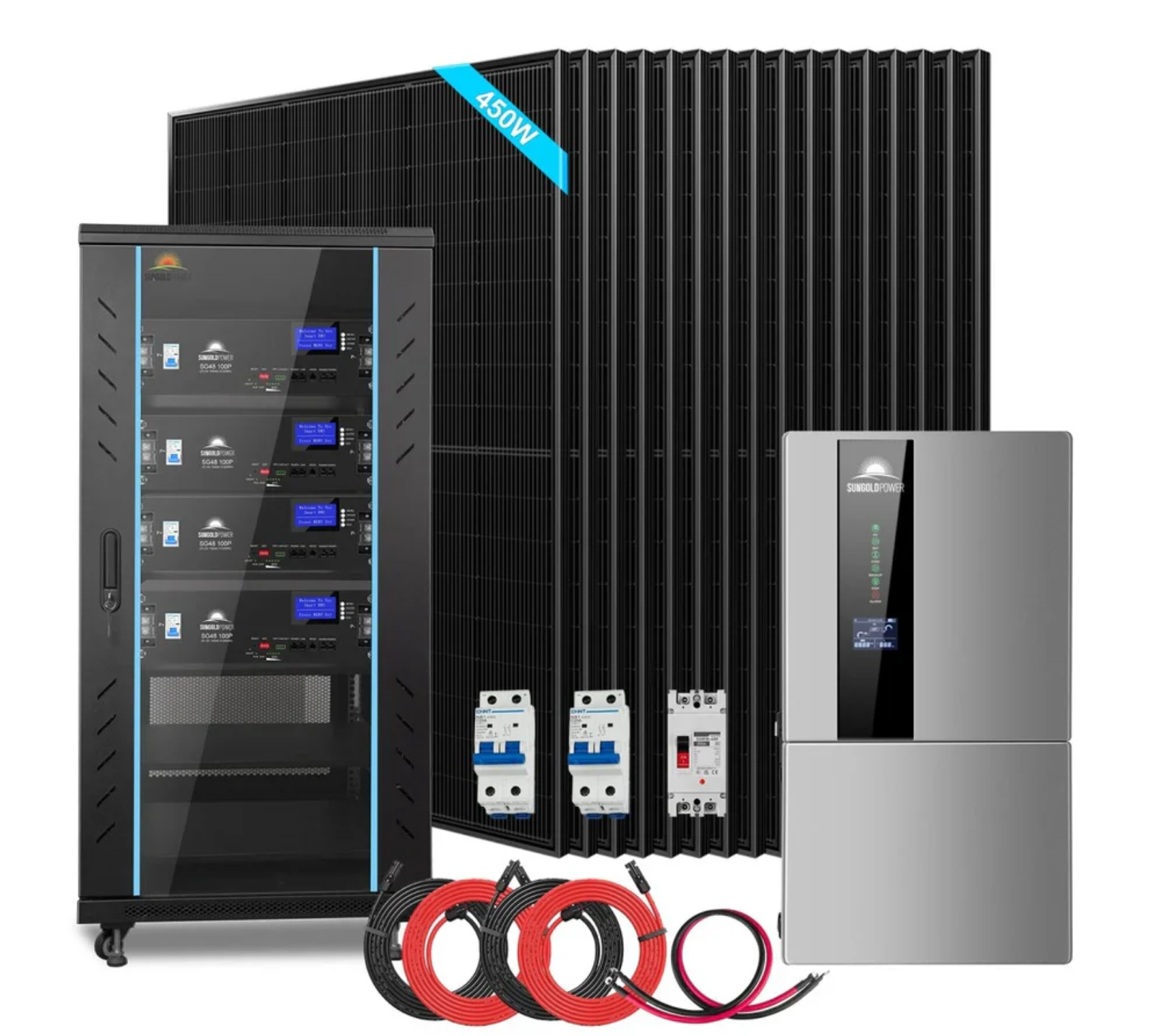

What’s Included

1 × 11.4kW 48V Split-Phase Hybrid Solar Inverter
16 × 450W Bifacial N-Type Monocrystalline Solar Panels

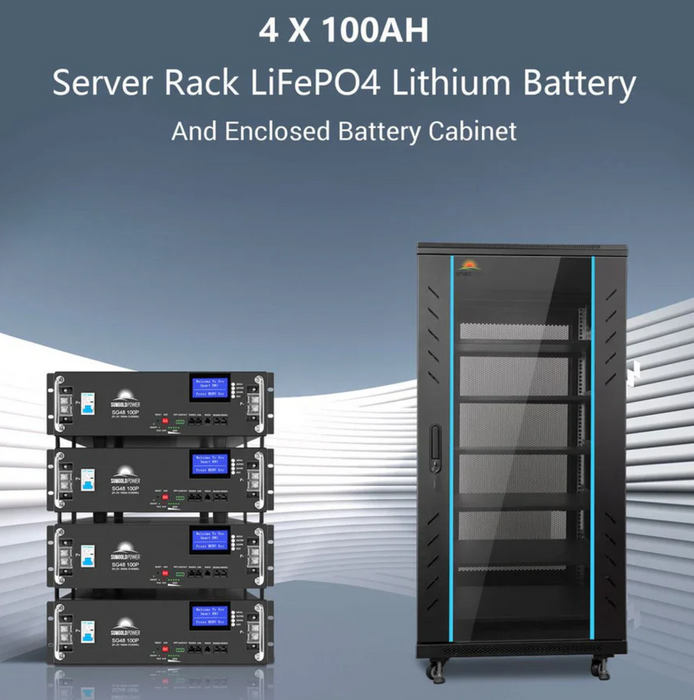

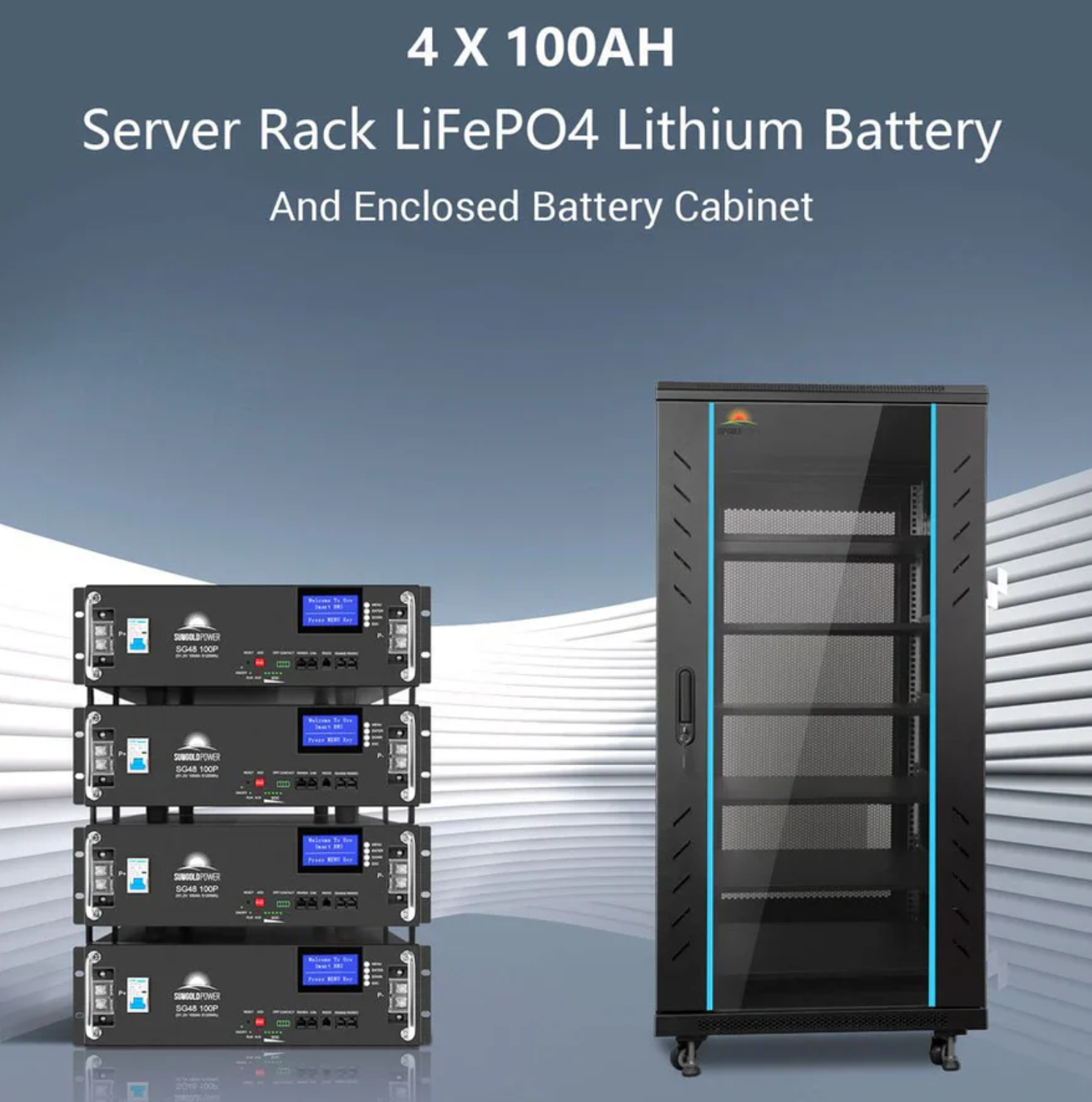

4 × 100Ah 51.2V LiFePO₄ Batteries (20.48kWh total)
1 × Enclosed Battery Cabinet (for 4 batteries)
2 Sets × 50 ft Solar Extension Cables (Inverter PV Input)
1 × 2/0 AWG Battery Cable
2 × 25A PV Breakers
1 × 200A DC Breaker

Manuals:

11.4KW 48V Split Phase Hybrid Inverter Installation Guide & Owner Manual (PDF)

LifePo4 5.12KWH Lithium Battery Installation Guide & Owner Manual (PDF)

450 Watts Solar Panels Installation Guide & Owner Manual (PDF)

Specifications

Parameter	Details

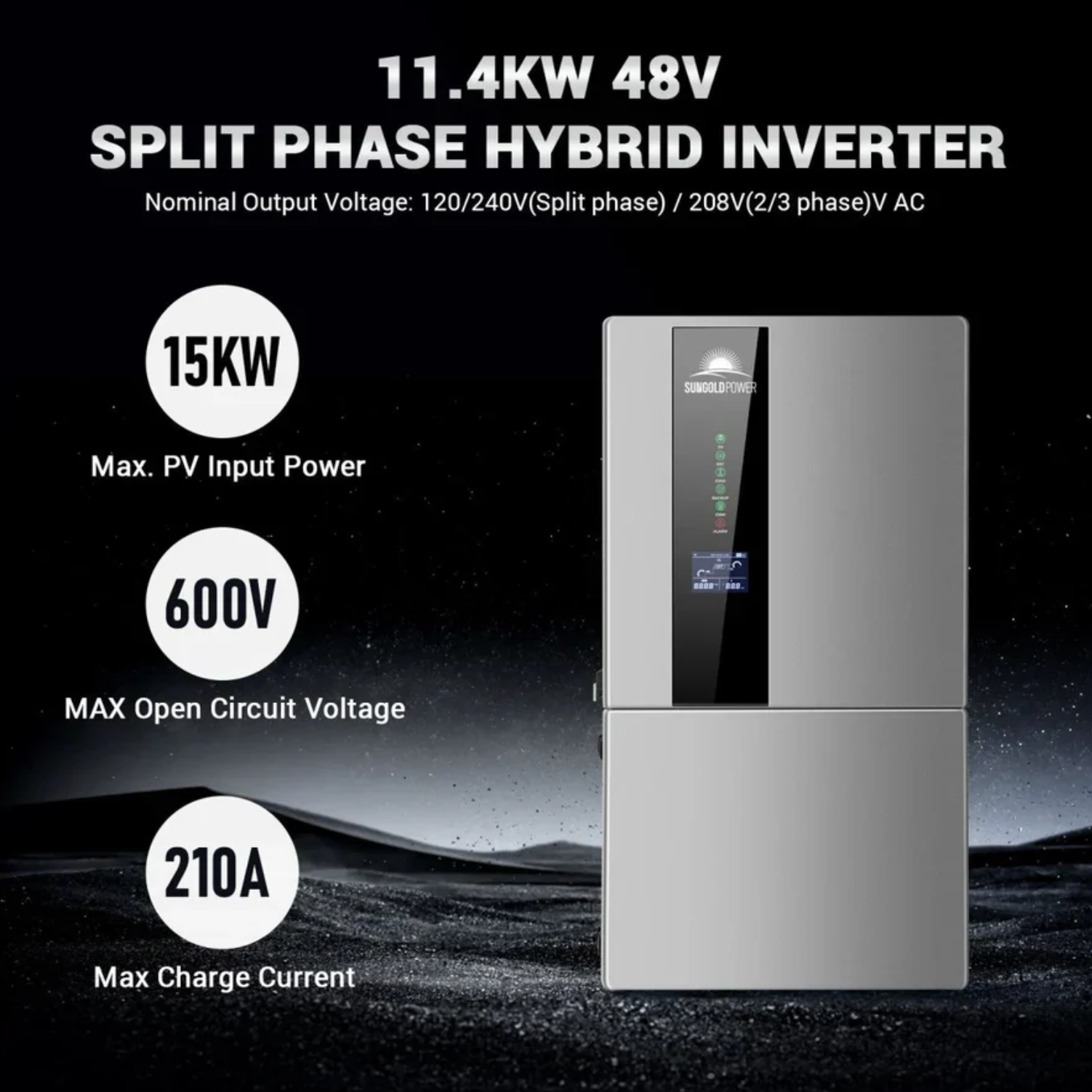

Hybrid Inverter Specifications
AC Output Power	11,400 W
Output Waveform	Pure Sine Wave
AC Output Voltage	120/240 V (Split Phase) / 208 V (2/3 Phase) VAC
Max PV Input Voltage	600 VDC
Max PV Input Power	15,000 W
Max Charging Current	210 A
Max Input Current per MPPT	30 A / 22 A / 22 A
Number of MPPTs	3
Dimensions	16.5 × 31.5 × 9.4 in
Weight	88 lbs
Warranty	10 years
Certifications	UL 1741, CSA C22.2, UL 1699B

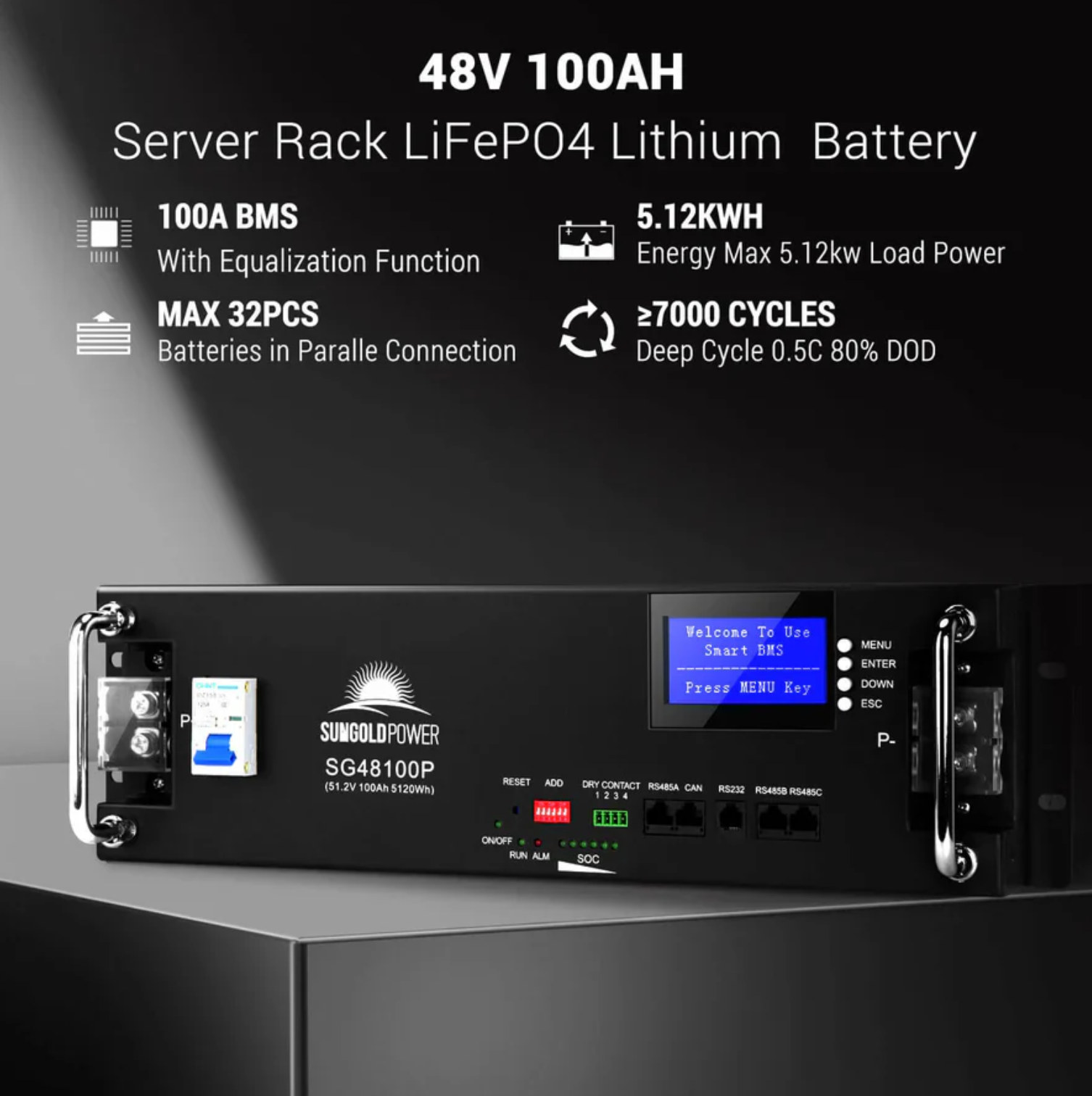

SG48100P LiFePO₄ Battery Specifications
Nominal Voltage	51.2 V
Nominal Capacity	100 Ah
Energy Capacity	5.12 kWh
Charge Cut-off Current	5 A
Max Continuous Charge Current	100 A
Discharge Cut-off Voltage	43.2 V
Cycle Life	≥ 7,000 cycles
Communication Protocols	RS232 / RS485 / CAN
Storage Temperature	14°F – 113°F
Dimensions	19.3 × 18.9 × 5.5 in
Weight	93 lbs
Warranty	10 years
Certifications	UL 1973, UL 9540A

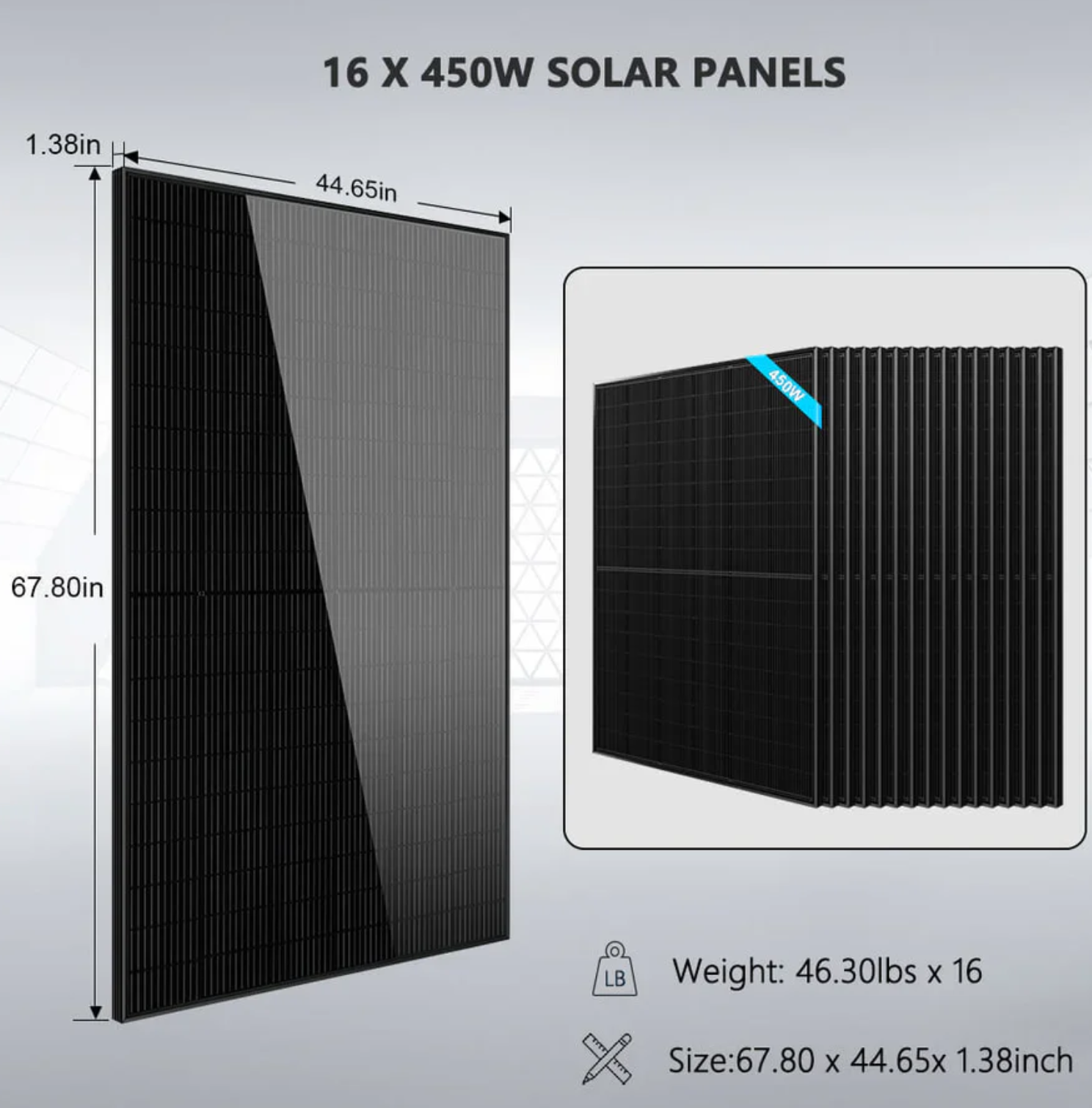

450W Bifacial N-Type Solar Panel Specifications
Peak Power (Pmax)	450 W
Solar Cell Type	Bifacial N-Type
Production Tolerance	±3%
Maximum Power Current (Imp)	13.41 A
Maximum Power Voltage (Vmp)	33.57 V
Short Circuit Current (Isc)	14.04 A
Open Circuit Voltage (Voc)	39.54 V
Product Dimensions	67.80 × 44.65 × 1.38 in
Product Weight	46.30 lbs
Warranty	25 years
Certifications	UL 61730, TÜV, IEC, CEC, CE

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
