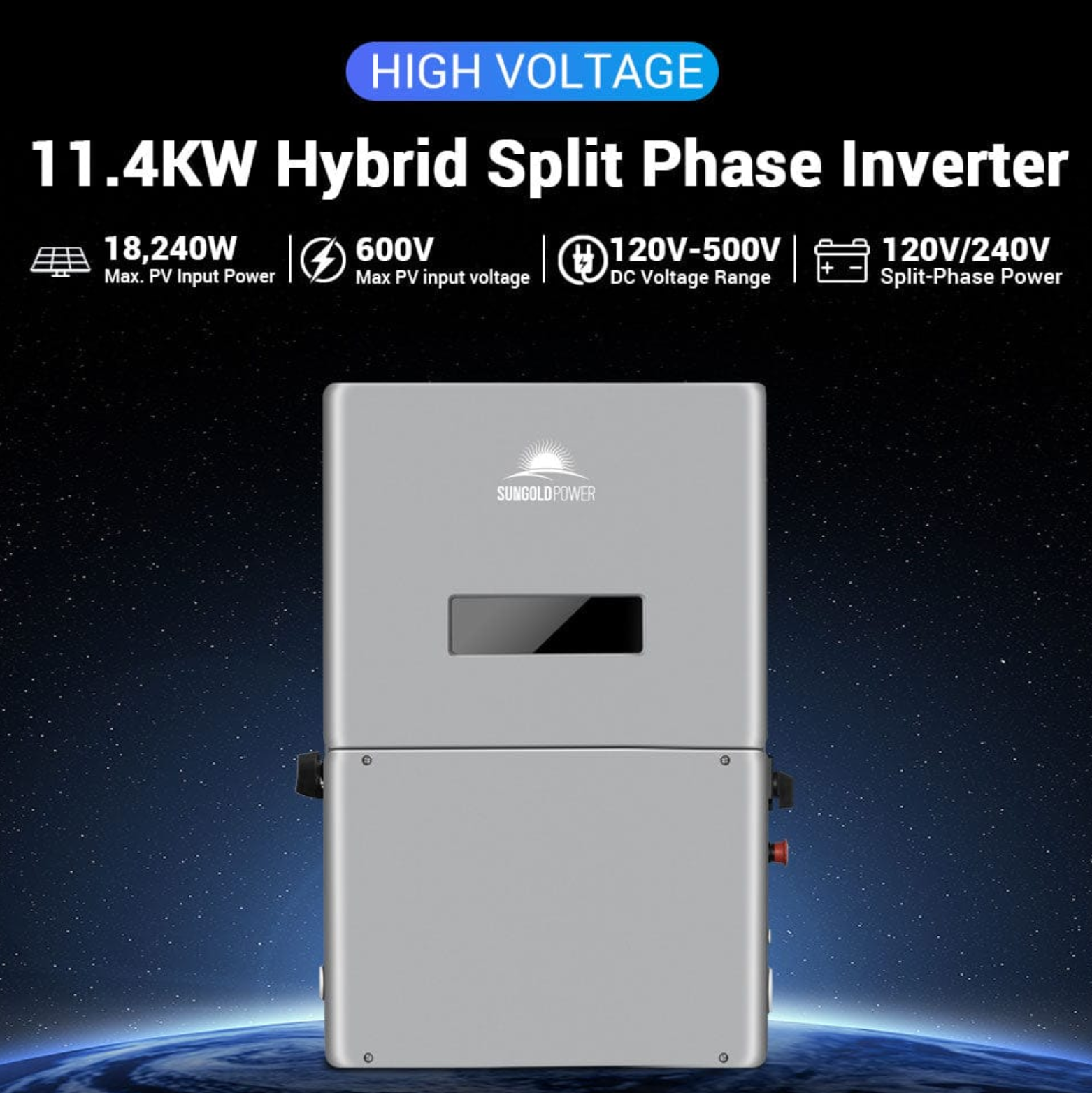

SunGoldPower Hybrid Inverter | 11.4kW HV | Split-Phase 120/240V AC | APS Transmitter

High-Voltage 11.4kW Hybrid Split-Phase Inverter with Advanced MPPT & Smart Remote Management

The SunGoldPower SG11.4KHB-HV is a high-voltage 11.4kW 48V hybrid split-phase inverter engineered for maximum efficiency, flexibility, and intelligent energy management. Featuring four independent MPPT solar controllers, support for high-voltage lithium-ion batteries (120V–500V), and 18kW PV input capacity, this inverter delivers reliable 120V/240V AC output for residential and commercial solar systems.

With APS transmitter integration, cloud-based monitoring, and generator support, this inverter provides seamless operation in off-grid, grid-tied, and hybrid configurations. Parallel up to 3 units to scale power capacity while maintaining consistent and efficient energy conversion.

Key Features

11.4kW Continuous Output: Pure sine wave split-phase 120V/240V AC power for stable operation and sensitive devices.
High PV Input Capacity: 18kW across 4 MPPT channels, up to 600V DC input for optimal solar energy harvesting.
High-Voltage Battery Support: Compatible with 120V–500V lithium-ion batteries for fast charging and flexible storage options.
Scalable Parallel Design: Connect up to 3 inverters to increase total system output and support larger loads.
Generator-Compatible: Provides backup power support using generators during grid outages.
Remote Monitoring & Control: Cloud-based platform for system monitoring, firmware updates, and remote diagnostics.
Integrated APS Transmitter: Ensures compliance with utility requirements and smart grid integration.
Certified & Compliant: UL1741 SB/SA, IEEE1547.1-2020, UL1699B, FCC Part15 Class B, NEC 690.12-2020, and more.

Ideal Applications

Residential and commercial off-grid solar systems
High-voltage battery energy storage setups
Hybrid solar + grid-tied installations
Backup and emergency power for critical loads
Scalable solar systems requiring parallel operation

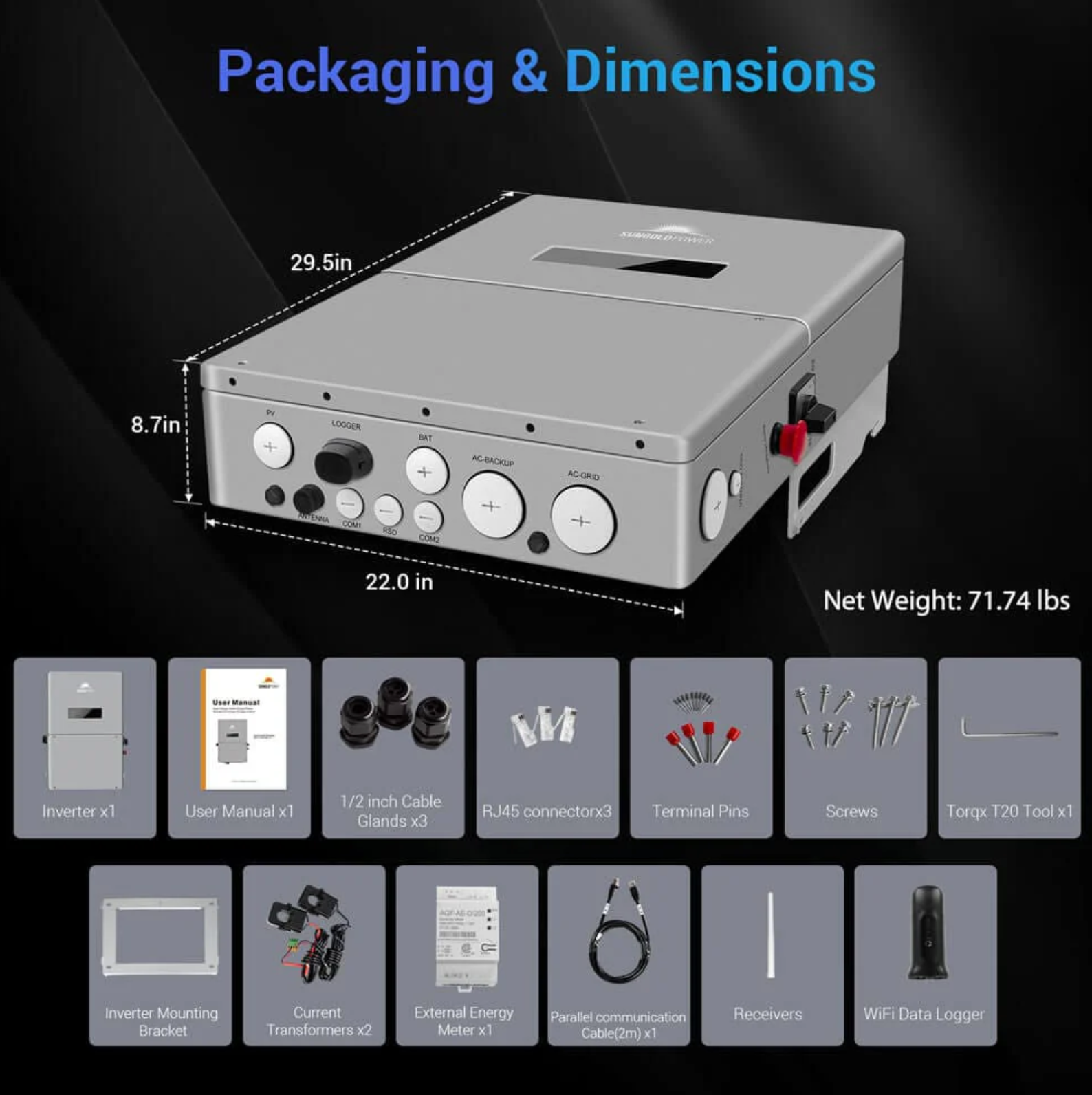

What’s Included

1 × SunGoldPower SG11.4KHB-HV 11.4kW High-Voltage Hybrid Inverter
1 × User Manual (English)
Accessories for installation and connectivity

Manuals:

SunGoldPower High Voltage 11.4KW Hybrid Split Phase Inverter with APS Transmitter SG11.4KHB-HV Installation Guide & Owner Manual (PDF)

Specifications

Parameter	Specification
DC Input (PV Side)
Recommended Max PV Power	18,240 W
Maximum Input Voltage	600 V
MPPT Voltage Range	80–550 V
Maximum Input Current per String	16 A
MPPTs / Strings per MPPT	4 / 1
Energy Storage
Battery Type	Lithium-ion
Battery Voltage Range	120–500 V
Max Charge / Discharge Current	50 A
Battery Communication	CAN / RS485
AC Output (Grid)
Rated Output Power	11.4 kW
Rated Output Voltage	240 VAC
Rated Frequency	60 Hz
Rated Output Current	47.5 A
Total Harmonic Distortion (THDi)	<3%
AC Input (Grid)
Input Voltage Range	211–264 VAC
Maximum Input Current	71.3 A
Input Frequency Range	58.8–61.2 Hz
AC Output (Backup / Off-Grid)
Rated Output Power	11.4 kW
Max Apparent Output Power	18.2 kVA (10 sec)
Backup Transfer Time	<10 ms
Phase Configuration	240 V Split-Phase
Rated AC Output Voltage	240 VAC
AC Output Voltage Range	211–264 VAC
Rated Frequency	60 Hz
Rated Continuous Output Current	47.5 A
Power Factor	>0.99 (0.8 Leading to 0.8 Lagging)
THDv (Linear Load)	<3%
General Specifications
Dimensions (H × W × D)	29.53 × 22.05 × 8.66 in
Weight	71.74 lb (32.54 kg)
Operating Temperature	−13°F to 140°F (−25°C to +60°C)
Ingress Protection	TYPE 4X / IP66
Noise Emission (Typical)	<30 dB(A)

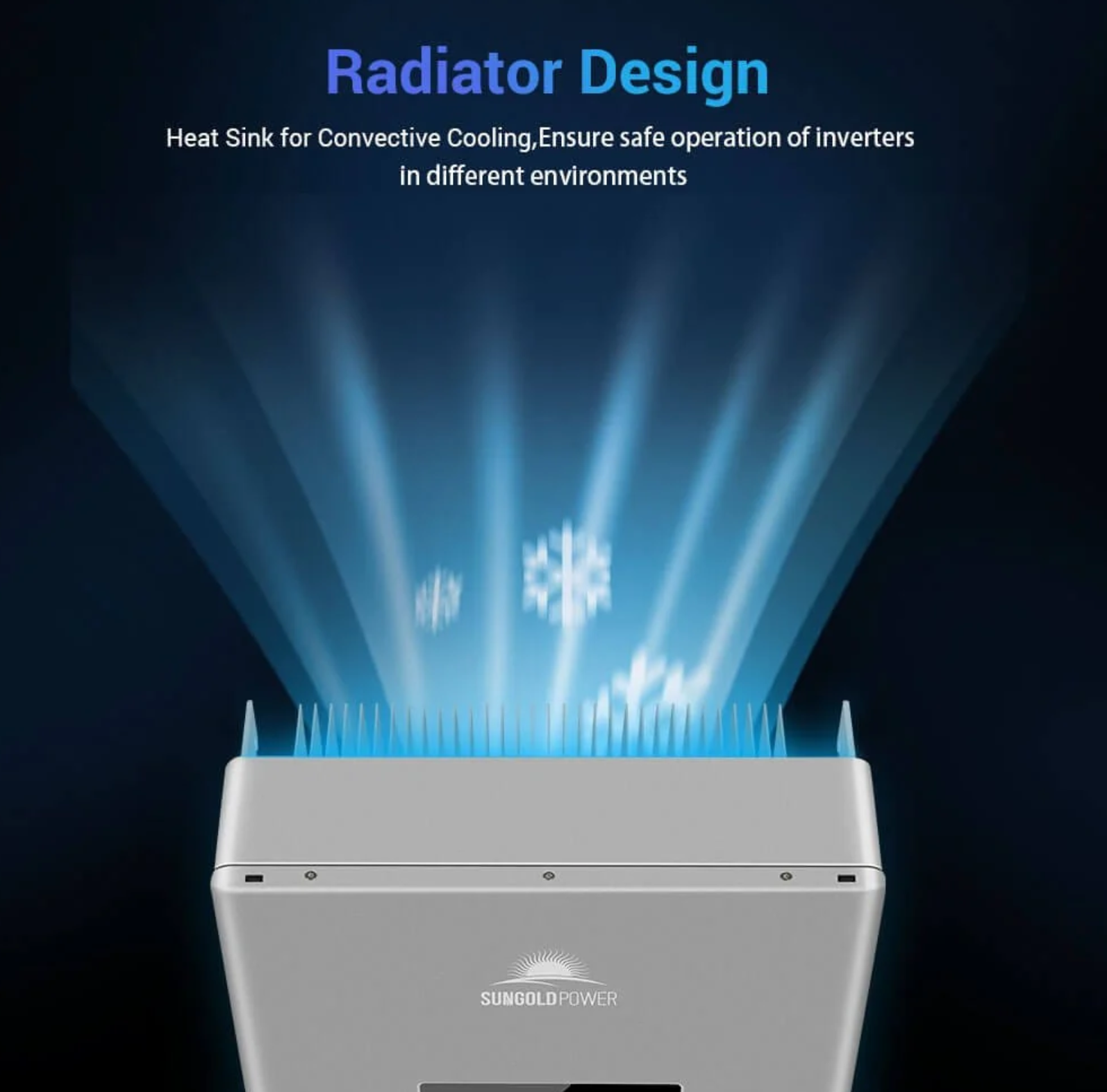

Cooling Method	Natural Convection
Max Operating Altitude	3,120 ft (4,000 m)
Compliance & Certification
Standards	UL 1741 SB / SA, IEEE 1547.1-2020, UL 1699B, UL 1998, FCC Part 15 Class B, CA Rule 21, HECO Rule 14H (Pending), NEC 690.12-2020, CAN/CSA C22.2 No. 107.1
Warranty
Warranty Term	10 Years

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
