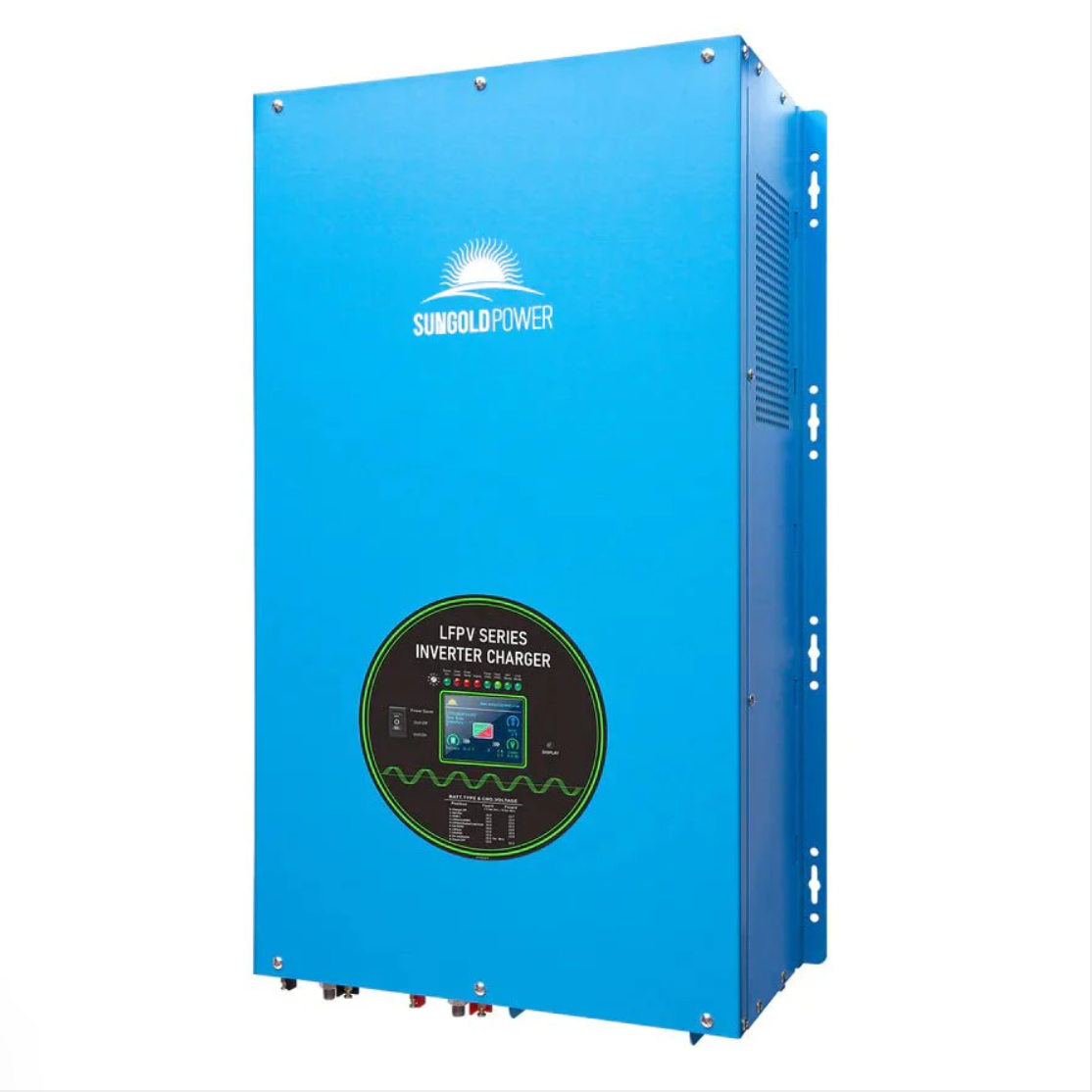

SunGoldPower Split-Phase Inverter Charger | 18000W Pure Sine Wave | 48V DC–120/240V AC

High-Capacity Off-Grid Power Inverter for Residential & Commercial Applications

The SunGoldPower LFPV18K48V240VSP is an 18,000W low-frequency split-phase pure sine wave inverter charger engineered for whole-home power, large offices, RVs, and off-grid setups. Combining a high-capacity inverter, intelligent AC battery charger, and built-in transfer switch, this all-in-one system provides reliable, uninterrupted AC power for high-demand residential, commercial, and mobile applications.

Ideal for solar-powered systems and off-grid or emergency backup scenarios, this inverter delivers massive continuous power with high surge capacity while maintaining exceptional efficiency, durability, and safety.

Key Features

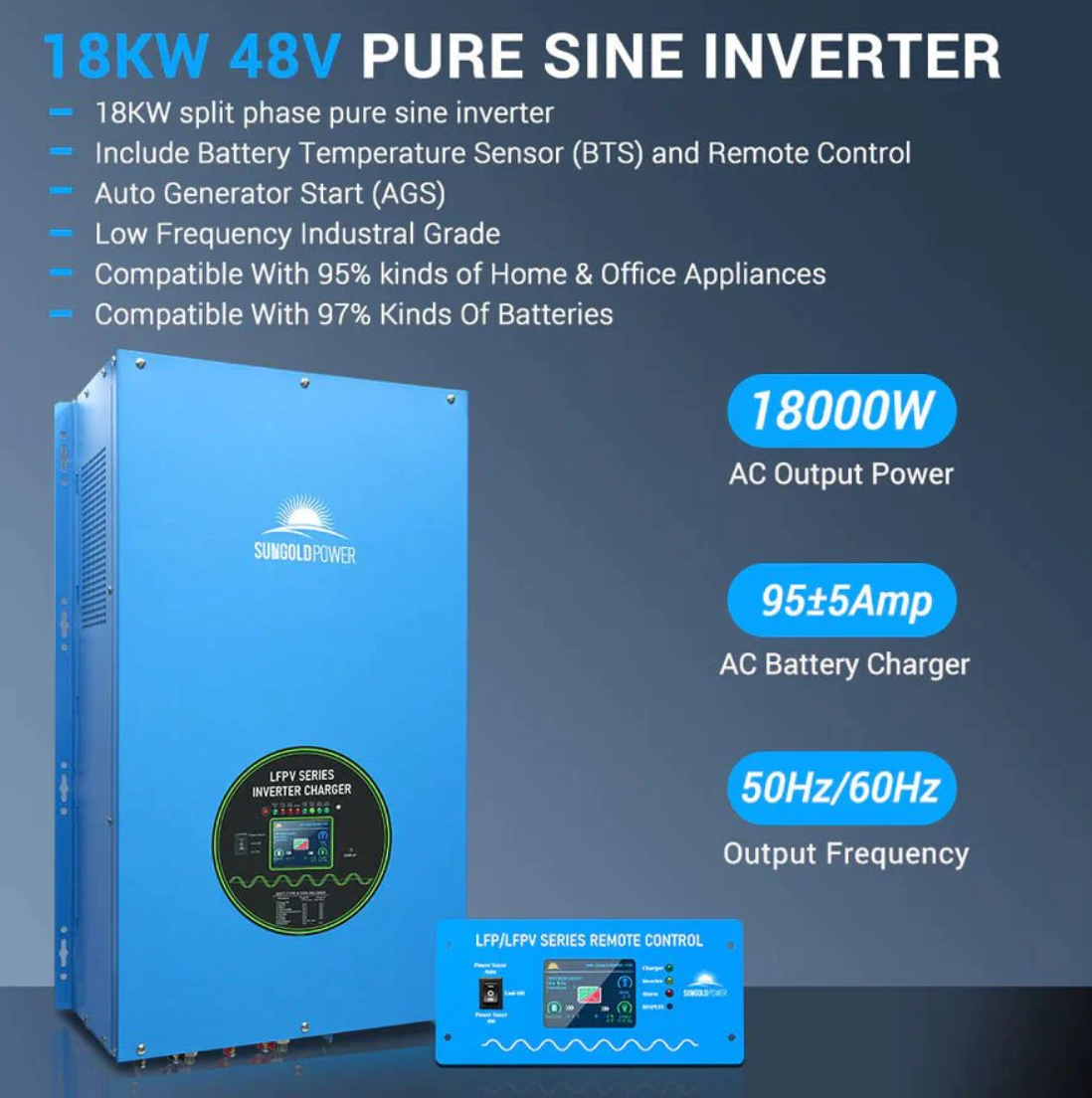

18kW Continuous Power & 54kW Surge Capacity: 18,000W continuous power with 300% surge for 20 seconds, supporting multiple appliances and heavy-duty loads.

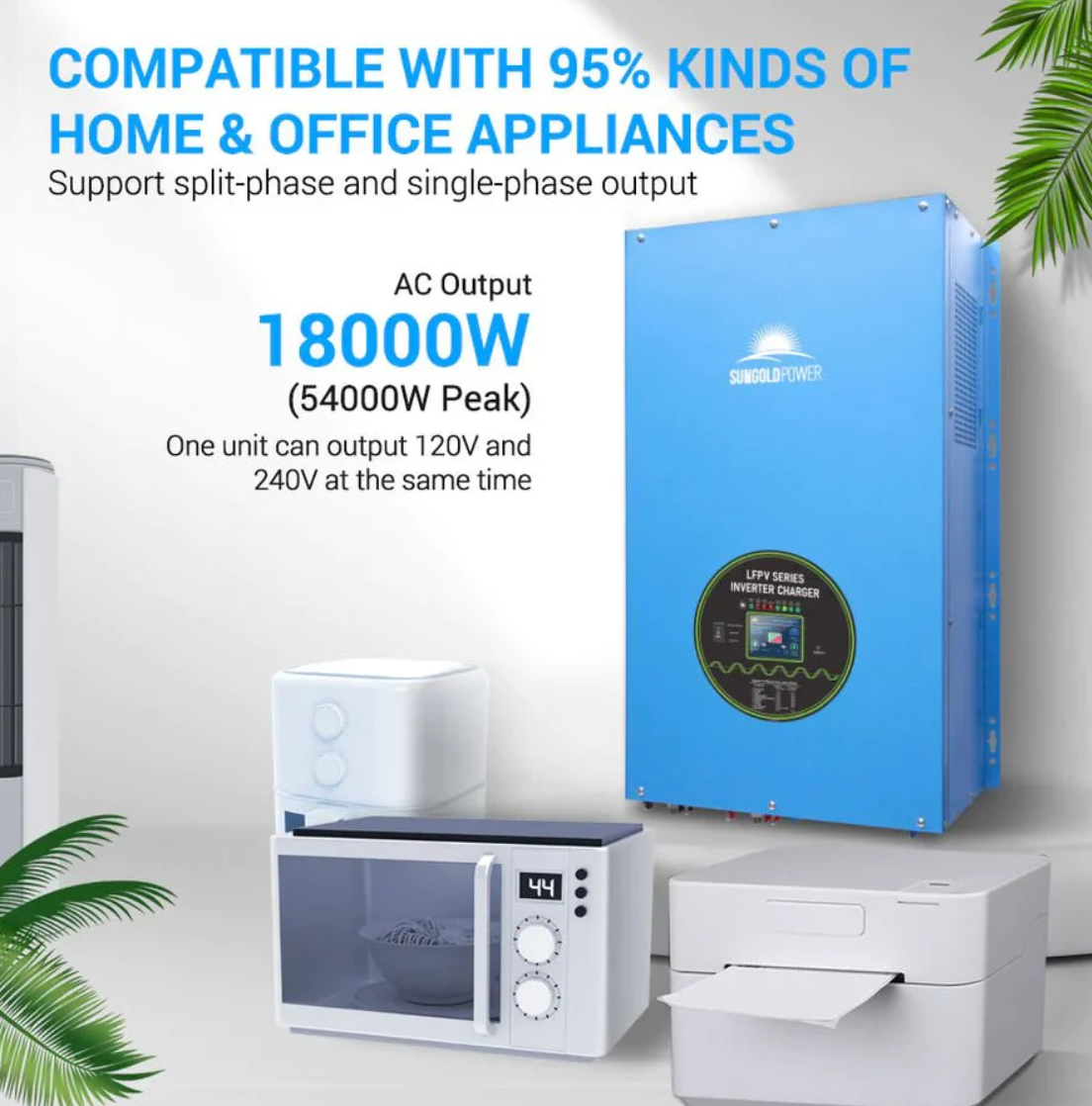

Split-Phase 120V / 240V Output: Dual-leg AC output compatible with residential and commercial setups, supporting 110/120V or 220/230/240VAC.
True UPS Function & Seamless Transfer: Built-in transfer switch automatically engages backup power during outages with no noticeable interruption.
High-Efficiency Low-Frequency Inverter: Peak DC-to-AC efficiency of 90%, idle consumption of 270W, and average THD of 3% for stable power to sensitive electronics.

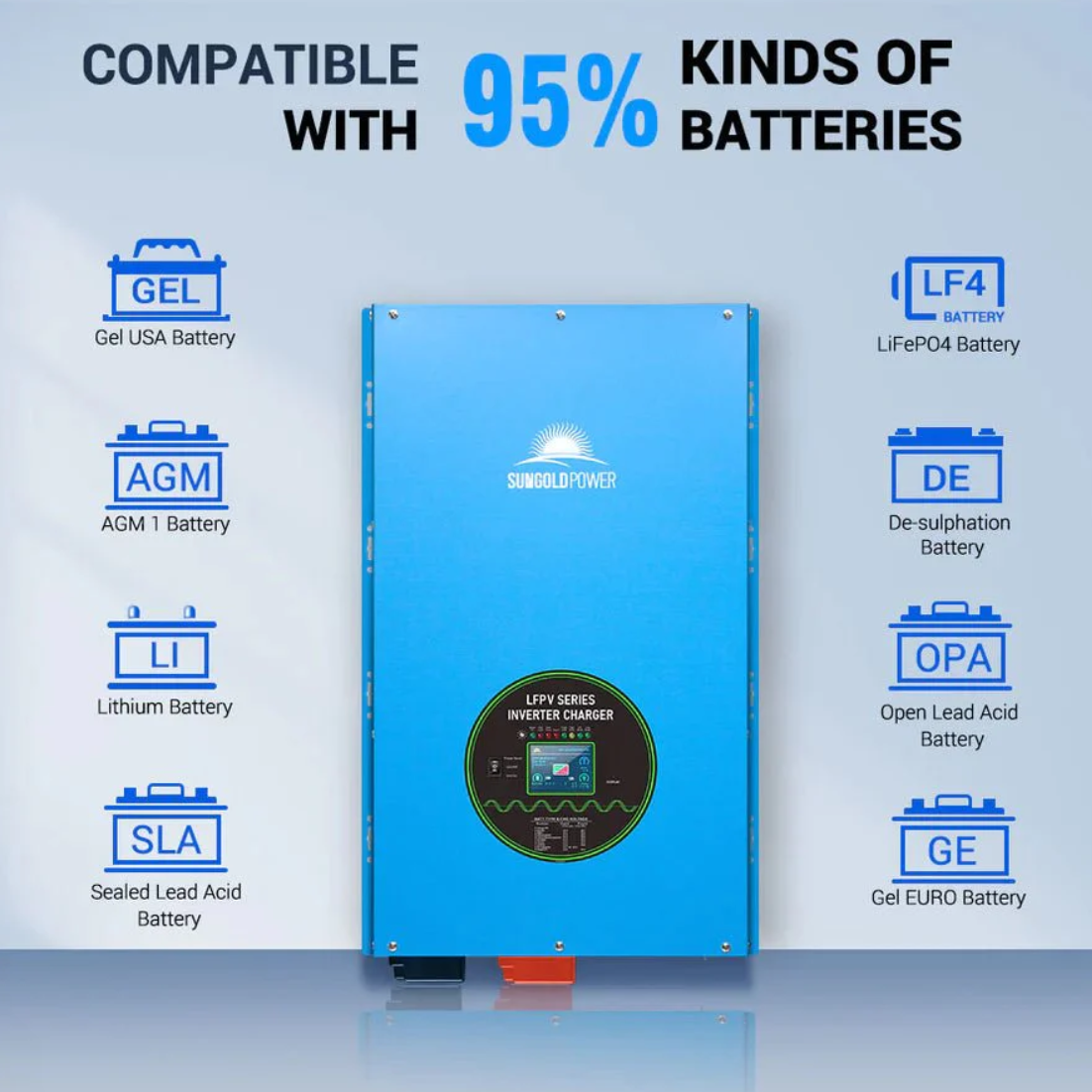

100A Built-In Smart Battery Charger: Efficiently recharges multiple battery types from grid or generator with 0–100% charge control.
AC / Battery Priority Modes (SW5): Switch between AC priority (utility first) or battery priority (solar/off-grid) for optimal energy management with smooth transitions.
Direct-Connect Terminal Block: Enables scalability beyond 18kW, delivering up to 54,000W surge for emergency backup.
Automatic Generator Start (AGS): Starts a generator automatically when battery voltage drops and stops when fully charged for autonomous operation.
Durable Design for Long-Term Operation: Built to last 10+ years under demanding conditions for residential, commercial, and mobile off-grid systems.

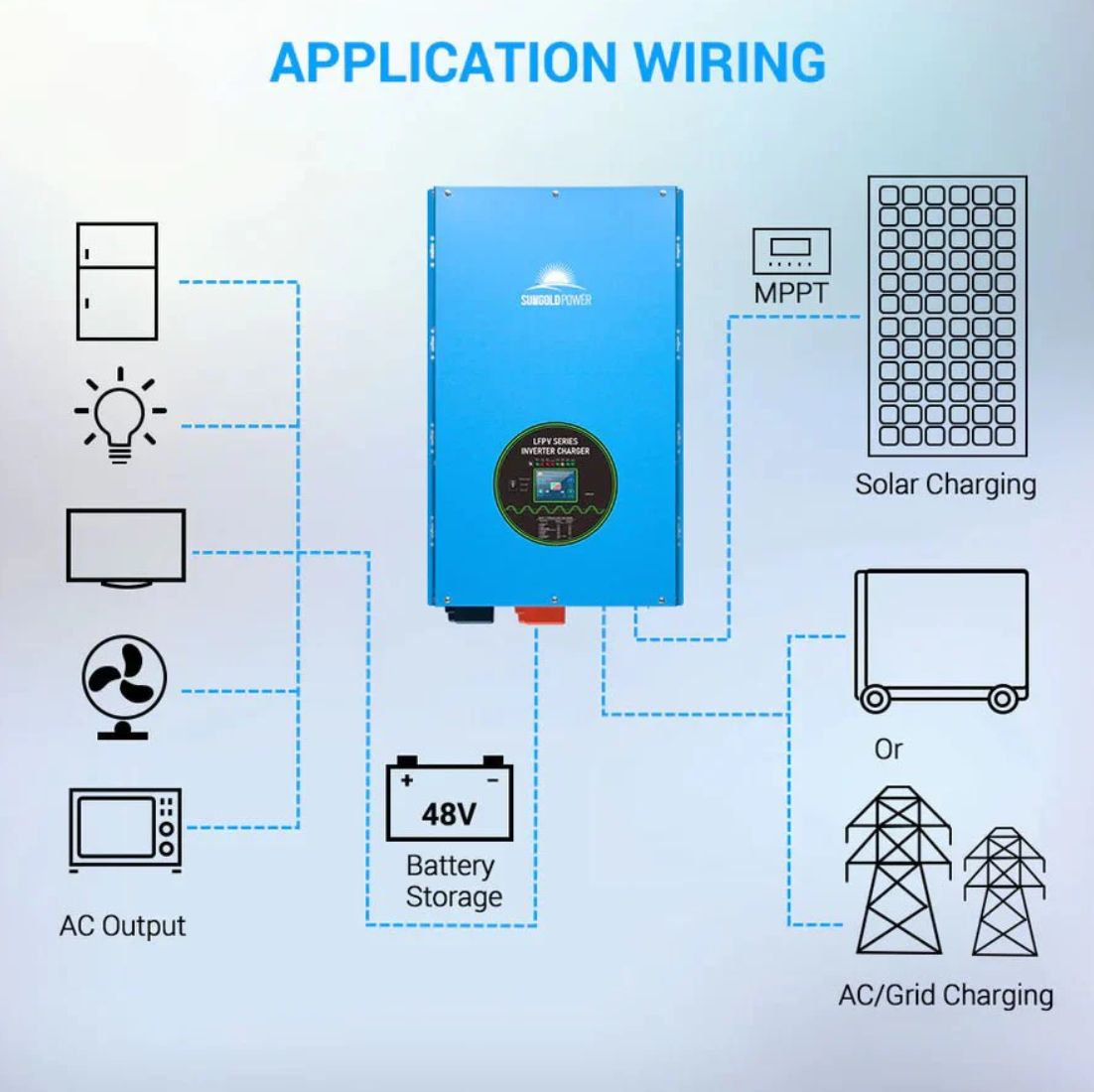

Flexible Applications: Powers lights, appliances, and equipment in off-grid homes, cabins, RVs, trailers, mobile offices, or industrial setups.

Ideal Applications

Whole-home or large office backup power
Off-grid homes, cabins, or remote workshops
RVs, trailers, and mobile offices
Solar-powered energy storage systems
Emergency backup for critical electronics and appliances
Industrial and commercial off-grid installations

What’s Included

1 × SunGoldPower LFPV18K48V240VSP 18kW Split-Phase Pure Sine Wave Inverter Charger
1 × Remote Control
1 × Battery Temperature Sensor (BTS) Cable
1 × English User Manual

Manuals:

SunGoldPower 18000W 48V Split Phase Pure Sine Wave Inverter Charger Installation Guide & Owner Manual (PDF)

Specifications

Parameter	Specification
General
Model	LFPV18K48V240VSP
Inverter Output
Continuous Output Power	18.0 kW
Surge Rating	54.0 kW (20 seconds)
Output Waveform	Pure Sine Wave
AC Output Voltage	120 V & 240 V
AC Input Voltage	240 VAC (not suitable for 120 VAC input)
Output Frequency	50 Hz / 60 Hz
Typical Transfer Time	10 ms (max)
DC Input
Nominal Input Voltage	48.0 VDC
Minimum Start Voltage	40.0 VDC / 42.0 VDC
Low Battery Alarm	42.0 VDC / 44.0 VDC
Low Battery Trip	40.0 VDC / 42.0 VDC
High Voltage Alarm	64.0 VDC
Low Battery Recovery Voltage	62.0 VDC
Power Saver On Idle Consumption	50 W
Power Saver Off Idle Power	270 W
AC Charger
Charger Rate	95 A ±5 A
Charger Output Voltage	Depends on battery type
Battery Initial Start Voltage	40.0–62.8 V
Overcharge Protection Shutdown	62.8 V
Charger Breaker	100 A
Input Voltage Waveform	Sine Wave (Grid or Generator)
AC Input Range	184–253 VAC or 140–270 VAC
Nominal Input Frequency	50 Hz / 60 Hz (auto detect)
Packaging

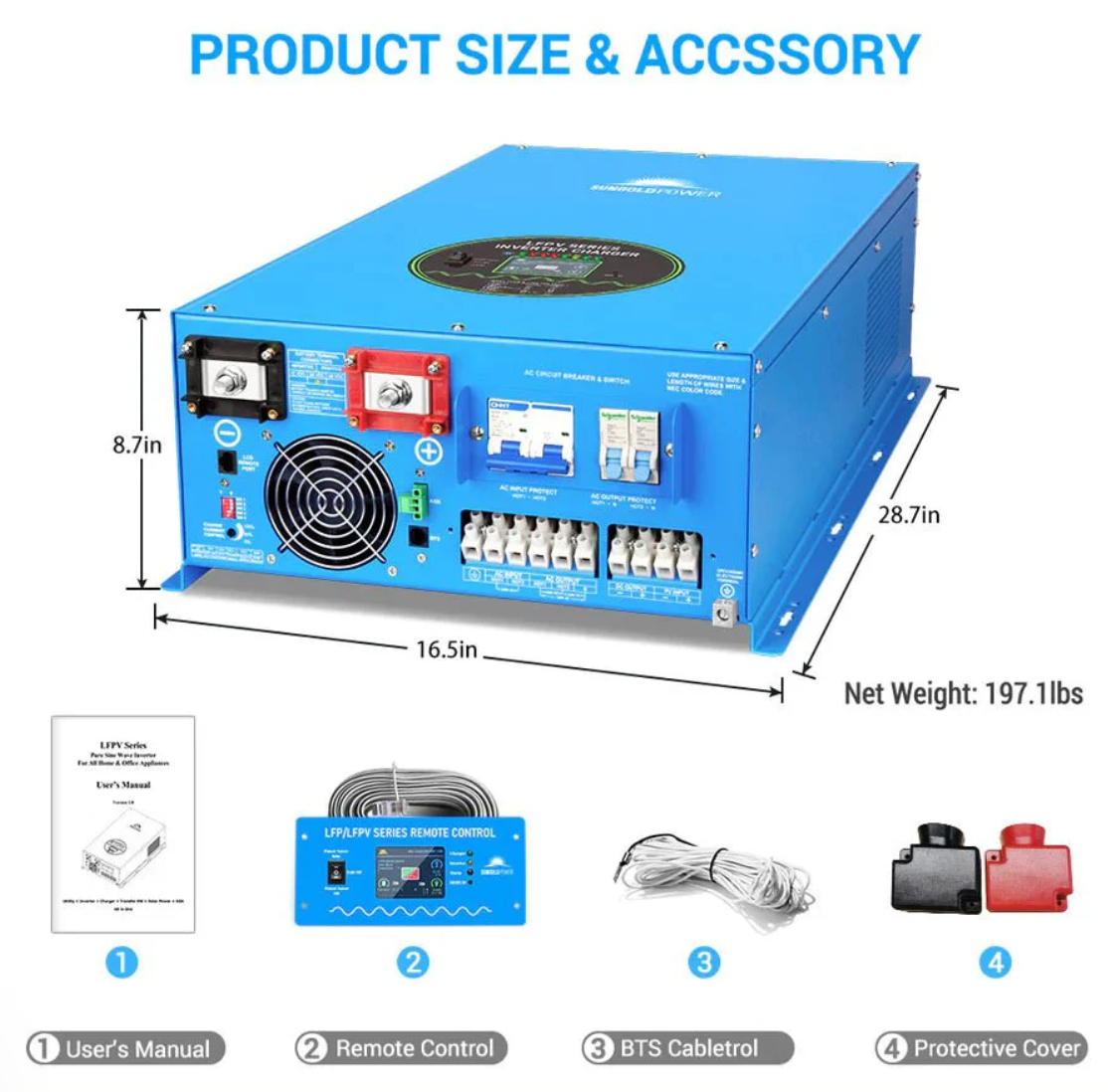

Included Items	Inverter, User Manual, Remote Control, BTS Cable
Unit Weight	197 lb
Unit Dimensions (L×W×H)	28.7 × 16.5 × 8.7 in
Shipping Weight	232 lb
Shipping Dimensions (L×W×H)	34.25 × 21.3 × 17.3 in

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
