SunGoldPower Split-Phase Inverter Charger | 12000W Pure Sine Wave | 48V DC–120/240V AC

High-Capacity Split-Phase Inverter Charger for Whole-Home, Business & Off-Grid Power

The SunGoldPower LFPV12K48V240VSP is a 12,000W low-frequency split-phase pure sine wave inverter charger engineered for whole-home power, large offices, RVs, and off-grid applications. This all-in-one solution integrates a high-capacity inverter, intelligent battery charger, and automatic transfer switch, delivering uninterrupted, stable AC power for critical loads.

Built for solar integration, off-grid living, and backup power systems, the LFPV12K48V240VSP offers high surge capacity, low idle consumption, and robust efficiency, making it ideal for residential, commercial, and mobile power applications.

Key Features

12kW Continuous Power & 36kW Surge: Supports 12,000W continuous load with 300% surge for 20 seconds, perfect for multiple appliances and high-demand equipment.
Split-Phase 120V / 240V AC Output: Dual-leg AC output compatible with household and industrial appliances. Supports 110/120V or 220/230/240VAC appliances.
UPS Functionality & Seamless Transfer: Built-in transfer switch ensures uninterrupted power during outages with true UPS performance.
High-Efficiency Low-Frequency Inverter: 90% peak DC-to-AC efficiency, 180W idle consumption, THD 3%, delivering clean, reliable power for sensitive electronics.
120A Smart Battery Charger: Supports multiple battery types, recharging efficiently from grid or generator. Linear adjustment allows 0–100% charging control.
AC / Battery Priority Modes (SW5): Switch between AC priority (utility first) or battery priority (solar/off-grid) for seamless operation between sources.
Low Idle Power Consumption: Preserves battery life and reduces energy waste during standby periods.
Direct-Connect Terminal Block: Enables scalable high-capacity installations while supporting emergency loads up to 36,000W surge.
Automatic Generator Start (AGS): Starts a generator when battery voltage drops and stops it once fully charged, for autonomous system management.
Durable & Long-Lasting Design: Built for 10+ years of reliable operation under demanding conditions.
Ideal for Mobile & Off-Grid Applications: Powers lights, appliances, and equipment efficiently in RVs, mobile offices, cabins, or off-grid business setups.

Ideal Applications

Whole-home or large office backup power
Off-grid homes, cabins, or workshops
RVs, trailers, and mobile offices
Solar-powered energy storage systems
Emergency backup for critical electronics and appliances
Industrial and commercial off-grid installations

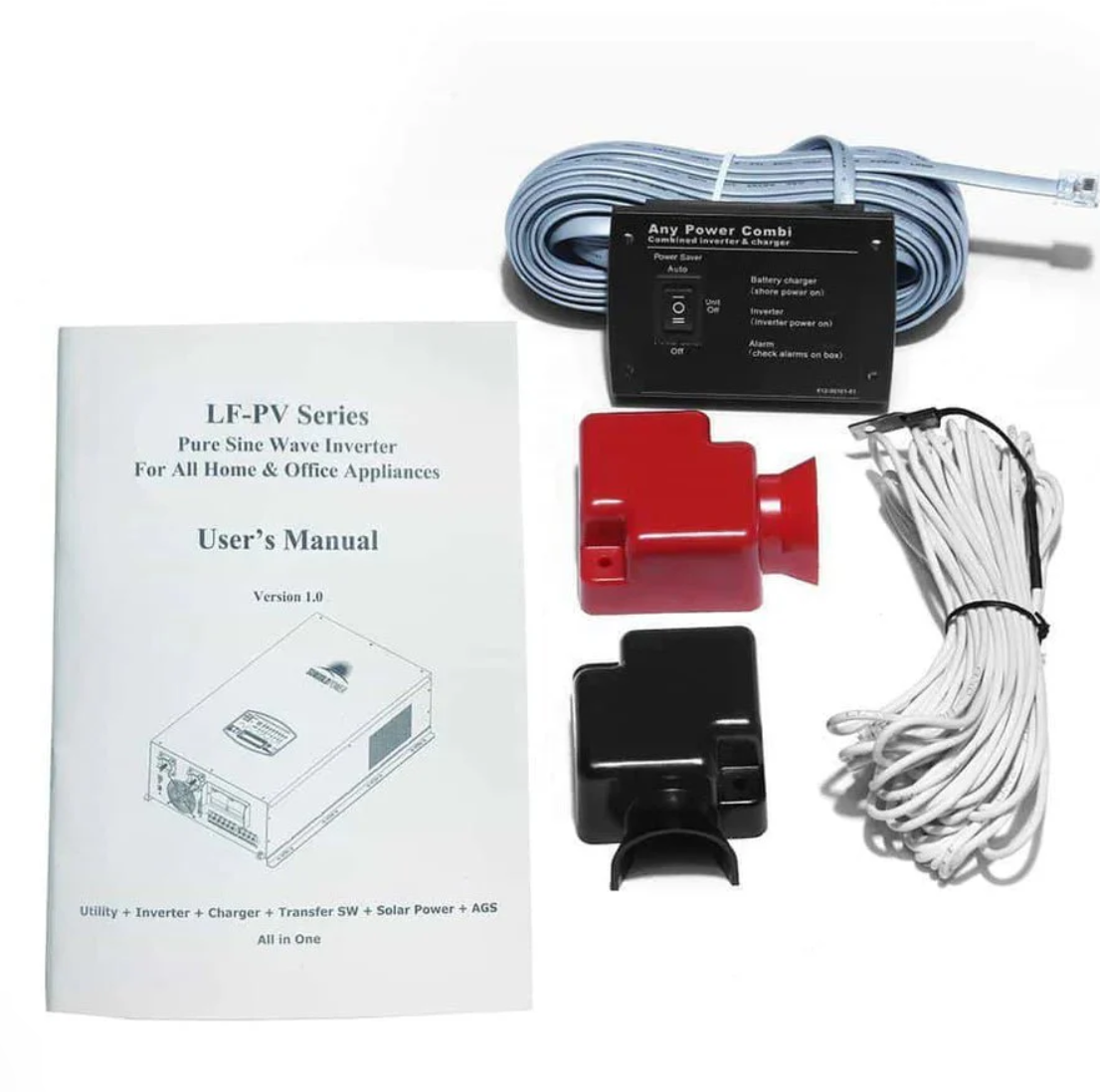

What’s Included

1 × SunGoldPower LFPV12K48V240VSP 12kW Split-Phase Pure Sine Wave Inverter Charger
1 × Remote Control
1 × Battery Temperature Sensor (BTS) Cable
1 × English User Manual

Manuals:

SunGoldPower 12000W 48V Split Phase Pure Sine Wave Inverter Charger Installation Guide & Owner Manual (PDF)

Specifications

Parameter	Specification
General
Model	LFPV12K48V240VSP
Main Features
Inverter Type	12 kW Split-Phase Pure Sine Inverter Charger
System Voltage	DC 48 V / AC 240 V input
AC Output	120 V / 240 V Split Phase
Generator Support	Auto Generator Start (AGS)

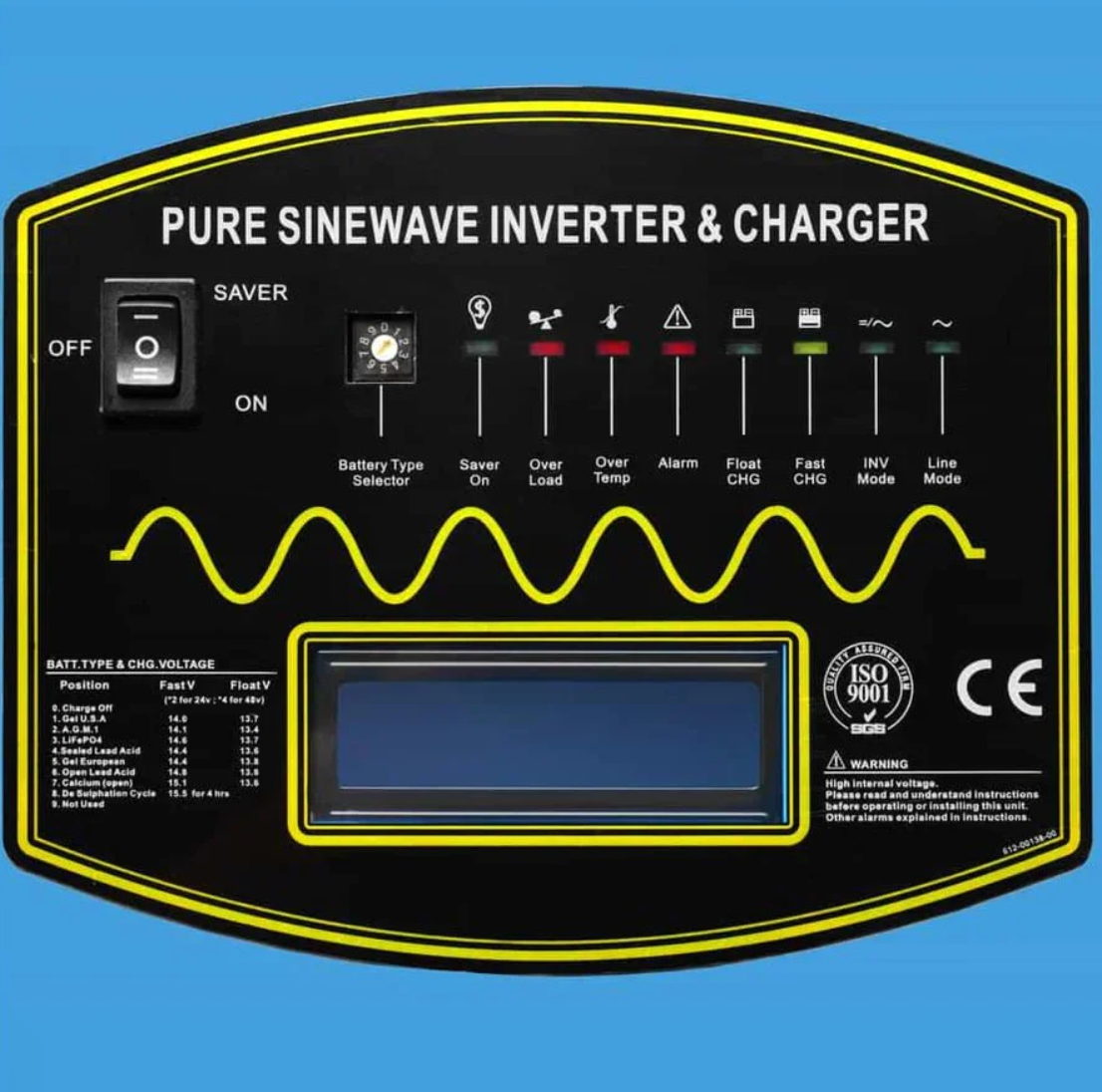

Monitoring & Control	LCD Display, Remote Control, BTS included
Battery Compatibility	8 battery types (LiFePO₄, Lithium, Gel, AGM, Lead-Acid)
Application	Home & office appliances, backup & off-grid systems
Charge Rate	Up to 120 A, selectable 0%–100%
Power Modes	AC / Battery Priority (UPS configuration)
Charging Technology	4-step intelligent charger with PFC
Transfer Time	8 ms typical (utility ↔ battery)
Generator Protection	15 s delay before transfer on AC recovery
Inverter Output
Continuous Output Power	12.0 kW
Surge Rating	36.0 kW (20 seconds)
Output Waveform	Pure Sine Wave
AC Output Voltage	120 V & 240 V
AC Input Voltage	240 VAC (not suitable for 120 VAC input)
Output Frequency	50 Hz / 60 Hz
Typical Transfer Time	10 ms (max)
DC Input
Nominal Input Voltage	48.0 VDC
Minimum Start Voltage	40.0 VDC / 42.0 VDC
Low Battery Alarm	42.0 VDC / 44.0 VDC
Low Battery Trip	40.0 VDC / 42.0 VDC
High Voltage Alarm	64.0 VDC
Low Battery Recovery Voltage	62.0 VDC
Power Saver On Idle Consumption	40 W
Power Saver Off Idle Power	180 W
AC Charger
Charger Output Voltage	Depends on battery type
Battery Initial Start Voltage	40.0–62.8 V
Charger Rate	120 A ±5 A
Overcharge Protection Shutdown	62.8 V
Charger Breaker	80 A
Input Voltage Waveform	Sine Wave (Grid or Generator)
AC Input Range	184–253 VAC or 140–270 VAC
Nominal Input Frequency	50 Hz / 60 Hz (auto detect)
Packaging
Included Items	Inverter, English Manual, Remote Control, BTS Cable
Unit Weight	160 lb
Unit Dimensions (L×W×H)	27.6 × 16.5 × 8.0 in
Shipping Weight	185 lb
Shipping Dimensions (L×W×H)	29.2 × 23.0 × 16.5 in

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
