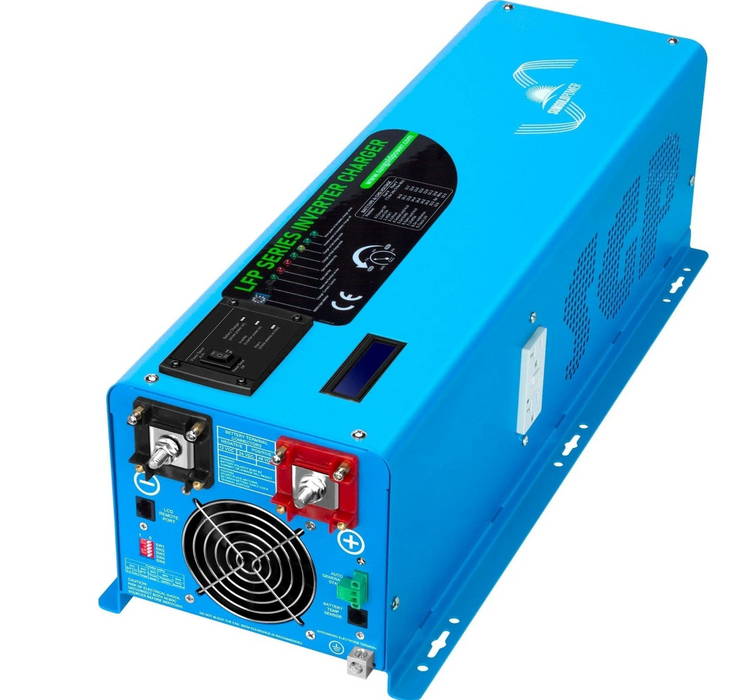

SunGoldPower Split-Phase Inverter Charger | 6000W Pure Sine Wave | 24V/48V DC–120/240V AC

UL1741-Compliant Split-Phase Inverter Charger for Off-Grid, Backup & Remote Power Systems

The SunGoldPower LFP6K48V240VSPL is a high-performance 6000W split-phase pure sine wave inverter charger designed for off-grid homes, backup power installations, and remote energy systems. Built on a rugged low-frequency architecture, this all-in-one solution integrates a high-efficiency inverter, intelligent battery charger, and automatic AC transfer switch to deliver stable, uninterrupted power with industry-certified safety.

Featuring UL1741 compliance, 120V/240V split-phase output, and support for 48V battery systems, this inverter is engineered for reliability, efficiency, and regulatory confidence—ideal for residential and light commercial applications.

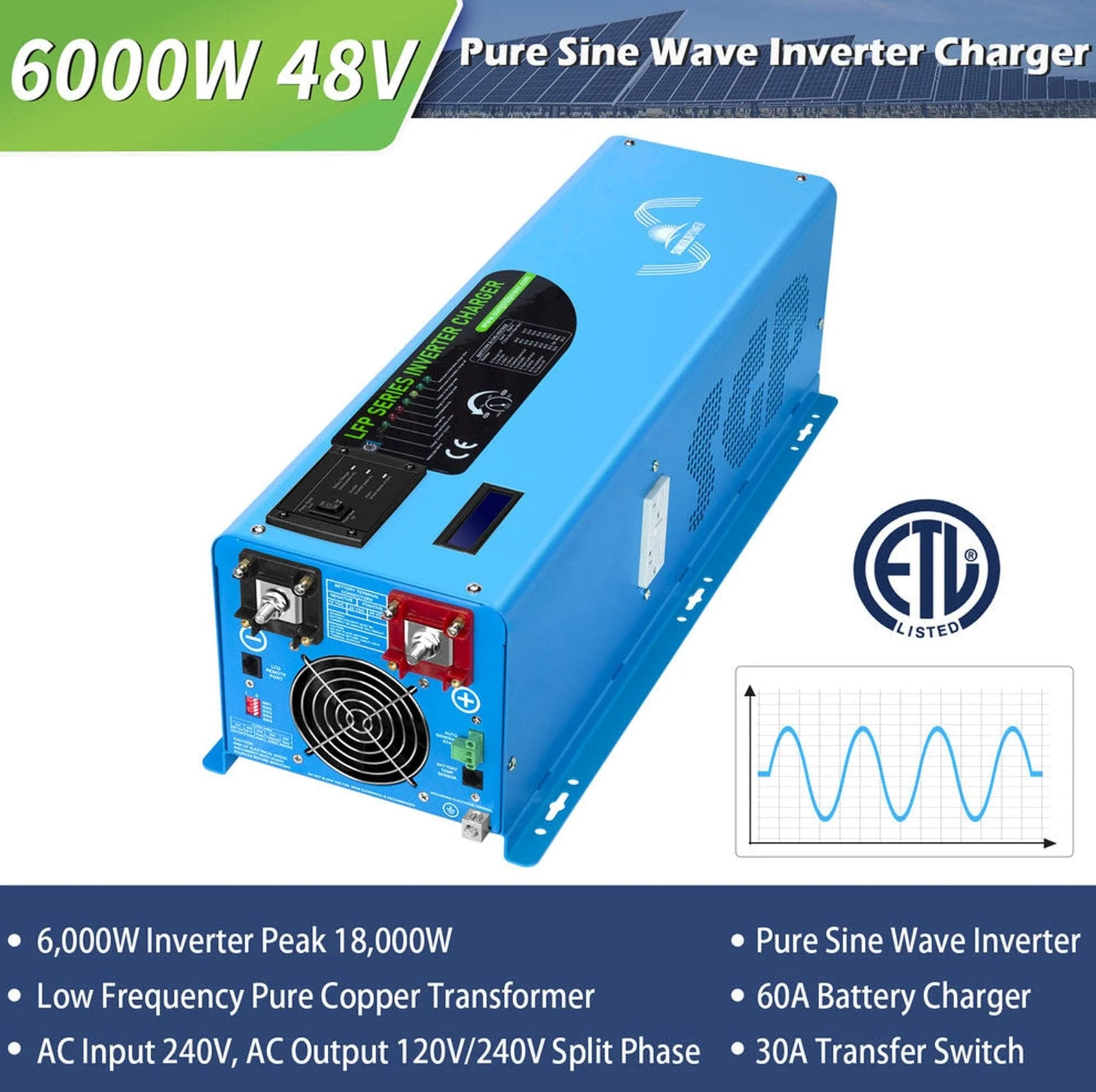

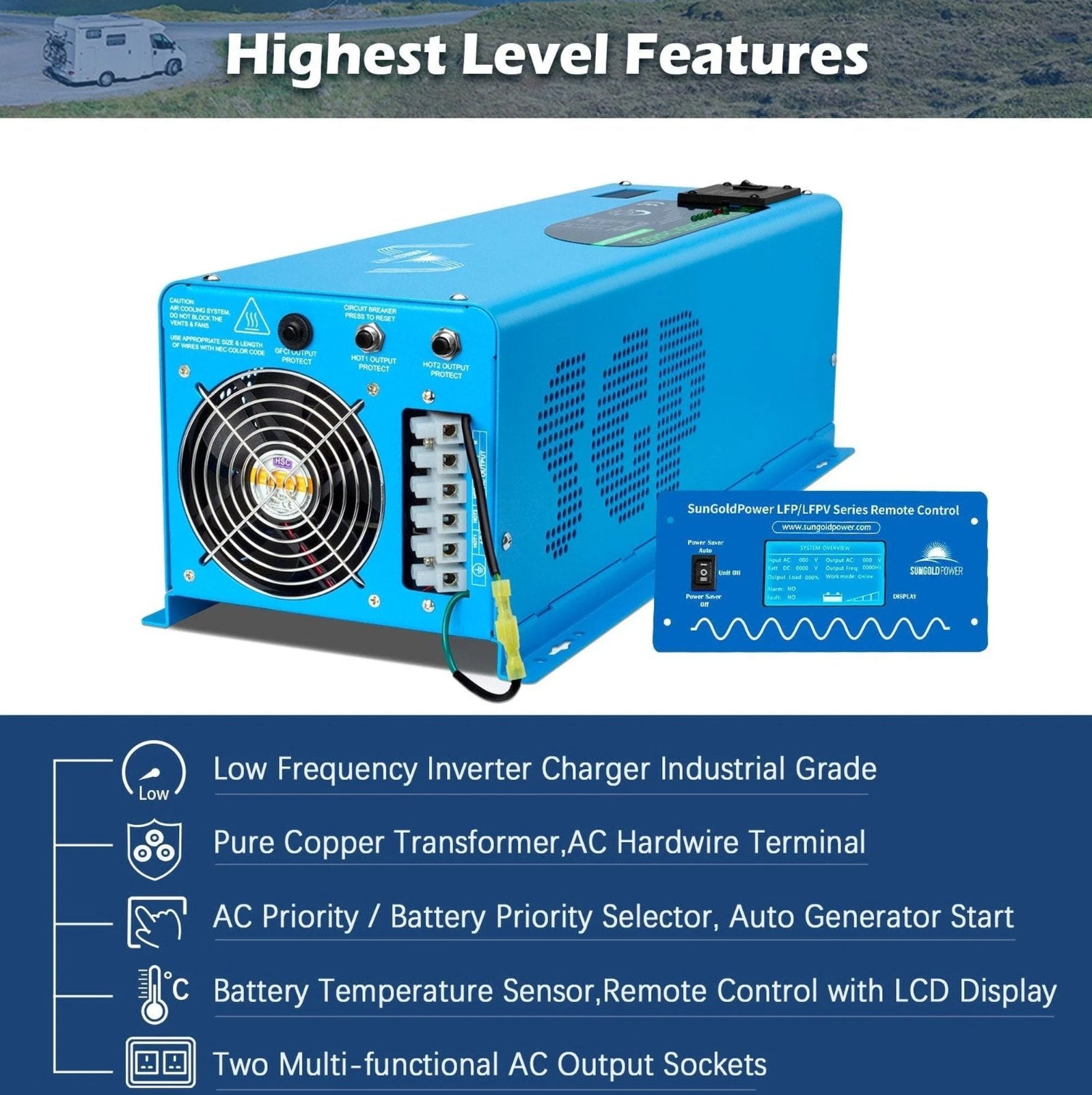

Key Features

6000W Low-Frequency Pure Sine Wave Output: Clean, utility-grade power with high surge capability for sensitive electronics, tools, and large appliances.
Split-Phase 120V / 240V AC Output: Dual-leg output from 240VAC input supports household circuits and high-voltage loads.
UL1741 Certified: Meets strict safety, performance, and grid-interconnection standards for dependable operation.
All-in-One Inverter Charger: Integrates inverter, smart battery charger, and automatic transfer switch in a single unit.
48VDC Battery Input (24V/48V Compatible): Optimized for higher-voltage battery banks, improving efficiency and reducing current draw.
Selectable Output Frequency: Supports 50Hz or 60Hz operation for regional compatibility.
AC / Battery Priority Selection: SW5 switch allows flexible energy management by choosing grid or battery as primary source.
Adjustable Charging Current: Linear 0–100% adjustment enables precise control of battery charging rates.
Smart Battery Charging System: Built-in 60A charger efficiently recharges batteries from utility power or generators.
Automatic Generator Start (AGS): Starts a generator when battery voltage drops and stops it when fully charged for autonomous operation.
Low Idle Power Consumption: Energy-efficient standby operation minimizes unnecessary battery drain.
Fast Transfer Time: 80A transfer switch enables automatic switching in ~10ms.
Advanced Monitoring & Safety: Includes remote control and Battery Temperature Sensor (BTS) for safe and convenient system management.

Ideal Applications

Off-grid homes and cabins
Residential backup power systems
Remote and rural installations
Small businesses and workshops
RVs, trailers, and marine power systems
Solar and battery-based energy solutions

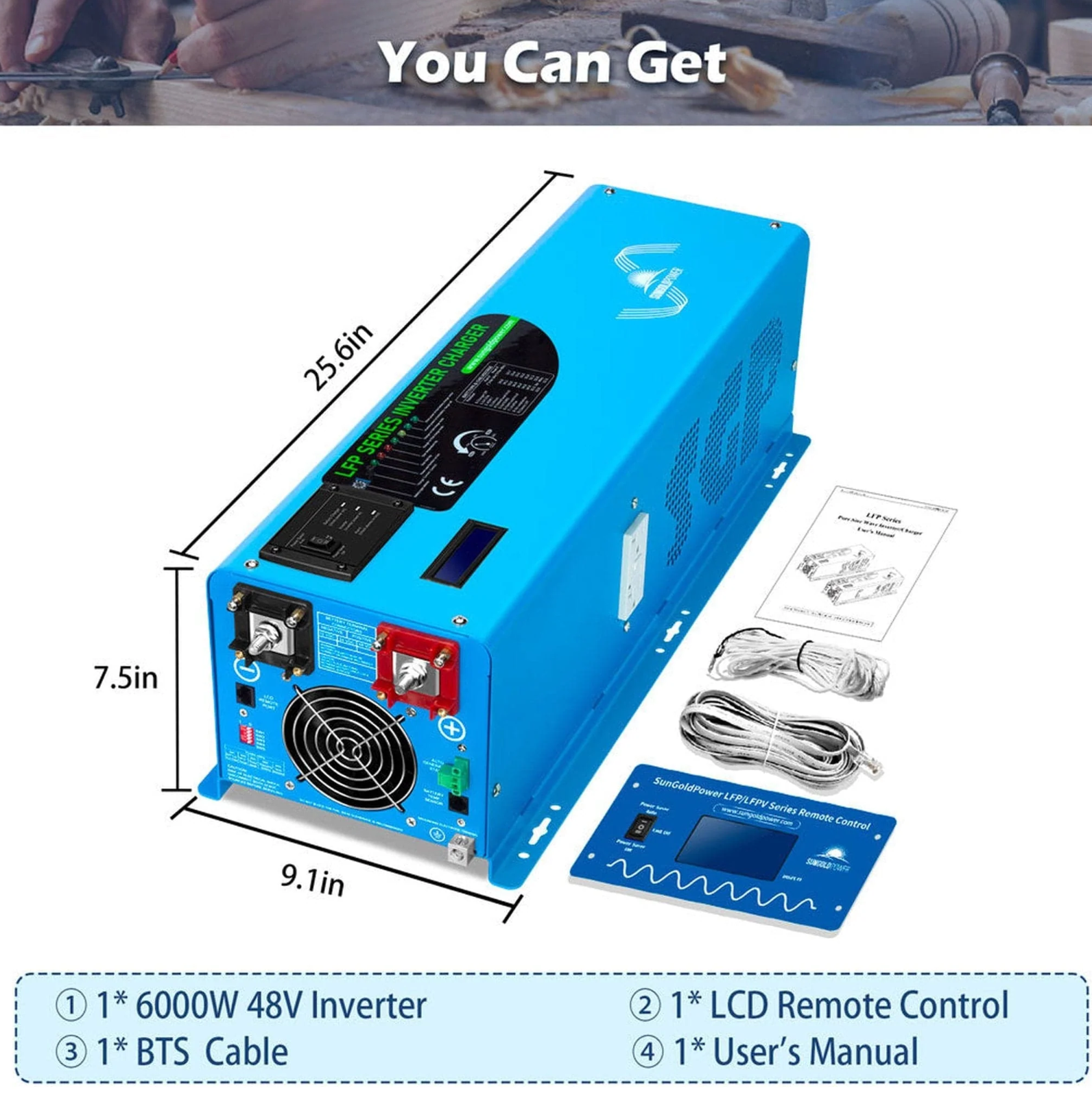

What’s Included

1 × SunGoldPower LFP6K48V240VSPL 6000W Split-Phase Pure Sine Wave Inverter Charger
1 × Remote Control
1 × Battery Temperature Sensor (BTS) Cable
1 × English User Manual

Manuals:

SunGoldPower 6000W DC 24V/ 48V Split Phase Pure Sine Wave Inverter With Charger Installation Guide & Owner Manual (PDF)

Specifications

Parameter	Specification
General
Model	6000W DC 48V Split Phase
Inverter Output
Continuous Output Power	6000 W
Surge Rating	18,000 W (20 seconds)
AC Output Voltage	AC 120 V & AC 240 V (split phase)
AC Input Voltage	240 VAC
Output Waveform	Pure Sine Wave (bypass mode)
Typical Transfer Time	10 ms (max)
Nominal Efficiency	> 88%
DC Input
Nominal Input Voltage	48.0 VDC
Minimum Start Voltage	40.0 VDC
Low Battery Alarm	42.0–44.0 VDC
Low Battery Trip	40.0–42.0 VDC (selectable by SW1)
High Voltage Alarm	64.0 VDC
Low Battery Restart Voltage	52.0 VDC
Idle Consumption	81 W
Power Saver Mode Idle Consumption	30 W
AC Charger
Charger Rate	60 A ±5 A
AC Input Range (Grid/Generator)	140–270 VAC or 184–253 VAC (selectable by SW2)
Overcharge Protection Shutdown	62.8 V
Charge Setting	Selectable based on battery type
Adjustable Charge Current	Off / 0%–100%
Charging Method	3-step intelligent battery charger
Packaging
Included Items	Inverter, English Manual, Remote Control, BTS Cable
Unit Weight	76.7 lb
Unit Dimensions (L×W×H)	25.6 × 9.1 × 7.5 in
Shipping Weight	85.5 lb
Shipping Dimensions (L×W×H)	30.3 × 13.4 × 12.8 in

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
