SunGoldPower Split-Phase Inverter Charger | 6000W Pure Sine Wave | 24V DC–120/240V AC

High-Power Low-Frequency Split-Phase Inverter Charger for Whole-Home & Off-Grid Systems

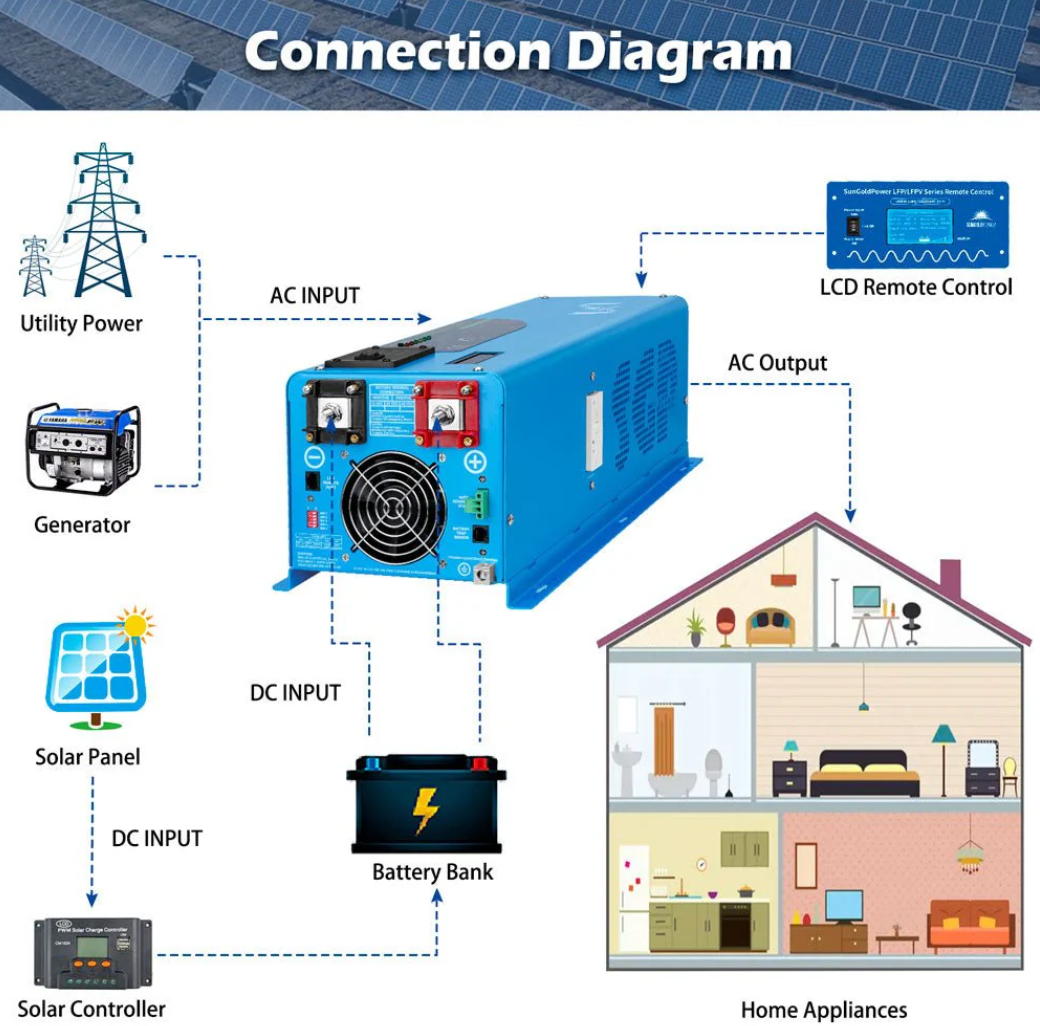

The SunGoldPower LFP6K24V240VSP is a heavy-duty 6000W split-phase pure sine wave inverter charger engineered for high-demand residential, commercial, RV, and off-grid power systems. Built on a rugged low-frequency platform, this all-in-one unit integrates a pure sine wave inverter, high-capacity battery charger, and automatic AC transfer switch into a single, space-efficient solution.

Delivering 120V/240V split-phase output, this inverter can power a small home, business equipment, or mobile power system with clean, stable electricity—ideal for sensitive electronics and motor-driven appliances.

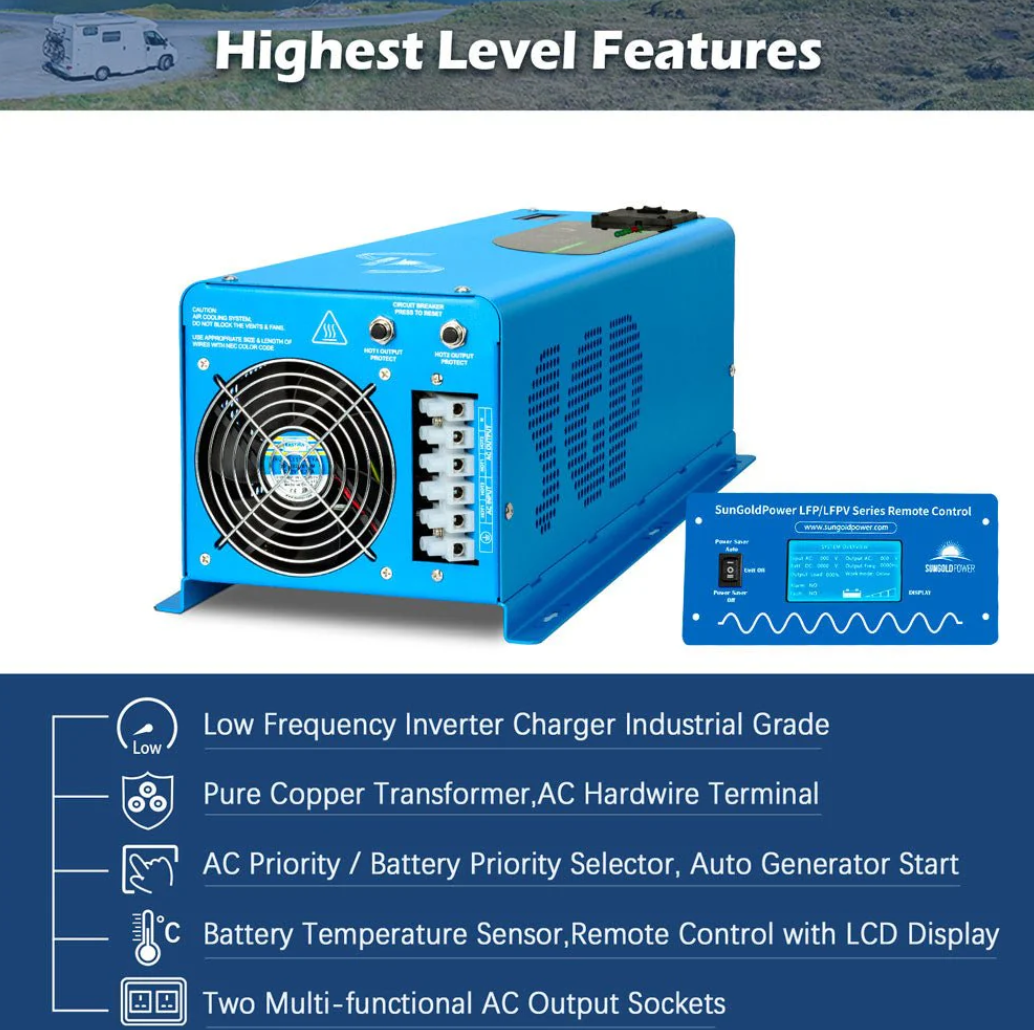

Key Features

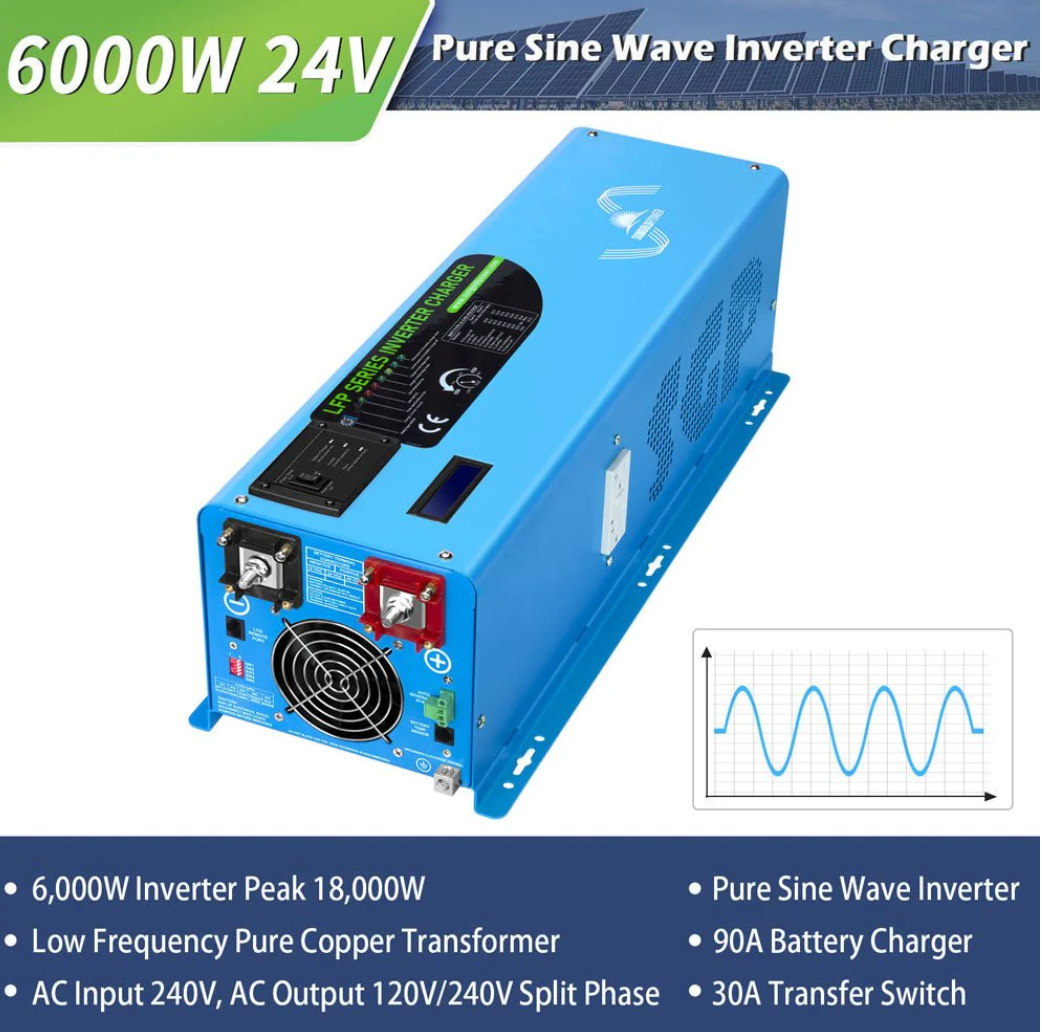

6000W Low-Frequency Pure Sine Wave Output: Utility-grade power with strong surge capability for electronics, tools, and appliances.
Split-Phase 120V / 240V AC Output: Supports 120V and 240V loads for whole-home and commercial installations.
All-in-One Inverter Charger Design: Combines inverter, battery charger, and automatic transfer switch for seamless transitions.
24VDC Battery Input: Optimized for 24V battery banks, improving efficiency and reducing current draw.
240VAC AC Input Required: Supports charging from grid or generator for split-phase operation.
Selectable Output Frequency: 50Hz or 60Hz operation via SW4 switch for domestic and international use.
AC / Battery Priority Selection: SW5 switch allows selection between AC priority or battery priority.
Adjustable Charging Current: Linear 0–100% adjustment for precise battery charging control.
High-Capacity Smart Battery Charger: 90A built-in charger enables fast, efficient charging from utility or generator power.
Automatic Generator Start (AGS): Starts a generator when battery voltage drops and stops it when fully charged.
Low Idle Power Consumption: Minimizes power draw in standby mode to preserve battery life.
Advanced Monitoring & Control: Includes remote control and Battery Temperature Sensor (BTS) for safe and convenient system management.
Fast Transfer Time: ~10ms switching between AC and battery ensures uninterrupted power.

Ideal Applications

Small homes and whole-home backup systems
Off-grid residential power installations
Businesses and workshops
RVs, trailers, and mobile power systems
Solar and battery-based energy systems

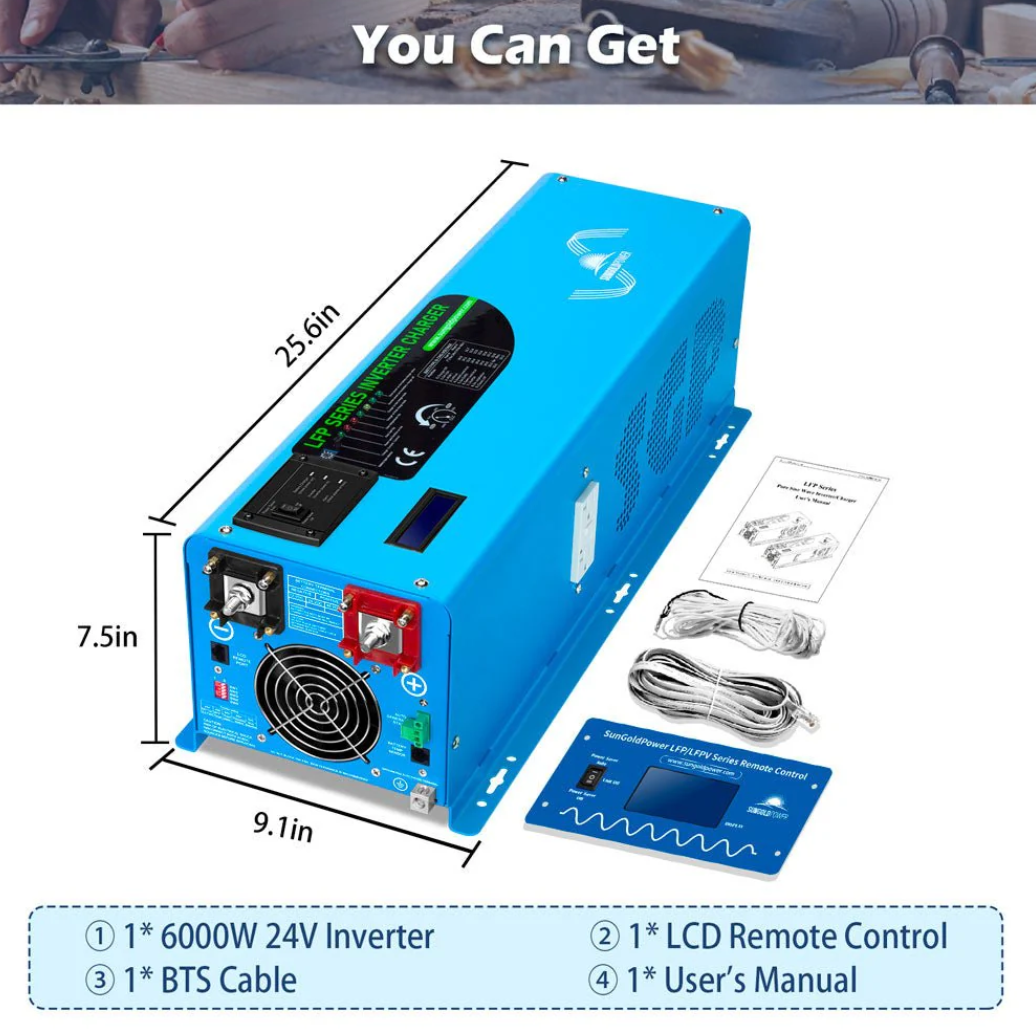

What’s Included

1 × SunGoldPower LFP6K24V240VSP 6000W Split-Phase Pure Sine Wave Inverter Charger
1 × Remote Control
1 × Battery Temperature Sensor (BTS) Cable
1 × English User Manual

Specification Sheets:

SunGoldPower 6000W DC 24V Split Phase Pure Sine Wave Inverter With Charger Specifications (PDF)

Manuals:

SunGoldPower 6000W DC 24V Split Phase Pure Sine Wave Inverter With Charger Installation Guide & Owner Manual (PDF)

Specifications

Parameter	Specification
Main Features
Inverter Type	6000 W Low Frequency Pure Sine Inverter with Charger
Priority Selection	AC / Battery Priority Selector
Generator Support	Automatic Generator Start
Design	Safe and convenient operation
Appliance Compatibility	Powers all types of appliances
Display & Control	LCD Display, Remote Control
Idle Power	Low Idle Consumption

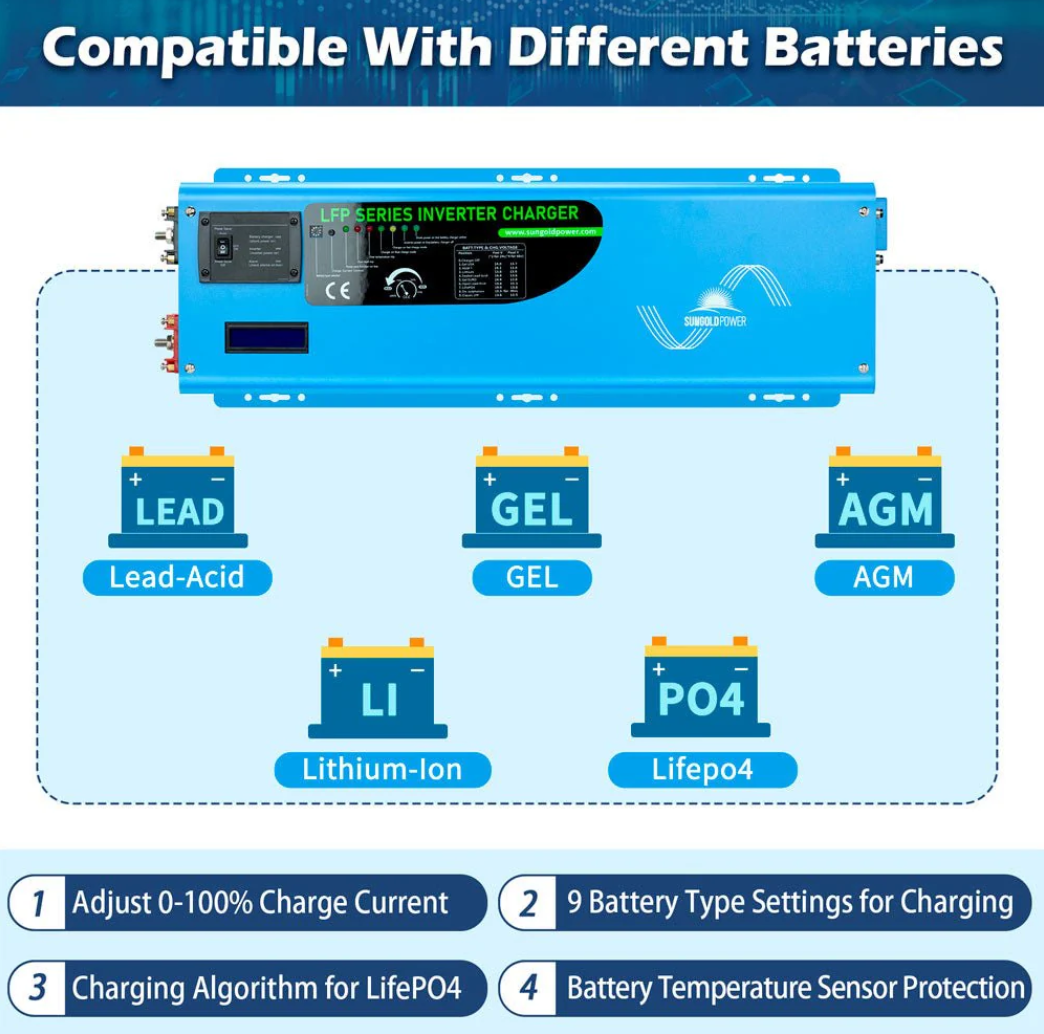

Charger Battery Types	9 selectable battery type settings
Charging Method	Multi-stage smart charger (90 A ±5 A, disableable)
Transfer Time	10 ms (typical)
Inverter Output
Continuous Output Power	6000 W
Surge Rating	18,000 W (20 seconds)
AC Output Voltage	AC 120 V & AC 240 V
AC Input Voltage	240 VAC
Output Waveform	Pure Sine Wave (bypass mode)
Typical Transfer Time	10 ms (max)
Nominal Efficiency	> 88%
DC Input
Nominal Input Voltage	24.0 VDC
Minimum Start Voltage	20.0 VDC
Low Battery Alarm	21.0–22.0 VDC
Low Battery Trip	20.0–21.0 VDC (selectable by SW1)
High Voltage Alarm	32.0 VDC
Low Battery Restart Voltage	26.0 VDC
Idle Consumption	77 W
Power Saver Mode Idle Consumption	29 W
AC Charger
Charger Rate	90 A ±5 A
AC Input Range (Grid/Generator)	140–270 VAC or 184–253 VAC (selectable by SW2)
Overcharge Protection Shutdown	31.4 V
Charge Setting	Selectable based on battery type
Adjustable Charge Current	Off / 0%–100%
Charging Method	3-step intelligent battery charger

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
