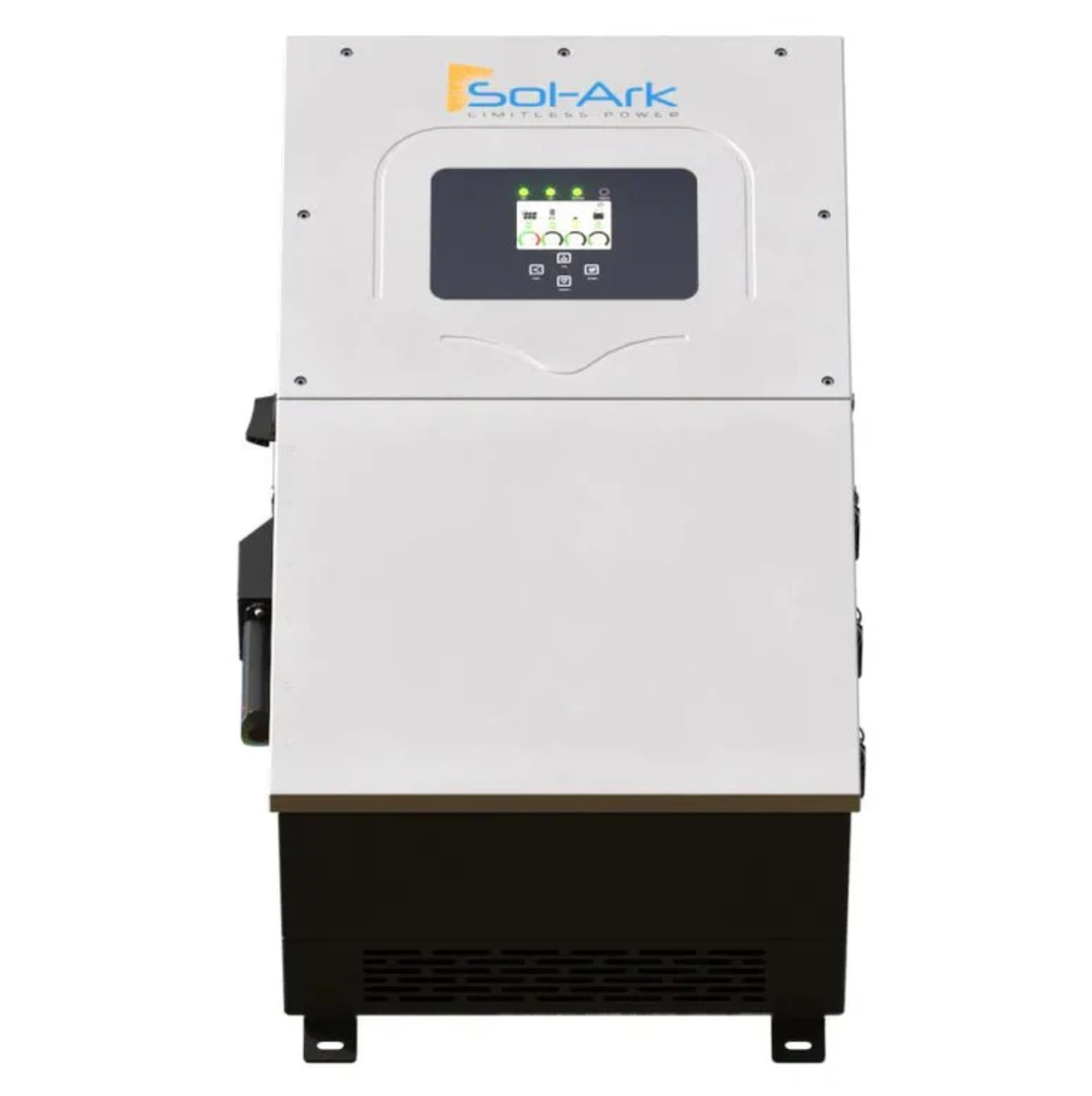

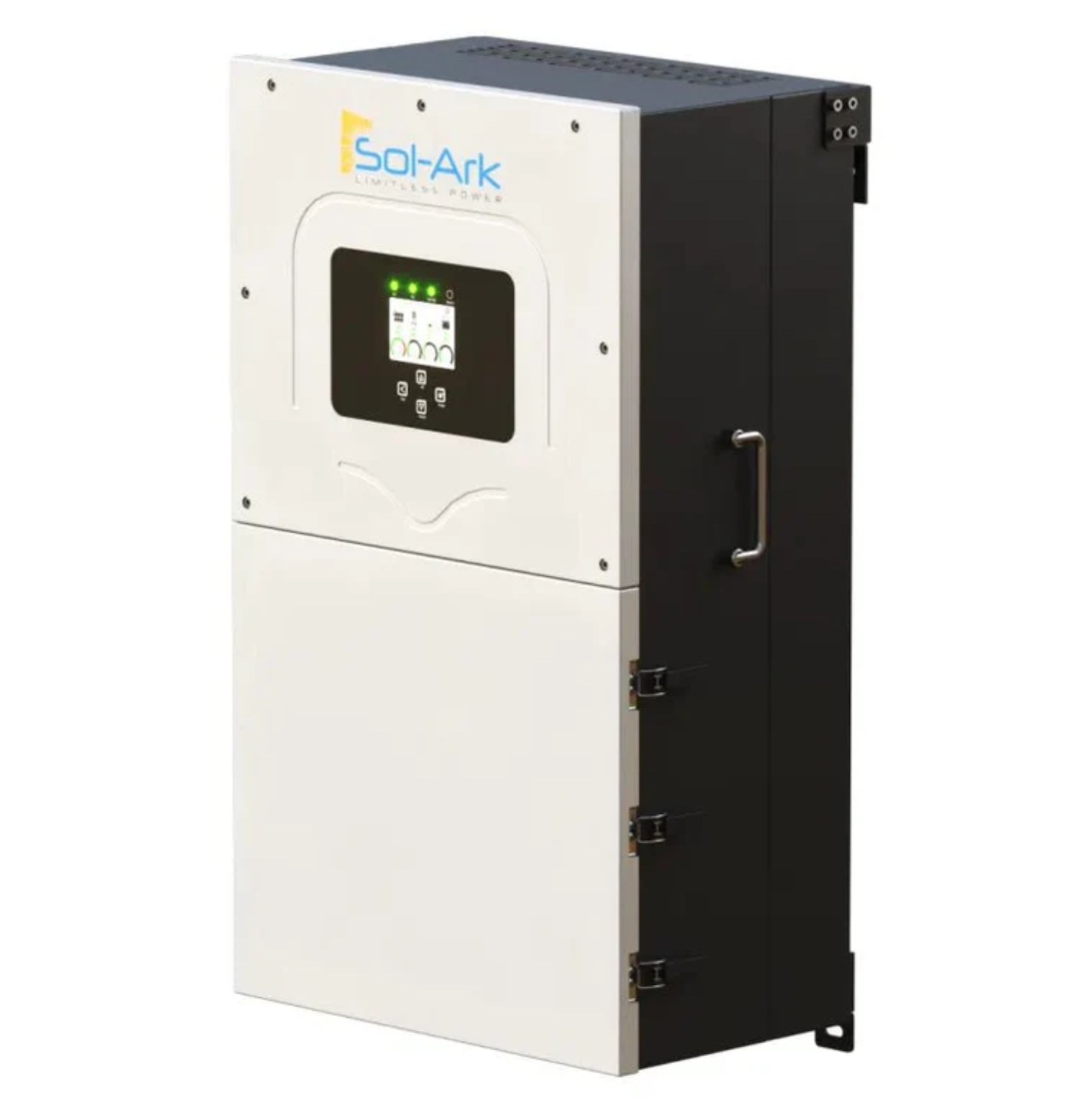

Sol-Ark 15K-2P Hybrid Inverter

Name: Sol-Ark 15K-2P Hybrid Inverter
Brand: Sol-Ark
SKU: INV039
Price: 5750.0 USD
Availability: InStock

BRAND:

Sol-Ark

| SKU:

INV039

$5,750.00

Free shipping with delivery between Apr 02 - Apr 09

Quantity

#1 Authorized Sol-Ark Distributor

All products come with manufactured warranties

Free Shipping + No Sales Tax

More money in your pockets for your renewable

Hassle-Free Returns & Exchanges

Safe shopping for your hard-earned money

Talk To A Real Person

Get help from our specialists —

live chat or call anytime

Sol-Ark 15K-2P-N Hybrid Inverter | 15kW

High-Performance Split-Phase Hybrid Inverter for Residential & Light Commercial Systems

The Sol-Ark 15K-2P-N Hybrid Solar Inverter is a powerful and versatile energy solution built for large residential and light commercial applications. Delivering robust 120/240V split-phase output, it seamlessly integrates solar panels, battery storage, generator input, and grid power into one intelligent system. Designed for compatibility with leading lithium batteries like Fortress Power, EG4, and SimpliPhi, this inverter provides exceptional efficiency, flexible system design, and reliable backup power. With advanced monitoring and scalable architecture, it’s engineered to meet demanding energy needs today and in the future.

Key Features:

15kW High Power Output: Supports large residential and light commercial energy demands with ease.
Battery-Ready Hybrid Design: Ideal for grid-tied, off-grid, and backup systems with seamless battery integration.
Integrated Solar Charge Controller: Simplifies installation while maximizing solar energy production.
Grid-Tie & Backup Capability: Ensures energy independence with automatic backup during outages.
Advanced Monitoring & Control: Real-time performance tracking with remote access for system optimization.
Flexible System Compatibility: Supports single-phase and three-phase applications for versatile installations.

Ideal Applications:

Large residential homes with high energy demand
Light commercial buildings and facilities
Whole-home or business backup power systems
Off-grid and remote energy installations
Hybrid solar systems with battery and generator integration

What’s Included:

1 × Sol-Ark 15K-2P-N Hybrid Inverter (15kW)

Specifications

Parameter	Details
Input Data (PV)
Max. Usable PV Power	19,500W
Rated MPPT Operating Voltage Range	175 - 425V
MPPT Voltage Range	150 - 500V
Startup Voltage	125V
Max. Input Voltage	500V
Max. Input Current per MPPT	26A
Max. Short Circuit Current per MPPT	44A
Number of MPPT Trackers	3
PV Strings per MPPT	2
Max AC Coupled Input	19,200W
Max Allowed PV Power	23,400W
Output Data (AC)
Nominal AC Voltage	120/240V, 120/208V, 220V
Grid Frequency	50 / 60Hz
Max Continuous Power	15,000W
Max Output Current	62.5A
Peak Power (30 min, Batteries Only)	13,000W @ 240V
Peak Power (10s Off-Grid)	24,000VA @ 240V
Peak Power (100ms Off-Grid)	30,000VA @ 240V
Max Output Fault Current (5s)	94A (with PV), 75A (batteries only)
Max Output Fault Current (100ms)	120A
Max Grid Passthrough Current	200A
Power Factor Range	±0.9 adjustable
Backup Transfer Time	5ms
CEC Efficiency	96.5%
Max Efficiency	97.5%
Design	Transformerless DC
Stackable	Up to 12 in parallel
Battery Input Data (DC)
Battery Technologies	Lithium
Nominal DC Voltage	48V
Operating Voltage Range	43 - 63V
Capacity	50 — 9900Ah
Max Charge / Discharge Current	275A
Battery Disconnect	200A / single pole ×2
Charging Controller	3-Stage with Equalization
Grid to Battery Efficiency	96.0%
External BTS	Included
Automatic Generator Start	2-wire start (integrated)
BMS Communication	CANBus & RS485 MODBUS
General Data
Dimensions (H × W × D)	31.8 × 19.4 × 12 in
Weight	135 lb
Enclosure	IP65 / NEMA 3R
Ambient Temperature	-13°F to 131°F (derating above 113°F)
Operating Altitude	2000 m (6561 ft)
Noise Level	< 30 dB @ 77°F
Idle Consumption	90W (no load)
Communication	Wi-Fi & LAN included
Protection & Certifications
Certifications	UL 1741 SB / SA11 / CRD-PCS, IEEE 1547.1-2020, UL 1699B, UL 1998, FCC Part 15 Class B, CSIP, CA Rule 21, HECO Rule 14H, CSA C22.2 107.1-16
PV DC Disconnect	Integrated (NEC 240.15)
Ground Fault Detection	Integrated (NEC 690.5)
Rapid Shutdown	Integrated (NEC 690.12)
Arc Fault Detection	Integrated (NEC 690.11)
Lightning Protection	Integrated
Reverse Polarity Protection	Integrated
AC Output Breaker	200A (Integrated)
Surge Protection	DC Type II / AC Type II

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
