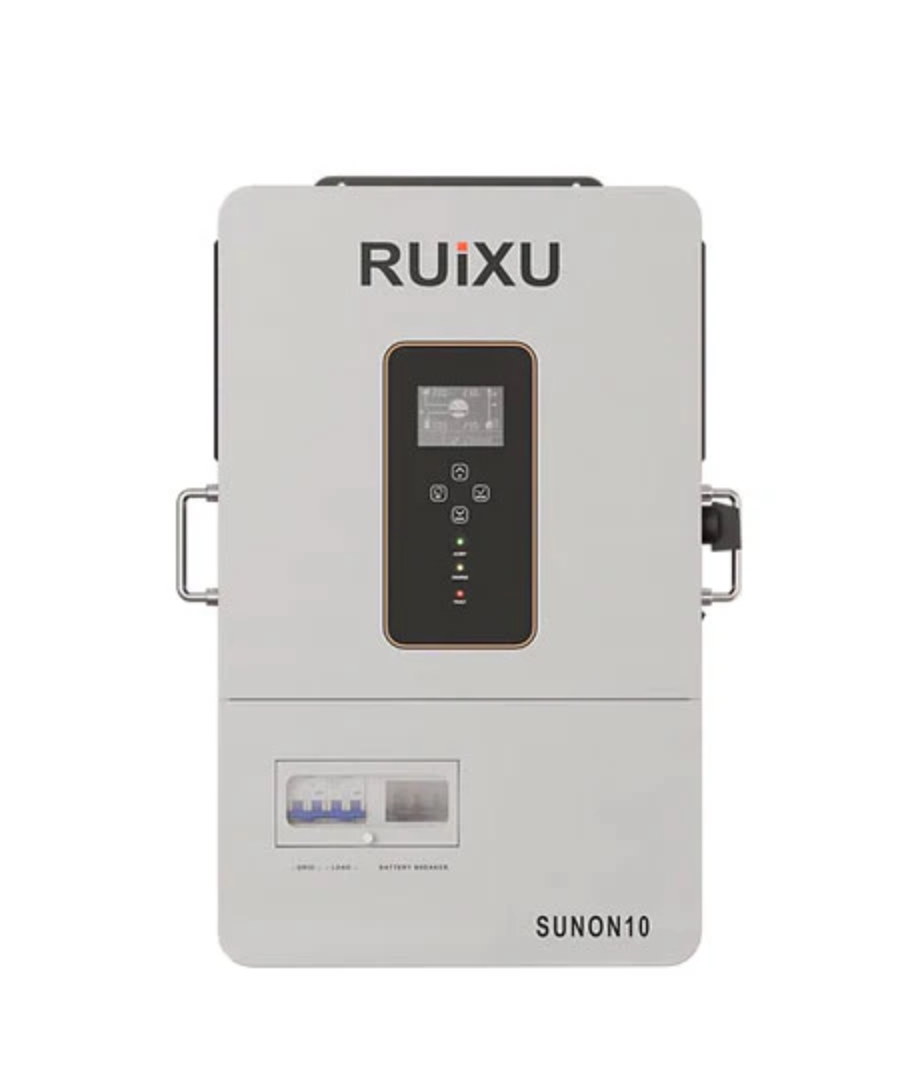

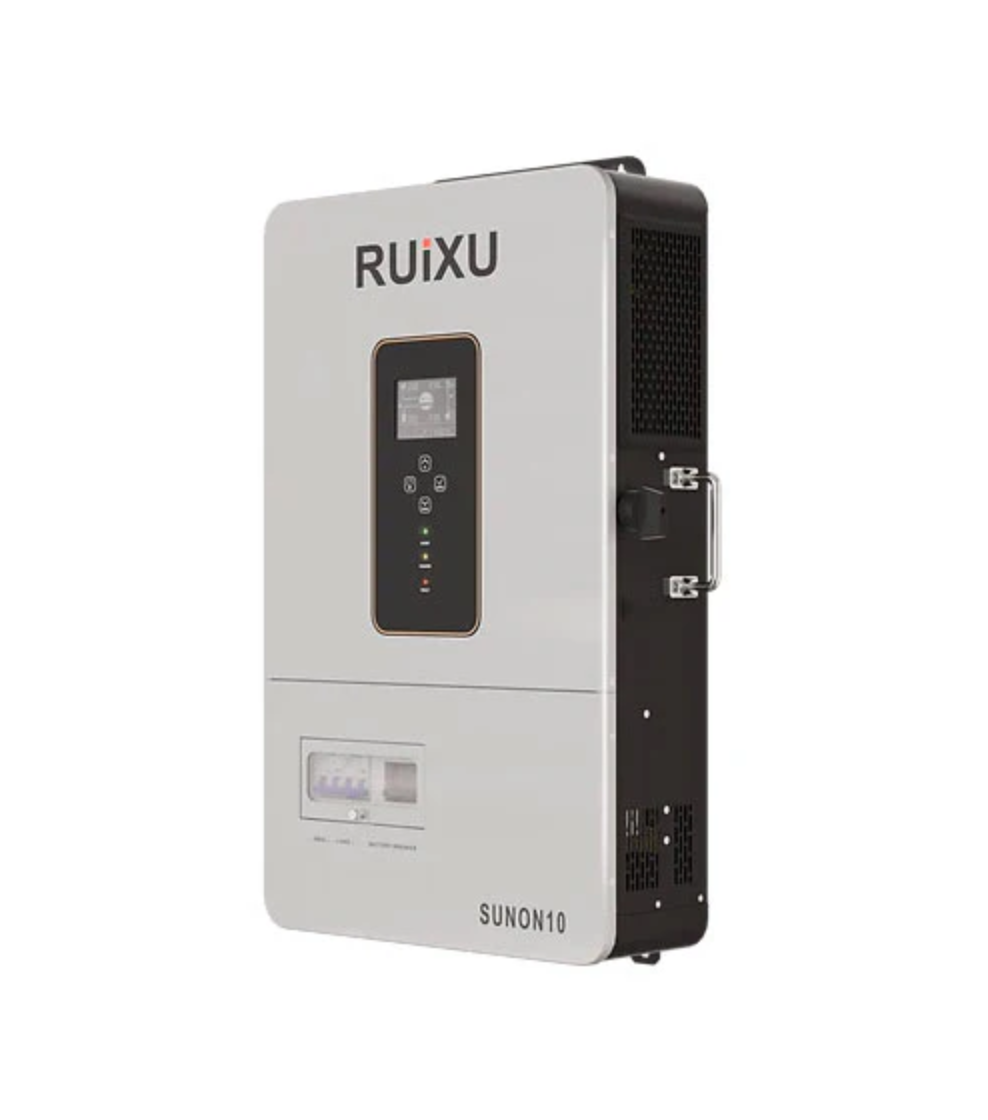

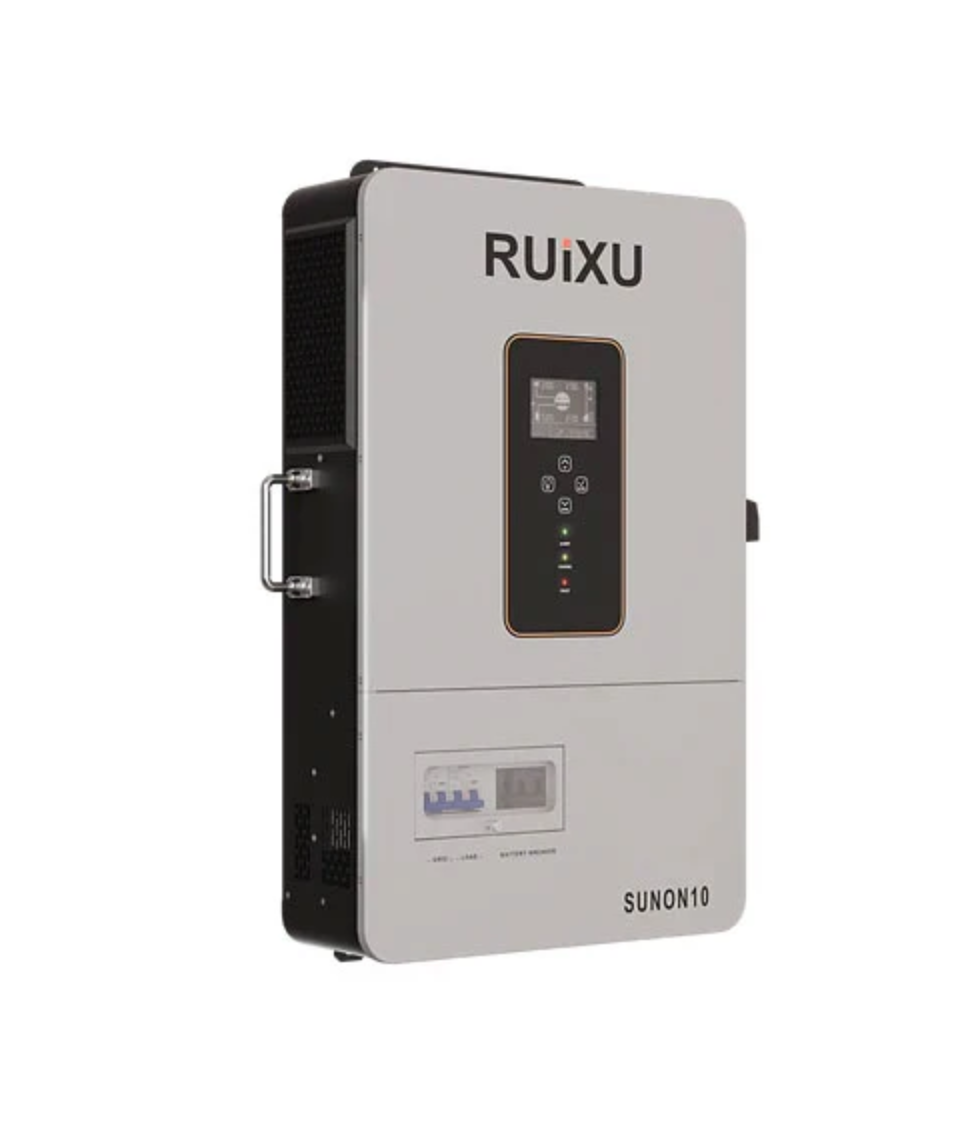

RUiXU SUNON10 Solar Off-Grid Inverter | 10kW Single/Split-Phase | UL1741

High-Performance Off-Grid & Hybrid Inverter for Reliable Energy Independence

The RUiXU SUNON10 is a 10kW single/split-phase off-grid solar inverter engineered for residential, commercial, and remote power systems. Designed for off-grid and hybrid solar applications, it delivers reliable, efficient energy with UL1741 certification and compatibility with 48V lithium or lead-acid batteries.

With advanced energy management, scalable architecture, and built-in MPPT solar charging, the SUNON10 provides a future-ready solution for dependable power wherever grid access is limited or unavailable.

Key Features

10kW Pure Sine Wave Output: Supports 120V and 240V split-phase loads with stable, high-quality power for homes, tools, and heavy-duty appliances.
UL1741 Certified: Meets strict U.S. safety and performance standards for off-grid inverter systems.
48V Battery Compatibility: Works with lithium and lead-acid batteries, providing flexible storage options.
Built-In 200A MPPT Solar Charger: Ensures fast and efficient solar energy harvesting and battery charging.
SUB Mode (Grid + PV Hybrid Charging): Prioritizes solar energy and switches to grid backup as needed for continuous power.
Time-Scheduled Charging & Discharging: Set customized schedules for energy usage based on electricity rates and load demand.
Parallel Expansion up to 60kW: Supports up to 6 units in parallel for larger homes, businesses, or industrial off-grid systems.
Built-In 200A Circuit Breaker: Integrated protection for overload and short-circuit conditions.
Remote Monitoring Ready: Includes WiFi logger and CAT6 cable for real-time monitoring and remote management.
DIY-Friendly Installation: Plug-and-play design with clear installation instructions for faster setup.
3-Year Manufacturer Warranty: Backed by RUiXU for long-term reliability and peace of mind.

Ideal Applications

Off-grid homes and cabins
Hybrid solar + battery systems
Commercial and light industrial installations
Remote sites and backup power systems
Scalable residential energy storage solutions

What’s Included

1 × RUiXU SUNON10 Solar Off-Grid Inverter
2 × M6×60mm Expansion Screws
2 × M5×30mm Plastic Expansion Screws
5 × Phillips Screws M8×12mm
4 × SC50-8 Copper Lugs
2 × SC95-8 Copper Lugs
4 × Black Screws M4×8mm
1 × 8-Socket Screwdriver
1 × Flat-Head Screwdriver
1 × Parallel Communication Cable
1 × WiFi Logger (Optional)
1 × User Manual
1 × Warranty Card
1 × Quality Certificate
1 × Outgoing Inspection Report

Specifications

Parameter	Details
Brand	BigBattery
Model	APEX-10K
GTIN / UPC	00199874999463
Dimension (in)	28.46 × 17.64 × 5.91
Weight	62 lbs
Protection Degree	IP20 (indoor only)
Operating Temperature	14–131°F (derate above 113°F)
Noise	<60 dB
Cooling Method	Intelligent fan
External Module (Optional)	Wi-Fi / GPRS
Warranty	5 years
Certificates	UL1741 / RoHS / EN61000-6-1 / EC61000-6-3 / FCC Part15 Class B / IEC62109-1 / IEC62109-2
Rated Output Power	10,000 W
Max Output Power	20,000 VA
Rated Output Voltage	120/240 V AC (single/split phase)
Load Capacity (motors)	6 HP
Rated Frequency	50/60 Hz
Output Wave	Pure sine wave
Switching Time	10 ms
Parallel Capacity	Up to 6 units (3+ units in parallel can form 3-phase)
Battery Type	Lithium-ion / Lead-acid / User-defined
Rated Battery Voltage	48V
Voltage Range	40–60 VDC
Max Solar Charging Current	200A
Max Grid / Generator Charging Current	120A
Max Hybrid Charge Current	200A
No. of MPPT	1 + 1
Max Input Power	5,000W + 5,500W
Max Input Current	22A + 22A
Max Open Circuit Voltage	550 VDC + 550 VDC
MPPT Voltage Range	125–450 VDC
Input Voltage Range	65–140 V AC
Input Frequency Range	50/60 Hz
Bypass Overload Current	63A
AC Inputs	1 (Grid or Generator)
Max Efficiency	99.9%
MPPT Tracking Efficiency	92%
Communication	RS485 / CAN / USB / Dry contact
Integrated Circuit Breaker	Utility / Load / Battery / PV
Overload Protection	102–110% load: off after 5 min 110–125% load: off after 10 s >125% load: off after 5 s
Protection Features	PV input current limiting, PV over-voltage, PV night reverse current, AC over/under voltage, battery over/under voltage, battery over-current, AC short-circuit, heat sink over-temp, inverter overload

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
