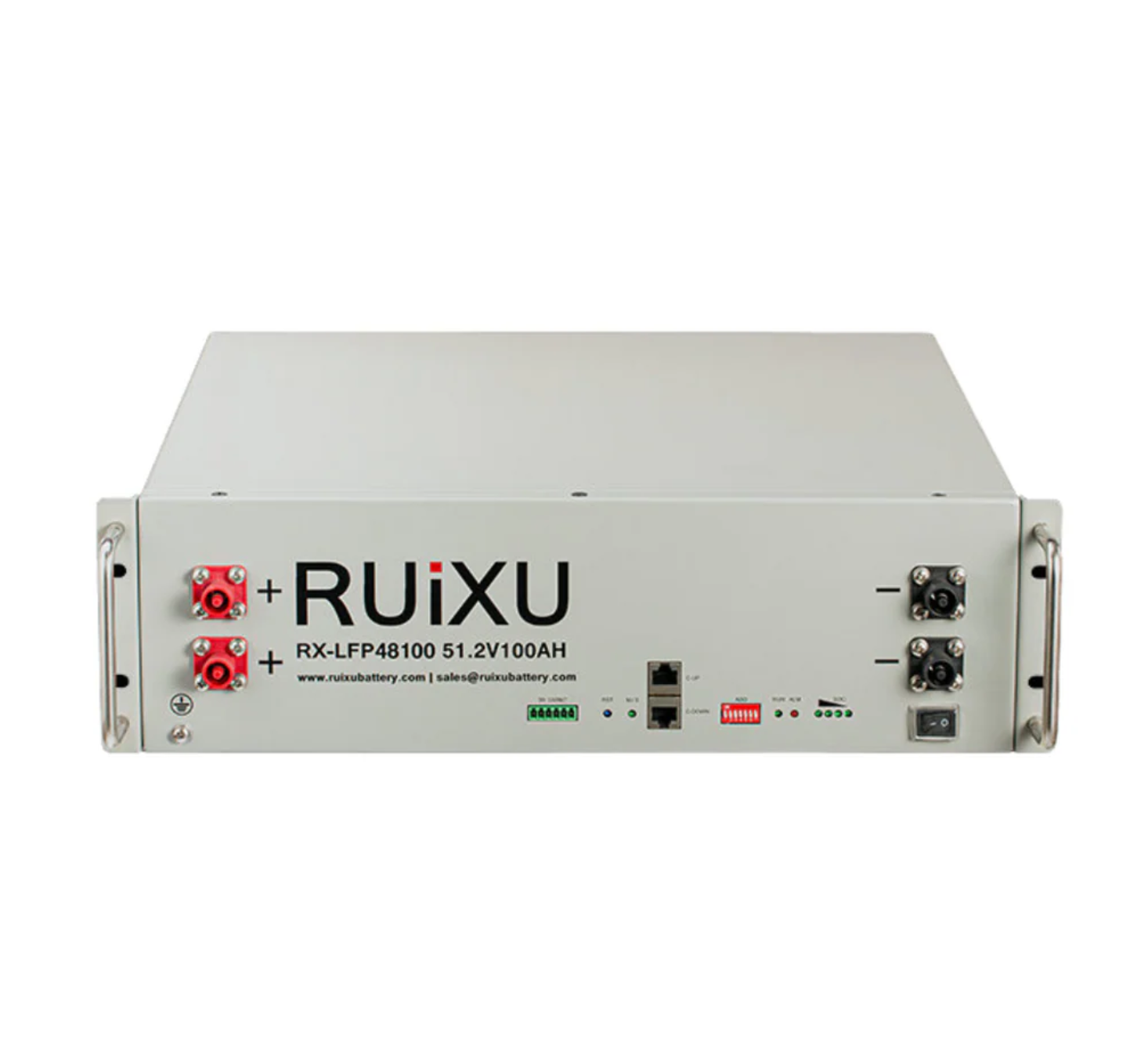

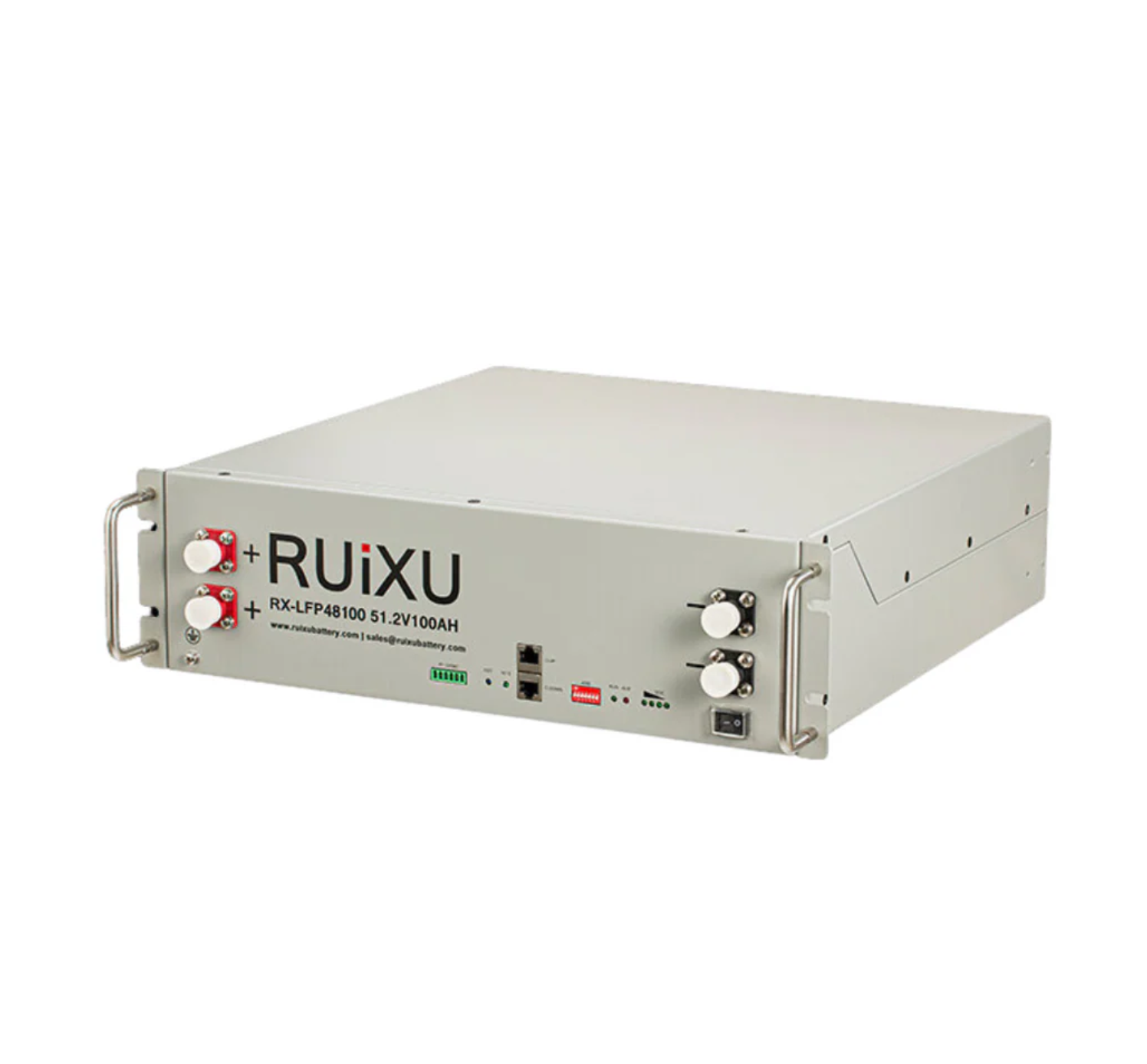

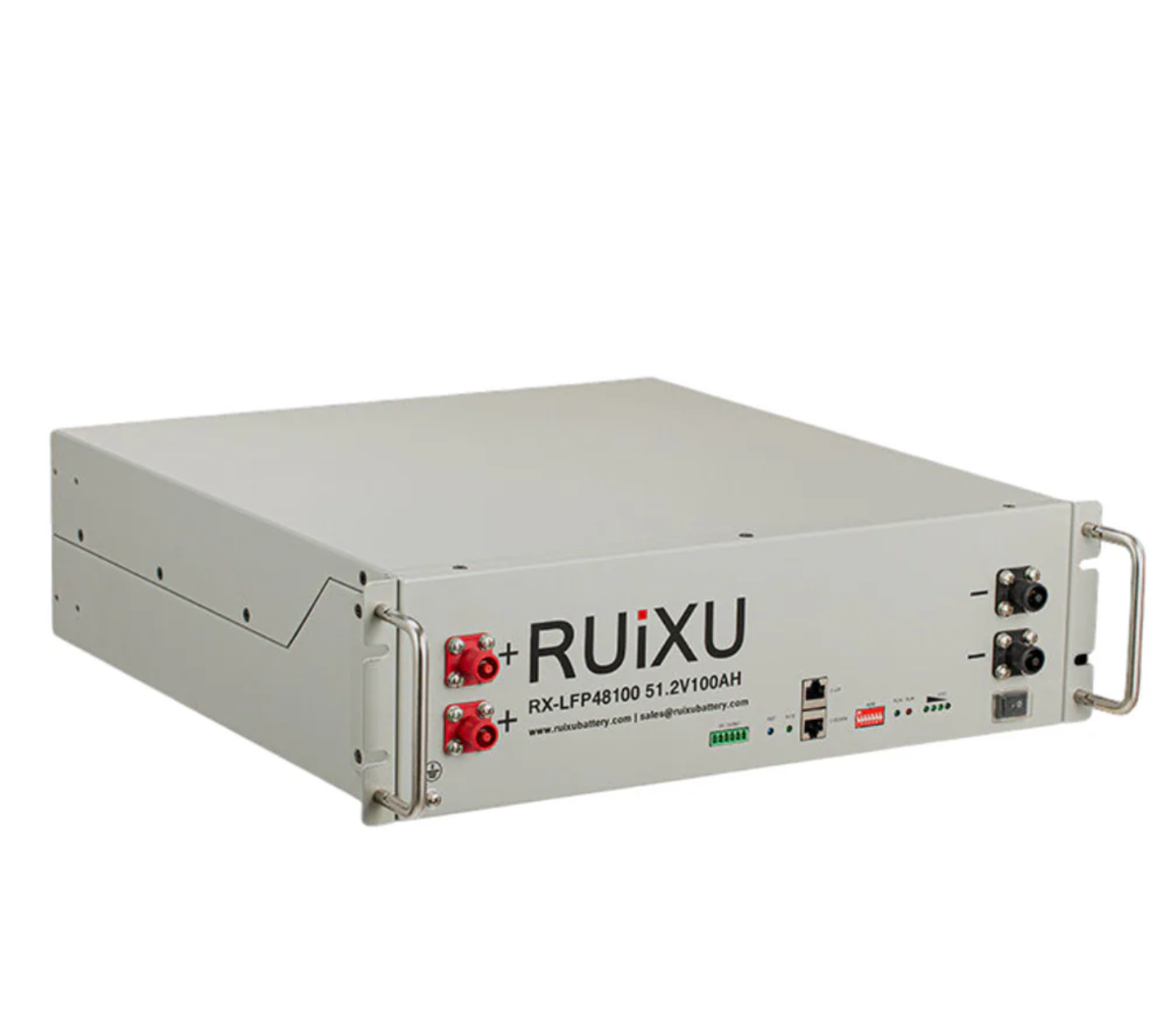

RUiXU RX-LFP48100 51.2V 100Ah LiFePO4 Rack Battery

5.12kWh | 3U 19″ Rack Mount | UL1973 & IEC62619 Certified

Compact. Scalable. Built for Residential Energy Storage.

The RUiXU RX-LFP48100 is a 51.2V 100Ah (5.12kWh) LiFePO₄ server rack battery engineered for residential energy storage systems (ESS). With an ultra-thin 3U design, modular scalability, and broad inverter compatibility, it is ideal for solar self-consumption, backup power, and grid outage protection.

Designed to integrate seamlessly with mainstream inverters, the RX-LFP48100 allows homeowners and installers to build flexible, high-capacity storage systems without external controllers.

Key Features

Modular & Scalable Design: Supports up to 32 batteries in parallel, allowing expansion from 5kWh to 160kWh without additional controllers.
Ultra-Slim 3U Rack Form Factor: Compact 3U (133mm height) fits standard 19-inch racks, saving space while maintaining high energy density. Dimensions: 482 × 460 × 133.5mm
Multiple Installation Options:
- Rack mounted
- Floor mounted
- Wall mounted
- Stack mounted
- Optional bracket kits available for different installation scenarios
Intelligent BMS with Advanced Protection:
- Over-charge protection
- Over-discharge protection
- Over-current protection
- Automatic cell balancing for long-term reliability
Inverter Protocol Selection: DIP switch addressing configures RS485 baud rate and inverter communication protocols for broad inverter compatibility.
High-Capacity Pre-Charge Capability: Built-in 1,000,000µF pre-charge circuit enables safe startup with high-power inverters, reducing stress on components.
Optional Built-In Heater:
- Charging temperature range: -5°C to 59°C
- Discharging temperature range: -10°C to 59°C (heated version available on backorder; non-heated version available now)
Industry-Recognized Certifications:
- UL1973
- IEC62619
- CE
- UN38.3
- MSDS

Ideal Applications

Residential solar + storage systems
Whole-home backup power
Hybrid and off-grid solar installations
UPS and critical load backup
Scalable rack-based ESS solutions

What’s Included

1 × RUiXU RX-LFP48100 48V 100Ah LiFePO4 Rack Battery
User manual & warranty documentation

Specifications

Parameter	Details
Nominal Voltage	51.2 V
Nominal Capacity	100 Ah
Nominal Energy	5.12 kWh
Usable Energy	4.92 kWh
Operating Voltage Range	44.8 – 56.0 V
Charge Voltage	56 V
Float Voltage	54.6 V
Recommended Charge Current	50 A
Maximum Charge Current	70 A
Recommended Discharge Current	50 A
Maximum Discharge Current	100 A
Peak Discharge Current	101–119 A @ 5 minutes
Cell Type	Lithium Iron Phosphate (LiFePO4)
Cycle Life	≥ 6,000 cycles @ 90% DOD
Design Life	15 Years
Communication Ports	RS485 / CAN
CANbus Compatibility	Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye, Growatt, SAJ, LuxPower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
RS485 Compatibility	MPP, Voltronic, RCT, Alpha, Outback
Dimensions (W × H × D)	18.9 × 5.2 × 18.1 in
Net Weight	103.6 lbs
IP Rating	IP20
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-10°C to 45°C (14°F to 113°F)
Relative Humidity	5% – 90% (Non-condensing)
Installation Altitude	≤ 4000 m
Installation Location	Indoor
Mounting Options	Wall / Floor / Stack / 19" Rack Mounted
Compliance & Safety	CE, IEC62619, UN1973, UN38.3

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
