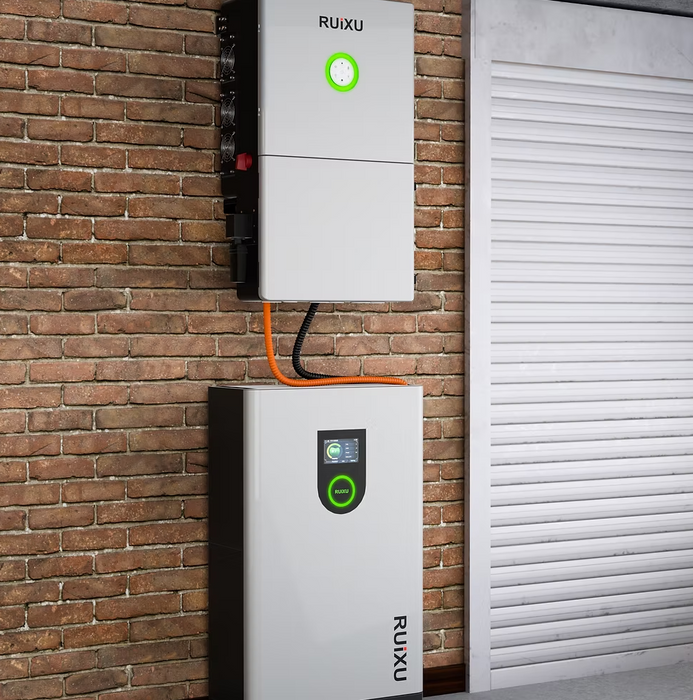

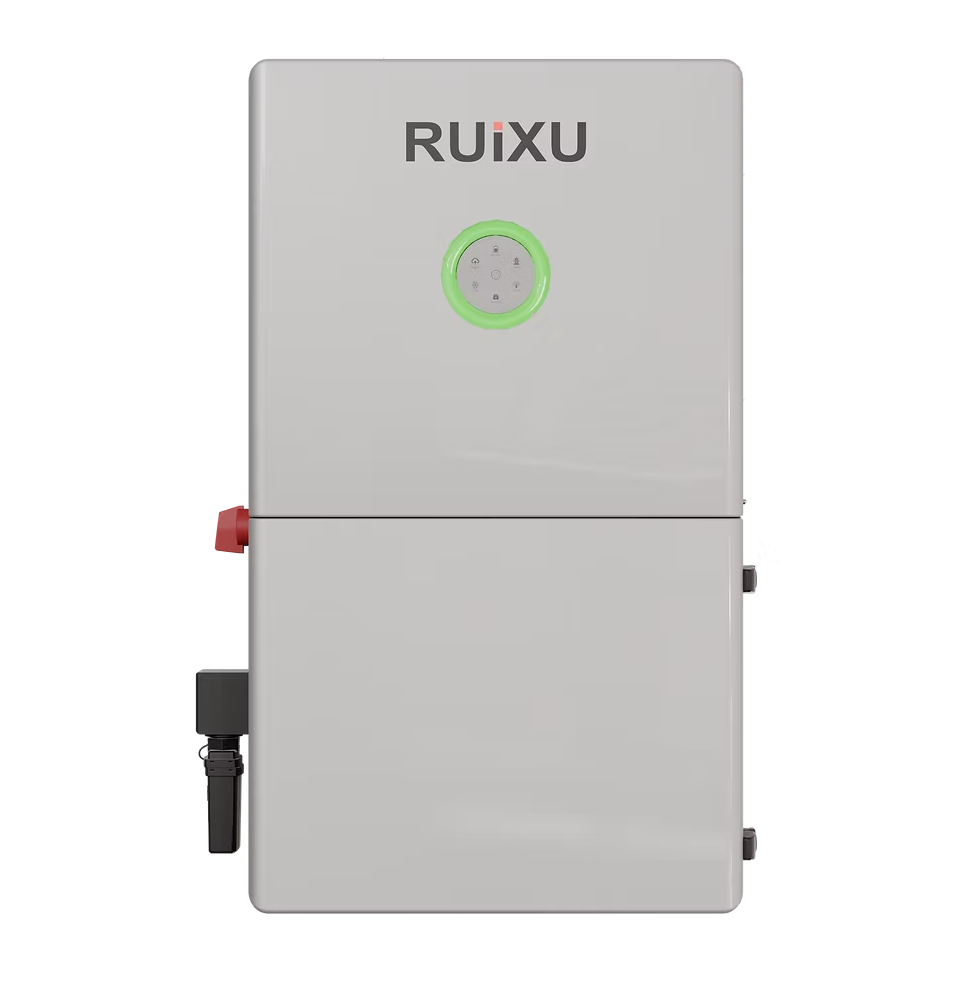

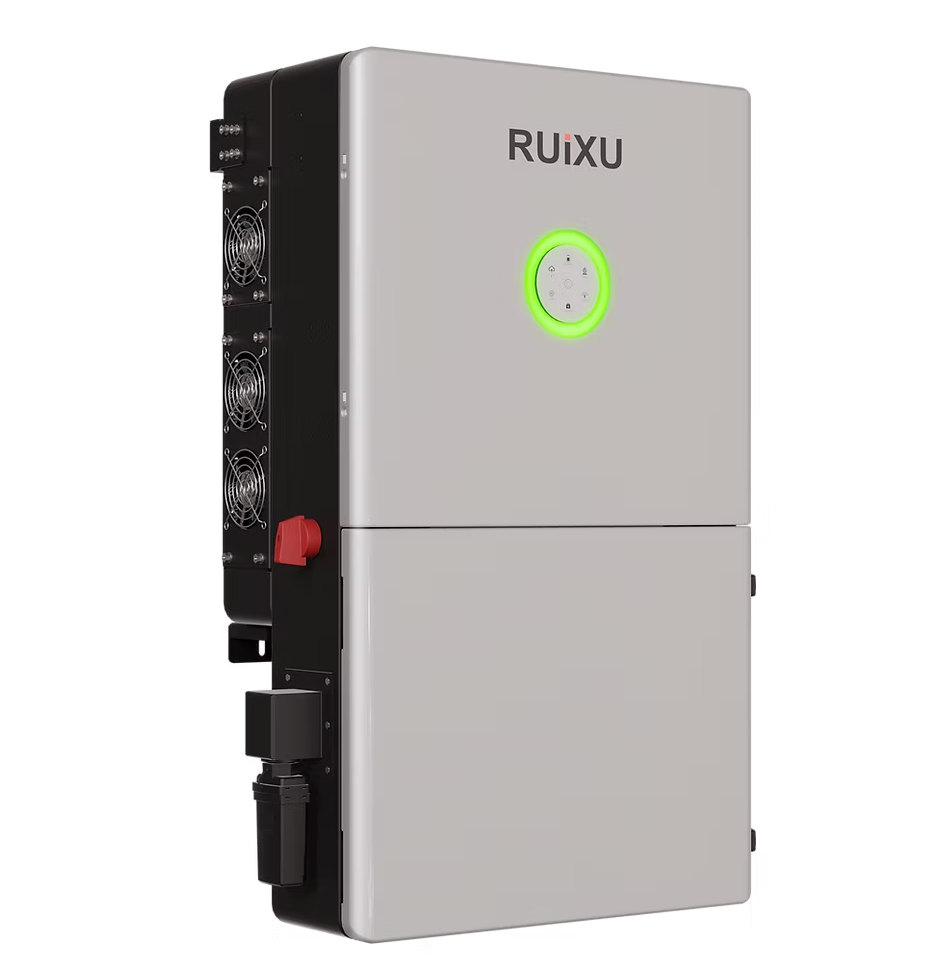

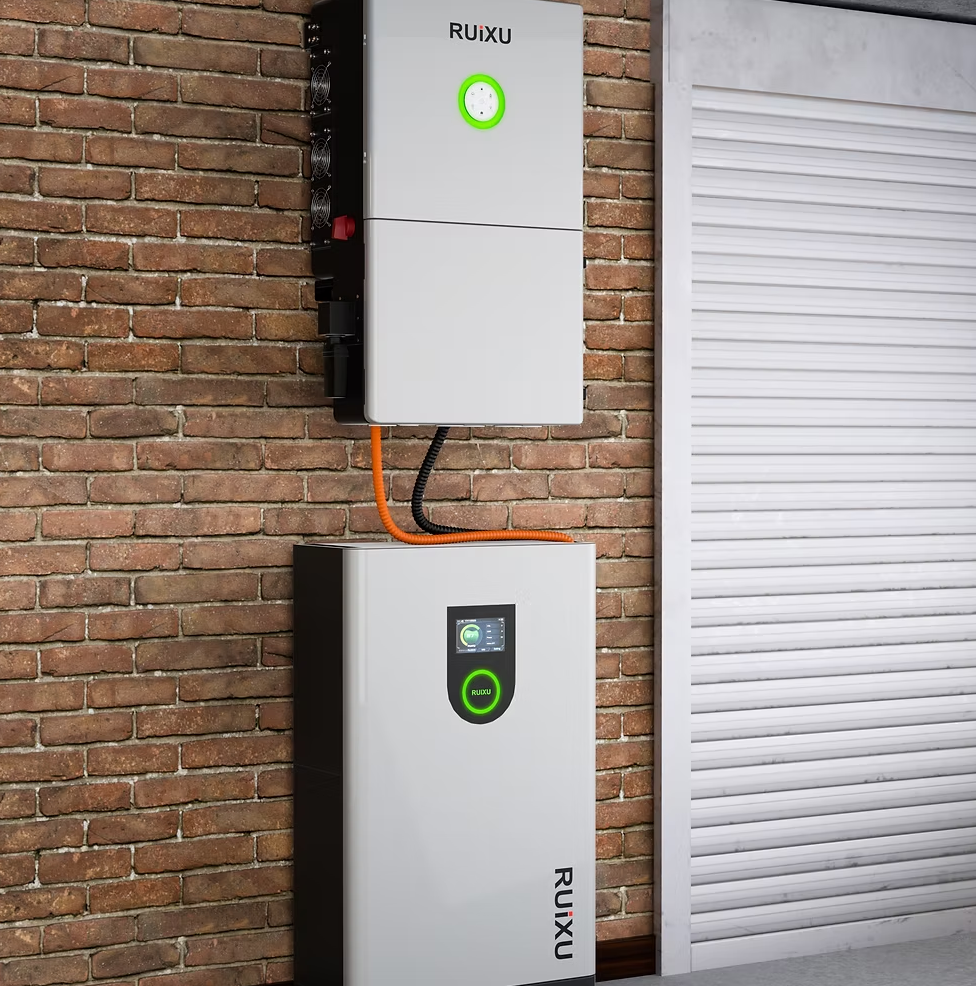

RUiXU RX-12K 17.1kW Split Phase Hybrid Inverter | UL1741 Certified PV Input

Powerful Hybrid Inverter for U.S. Split-Phase Systems

The RUiXU RX-12K is a high-performance all-in-one split-phase hybrid inverter designed for modern residential energy systems. With 17.1kW output, UL1741-certified PV input, and full hybrid functionality, it provides a complete solution for solar generation, storage, and backup power.

Ideal for homeowners seeking reliable grid-tied operation, off-grid capability, and seamless whole-home backup, the RX-12K delivers powerful performance with flexible installation options.

Key Features

High Output Power: Up to 17.1kW continuous power for large homes and heavy loads.
UL1741 Certified PV Input: Ensures safe, compliant solar integration for US grid-tied installations.
Split-Phase Output: Supports 120/240V split-phase output for full residential compatibility.
All-in-One Hybrid Inverter: Operates in grid-tied, off-grid, or hybrid modes with smart energy management.
AC Coupling Capability: Easily retrofit existing solar systems without replacing PV inverters.
Generator Compatible: Supports grid and diesel generator inputs for flexible backup solutions.
Integrated Transfer Relay: Built-in 200A transfer relay for fast, reliable whole-home backup.
Rapid Shutdown Function: Provides quick system shutdown for enhanced safety and compliance.
IP65 Protection: Weather-resistant enclosure for indoor or outdoor installation.
Battery Compatibility: Works with 48V lithium and lead-acid batteries.
Multiple MPPT Inputs: Supports up to 4 MPPTs for maximum solar harvesting efficiency.
UPS Function: <20ms transfer time for uninterrupted power to critical loads.

Ideal Applications

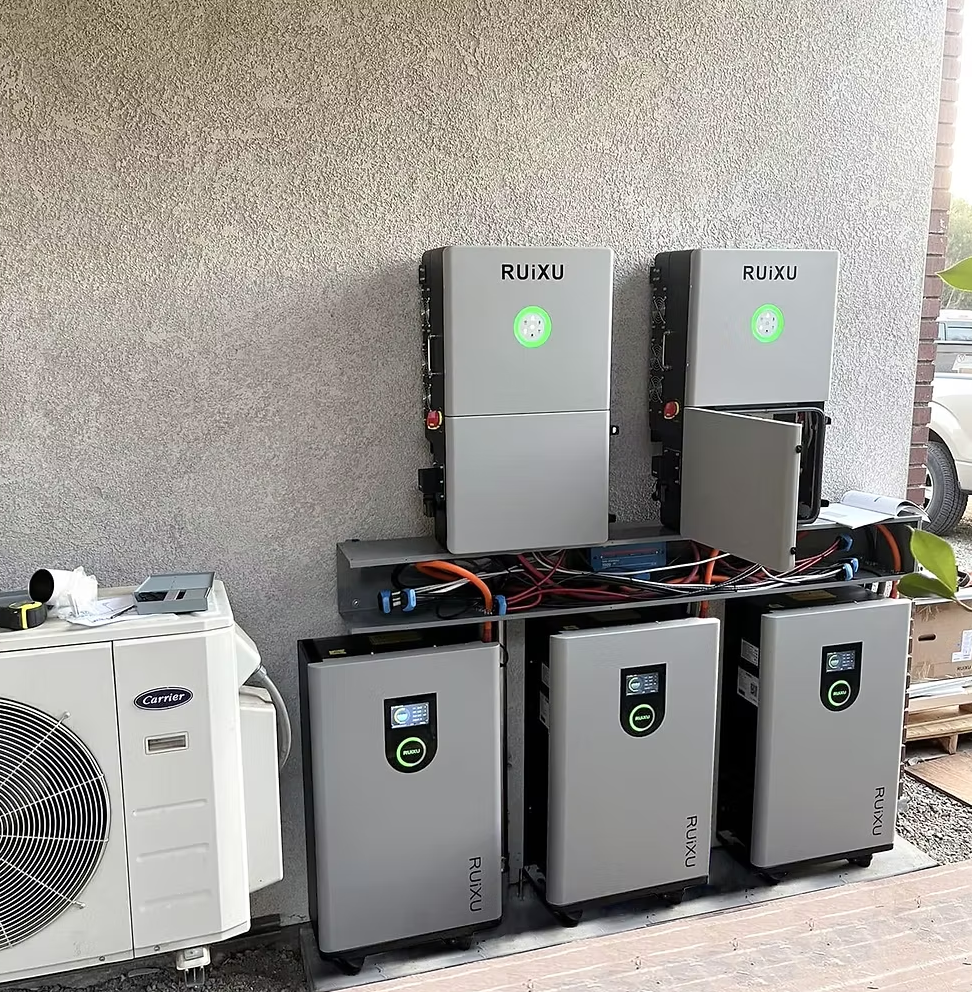

Whole-home backup power
Solar + battery storage systems
Off-grid and hybrid energy setups
Solar retrofits with AC coupling
Residential and light commercial installations

What’s Included

1 × RUiXU RX-12K 17.1kW Split Phase Hybrid Inverter
1 × 200cm CAT6 Communication Cable
1 × Wi-Fi Dongle
1 × User Manual

Specifications

Parameter	Details
Max PV Array Power (STC)	17,100 W
Max DC Voltage	600 V
MPPT Voltage Range	90–550 V
Nominal DC Voltage	380 V
Start / Minimum Input Voltage	100 V
Max Input Current	16 / 16 / 16 / 16 A
Strings per MPPT	1 / 1 / 1 / 1
Number of MPPT	4
Battery Type	Lead-acid or LiFePO4
Battery Voltage Range	40–60 V
Max Charging / Discharging Current	240 A
Rated AC Power (208Vac)	9,880 W
Rated AC Power (240Vac)	11,400 W
Max Apparent Power	12,540 VA
Rated AC Current (208Vac)	47.5 A
Max AC Current (240Vac)	52.3 A
Rated Output Voltage Range	L1 / L2 / N / PE, 208V / 240V (183–229V / 211–264V)
Rated Output Frequency	60 Hz (54–65 Hz)
Rated Output Power Factor	0.8 leading – 0.8 lagging
Total Harmonic Distortion (THD)	<3%
Backup Rated Output Power (240Vac)	11,400 W
Backup Overload Capacity (10s)	17,100 W
Backup Rated Output Voltage	120 / 240 V
Backup Rated Frequency	60 Hz
Backup Output THD	<3%
Max Efficiency	97.6%
CEC Efficiency	97%
Battery-to-AC Max Efficiency	93%
Over Voltage Protection	Integrated
AC Surge Protection	Type II
DC Surge Protection	Type II
Overheat Protection	Integrated
Islanding Protection	Integrated
Arc Fault Protection (AFP)	Integrated
Rapid Shutdown (RSD)	Integrated
Display	LED + App (Bluetooth)
Communication Ports	RS232 + RS485 (RJ45) + DRM (RJ45)
Connectivity	Wi-Fi / Ethernet / 4G
Load Monitor	24 Hours
Isolation Type	HF
Standby Power Consumption	<10 W
Operating Temperature Range	-40°F – 140°F (Derating >113°F)
Cooling Method	Smart Fan Cooling
Ambient Humidity	0–100% Non-Condensing
Max Altitude	4,000 m (~3,000 m derating)
Noise	<60 dBA
Ingress Protection	NEMA 4X (IP65)
Mounting	Wall Mounting
Dimensions (L × W × H)	30.7 × 18.5 × 10.2 in
Weight	110 lbs
Safety / EMC Standards	UL 1741 CRD, IEEE 1547, UL 1699B, UL 1998, UL 9540, SRD-UL1741, CAN/CSA C22.2.107.1-1, FCC Part 15 Class B

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
