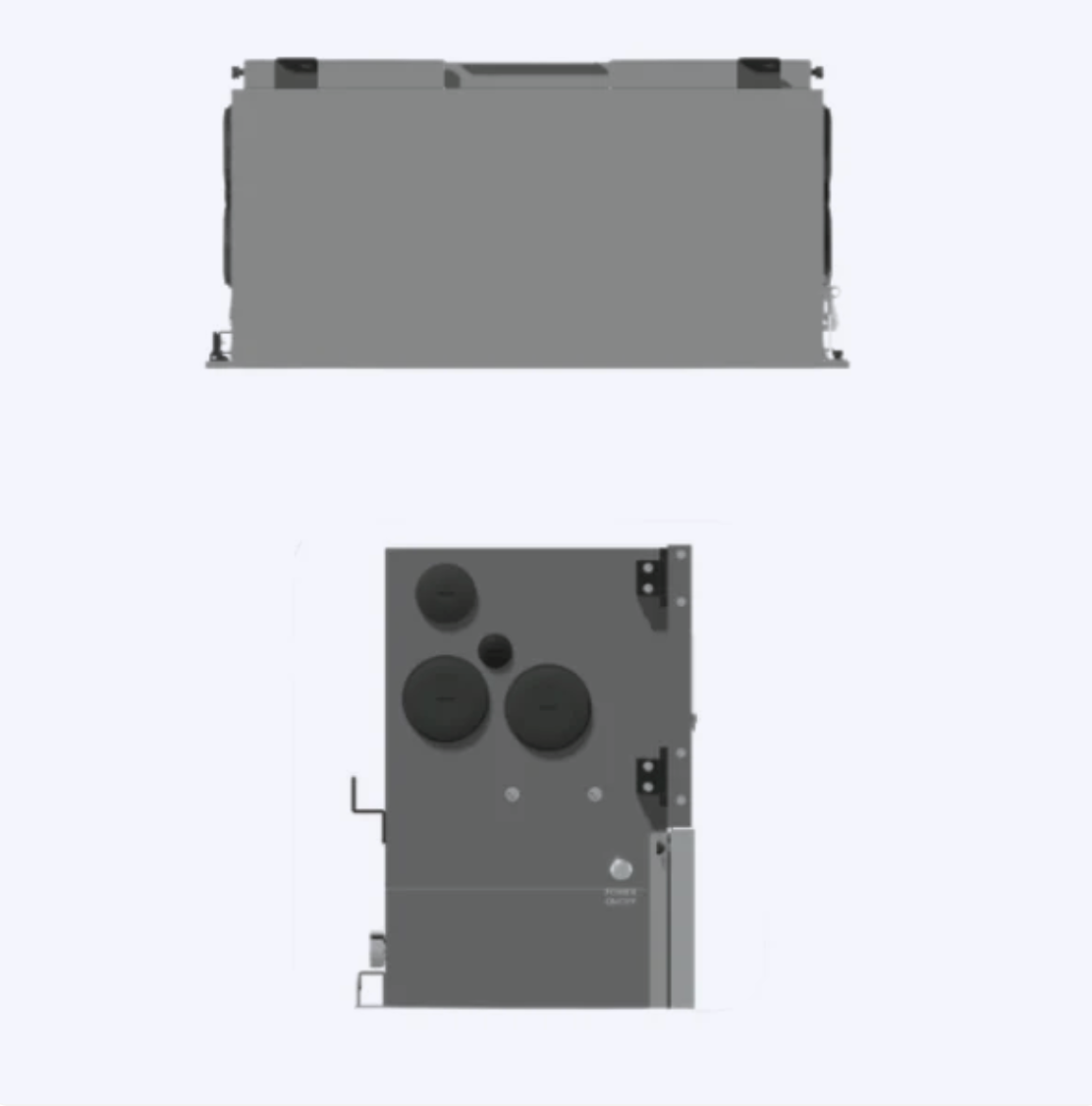

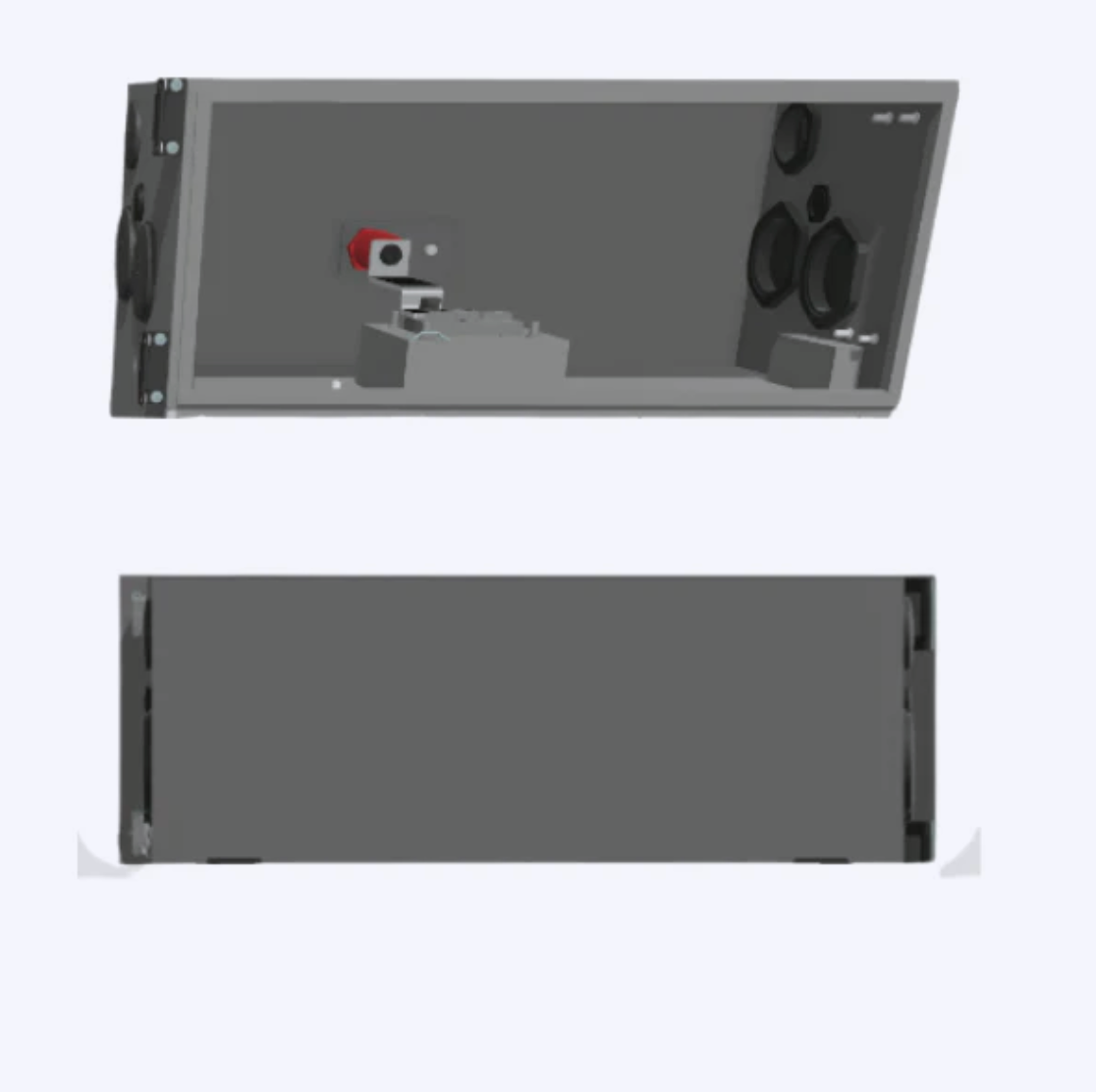

Fortress Power eBoost eWay Lite Wire Management System
Compact AC/DC Wireway for eBoost Battery Systems – Clean Wiring. Simplified Expansion. Code-Compliant Installation.
The Fortress Power eBoost eWay Lite Wire Management System is a dedicated AC/DC wire management accessory designed for single-unit and parallel-expanded eBoost energy storage systems. It provides a clean, protected, and UL-compliant conduit path between the Fortress Envy inverter and the eBoost 16 kWh LFP battery, supporting fast floor-mounted installations and simplified service access.
Designed specifically for expansion scenarios, the eWay Lite helps maintain a professional, organized installation while reducing wiring clutter and installation time.
Installation Requirements

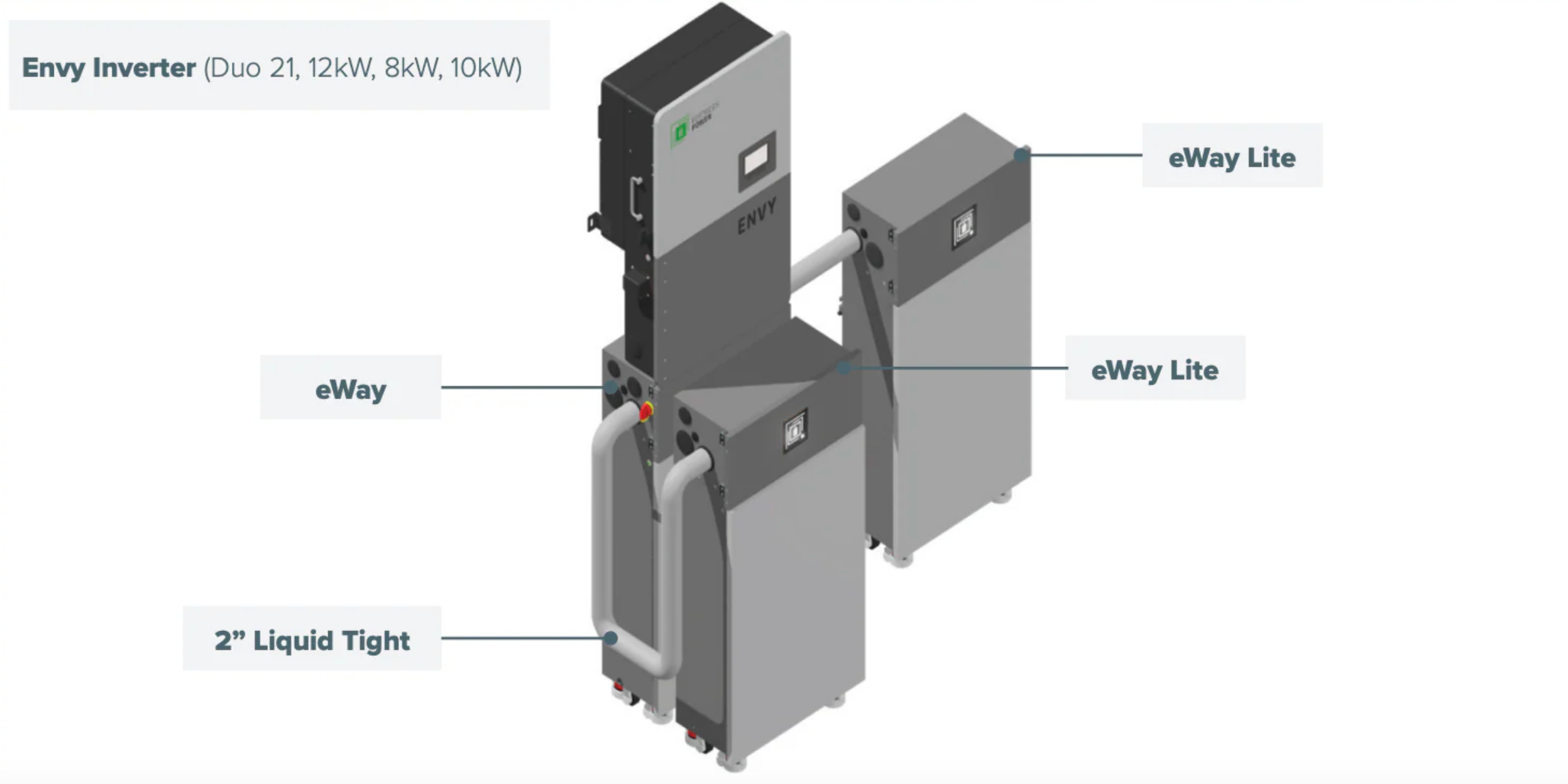

One eBoost eWay is required for the initial eBoost battery. One eBoost eWay Lite is required for each additional eBoost unit added in parallel.
Key Features
-
Integrated AC/DC Wireway: Safely manages both AC and DC conductors within a single enclosure, reducing clutter and eliminating the need for external raceways or junction boxes.
-
Streamlined, Floor-Mounted Installation: Designed to mount directly beneath a single eBoost battery unit for faster installation and easier long-term service access.
-
Clean, Factory-Matched Aesthetic: Conceals all wiring within a compact, durable metal housing that matches the design of the eBoost battery enclosure.
-
Safety & Code Compliance: UL-compliant design supports NEC-compliant routing for battery, inverter, and service wiring.
eWay vs. eWay Lite — What’s the Difference?
eWay
- Three-terminal 750A busbar
- Designed for paralleling multiple batteries
- Includes DIN rail bracket for optional Guardian* mounting
eWay Lite
- Single 250A battery terminal
- Designed for parallel expansion units
- Does not include DIN rail bracket for Guardian*
Technology & Compatibility
-
Built-In Busbar Integration: Features an internal high-current busbar interface to ensure reliable and secure DC interconnections between battery units.
-
Designed Specifically For:
- Fortress Power eBoost 16 kWh LFP Battery
- Fortress Envy Series Inverters (including Envy 8 kW, Envy 10 kW, Envy 12 kW, and Envy Duo 21)
Applications
- Single-Unit eBoost Systems
- Parallel eBoost Battery Expansions
- Residential Energy Storage Installations
- Light Commercial Applications
- Indoor or covered outdoor installations requiring compact, organized wiring layouts
