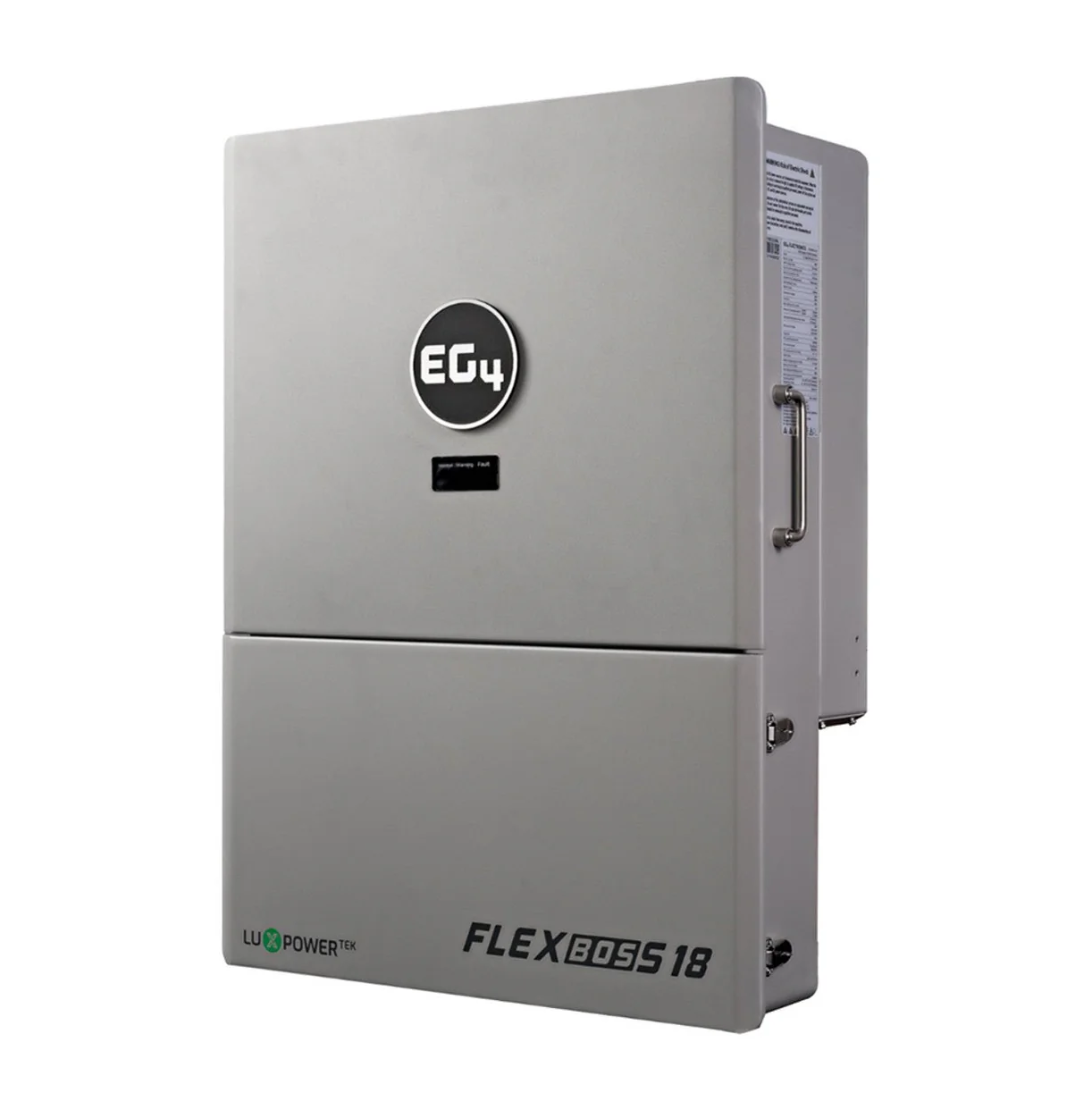

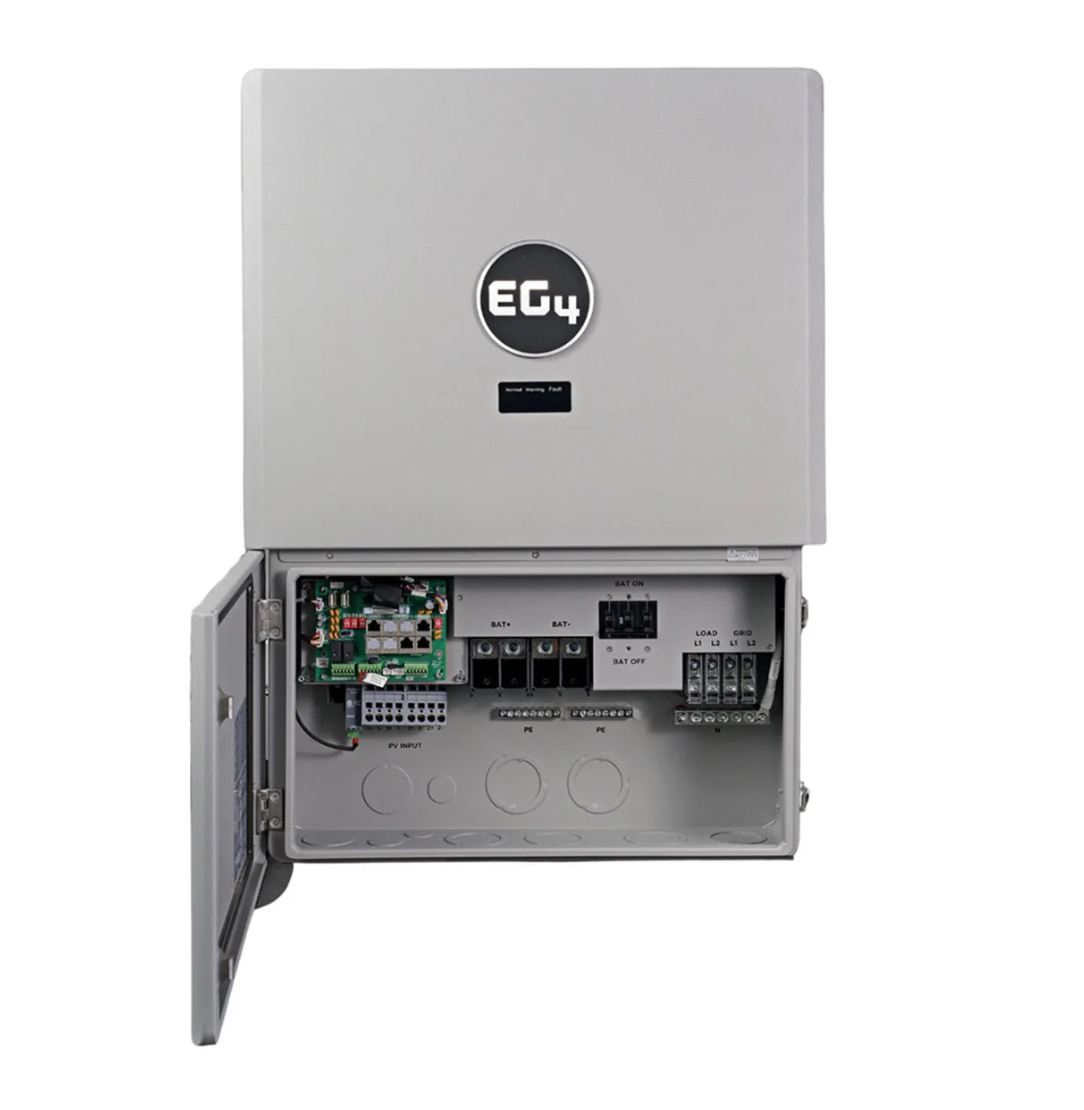

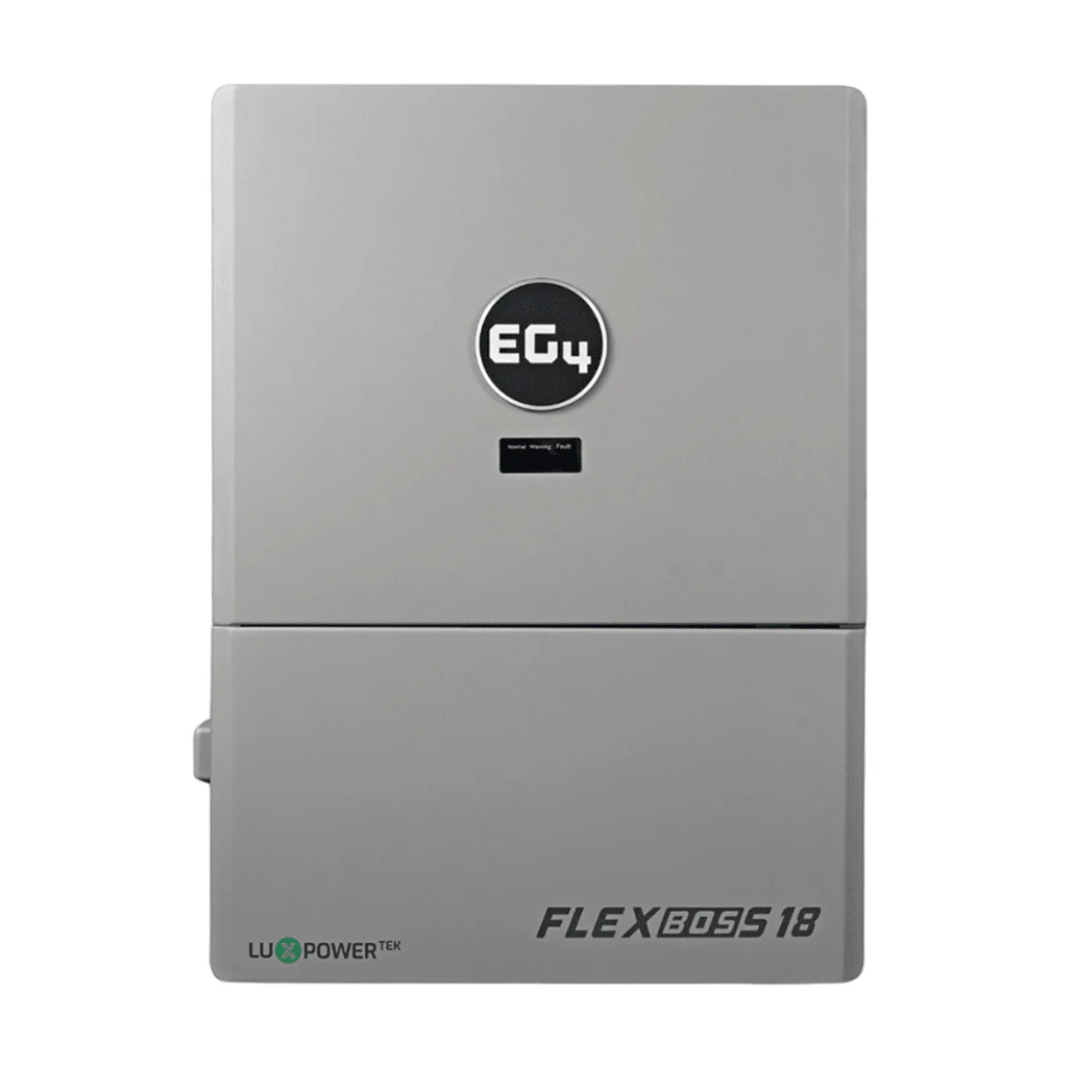

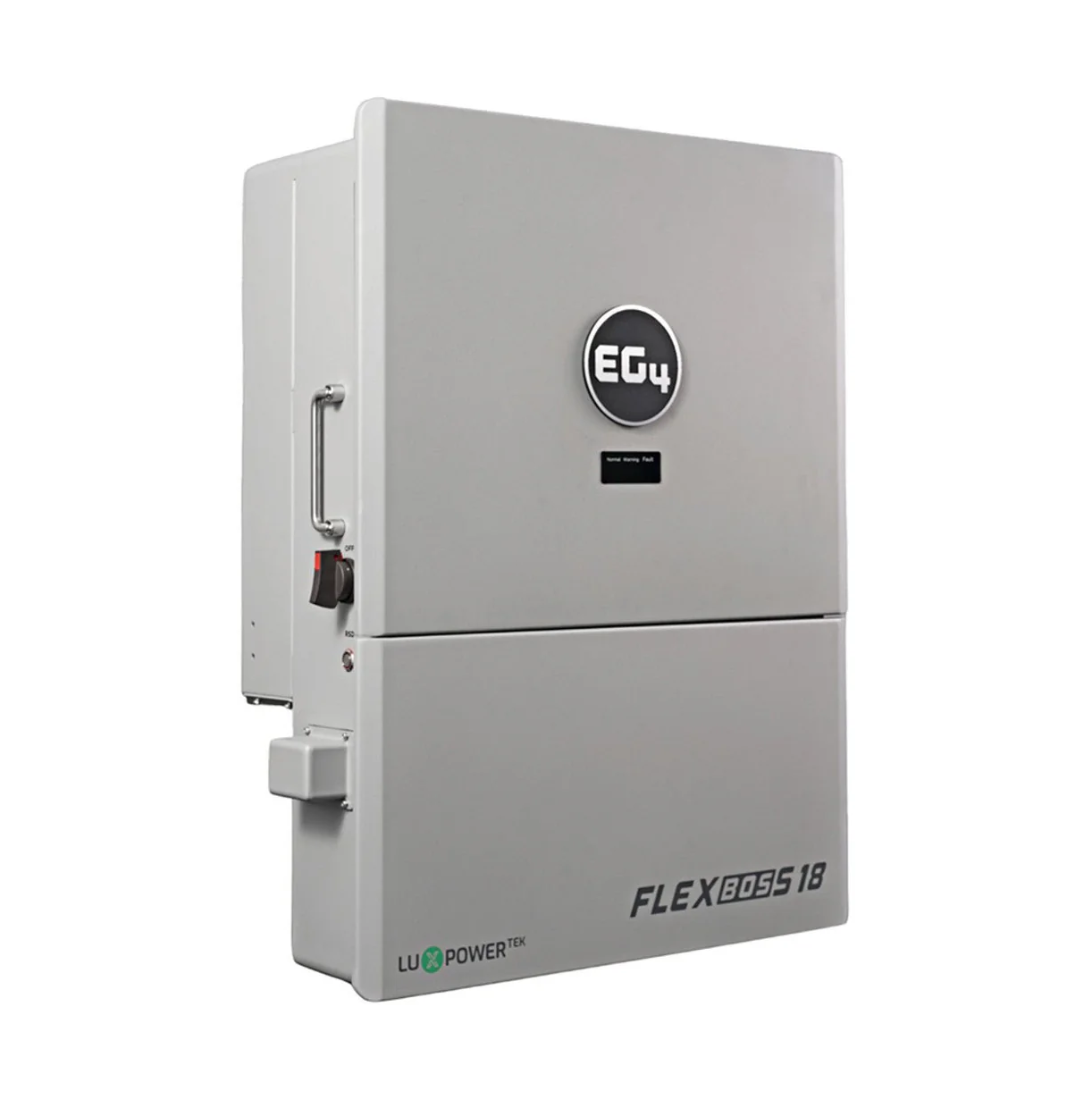

EG4 FlexBoss18 Hybrid Inverter | 13kW Output
48V Split-Phase Hybrid Inverter/Charger with 18kW PV Input, Grid-Tied & Off-Grid Ready, UL1741 Certified
The EG4 FlexBOSS18 Hybrid Inverter is engineered for high efficiency, powerful output, and maximum flexibility across residential and commercial energy systems. Delivering 13kW continuous AC output with solar and 10kW from batteries alone, it ensures reliable performance during peak loads and outages. With up to 18kW solar input and industry-leading efficiency ratings, this inverter maximizes energy harvest while minimizing loss. Designed for seamless integration with EG4 batteries and advanced energy management systems, it supports grid-tied, off-grid, and hybrid configurations with intelligent monitoring and control.
Key Features:
-
13kW Continuous Output (PV) / 10kW Battery Output: Handles high-demand loads like HVAC systems.
-
Up to 18kW Solar Input: Capture more energy with higher PV capacity.
-
High Efficiency Performance: 99% MPPT efficiency, 97.5% PV-to-grid, and 94% battery-to-grid efficiency.
-
Flexible System Design: Supports grid-tied, off-grid, and hybrid applications.
-
Closed-Loop Battery Communication: Optimized performance with EG4 batteries.
-
Advanced Energy Management: Compatible with GridBOSS MID for load shifting and time-of-use optimization.
-
Built-in Rapid Shutdown (RSD): NEC 690.12 compliant for enhanced safety.
-
Comprehensive Protection Features: Includes AFCI, GFCI, over-voltage, short circuit, and reverse polarity protection.
-
Wi-Fi Monitoring Included: Real-time system tracking via EG4 app.
-
Compact Wall-Mount Design: Easy installation with reduced system complexity.
Technical Specifications:
- AC Output: 13kW (PV) / 10kW (Battery)
- PV Input: Up to 18kW
- Max PV Voltage: 600VDC
- MPPT Efficiency: 99%
- PV-to-Grid Efficiency: 97.5%
- Battery-to-Grid Efficiency: 94%
- Certification: UL1741
Ideal Applications:
- Residential whole-home backup systems
- Off-grid homes and remote cabins
- Grid-tied systems with battery storage
- Small commercial and business installations
- DIY solar and battery storage projects
What’s Included:
- 1 × EG4 FlexBoss18 Hybrid Inverter
- Wi-Fi monitoring module
- User manual and installation guide
