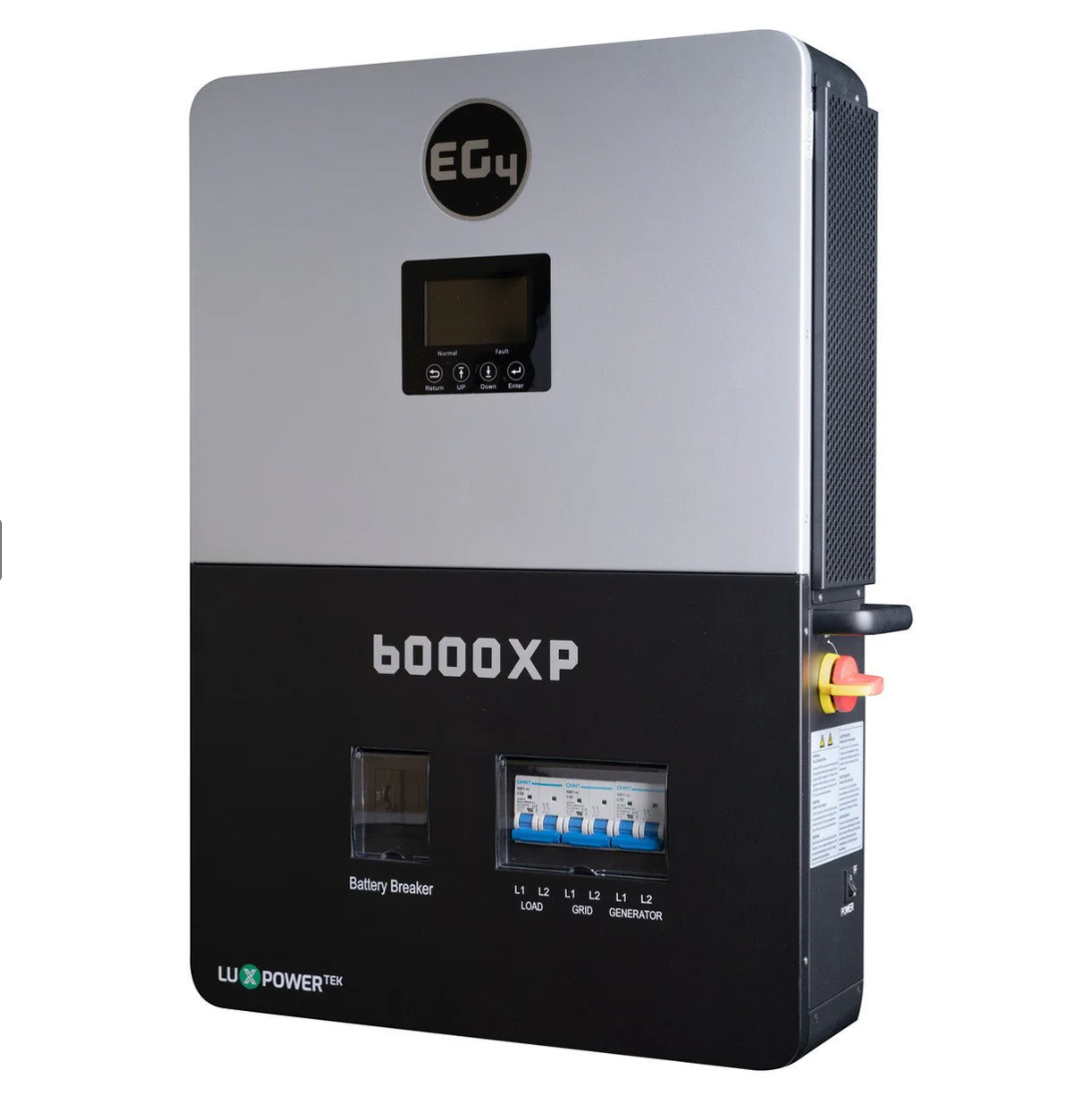

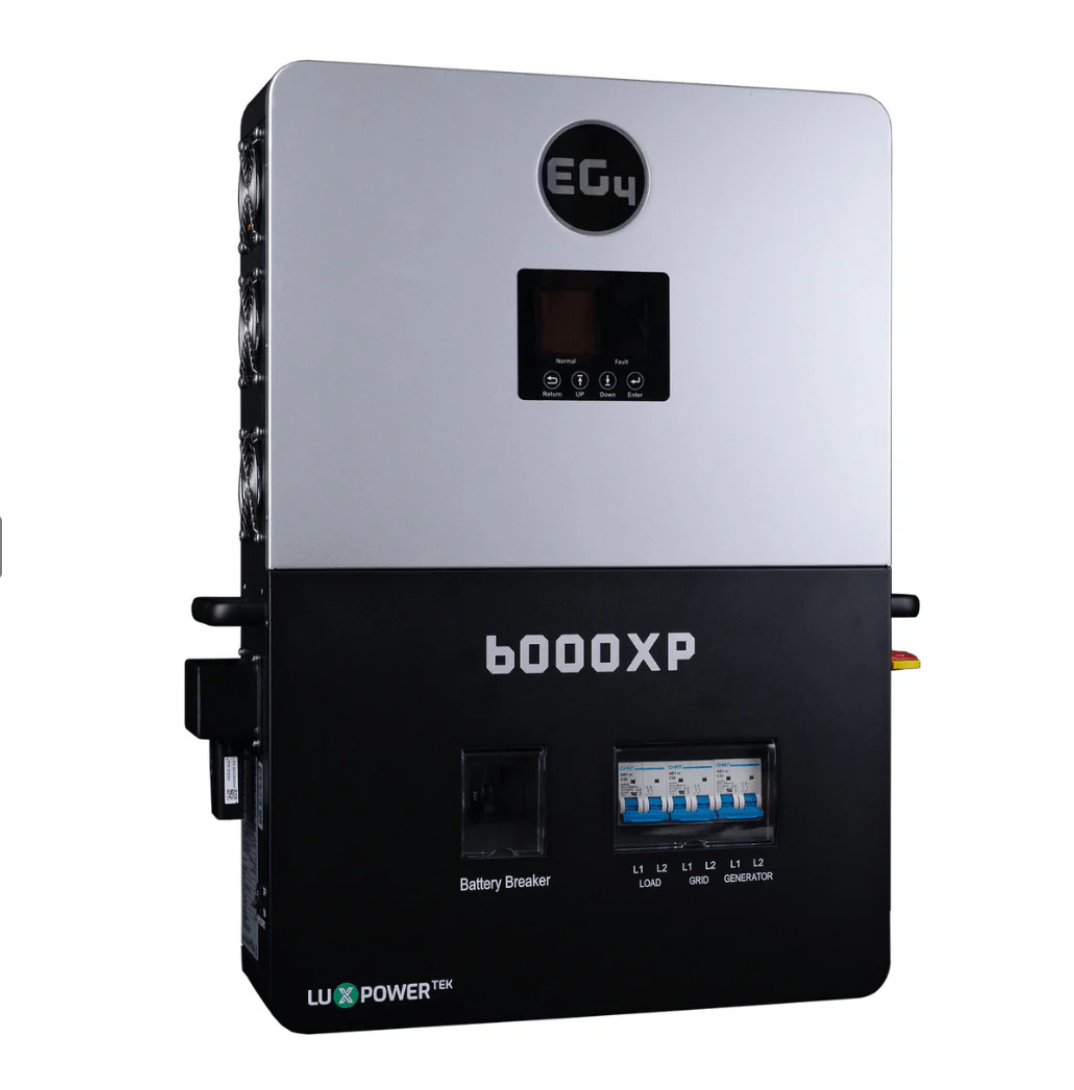

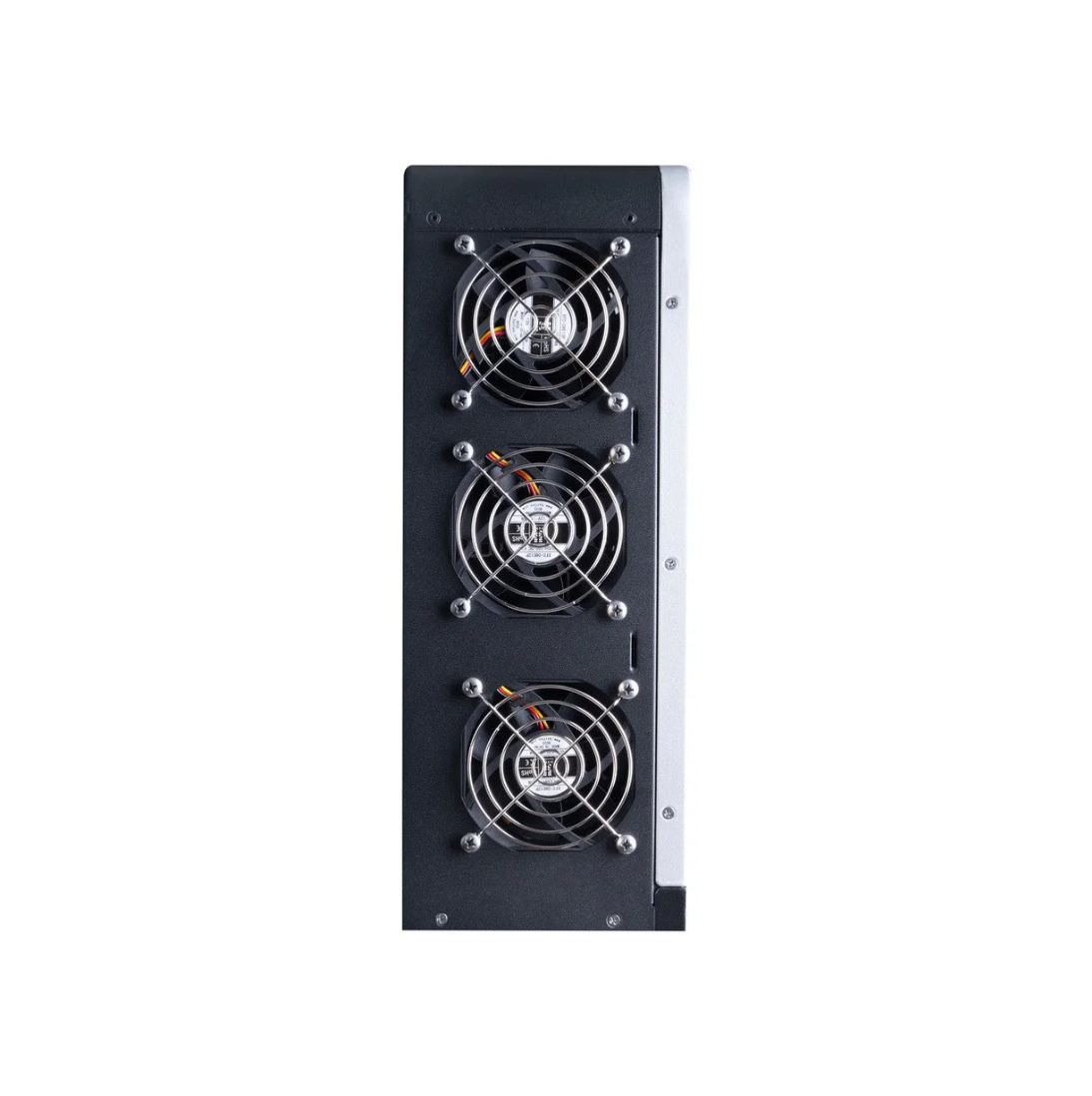

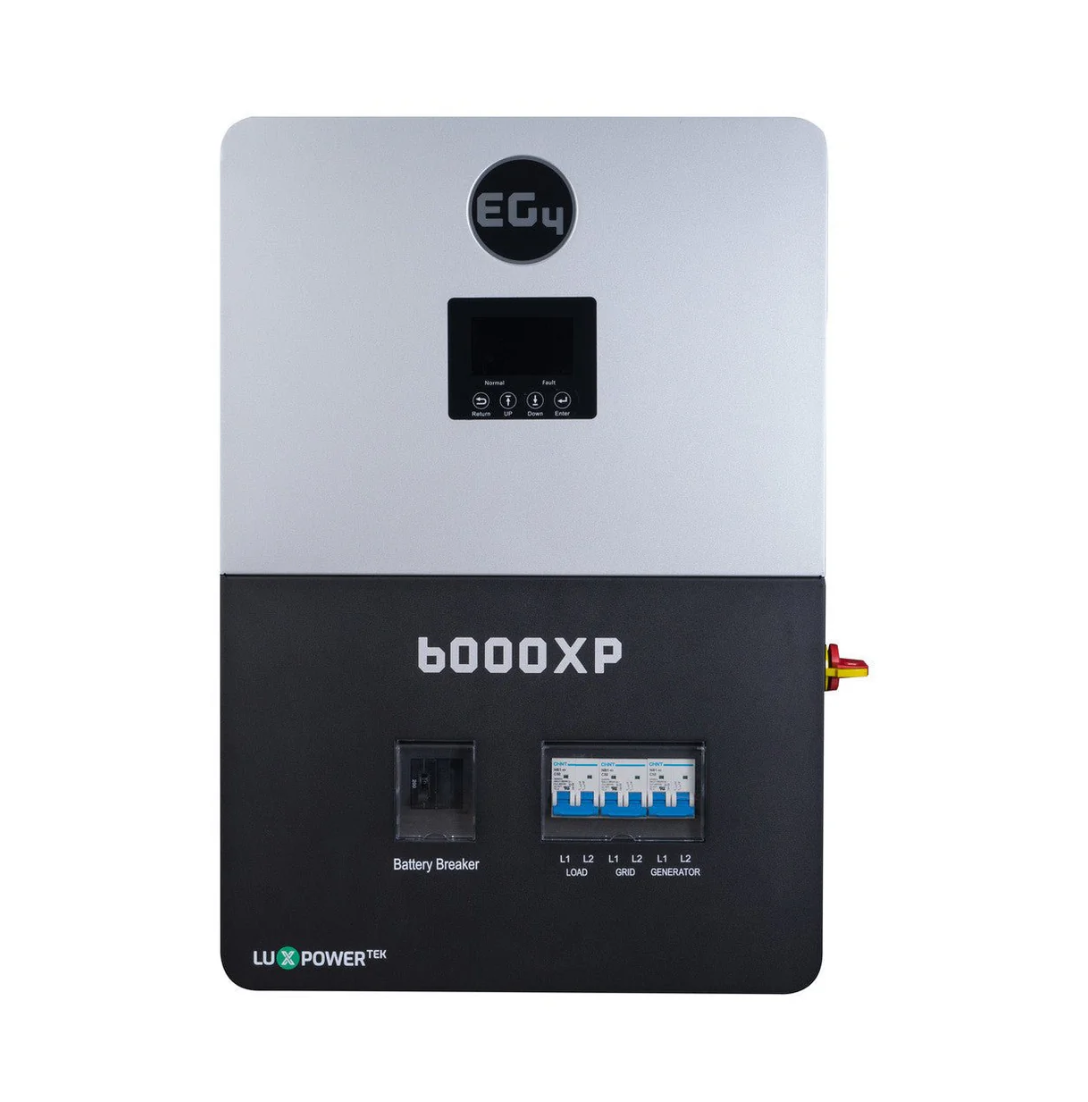

EG4 6000XP Off-Grid Inverter | 6kW Split-Phase
48V Split-Phase Off-Grid Inverter/Charger with 8kW PV Input, Scalable to 96kW, Wi-Fi Monitoring Included
The EG4 6000XP Off-Grid Inverter is a powerful and scalable energy solution designed for off-grid, backup, and hybrid applications. Delivering 6kW continuous split-phase output with up to 8kW solar input, it efficiently powers homes, cabins, and commercial systems. Its dual MPPT design maximizes solar harvest, while closed-loop battery communication ensures optimal performance and longevity. With parallel capability up to 16 units (96kW total), fast switching times, and integrated Wi-Fi monitoring, the 6000XP provides reliable, flexible, and high-performance energy management.
Key Features:
-
6kW Split-Phase Output: Operates fully off-grid or with grid input support.
-
Up to 8kW PV Input: Dual MPPT tracking for maximum solar efficiency.
-
208/240V Output: Transformerless high-frequency design for efficient power delivery.
-
Parallel Capability: Connect up to 16 units for 96kW total system output.
-
Closed-Loop Communication: Optimized performance with EG4 and other 48V batteries.
-
Wi-Fi Monitoring Included: Real-time system tracking via EG4 platform.
-
Fast Switching Time: <15ms (single) / <30ms (parallel) for seamless transitions.
-
High Surge Capacity: Handles 12kW for 3.5s or 11kW for 5s.
-
480VDC Max Input: Reduces wiring complexity and eliminates combiner box needs.
-
5-Year Warranty: Reliable long-term performance and support.

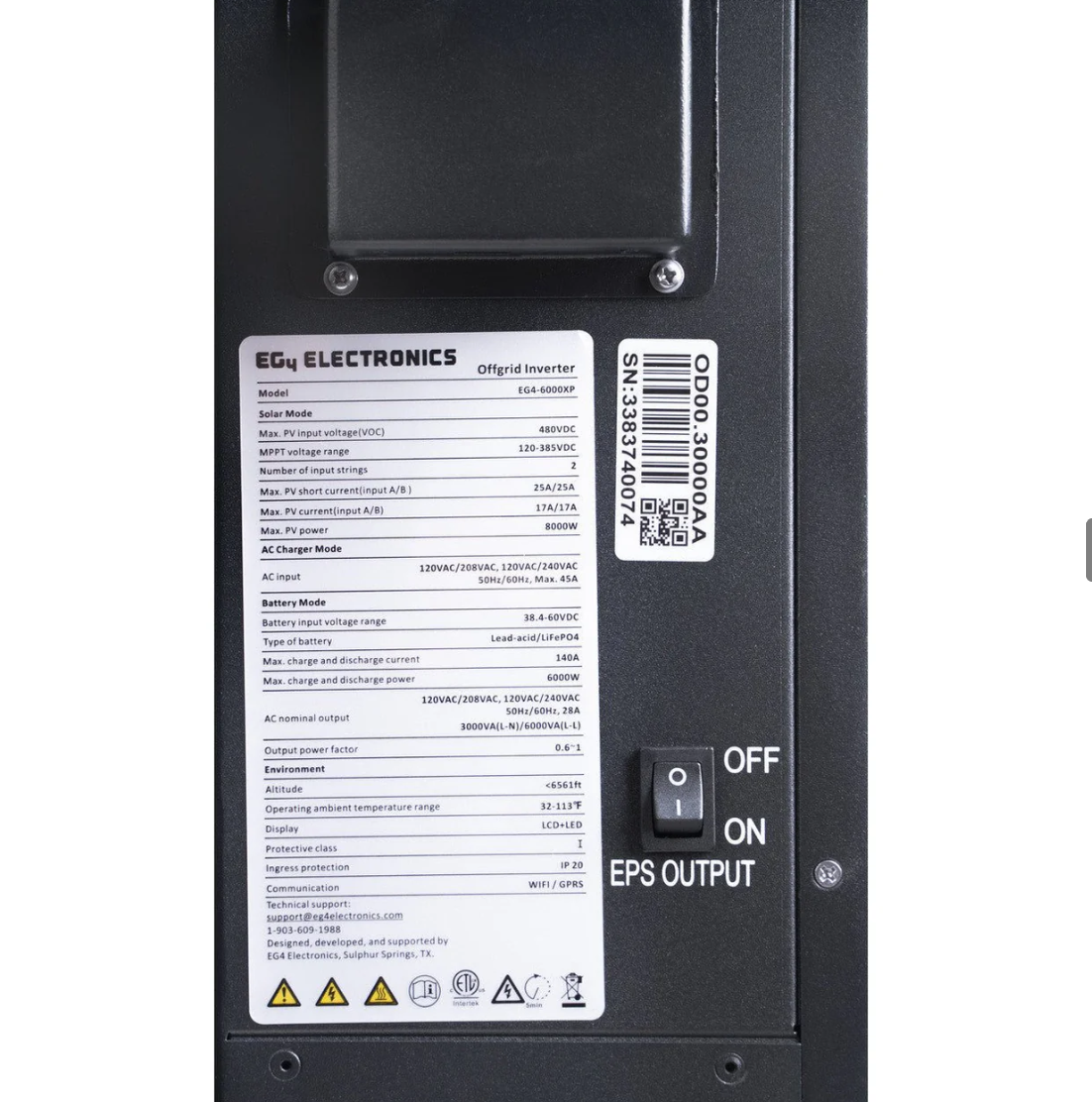

Technical Specifications:
- AC Output: 6kW Split-Phase
- PV Input: Up to 8kW
- Max PV Voltage: 480VDC
- MPPTs: Dual Input
- Parallel Units: Up to 16 (96kW total)
- Switching Time: <15ms / <30ms
- Surge Capacity: 12kW (3.5s), 11kW (5s)
- Warranty: 5 Years
Ideal Applications:
- Off-grid homes and cabins
- Backup power systems
- Remote solar installations
- Commercial solar energy storage systems
What’s Included:
- 1 × EG4 6000XP Off-Grid Inverter
- Wi-Fi monitoring module
- User manual and installation guide
