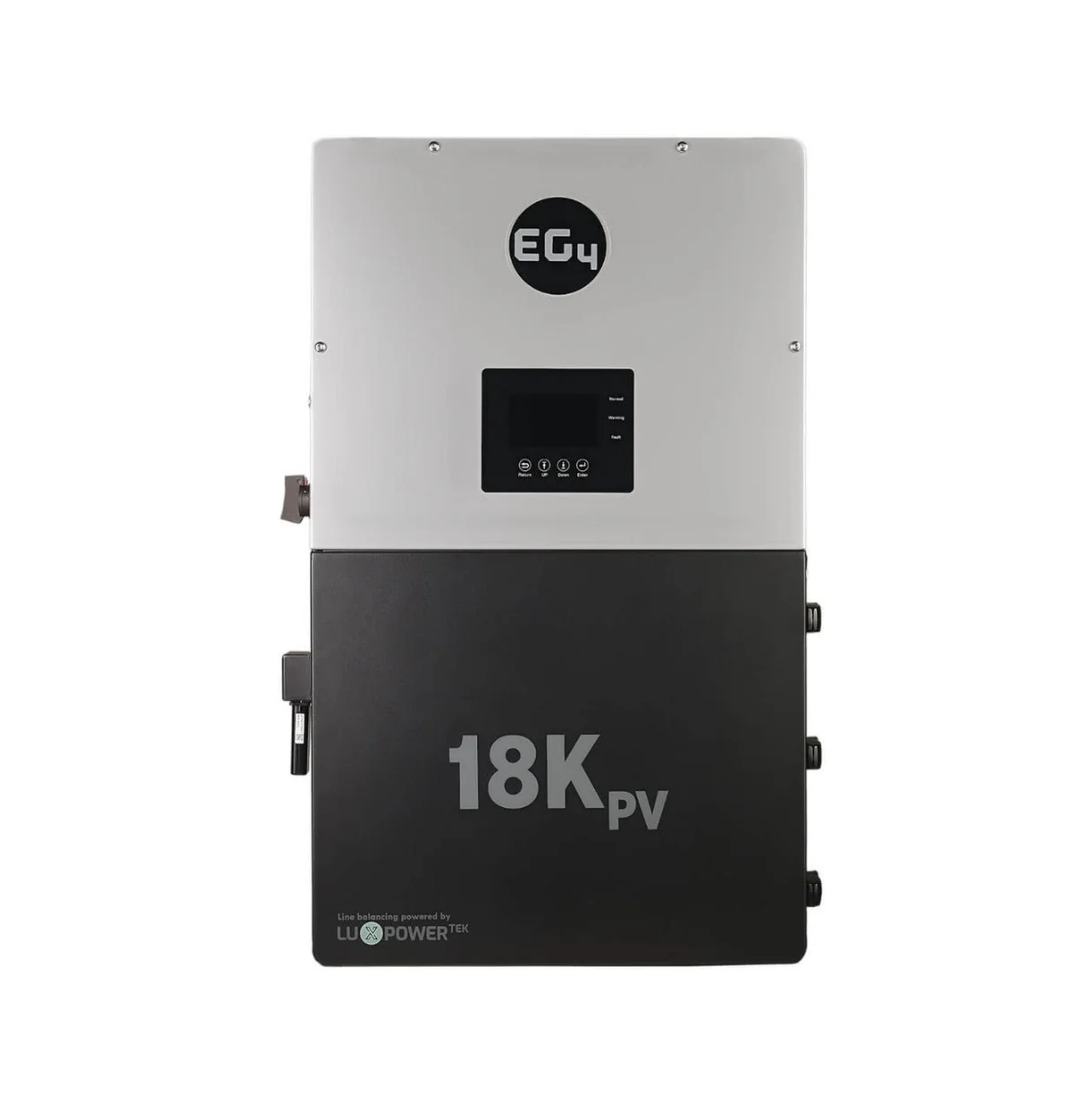

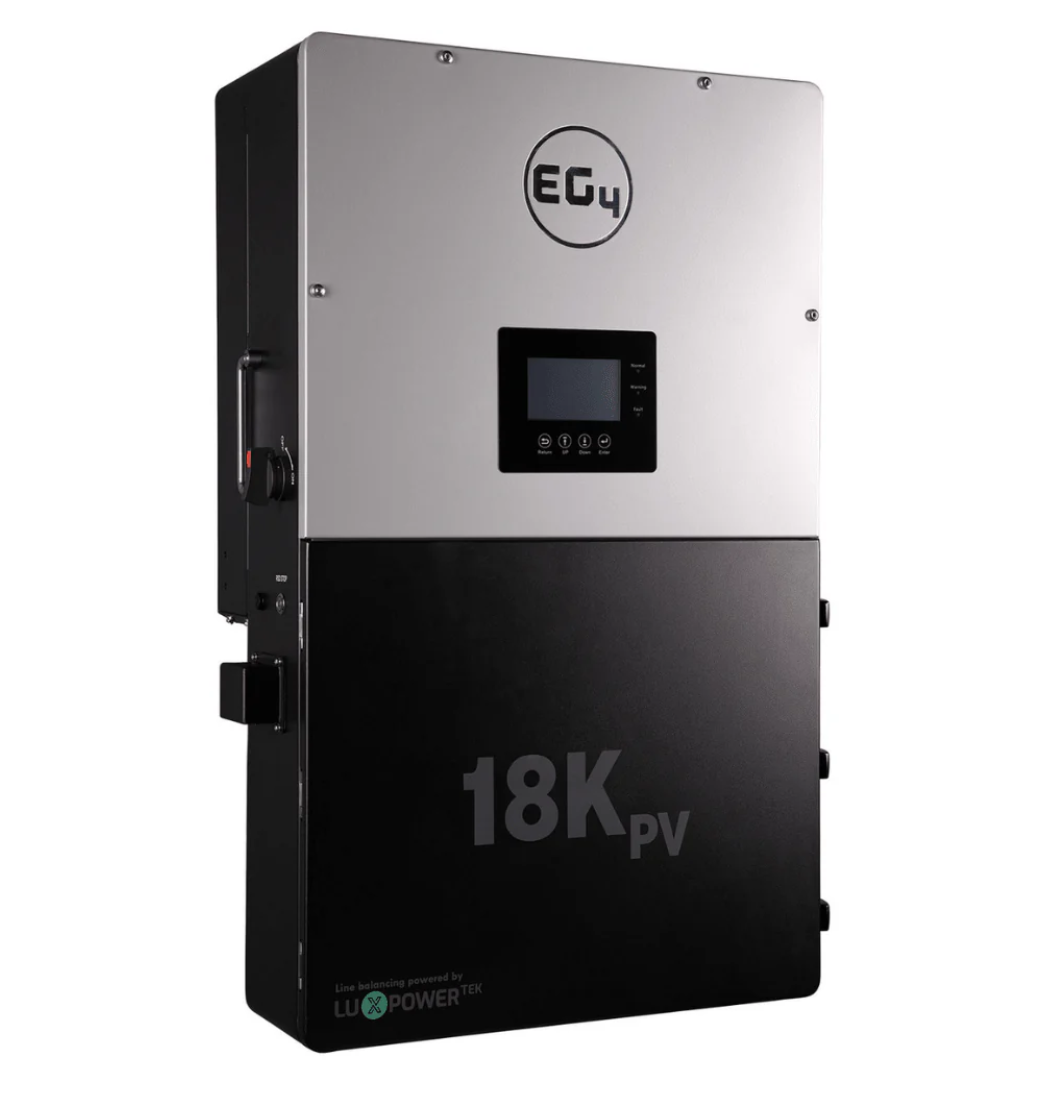

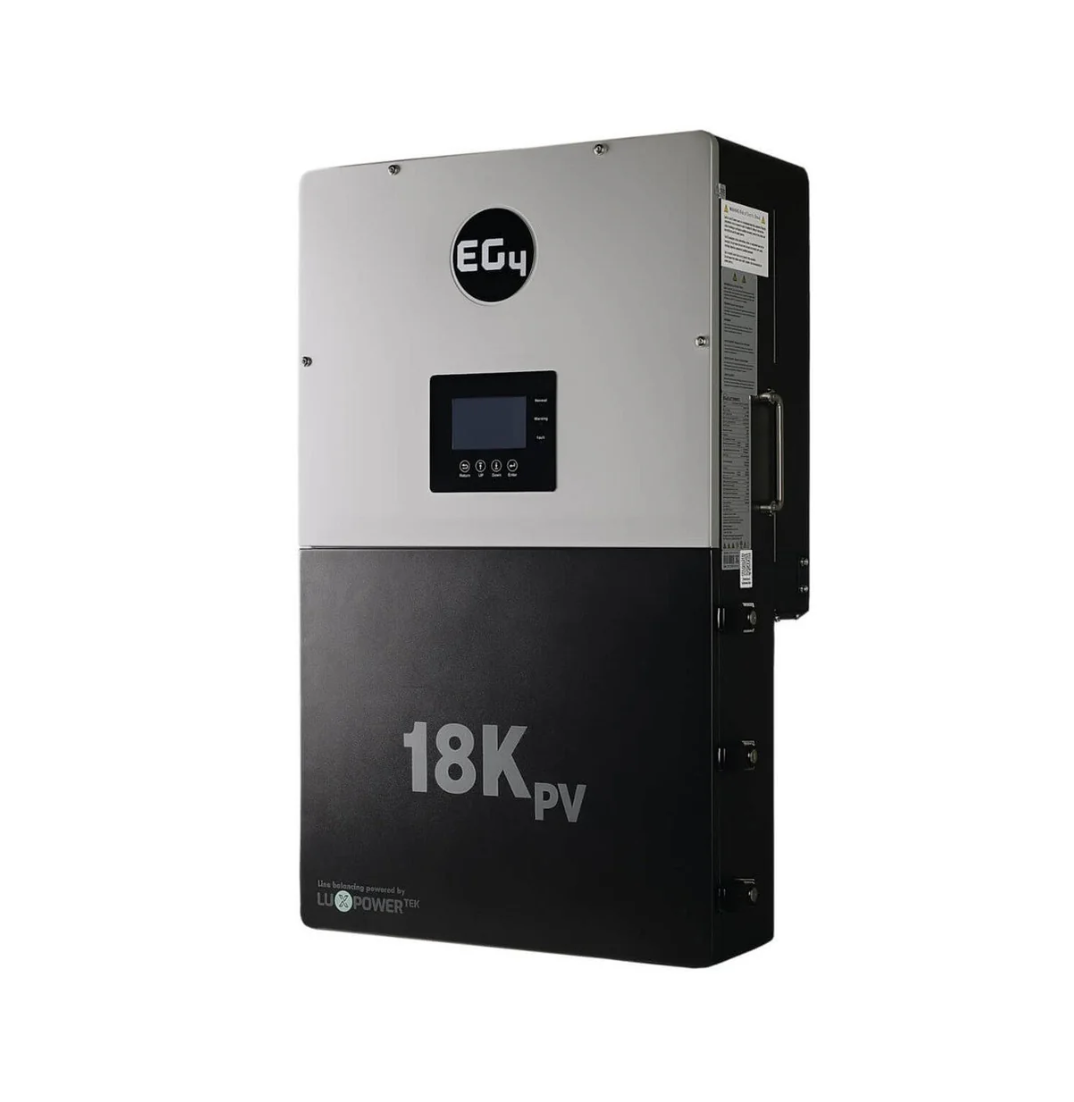

EG4 18kPV-12LV All-In-One Hybrid Inverter | 12kW

High-Power Hybrid Solar Inverter with PV, Battery, and Grid Management, ETL & cETL Certified, Fully Outdoor Rated

The EG4 18kPV-12LV All-In-One Hybrid Inverter delivers seamless management of solar, battery, and grid power with 12kW continuous output and 18kW PV input. Designed for both grid-tied and off-grid applications, this stackable inverter supports multiple units in parallel and features closed-loop communication with EG4 batteries, remote monitoring, firmware updates, and a user-friendly LCD interface. Its fully outdoor-rated NEMA 4X / IP65 design makes it reliable for harsh environments, providing a plug-and-play solution for homes, RVs, or commercial solar projects.

Key Features:

12kW Continuous Output / 18kW PV Input: Handles large loads with efficiency and reliability.
Stackable & Scalable: Connect multiple units in parallel for increased capacity.
All-In-One Power Management: Controls energy from solar, battery, and grid simultaneously.
Safety Protections: Overload, short circuit, over-temperature protection, and line balancing included.
120/240V Split-Phase Output: Compatible with residential and commercial applications.
Outdoor Rated: NEMA 4X / IP65 enclosure protects against dust, water, and environmental exposure.
Remote Monitoring & Firmware Updates: View solar yield, battery status, power curves, and update firmware from anywhere.

Certifications & Compliance:

ETL & cETL Certified
UL1741SB, NEC 2020 Rule 21 & AFCI/GFDI Compliance
IEEE 1547:2018 / 1547.1:2020, Hawaii Rule 14H, California Rule 21
FCC Part 15 Class B EMC
CEC Solar Equipment Listing

Ideal Applications:

Residential and commercial solar-plus-storage systems
Off-grid homes, RVs, and cabins
Backup power and hybrid energy systems
Scalable multi-unit energy storage solutions

What’s Included:

1 × EG4 18kPV-12LV All-In-One Hybrid Inverter
User manual and installation guide

Specifications

Parameter	Details
AC Input Data
Nominal AC Voltage	120/240VAC; 120/208VAC (1L1, 2N required)
Frequency	50 / 60Hz
Max AC Current	50A @ 240VAC
Max AC Input Power	12,000W
AC Bypass	200A
AC Grid Output Data
Max Output Current	50A
Output Voltage	120/240VAC; 120/208VAC
Operating Voltage Range	184 – 264VAC
Nominal Power Output	12,000W @ 240V \| 10,000W @ 208V
Frequency	50 / 60Hz
Power Factor	0.99 @ full load
Reactive Power Range	-0.8 to +0.8 (leading adjustable)
Max Continuous Power	With PV: 14,700W (10 min), 15,500W (5 min); Without PV: 13,500W (1 min)
THD (Full Load)	< 3%
Open Loop Response Time	< 2 seconds
Time to Steady State	< 5 seconds
Transfer Time	20ms (default), 10ms configurable; Parallel: 20ms
Backup / UPS Output
Rated Output Current	50A
AC Bypass (Generator)	120/240VAC; 120/208VAC
Nominal Output Voltage	240V \| 120/240V \| 120/208V
Rated Output Power	12,000W @ 240V \| 10,000W @ 208V
Max Continuous Power	With PV: 14,700W (10 min), 15,500W (5 min); Without PV: 13,500W (1 min)
THD Voltage	< 3%
Open Loop Response Time	< 2 seconds
Time to Steady State	< 10 seconds
Switching Time	< 10ms
PV Input Data
MPPT Count	3
Inputs per MPPT	2 (MPPT1), 1 (MPPT2), 1 (MPPT3)
Max Input Current	25A (MPPT1), 15A (MPPT2), 15A (MPPT3)
Max Short Circuit Current	31A (MPPT1), 19A (MPPT2), 19A (MPPT3)
DC Input Voltage Range	150 – 550V
Startup Voltage	100V DC
MPPT Operating Range	140 – 500V DC
Nominal MPPT Voltage	380V DC
Max Utilized Solar Power	18,000W
Recommended Solar Input	21,000W

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
