Battery Specifications
|
| Capacity |
(12Ah) 268.8Wh |
| Type |
LiFePO4 (Lithium Iron Phosphate) |
| Life Cycles |
2,500+ Cycles to 80% Original Capacity |
| Shelf-life |
Recharge to 80% Every 3-6 Months |
| Management System |
MPPT Controller, BMS, etc. |
Output Specifications
|
| AC Outlets |
2 x 120V/5A Outlets, 600W In Total |
| Inverter Type |
Pure Sine Wave |
| Surge Power |
1,200W |
| USB-C Port |
1 x 100W Max. |
| USB-A Port |
2 x 5V/3A USB-A |
| DC Outlets |
- 1 x 12V/10A (Car Outlet)
- 2 x 12V/10A DC 5521 (5.5mm Outlets)
|
| Wireless Charging Pad |
1 x 15W Max. |
Input Specifications
|
| AC Charging Cable (Standard Mode) |
268W Max. |
| AC Charging Cable (Turbo Mode) |
350W Max. |

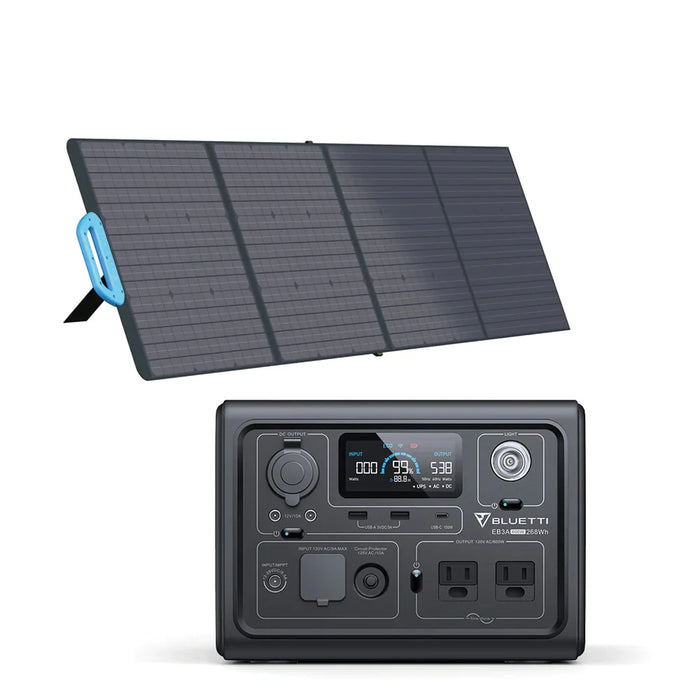

| Solar Input |
200W Max, VOC 12-28VDC/ 8.5A |
| Car Input |
12/24V from Cigarette Lighter Port |
| Maximum Input |
430W, with AC and Solar Input Simultaneously |
Recharge Time
|
| AC Charging Cable (Turbo Mode 350W) |
≈1.3-1.8 Hours |
| AC Charging Cable (Standard Mode 268W) |
≈1.5-2.0 Hours |
| Solar (200W) |
≈1.8-2.0 Hours (With prime sunshine, ideal orientation and low temperature) |
| 12V/24V Car Outlet (100W/200W) |
≈3.2-3.7 or 1.9-2.4 Hours |
| AC + Solar (430W) |
≈1.2~1.7 Hours (With prime sunshine, ideal orientation and low temperature) |
| Dual AC (430W) |
≈1.2~1.7 Hours (With optional BLUETTTI T200 Adapter) |
General Specifications
|
| Pass-through Charging |
Yes |
| Weight |
10.14lbs/4.6kg |
| Dimensions (LxWxD) |
10.04*7.09*7.20in/255*180*183mm |
| Operating Temperature |
-4-104℉ (-20-40℃) |
| Storage Temperature |
32-104°F (0-40°C) |
| Certifications |
UL Standard, CEC, DOE, FCC, CA Prop 65 |
| Warranty |
24 Months |
