| AC Outlets: |
3 x 120V/20A Outlets
1 x 120V/30A L14-30
1 x 120V/30A TT-30
1 x 120V/50A NEMA14-50
5,000W in total |
| Inverter Type: |
Pure Sine Wave |
| Surge Power: |
10,000W |
| USB Port: |
2 x 5V/3A USB-A
2 x 18W USB-A
2 x USB-C 100W Max. |
| DC Outlets: |
1 x 12V/30A (RV Outlet)
1 x 24V/10A (Car Outlet)
*All regulated |

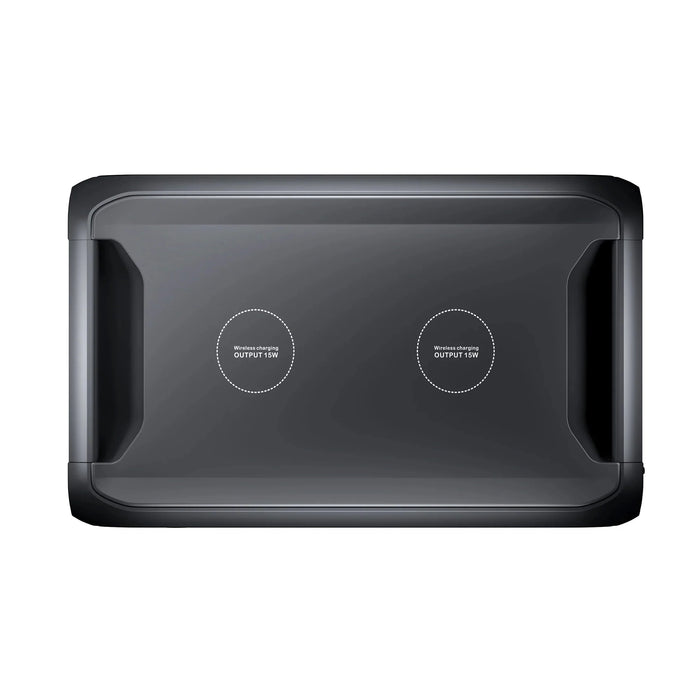

| Wireless Charging Pad: |
2 x 15W Max. (For Each) |
Input Specifications
|
|
| AC Charging Cable Input: |
4,500W Max. (W/ 1*B300K), 5,000W Max. (W/ 2 or more B300K) |
| Solar Input: |
3,000W Max., VOC 12-150VDC, 15A |
| Car Input: |
12/24V from Vehicle Cigarette Lighter Port |
| Maximum Input: |
4,500W (W/ 1*B300K), 8,000W (W/ 2 or more B300K) with AC and Solar Input Simultaneously |
General Specifications
|
| 240V Split Phase Bonding |
Yes |
| App Control |
Yes, Wifi & Bluetooth |
| Scalability |

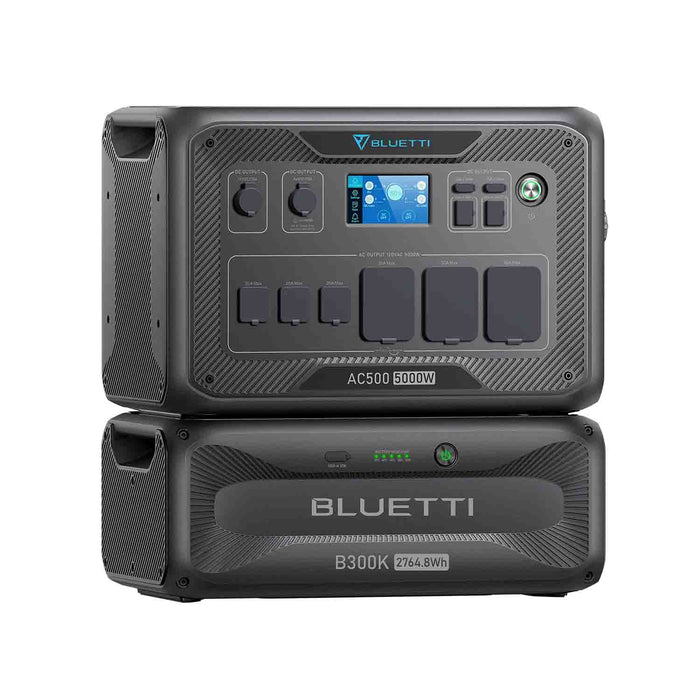

Expandable W/Up to 6 x B300K Or 4 x B300 |
| Simultaneous Recharge & Discharge |
Yes |
| Weight |
66.2lbs (30kg) |
| Dimensions (LxWxD) |
20.5 x 12.8 x 14.1in (52 x 32.5 x 35.8cm) |
| Operating Temperature |
-4-104℉ (-20-40℃) |
| Storage Temperature |
-4-104℉ (-20-40℃) |
| Certification |
UL Standard, CEC, DOE, FCC, CA Prop 65 |
| Warranty |
48 Months |
Battery Specifications
|
| Capacity |
3,072Wh (51.2V, 60Ah) |
| Type |
LiFePO4 (Lithium Iron Phosphate) |
| Life Cycles |
3500+ Cycles to 80% Original Capacity |
| Shelf-life |
Recharge to 80% Every 3-6 Months |
| Management System |
MPPT Controller, BMS, etc. |
Output Specifications
|
|
| USB-C Port |
1 x 100W Max. |
| USB-A Port |
1 x 18W USB-A |
| *12V DC Outlet: ** |
1 x 12V/10A (Car Outlet) *All Regulated. |
Input Specifications
|
| AC Input |
500W Max. |
| Solar Input |
200W Max., VOC 12-60VDC, 10A |
| Car Input |
12/24V from Cigarette Lighter Port |
| Max Input |
700W, With AC Adapter + Solar Input Simultaneously |
Recharge Times
|
|
| AC |
≈ 6.5~7 Hours at 500W |
| Solar |
≈ 15.5~16 Hours at 200W |
| 12V/24V Car Outlet (100W/200W) |
≈ 30 or 15 Hours |
| AC + Solar |
≈ 5 Hours at 700W |
| Solar + Solar |
≈ 5 Hours at 700W (D050S DC Charging Enhancer REQUIRED) |
| Dual AC |
≈ 5 Hours at 700W (Extra adapter REQUIRED) |
General Specifications
|
| 240V Split Phase Bonding |
Yes, work with AC300 |
| Pass-through Charge |
Yes |
| Weight |
79.6lbs (36.1kg) |
| Operating Temperature |
-4-104℉ (-20-40℃) |
| Storage Temperature |
-4-104℉ (-20-40℃) |
| Certifications |
UL Standard, CEC, DOE, FCC, CA Prop 65 |
| Warranty |
48 Months |
| Dimensions (LxWxD) |
20.5 x 12.5 x 10.5in (52 x 32 x 26.6cm) |
