| Battery Specifications |
| GTIN-12 (U.P.C.) | 850061252005 |
| System Voltage | 48V |
| Nominal Voltage | 51.2V |
| Chemistry | LiFePO4 |
| kWh Capacity | 10.24kWh |
| Ah Capacity | 200Ah |
| Charging Voltage Range | 55.6 – 57V |
| Max Charge Voltage | 57V |
| Operating Voltage Range | 48 – 57V |
| Suggested Low Voltage Cutoff | 48 – 50.8V |
| BMS Cutoff Range | 42 – 47V |
| Cell Configuration | 16S 2P |
| Max Continuous Discharge Current | 200A |
| Max Continuous Power | 10,240W |
| Max Discharge Peak Current | 300A (Max 5 seconds) |
| Max Charge Current | 200A |
| Battery Temperature & Operating Conditions |
| Charge Temperature Range | 32°F – 113°F (0°C – 45°C) |
| Discharge Temperature Range | -4°F – 140°F (-20°C – 60°C) |
| Optimal Discharge Temperature Range | 59°F – 95°F (15°C – 35°C) |
| Storage Temperature Range (SoC >50%) | -4°F – 113°F (-20°C – 45°C) (Max 6 months) |
| Battery Physical & Installation Specifications |
| Weight | 273 lb (123.8 kg) |
| Depth | 6.7 in (170 mm) |
| Width | 26.5 in (674 mm) |
| Height | 43.3 in (1100 mm) |
| Max Connections | Up to 16 parallel connections per control box |
| Protection Rating | IP65 / NEMA 4X |
| Battery Communications & Certifications |
| Communications | CANBus / RS485 |
| Certifications | UL9540, UL9540A, UL1973, UN38.3 |

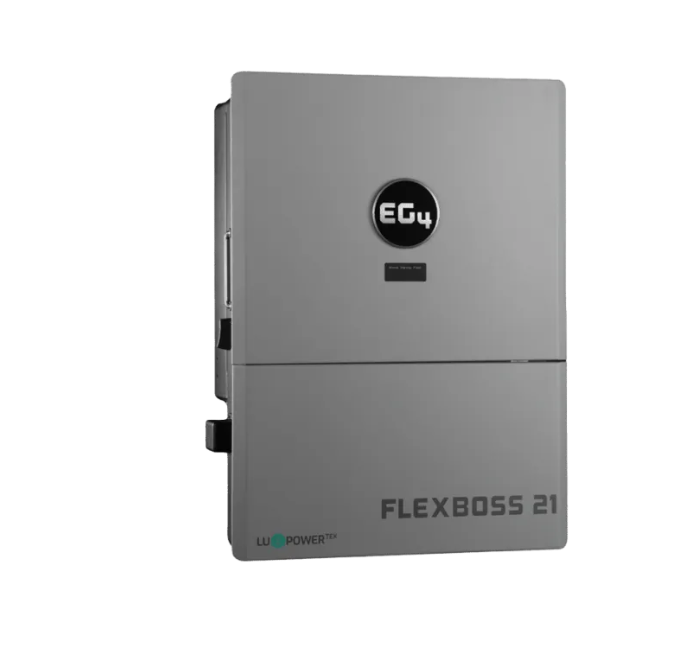

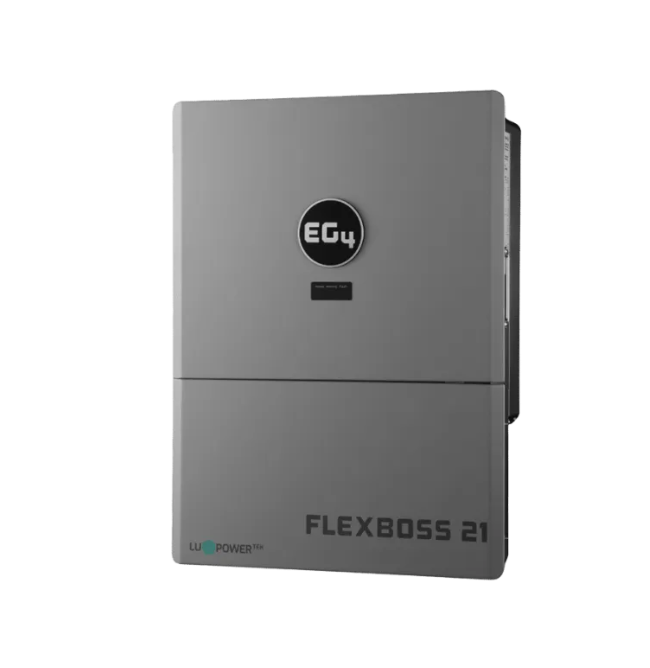

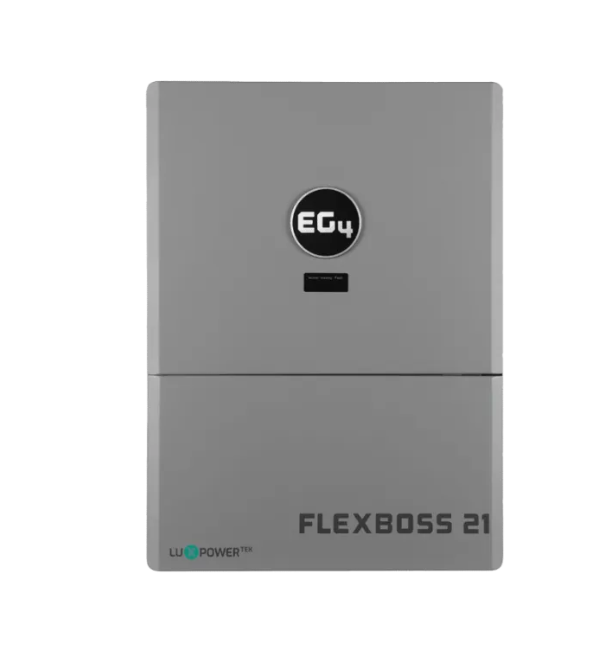

| Inverter Specifications |
| Nominal AC Voltage | 120/240VAC | 120/208VAC (L1/L2/N required) |
| Frequency | 60 Hz (Default) | 50 Hz |
| Max. AC Current | 50A @ 240V | 57.7A @ 208V |
| Max. AC Input Power | 12000W |
| Max. AC Bypass | 90A |
| Operating Voltage Range | 180 – 270VAC |
| Output Voltage | 120/240VAC | 120/208VAC (L1/L2/N required) |
| Max. Output Current | 66.7A |
| Nominal Output Power (without PV) | 12000W @ 240V | 12000W @ 208V |
| Nominal Output Power (with PV) | 16000W @ 240V | 13800kW @ 208V |
| Power Factor | 0.99 (Full Load) |
| Reactive Power Adjustment Range | -0.8 – 0.8 Leading Adjustable |
| Total Harmonic Distortion | <5% (Full Load) |
| Transfer Time | 20ms (Default) | 10ms (Configurable) | 20ms (Parallel) |
| Rated Output Current | 50A @ 240V | 57.7A @ 208V |
| Rated Output Power | 12000W @ 240VAC | 12000W @ 208VAC |
| Peak Power | 24000W (0.5 sec) | 18000W (1 sec)
15000W (6 min) | 13200W (12 min) |
| Operating Frequency | 60 Hz (Default) | 50 Hz |
| Total Harmonic Distortion Voltage | <5% |
| Solar MPPT Specifications |
| No. of MPPTs | 3 |
| Inputs per MPPT | 2 (MPPT 1) | 2 (MPPT 2) | 1 (MPPT 3) |
| Max. Usable Input Current | 26A (MPPT 1) | 26A (MPPT 2) | 15A (MPPT 3) |
| Max. Short Circuit Input Current | 31A (MPPT 1) | 31A (MPPT 2) | 19A (MPPT 3) |
| DC Input Voltage Range | 100 – 600VDC |
| Unit Start-Up Voltage | 100VDC |
| MPPT Operating Voltage Range | 120 – 440VDC |
| Nominal MPPT Voltage | 360VDC |
| Max. Utilized PV Array Power | 21,000W |
| Max. Recommended PV Input | 25,000W |
| Performance & Efficiency |
| Max. Efficiency | 97% (PV to Grid) | 94.5% (PV to Battery) | 94% (Battery to Grid) |
| Idle Consumption | <65W |
| Recommended Battery Capacity per Inverter | >300Ah |
| Environmental Specifications |
| Operating / Storage Temperature Range | -13ºF – 140ºF (-25ºC – 60ºC) |
| Operating Altitude | <6,561 ft (2000 m) |
| Relative Humidity | 0 – 100% |
| Typical Noise Emission | <50dB @ 3 ft |
| Design Topology | High-Frequency / Transformerless |
| Protection Rating | IP65 / NEMA 4X |
| Communications & Expansion |
| Communications | RS485 / CANBus / WiFi |
| Max. Parallel Connections | 16 |
| Physical Specifications |
| Weight | 88 lbs (40 kg) |
| Depth | 11.3 in (287 mm) |
| Width | 22.3 in (567 mm) |
| Height | 30.5 in (775 mm) |
