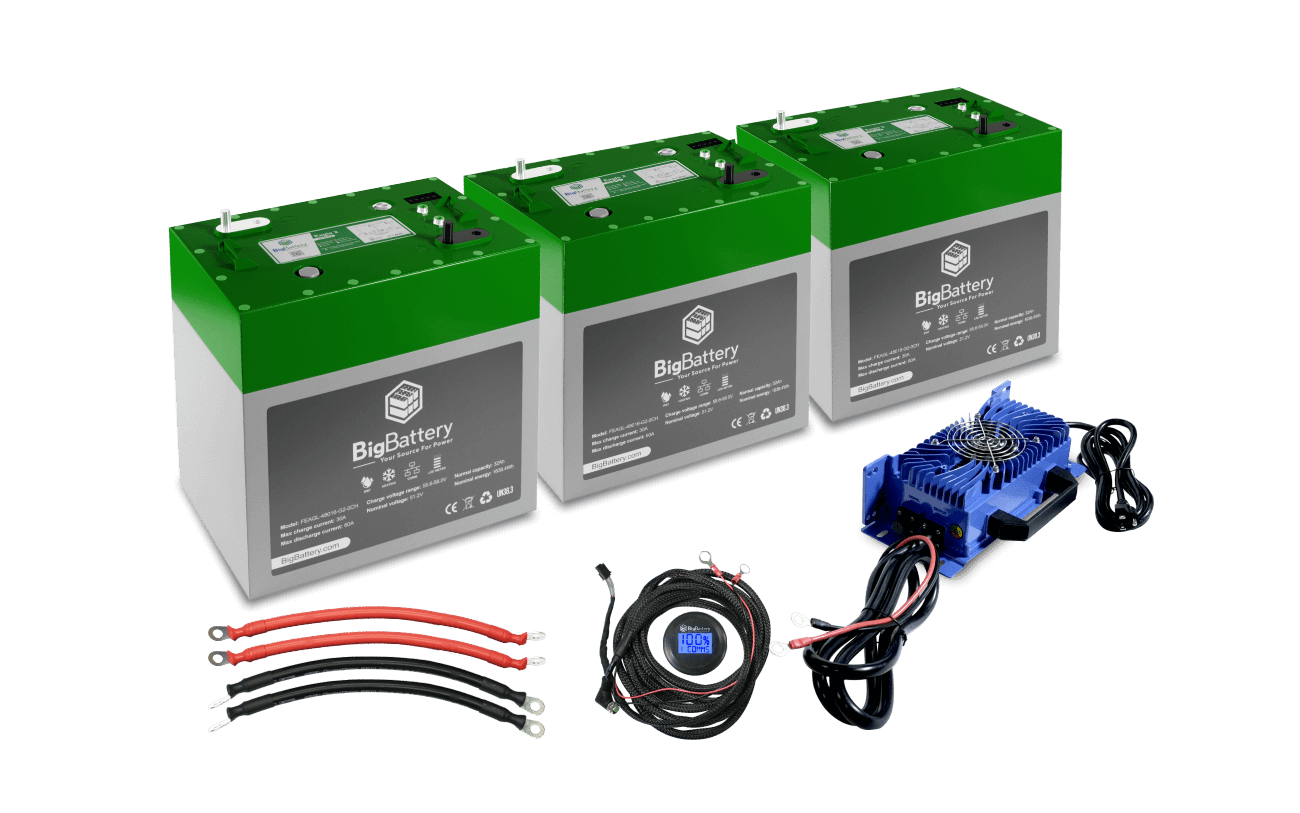

BigBattery 48V 3X EAGLE 2 Lithium Battery Kit
4.89kWh LiFePO4 Power – High-Density 48V 3-Battery Solution
Introducing BigBattery’s powerful 48V 3X EAGLE 2 Kit — delivering 4.89kWh of premium lithium energy in a lightweight, compact design built for high-performance 48V vehicles. This kit is a drop-in replacement for lead-acid batteries like the T-105, requiring no tray modifications.
Each battery is built with Tier 1 LiFePO4 cells in a GC2 form factor for easy integration and optimized weight distribution. This 3-battery configuration improves range, acceleration, charge speed, and cycle life while reducing overall system weight.
Safety and monitoring are built-in: each unit features an on-battery LED capacity meter, CANBus communication, and an external SOC meter. Rugged, IP67-rated enclosures protect against dust, water, and harsh road conditions.
Advanced BMS with self-heating ensures efficient and safe operation across all seasons, backed by BigBattery’s signature durability and performance.
Key Features:
-
Total Capacity: 4.89kWh (3 × 1.63kWh batteries)
-
Voltage: 48V nominal system
-
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
-
Form Factor: GC2 – Drop-in T-105 replacement
-
Protection Rating: IP67 – Water, dust, and debris resistant
-
Monitoring: On-unit LED meters + External CANBus SOC display
-
BMS: Advanced system with self-heating and wide temp range
-
Weight Savings: Lighter than lead-acid for better handling and performance
Designed For 48V Applications:
- Direct T-105 Lead-Acid Replacement
- Golf Carts & Utility Carts
- 48V UTVs & Low-Speed Vehicles (LSVs)
- Class A, B, & C RVs
- Camper Vans & Tow-Behind Trailers
- Light Industrial Equipment
- Mobile Backup & Emergency Power Systems
Benefits:
- High-capacity 4.89kWh system with fast charging
- Long cycle life (4,000+ cycles at 80% DOD)
- Maintenance-free, eco-friendly lithium chemistry
- Supports real-time performance monitoring
- Safe cold-weather operation with self-heating
- No modifications needed for standard 48V installations
- Durable and weather-resistant for rugged use
What's Included:

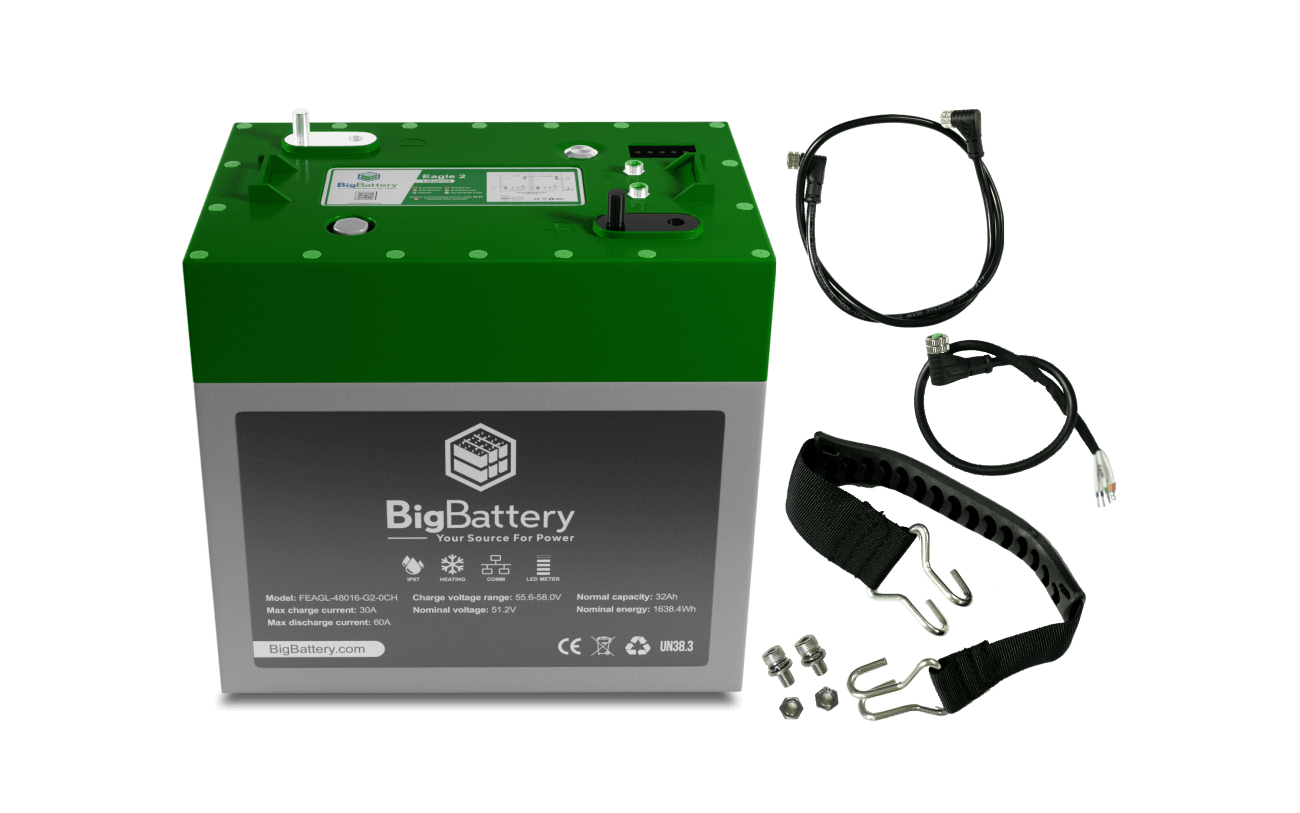

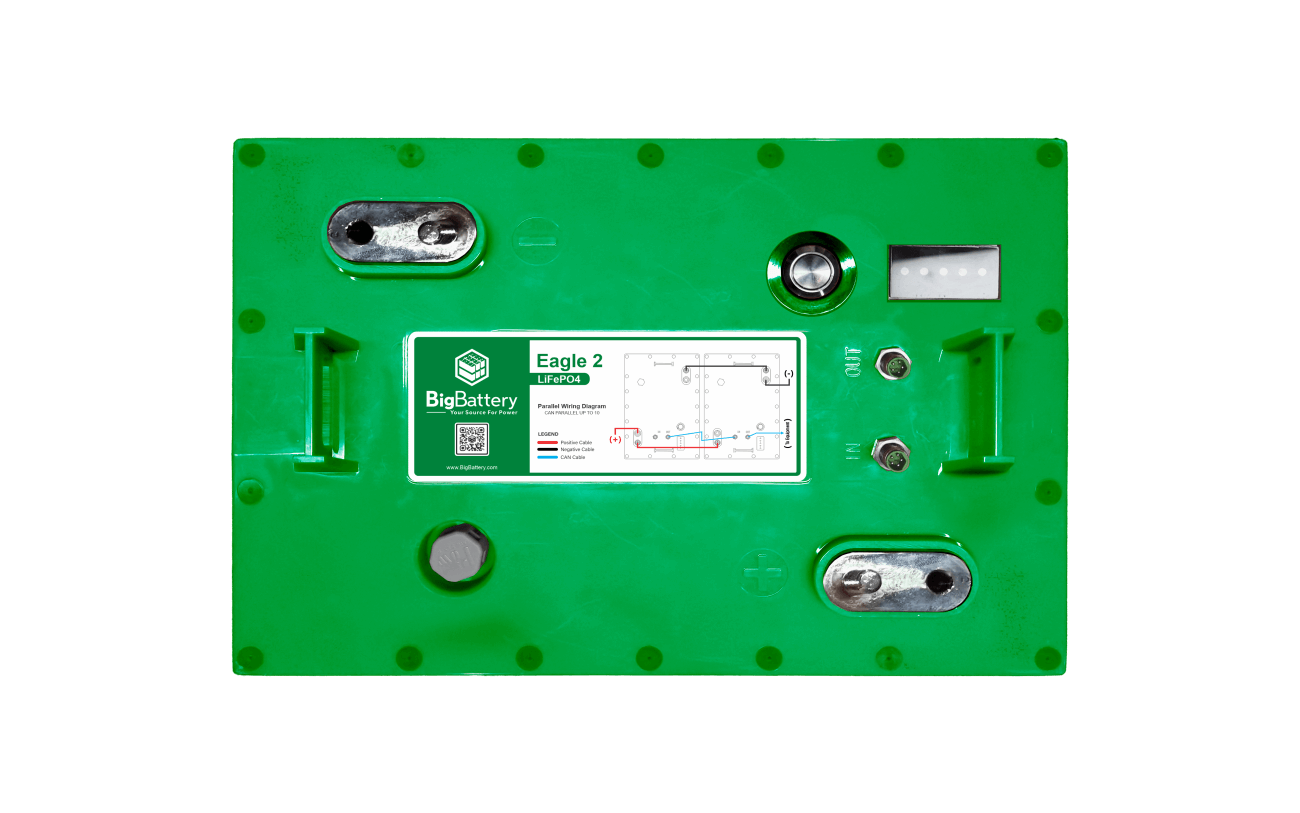

- 3 × 48V EAGLE 2 – LiFePO4 – 32Ah – 1.63kWh Batteries (FEAGL-48016-G2)

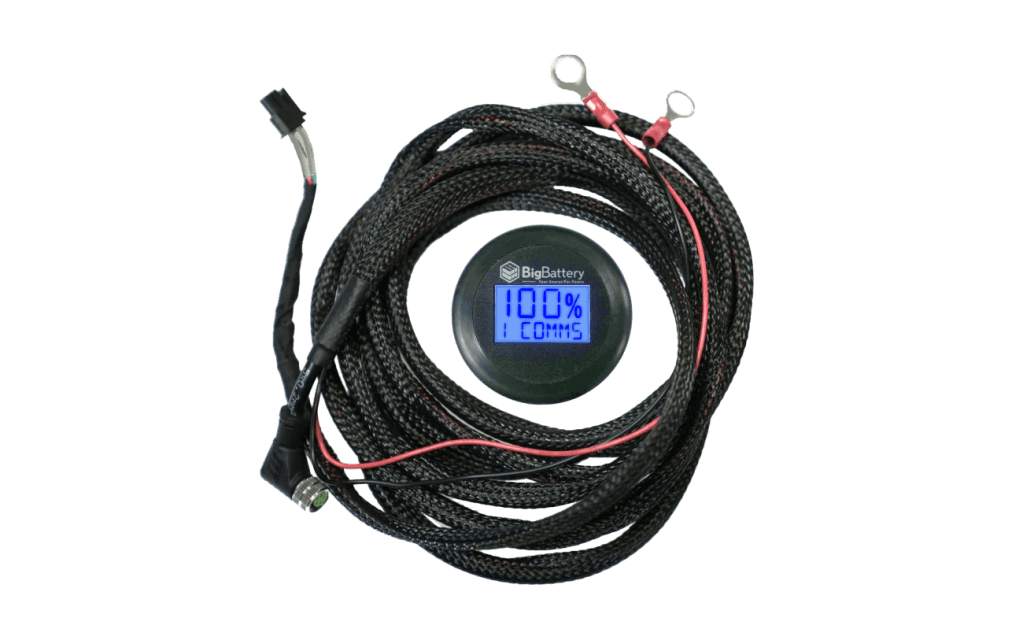

- 1 × EAGLE 2 CANBus SOC Meter (MTR107)

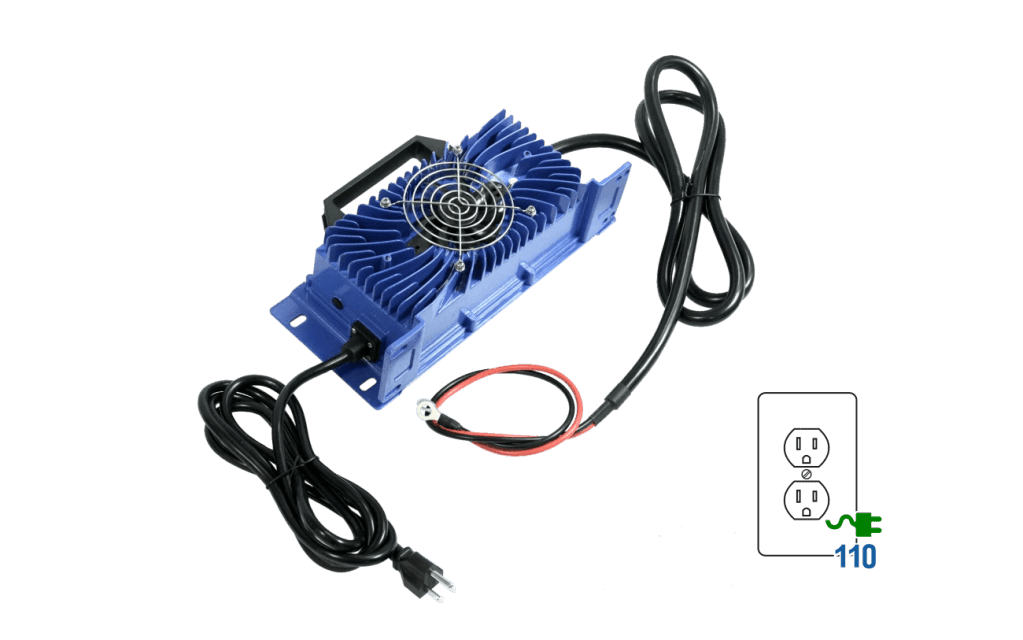

- 1 × 48V 110V AC 20A IP65 Blue Charger (PWS053)

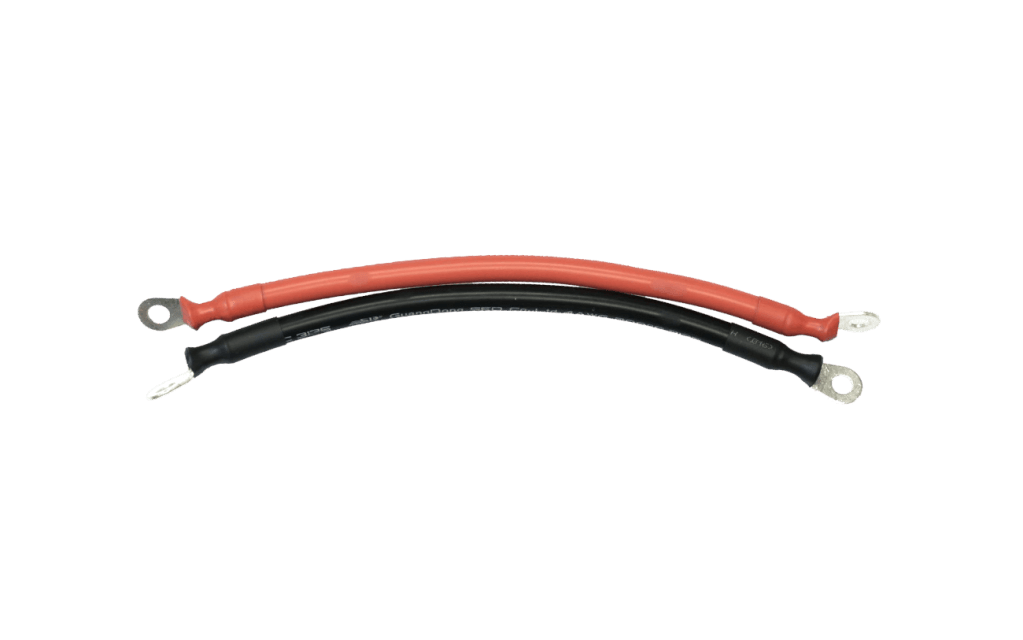

- 2 × 4AWG Red Cables – 11" Ring to Ring Terminals (CBL081)
- 2 × 4AWG Black Cables – 11" Ring to Ring Terminals (CBL080)
