BigBattery 24V 3X HUSKY 2 Inverter Kit + Victron MultiPlus-II 3000W Inverter/Charger

The BigBattery 24V 3X HUSKY 2 Kit delivers a powerful 15.36kWh LiFePO₄ battery system paired with Victron’s advanced MultiPlus-II inverter/charger. Designed for unmatched reliability and efficiency, this complete system is ideal for off-grid homes, emergency backup systems, RVs, camper vans, tow-behind trailers, and commercial vehicles.

Powered by Tier 1 Lithium Iron Phosphate cells, the HUSKY 2 is one of BigBattery’s most energy-dense 24V battery solutions. It features wide operating parameters, integrated self-heating for cold-weather performance, and a sophisticated thermal management system for dependable operation in extreme climates.

An advanced battery management system provides auto cell balancing, over/under voltage and current protection, and full CANBus & RS485 communication. Combined with Victron’s PowerControl and PowerAssist capabilities, this kit ensures intelligent load management and efficient power delivery wherever you need it.

Key Features:

Total Capacity: 15.36kWh (3 × 5.12kWh HUSKY 2 Modules)
System Voltage: 24V
Battery Chemistry: Tier 1 LiFePO₄ (Lithium Iron Phosphate)
Inverter/Charger: Victron MultiPlus-II 24V 120V with PowerControl & PowerAssist
Communication: CANBus, RS485 & Victron Cerbo GX Monitoring
BMS: Auto Cell Balancing, Thermal Management & Full Protection
Enclosure: IP65-Rated, Vibration-Resistant & Weatherproof
Self-Heating: Cold Weather Charging & Operation Support

Designed For 24V Applications:

Lead Acid Replacement
Class A, B & C RVs
Camper Vans & Tow-Behind Trailers
Commercial Vehicles & Food Trucks
Emergency Power & Mobile Backup

Benefits:

High-capacity lithium storage for extended runtime and durability
Advanced Victron power management with PowerControl & PowerAssist
Reliable performance in extreme climates with internal warmers
Compact, vibration-resistant design for mobile and off-grid use
Complete plug-and-play system with included cables and components

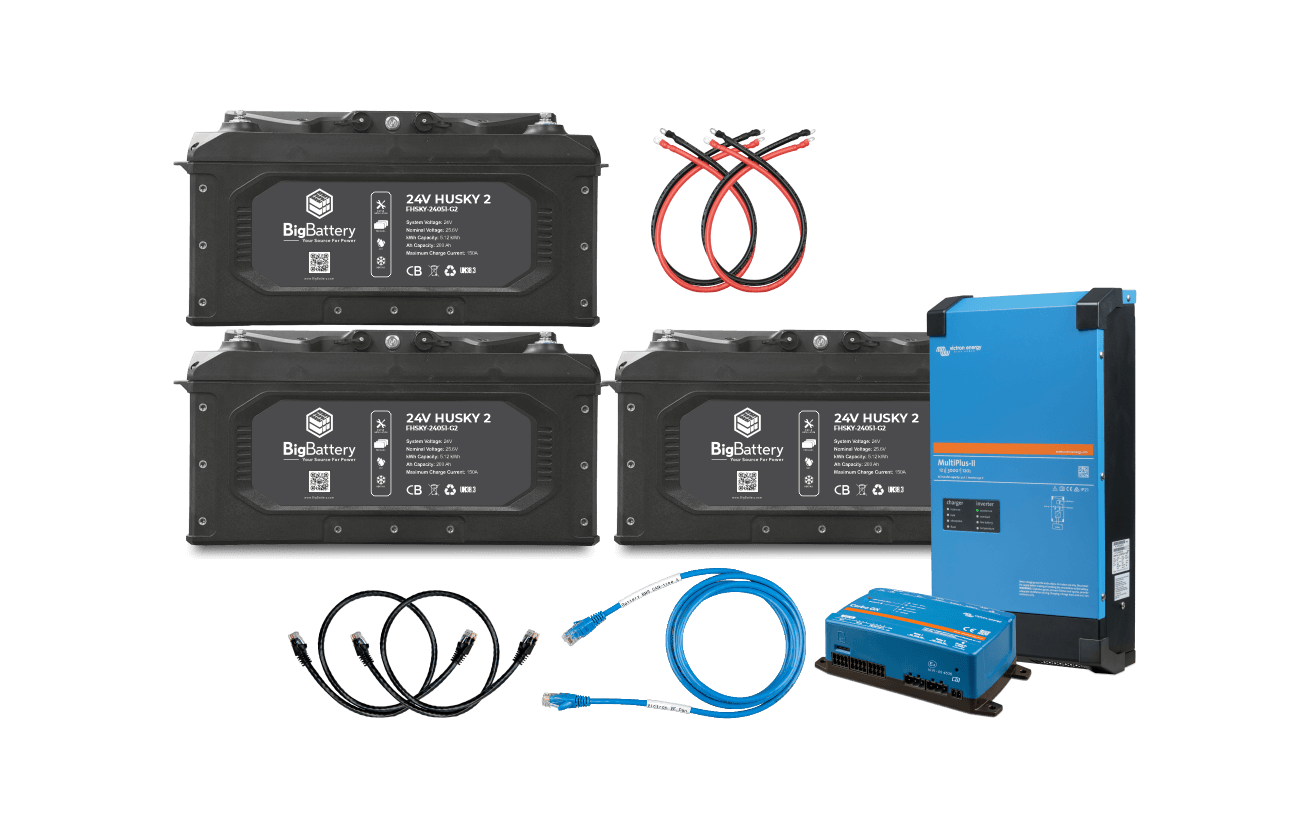

What’s Included:

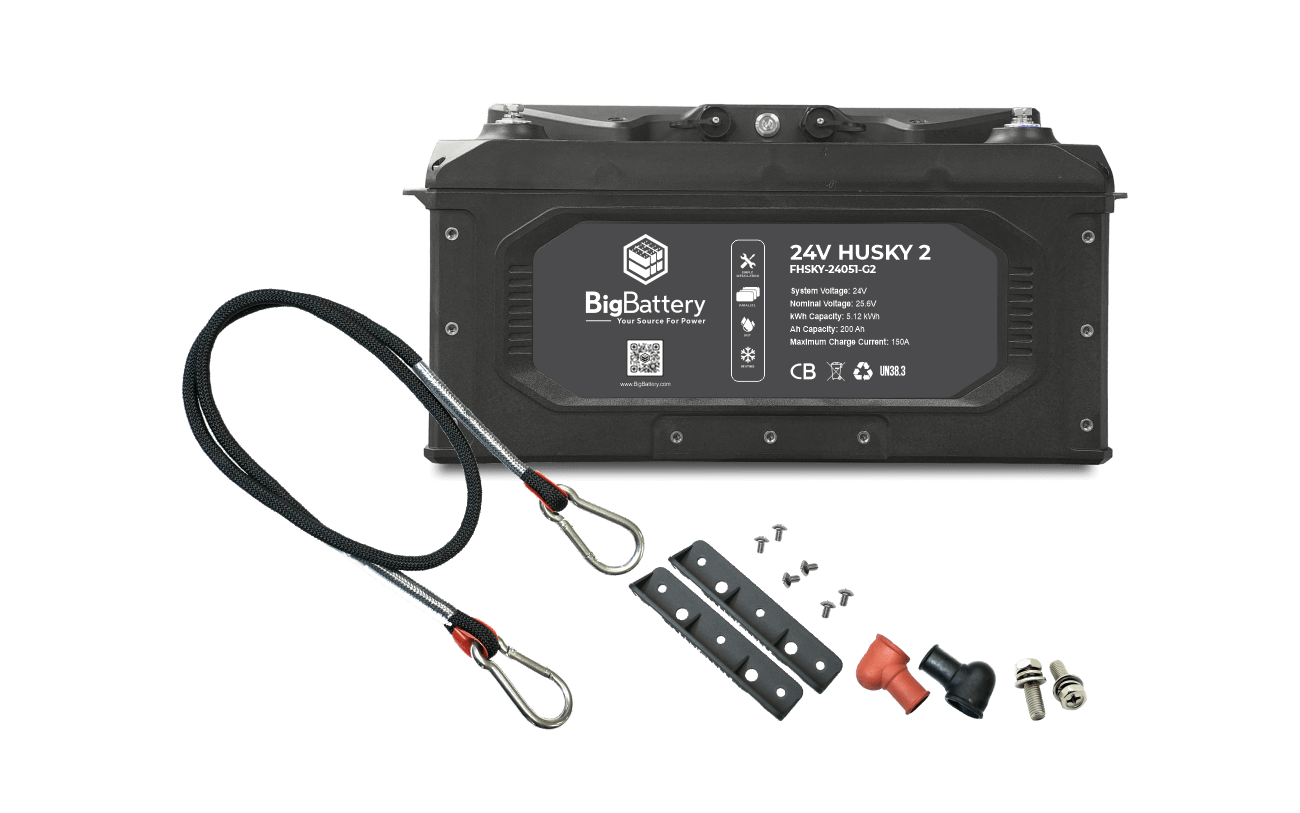

3 × 24V HUSKY 2 INV Battery Modules – Model: FHSKY-24051-G2-INV

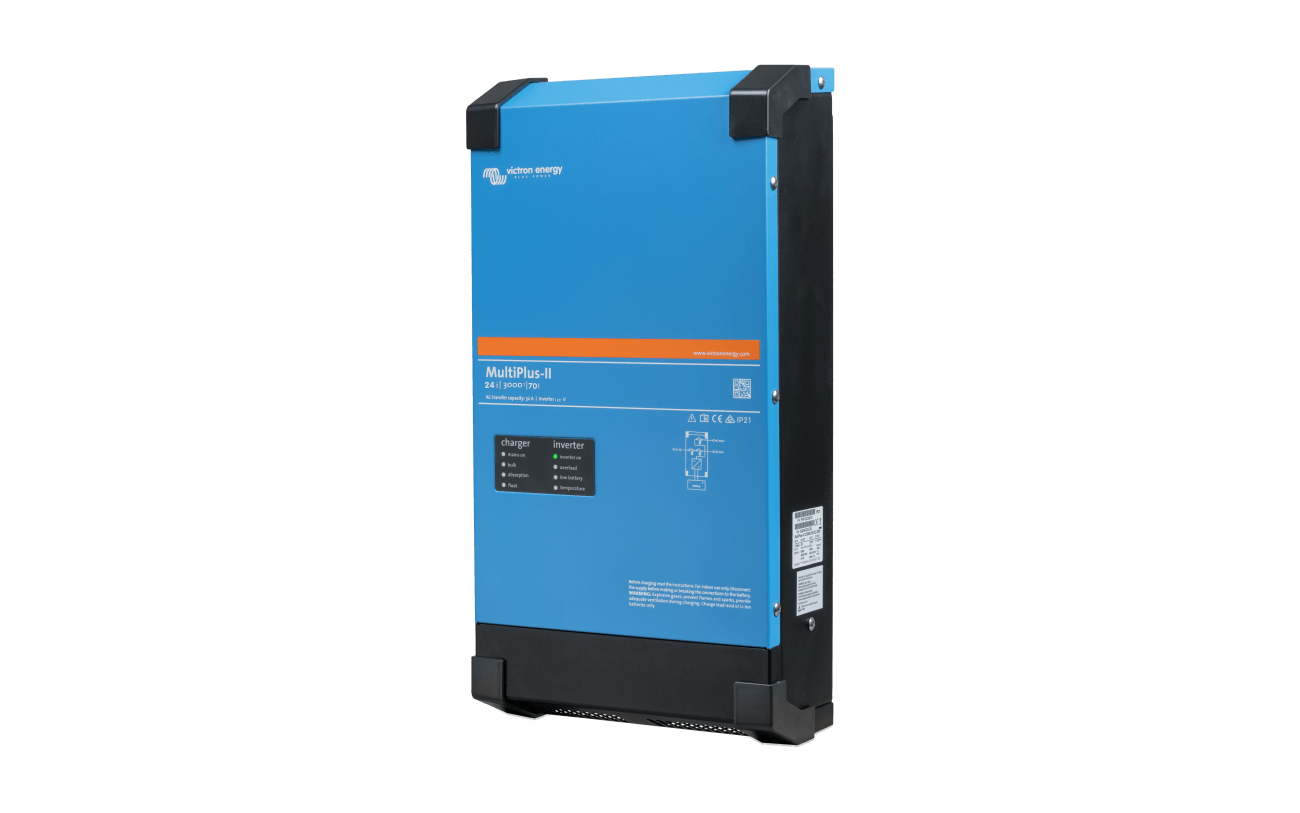

1 × Victron MultiPlus-II 24V 120V Inverter/Charger – Model: INV016

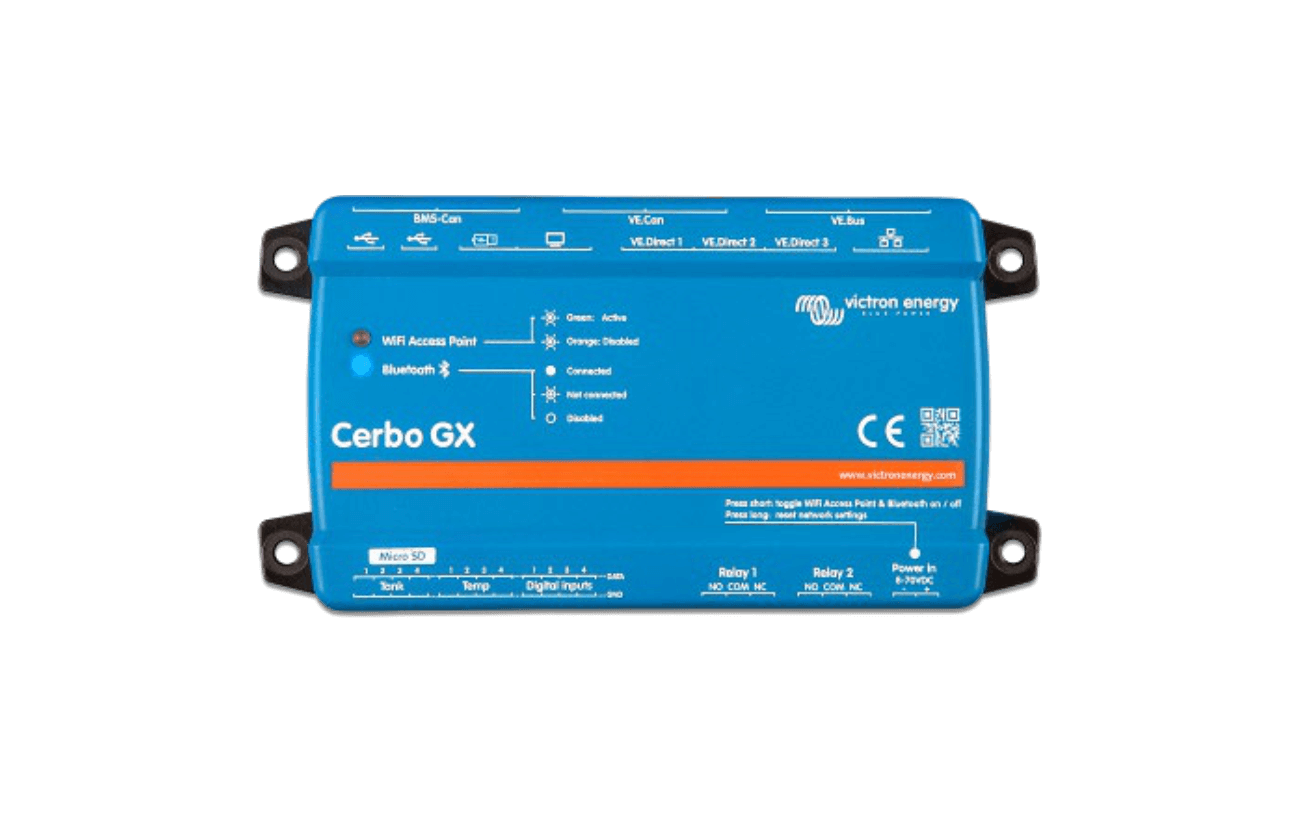

1 × Victron Cerbo GX Monitoring System – Model: INV019

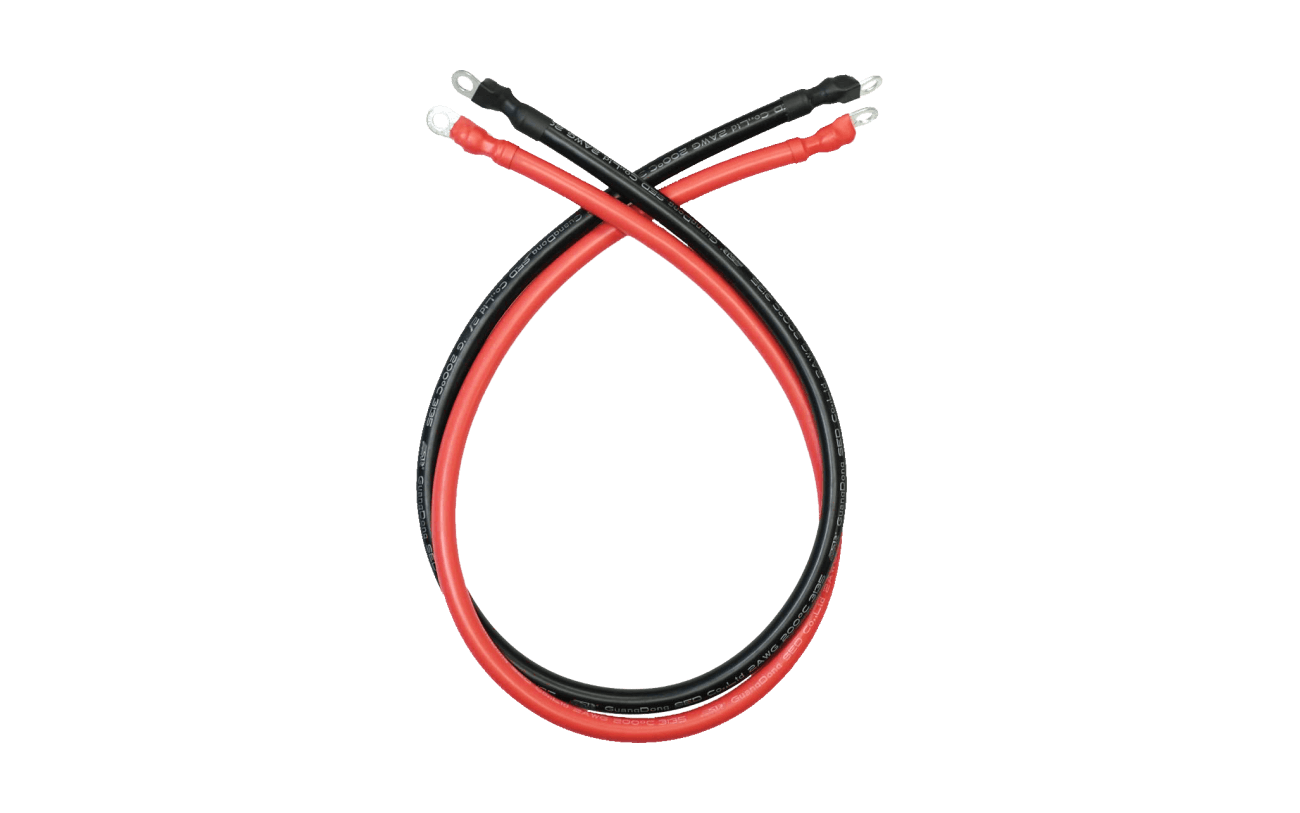

2 × 4AWG Black & Red Ring-to-Ring Terminal Cables (21”) – Model: CBL092
1 × 2AWG Black & Red Ring-to-Ring Terminal Cable (3FT) – Model: CBL086

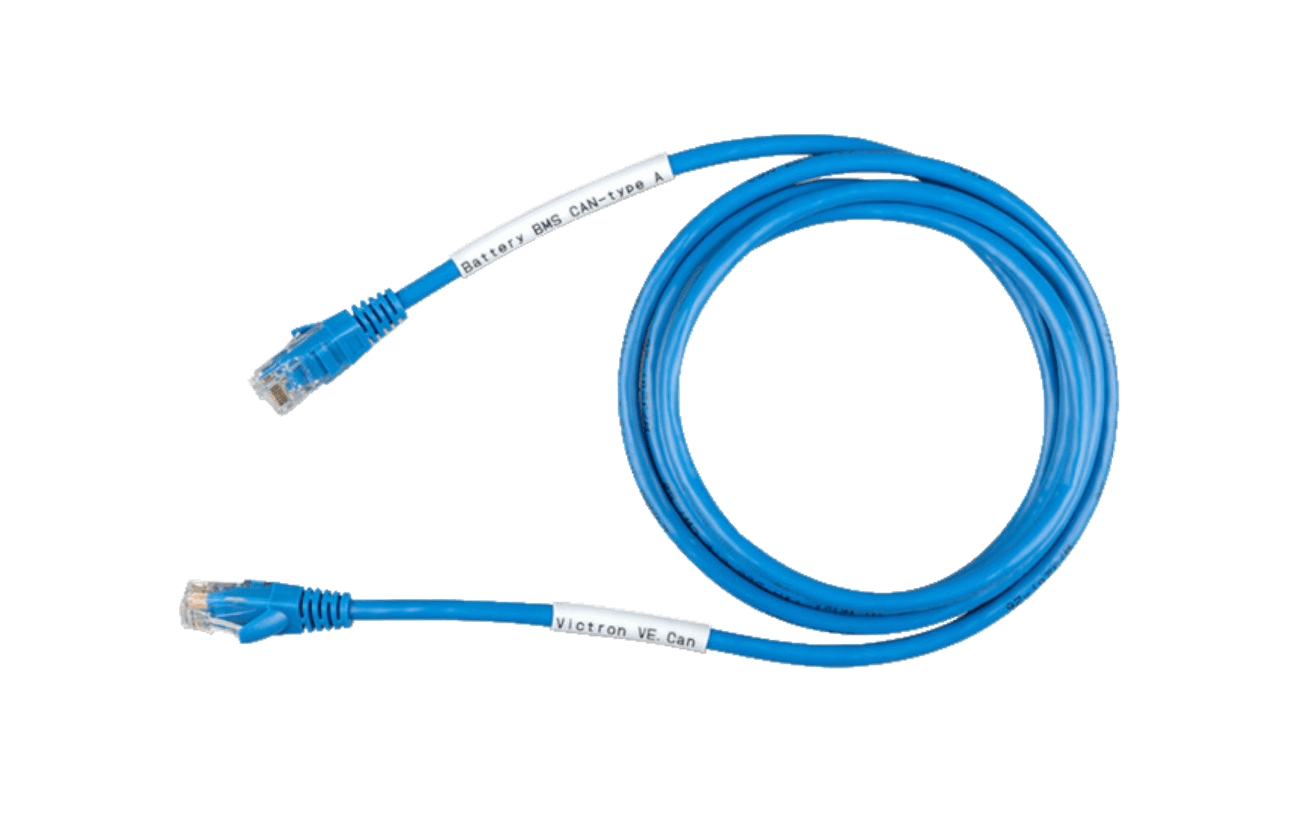

1 × Victron Communication Cable – Model: CBL098

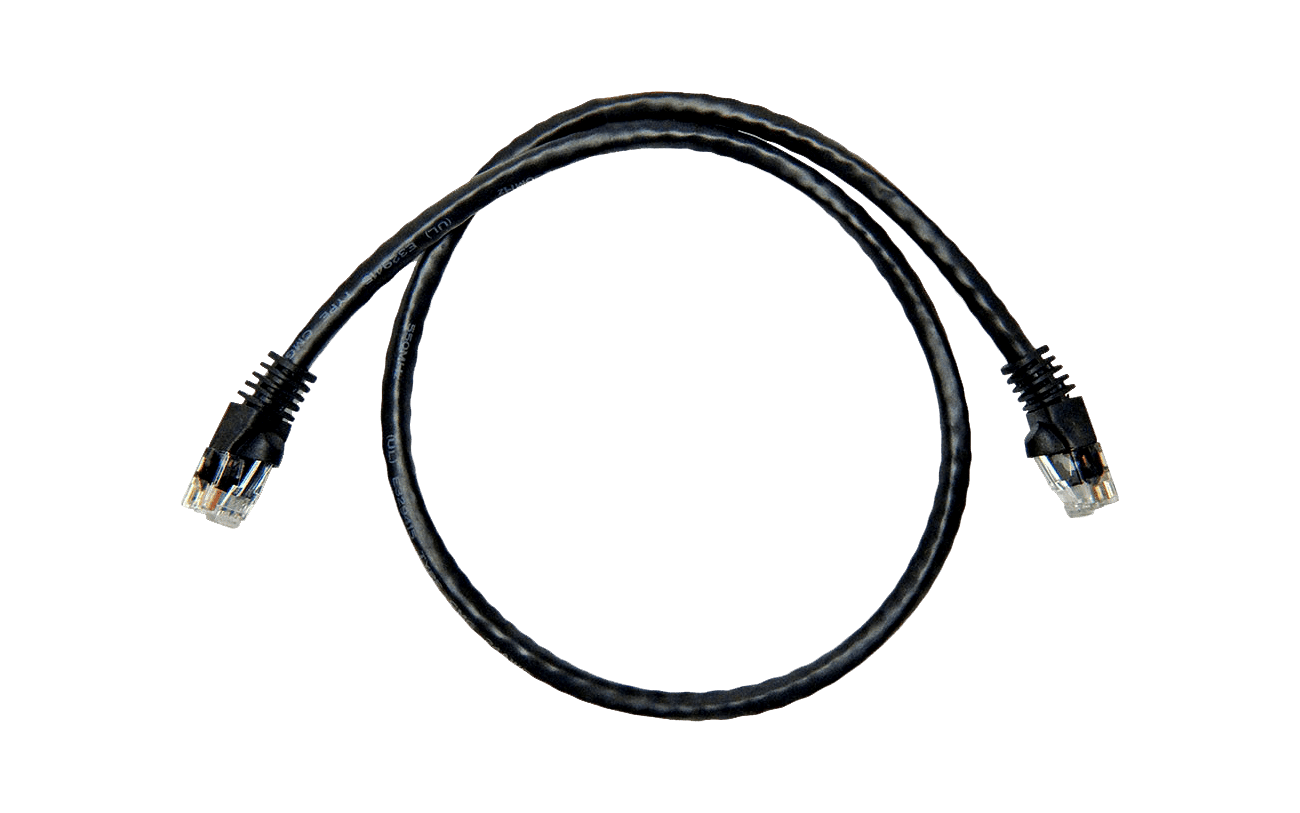

2 × Parallel Communication Cables – Model: CBL099

Specifications

Parameter	Details
SKU	FHSKY-24051-G2
System Voltage	24V
Nominal Voltage	25.6V
Chemistry	LiFePO4
kWh Capacity	5.12kWh
Ah Capacity	200Ah
Cell Configuration	8S
Charging Voltage Range	27.8 – 28V
Max Charge Voltage	29.2V
Operating Voltage Range	24 – 28.8V
Suggested Low Voltage Cutoff	24 – 25.4V
BMS Cutoff Range	21 – 23.5V
Max Continuous Discharge Current	200A
Max Continuous Power	5120W
Max Discharge Peak Current	300A (Max 5 seconds)
Max Charge Current	150A
Charge Temperature Range	-4°F – 113°F (-20°C – 45°C)
Discharge Temperature Range	-4°F – 131°F (-20°C – 55°C)
Optimal Discharge Temperature Range	59°F – 95°F (15°C – 35°C)
Storage Temperature Range	-4°F – 113°F (-20°C – 45°C) (Max 6 months)
Weight	95 lb (43.1 kg)
Depth	12.6 in (320 mm)
Width	18.1 in (460 mm)
Height	9.8 in (249 mm)
Max Connections	Up to (16) Parallel
Protection Rating	IP65 / NEMA 4X
Communications	CANBus / RS485
Self-Heating	Yes
Inverter SKU	INV016
Battery Voltage	24VDC
Rated Power	3000 VA / 2400 W
Peak Power	5500 W
Parallel Capacity	Yes
Nominal Output Voltage RMS	N/A
Output Frequency	60 Hz ± 0.1%
AC Voltage Regulation	120 VAC ± 2%
Inverter Efficiency (Peak)	94%
Waveform	Pure Sine Wave
Transfer Time	N/A
AC Input Voltage	120VAC
Selectable Voltage Range	90 – 140 VAC
Frequency Range (Auto-Sensing)	45 – 65 Hz
Max Charging Current	70A
Inverter Weight	42 lbs
Inverter Depth	5.8 in
Inverter Width	10.9 in
Inverter Height	21.1 in

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
