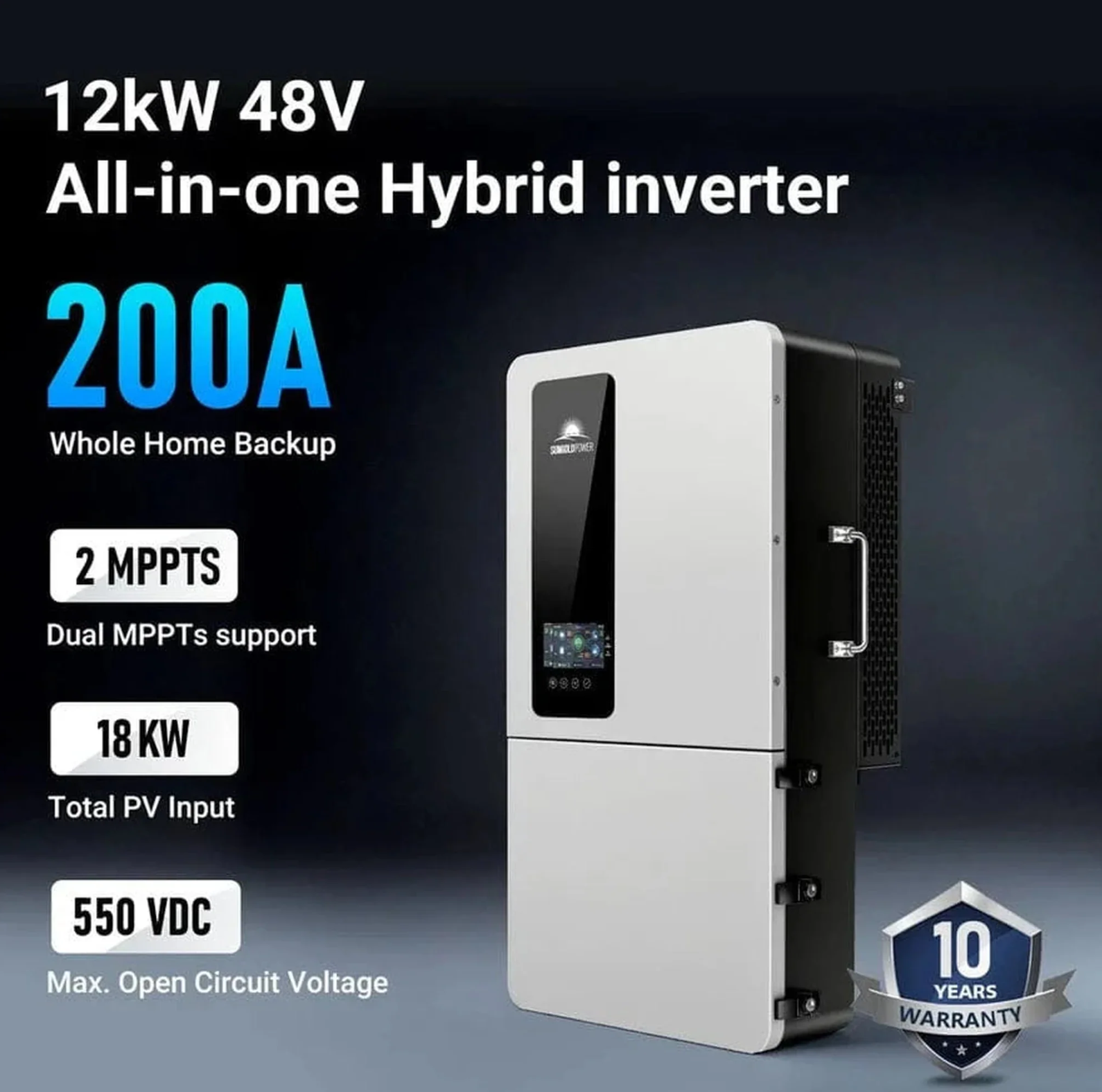

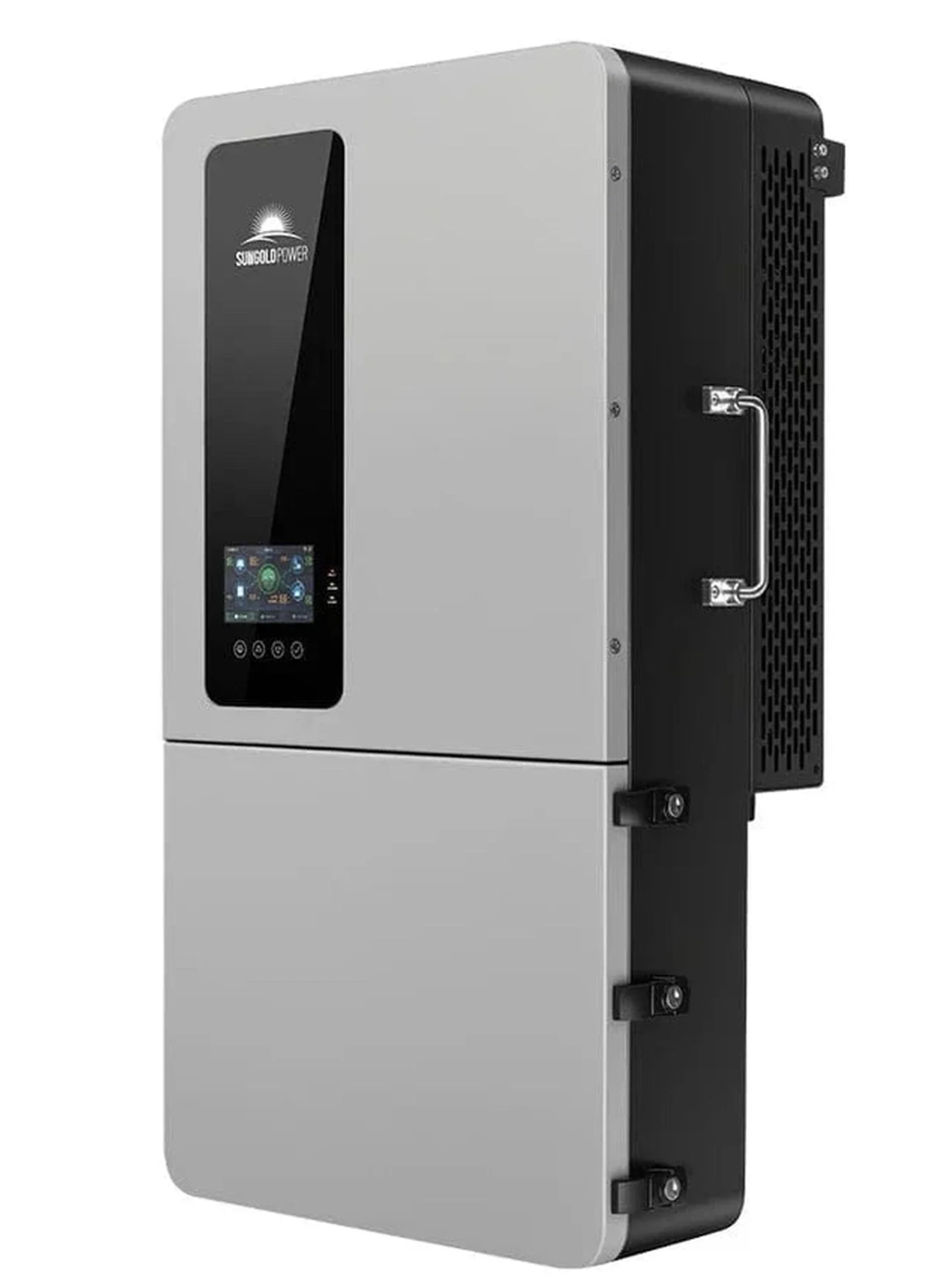

SunGoldPower Hybrid Solar Inverter | 12kW 48V | Whole-Home 200A Backup

High-Performance 12kW All-in-One Hybrid Inverter for Off-Grid, Grid-Tied, and Whole-Home Backup

The SunGoldPower SGS-12K18MAX is a high-capacity 48V hybrid solar inverter engineered for residential and small commercial applications. This all-in-one system combines a 12,000W pure sine wave inverter, advanced MPPT solar charge controller, and intelligent battery charger into a single compact unit, delivering reliable power, seamless energy management, and stable operation even under demanding conditions.

Designed for whole-home backup and hybrid solar setups, the SGS-12K18MAX supports solar, battery, and utility inputs, automatically switching between sources to ensure uninterrupted power. Integrated Wi-Fi/RS485 monitoring provides real-time system performance and remote control, while built-in safety and cooling systems protect the inverter and connected loads.

Key Features

12kW Pure Sine Wave Output: Clean, stable power for sensitive electronics, appliances, and home systems.
48V Hybrid System: Supports solar, battery, and grid inputs for flexible energy management.
High-Efficiency MPPT Solar Controller: Up to 99% tracking accuracy for maximum solar harvesting.

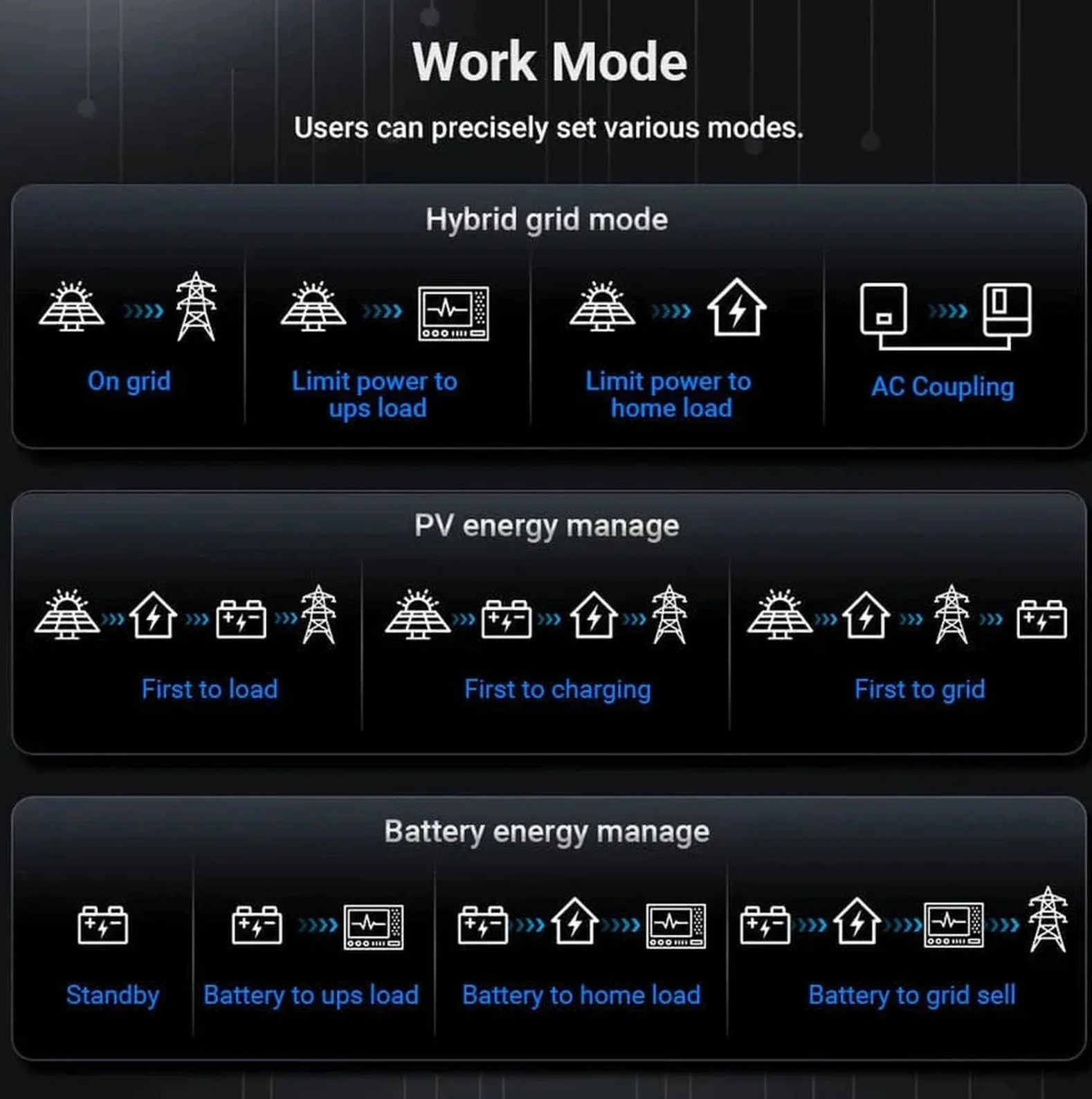

Seamless Source Switching: Automatic transition between solar, battery, and utility power.
LCD Display: Real-time system data and performance tracking for easy monitoring.
Battery Compatibility: Works with lithium-ion and lead-acid batteries for versatile setups.
Parallel Expansion Support: Connect multiple units to scale total system capacity.
Built-In Cooling & Protection: Intelligent thermal management and safeguards against overload, over-voltage, and short circuits.
Remote Monitoring & Configuration: RS485 and Wi-Fi enable mobile or desktop system management.
Ideal Applications: Whole-home backup, off-grid cabins, small commercial solar systems, or hybrid energy solutions.

What’s Included

1 × SunGoldPower SGS-12K18MAX Hybrid Solar Inverter
1 × Mounting Bracket
1 × Wi-Fi/RS485 Monitoring Module
1 × User Manual
Necessary Expansion Screws, Terminals, and Connectors for Installation

Manuals:

SunGoldPower 2000W DC 12V Pure Sine Wave Inverter With Charger Installation Guide & Owner Manual (PDF)

Specifications

Parameter	Specification
Inverter (PV)
Rated Output Power	12,000 W @ 240 V / 10,400 W @ 208 V
Maximum Peak Power	1.5 × rated power (10 s)
Rated Output Voltage	120/240 VAC (Split Phase), 120/208 VAC (Three Phase)
Rated Output Current	50 A
Load Motor Capacity	6 HP
Rated AC Frequency	50 / 60 Hz
Output Waveform	Pure Sine Wave
Parallel Capacity	Up to 6 units
Battery
Supported Battery Types	Li-ion / Lead-acid / User-defined
Rated Battery Voltage	48 VDC
Battery Voltage Range	40–60 VDC
Max Grid Charging Current	200 A
Max Generator Charging Current	200 A
Max Hybrid Charging Current	240 A
PV Input
Number of MPPTs	2
Max PV Array Power	9,000 W + 9,000 W
Max Input Current	32 A / 32 A
Short Circuit Current (Isc)	40 A / 40 A
Max Open Circuit Voltage	550 VDC / 550 VDC
MPPT Voltage Range	125–450 VDC / 125–450 VDC
MPPT Tracking Efficiency	99.9%
Grid / Generator Input
Input Voltage Range	90–140 VAC
Input Frequency Range	50 / 60 Hz
Continuous Grid Passthrough Current	200 A
Protection
Integrated Protections	Reverse polarity protection, DC switch per MPPT, Output over-voltage protection (varistor), Output over-current protection, Ground fault monitoring, Grid monitoring, Pole-sensitive leakage current monitoring, AFCI, RSD
Interface & Communication
Communication Ports	RS485 / CAN / USB / Dry Contact
Optional External Modules	Wi-Fi / GPRS
General Data
Dimensions (W × H × D)	33.07 × 17.32 × 10.24 in (840 × 440 × 260 mm)
Weight	105.82 lb (48 kg)
Ingress Protection	IP65
Operating Temperature	13°F to 140°F (−25°C to +60°C), derated above 113°F (45°C)
Noise Level	<60 dB
Self-Consumption	<100 W
Cooling Method	Heat sink + intelligent fan cooling
Certifications
Safety Standards	UL 1741, IEEE 1547.1-2020, CEC, Rule 21, HECO
EMC	FCC Part 15 Class B
RoHS Compliance	Yes

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
