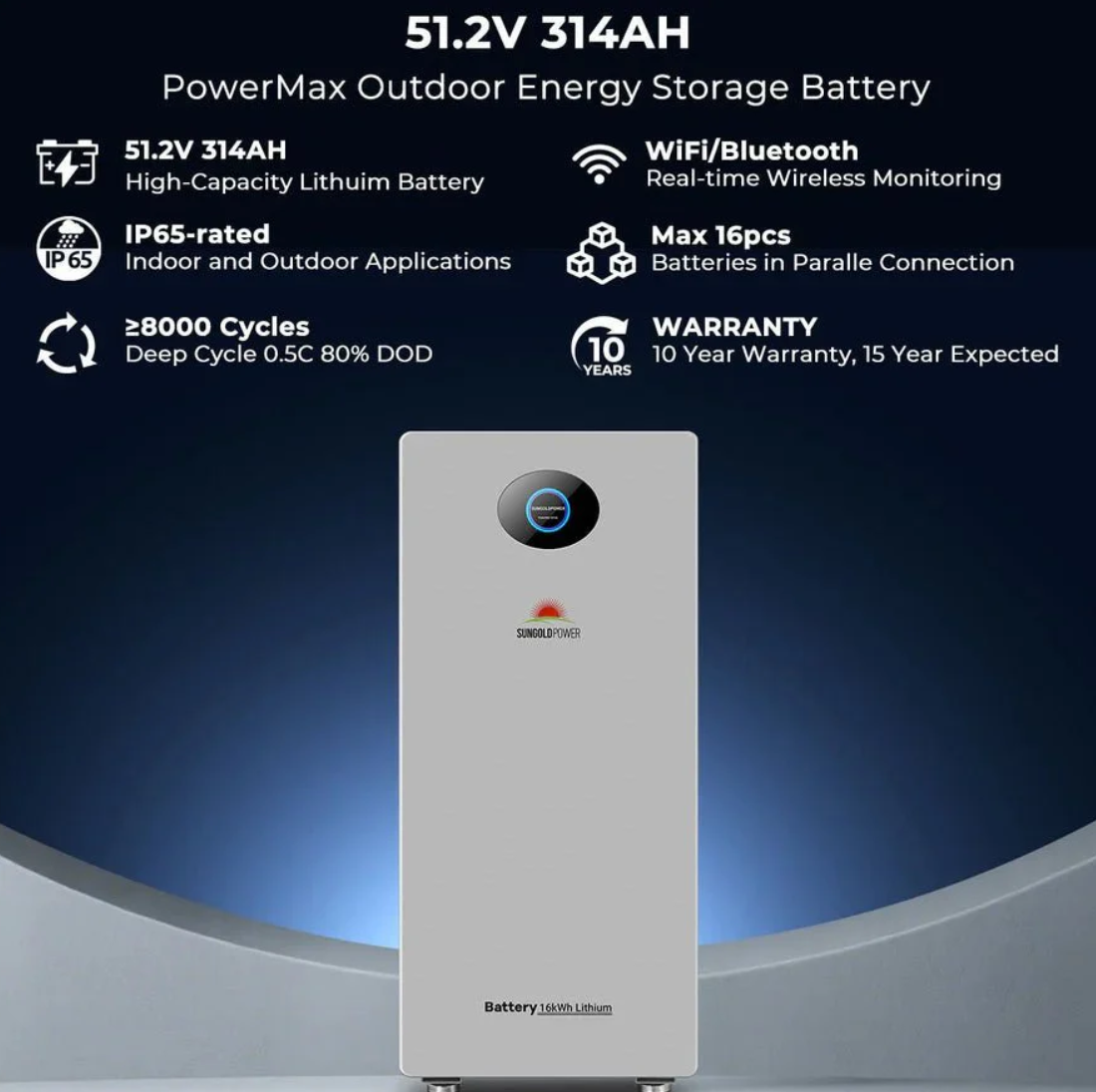

SunGoldPower PowerMax 314 Outdoor Battery | 51.2V 314Ah | UL1973 & UL9540A

Rugged, High-Capacity Outdoor Energy Storage for Whole-Home & Commercial Systems

The SunGoldPower PowerMax 314 is a premium 51.2V 314Ah (16.07kWh) LiFePO₄ outdoor energy storage battery designed for reliable off-grid, backup, and whole-home energy solutions. Built with a waterproof and dustproof enclosure and certified to UL1973 and UL9540A standards, it delivers long-lasting, safe, and high-performance energy storage even in harsh environments.

Engineered for durability and high-capacity applications, the PowerMax 314 provides seamless integration with 48V inverters and chargers, making it ideal for residential, commercial, and remote solar or backup energy systems.

Key Features

Massive 16.07kWh Capacity: 51.2V, 314Ah energy storage supports whole-home usage, critical loads, and large-scale off-grid setups.
Outdoor-Rated Enclosure: Fully waterproof and dustproof for reliable operation in challenging weather and environmental conditions.
Certified Safety Standards: UL1973 and UL9540A certified, ensuring safety, fire protection, and compliance for residential and commercial energy storage.
Long Cycle Life: Built with high-quality LiFePO₄ cells for consistent performance and extended lifespan over thousands of cycles.

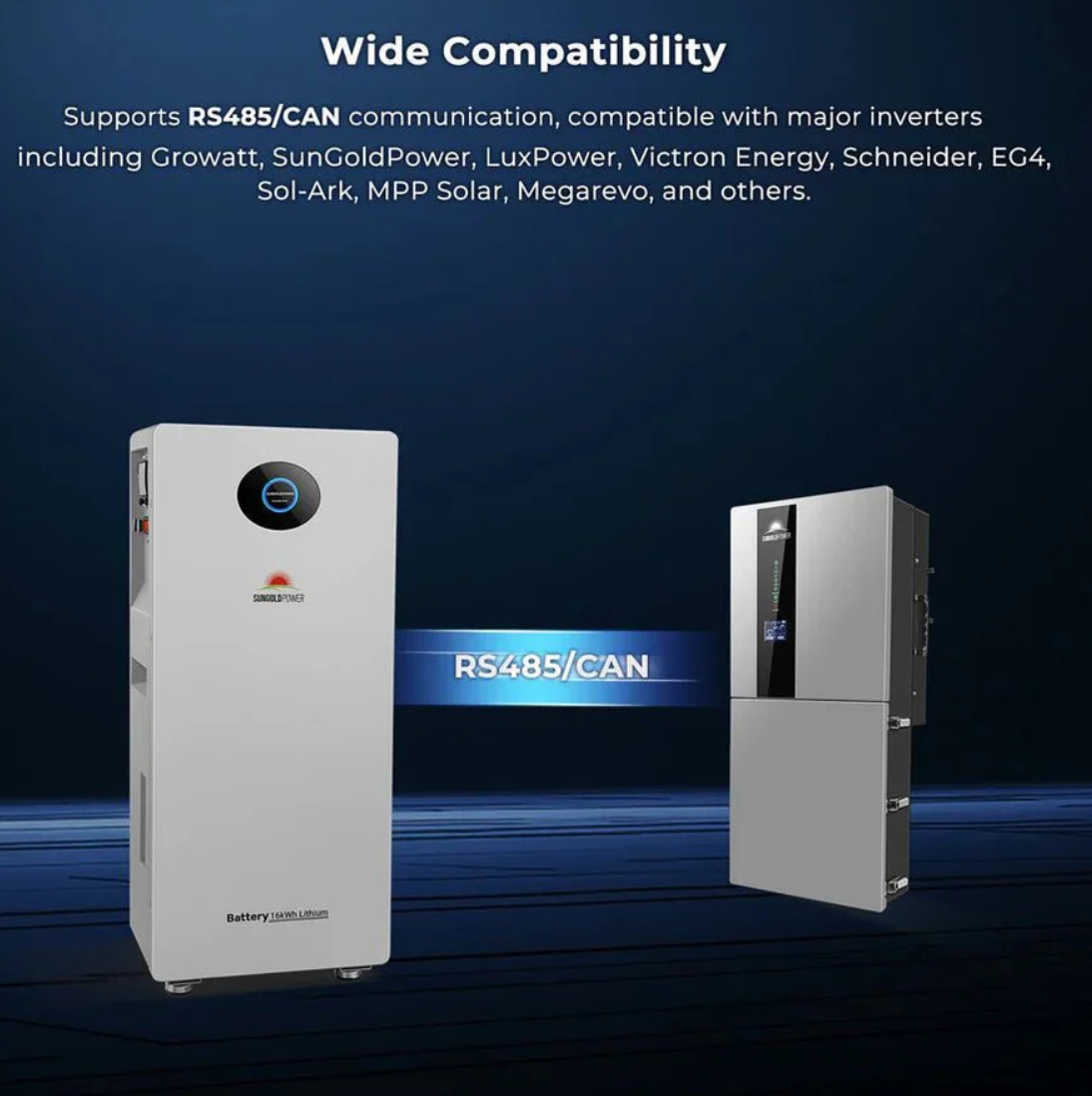

High Compatibility: Works seamlessly with 48V chargers, inverters, and energy management systems.
Durable & Reliable: Engineered to withstand harsh outdoor conditions while maintaining stable, safe power delivery.

Ideal Applications

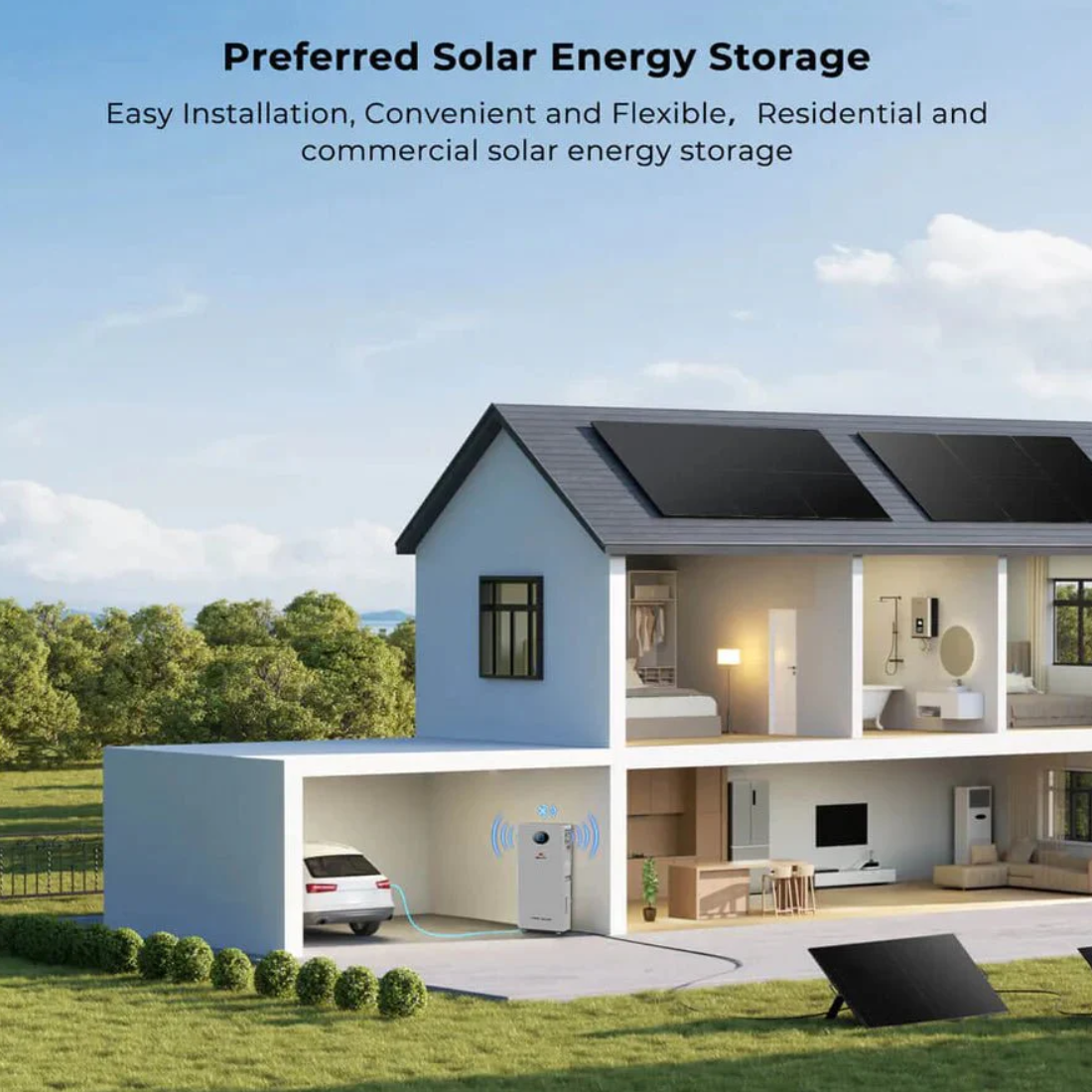

Whole-home solar storage and backup power
Commercial energy storage systems
Off-grid cabins, remote sites, and emergency power setups
Large-scale solar + battery installations

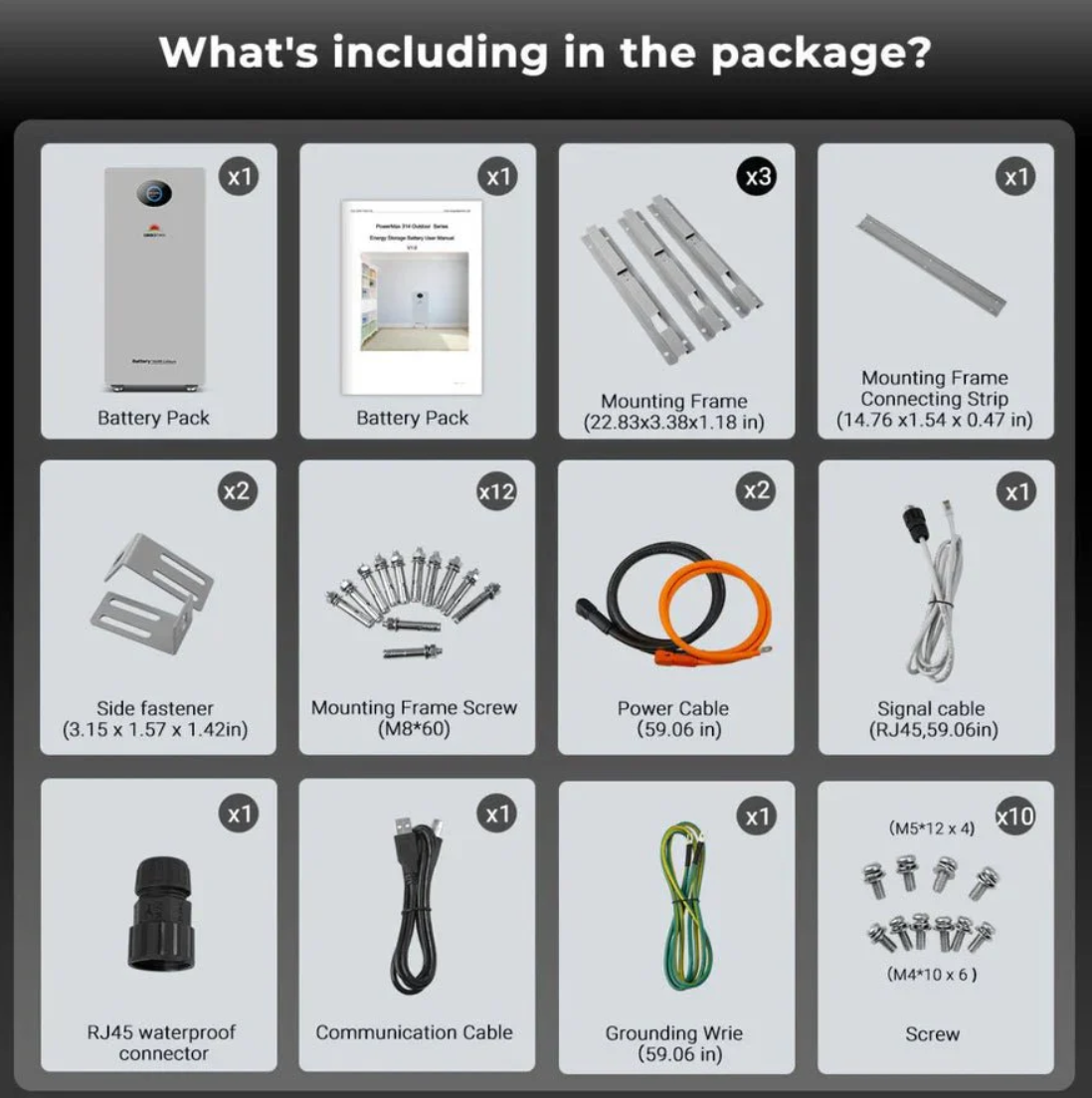

What’s Included

1 × SunGoldPower PowerMax 314 Outdoor Battery (51.2V 314Ah, 16.07kWh)

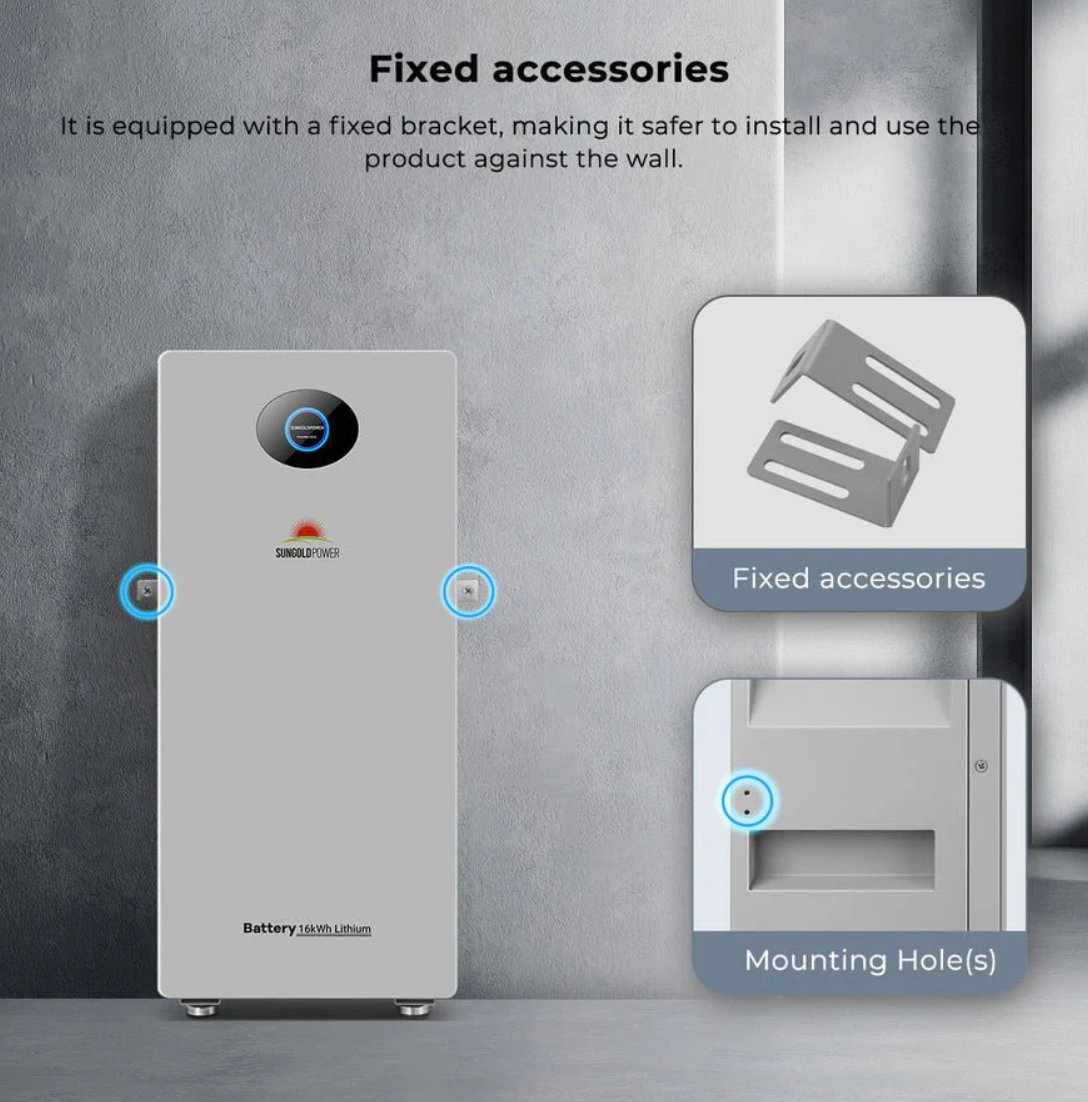

1 × Battery Mounting/Installation Hardware Kit
1 × CAN/RS485 Communication Cable
1 × User Manual

Specification Sheets:

SunGoldPower PowerMax 51.2V 314AH Outdoor Energy Storage Battery UL1973 & UL9540A Specifications (PDF)

Manuals:

SunGoldPower PowerMax 51.2V 314AH Outdoor Energy Storage Battery UL1973 & UL9540A Installation Guide & Owner Manual (PDF)

Specifications

Specification	Details
Electrical Characteristics
Rated Voltage	51.2 V
Voltage Range	44.8 – 57.6 Vdc
Rated Capacity	314 Ah
Rated Energy	16.07 kWh
Usable Energy	15.42 kWh
Max Depth of Discharge	>96%
Rated DC Power	7.68 kW
Charging & Discharging
Standard Charge Current	150 A
Standard Discharge Current	150 A
Max Charge Current	190 A
Max Discharge Current	190 A
Peak Charge Current	220 A (3 s)
Peak Discharge Current	220 A (3 s)
Max Charging Voltage	57.6 V
Over-Discharge Voltage	44.8 V
Protection & Control
Breaker Current	240 A
Cooling Method	Natural Cooling
Protection Rating	IP65
User Interface
Display	Touch Screen
Lifecycle
Cycle Life	8,000 cycles (80% DOD, 0.5C, 25°C)
Mechanical
Dimensions (L × W × H)	41.26 × 18.11 × 10.67 in
Weight	271.17 lbs
System Integration
Max Parallel Units	16
Communication Interfaces	CAN / RS485 / USB / WiFi / Bluetooth
Environmental
Charging Temperature Range	32°F – 131°F
Discharging Temperature Range	14°F – 131°F
Installation Environment	Indoor & Outdoor
Storage Conditions
Storage Time / Temperature	6 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Certifications
Compliance Standards	UN38.3, MSDS, EN55032, EN55024, EN61000-3-2, EN61000-3-3, UL1973, UL9540A

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
