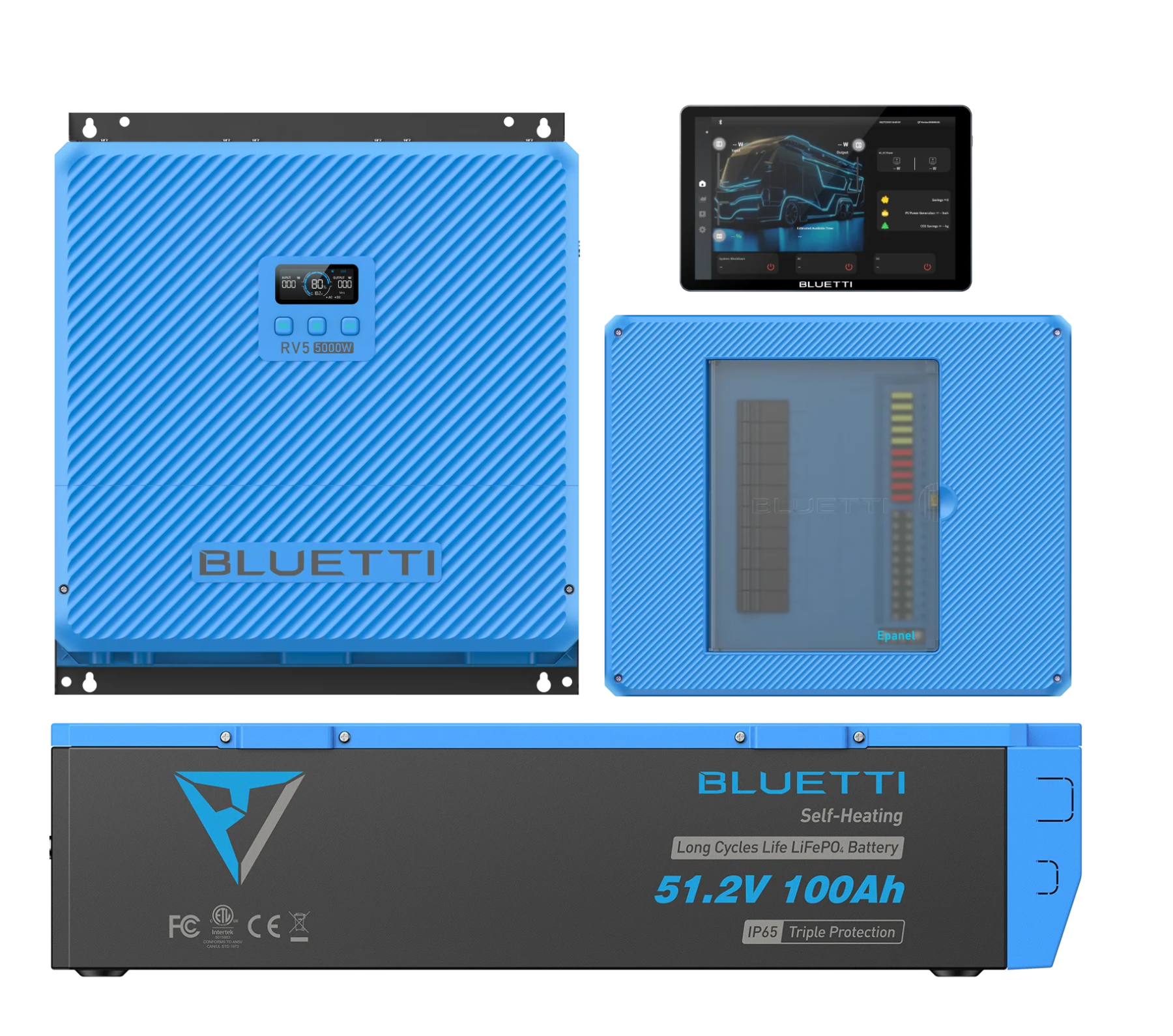

BLUETTI RV5 + B4810 + Epanel + Epad Power Bundle

BRAND:

| SKU:

BLUETTI RV5 + B4810 + Epanel + Epad Power Bundle

$3,698.99
Free shipping with delivery between Apr 02 - Apr 09
Quantity

#1 Authorized Bluetti Distributor

All products come with manufactured warranties

Free Shipping + No Sales Tax


More money in your pockets for your renewable

Hassle-Free Returns & Exchanges

Safe shopping for your hard-earned money

Talk To A Real Person


Get help from our specialists —

live chat or call anytime

BLUETTI RV5 + B4810 + Epanel + Epad Bundle

Complete High-Capacity, Plug-and-Play RV Power System — All-in-One Energy Solution for Confident, Off-Grid RV Living

The BLUETTI RV5 + B4810 + Epanel + Epad Bundle delivers a fully integrated, high-capacity energy system for RVs, vans, and off-grid adventures. With 5,000W continuous power, fast, flexible charging options, advanced LiFePO₄ battery technology, and intuitive control via the Epad touchscreen, this bundle lets you power your A/C, appliances, and electronics simultaneously—safely, quietly, and efficiently. Designed for plug-and-play installation, it provides a turnkey solution for mobile energy independence.

Key Features

  • 5,000W Continuous Power: Simultaneously run multiple high-demand appliances, including air conditioners, microwaves, coffee makers, and more.
  • Advanced LiFePO₄ B4810 Battery: Rated for 6,000+ cycles, delivering over 10 years of reliable energy. Built-in self-heating ensures optimal performance even in cold conditions.
  • Fast & Flexible Charging: Recharge via shore power (up to 5,000W), solar panels (up to 1,800W), or vehicle alternator (up to 1,200W) for uninterrupted power.
  • Integrated Epanel: Centralized distribution for all RV circuits, simplifying installation and system management.
  • Intuitive Epad Control: Monitor energy consumption, battery status, and charging inputs in real-time with the HD touchscreen or via the BLUETTI app.
  • Plug-and-Play Installation: Quick, hassle-free setup without electrical expertise. Ideal for first-time RV system upgrades.
  • Quiet, Generator-Free Operation: Eco-friendly, emission-free energy ensures a peaceful RV experience.
  • Durable, Road-Ready Design: UL-certified and IP65 water-resistant to withstand road bumps, vibrations, and spills.

Why Choose This Bundle?

  • Power Everything, Anytime: Run all essential appliances simultaneously without compromise.
  • Reliable & Long-Lasting: LiFePO₄ battery technology and advanced BMS ensure consistent, safe performance over thousands of cycles.
  • Flexible & Fast Charging: Multiple charging methods keep your system ready for any adventure.
  • Safe & Tranquil: Quiet, generator-free operation with UL-certified safety for your family, pets, and RV.
  • All-in-One Convenience: Fully integrated bundle includes inverter, battery, Epanel, and Epad for seamless energy management and plug-and-play installation.

Applications

  • RV & Van Life Energy Systems
  • Off-Grid Cabins & Remote Living
  • Campsites & Boondocking Adventures
  • Long-Term Travel & Road Trips
  • Mobile Worksites & Outdoor Projects

What’s Included

  • 1 × BLUETTI RV5 Power Hub
  • 1 × BLUETTI B4810 48V LiFePO₄ Battery
  • 1 × BLUETTI Epanel
  • 1 × BLUETTI Epad
  • 8 × M8 Wood Screws
  • 8 × Anchors
  • 1 × Drilling Template
  • User Manual & Warranty Documentation

Specifications

Parameter Details
RV5 Power Hub
AC Input Voltage120V (Standard AC: N / L1 / G)
208V (EV Input: L1 / L2 / G)
UPS Switchover Time≤ 20 ms
Charging Power5,000W max (limited by battery terminal current)
AC Output Voltage120V
AC Output Current42A
AC Output Power5,000W
Solar Charging (PV1 / PV2)1,800W max
Solar Input Voltage12V – 50V
Solar Input Current50A max
Vehicle Charging (PV2)600W (12V)
1,200W (24V)
Vehicle Input Voltage12V – 14.4V (12V system)
24V – 28.8V (24V system)
Vehicle Input Current50A max
DC Output Voltage12V / 24V
DC Output Current100A (12V)
60A (24V)
DC Output Power1,360W (12V)
1,620W (24V)
Total Load Power6,000W max (varies by battery type & quantity)
AC + DC Input Power6,000W max
WeightApprox. 30.86 lbs (14 kg)
Dimensions (L × W × H)17.72 × 19.69 × 6.30 in (450 × 500 × 159.9 mm)
Operating Temperature-4°F to 131°F (-20°C to 55°C)
Storage Temperature-4°F to 104°F (-20°C to 70°C)
Operating HumidityUp to 95%
CertificationUL458
Warranty5 years
B4810 Battery Module
ModelB4810
Battery Capacity5,120Wh (51.2V, 100Ah)
Battery TypeLiFePO₄ (Lithium Iron Phosphate)
Cycle Life6,000 cycles @ 70% capacity
Recommended Charge Current50A
Max Charge Current100A
Max Discharge Current100A
Peak Discharge Current200A (30 seconds)
Cell Temperature Protection Charging: < -1°C or > 61°C (< 30°F or > 142°F)
Discharging: < -21°C or > 61°C (< -5.8°F or > 142°F)
WeightApprox. 101.4 lbs (46 kg)
IP RatingIP65
Operating Temperature Charging: -4°F to 131°F (-20°C to 55°C)
Discharging: -4°F to 131°F (-20°C to 55°C)
Storage Temperature Up to 1 month: -4°F to 104°F (-20°C to 40°C)
Up to 6 months: -4°F to 77°F (-20°C to 25°C)
Dimensions (L × W × H)23.94 × 14.96 × 5.71 in (608 × 380 × 145 mm)
Max Expansion (Parallel & Series)Up to 122.88kWh (24P), 51.2V, 2,400Ah
CertificationsMSDS, UN38.3, FCC, CE, RoHS, UL
Warranty5 years

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric Formula & Example
Energy Consumption (Wh) Formula: Watts × Hours
Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah) Formula: Watt-hours ÷ System Voltage (V)
Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W) Formula: Total Watts × 1.25 (safety margin)
Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W) Formula: Sum of all appliance watts used simultaneously
Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery Formula: (Battery Ah × Voltage) ÷ Total Load (W)
Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application System Recommendation
Basic lighting + phone charging Recommended Battery: 50Ah – 100Ah (12V)
Inverter Size: 100W – 200W
Notes: For small backup setups
Home office (laptop, fan, TV) Recommended Battery: 150Ah – 200Ah (12V or 24V)
Inverter Size: 500W – 1000W
Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights) Recommended Battery: 200Ah+ (24V or 48V recommended)
Inverter Size: 1000W – 1500W
Notes: Ideal for longer backups or heavier loads
Business / shop power backup Recommended Battery: 300Ah+ (48V system)
Inverter Size: 2000W – 3000W
Notes: Suitable for commercial setups or extended power outages
