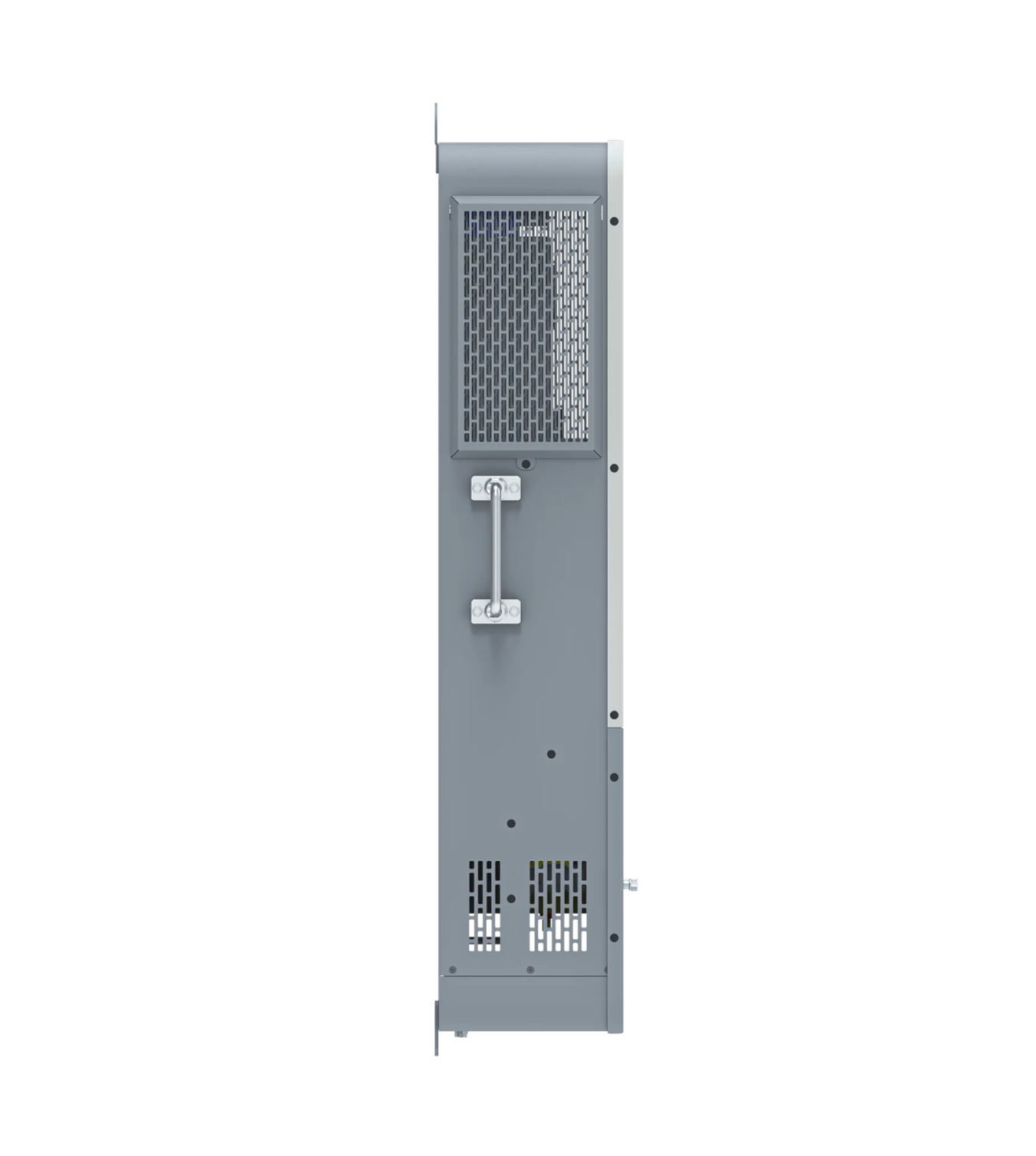

BigBattery APEX 10K Off-Grid Inverter

High-Power Split-Phase Hybrid Inverter for Whole-Home Off-Grid Power

The BigBattery INV035 APEX 10K Off-Grid Hybrid Inverter delivers serious energy independence, with powerful split-phase 120/240V output at 50/60 Hz and clean pure sine-wave power. Designed to integrate seamlessly with modern LiFePO₄ battery banks, it supports solar and generator inputs for continuous, all-day autonomy. With 80A pass-through to keep large appliances running, a rugged outdoor-ready enclosure, wide operating temperature range, installer-friendly bottom-entry wiring, and smart protection features, this inverter is a reliable, efficient backbone for cabins, homesteads, and remote homes.

Key Features:

10kW Split-Phase Pure Sine Wave Output: Stable 120/240V power for whole-home loads, heavy appliances, and essential circuits.
Solar + Generator Ready: Supports solar and generator inputs to maintain battery charge and keep loads powered during low sunlight.
80A Pass-Through Support: Ensures large appliances and critical circuits stay online during peak demand.
Outdoor-Ready & Durable: Built for harsh conditions with wide temperature tolerance and robust protection features.
Bottom-Entry Wiring: Simplifies installation and keeps wiring organized and secure.
Integrated Safety Protections: Built-in protections for safe, reliable long-term operation.

Ideal Applications:

Off-grid homes, cabins, and homesteads
Remote residences and rural properties
Emergency backup and outage protection
Solar + generator hybrid systems
Whole-home split-phase power solutions

What’s Included:

1 × BigBattery APEX 10K Off-Grid Hybrid Inverter (10kW)

Specifications

Parameter	Details
Brand	BigBattery
Model	APEX-10K
GTIN / UPC	00199874999463
Dimension (in)	28.46 × 17.64 × 5.91
Weight	62 lbs
Protection Degree	IP20 (indoor only)
Operating Temperature	14–131°F (derate above 113°F)
Noise	<60 dB
Cooling Method	Intelligent fan
External Module (Optional)	Wi-Fi / GPRS
Warranty	5 years
Certificates	UL1741 / RoHS / EN61000-6-1 / EC61000-6-3 / FCC Part15 Class B / IEC62109-1 / IEC62109-2
Rated Output Power	10,000 W
Max Output Power	20,000 VA
Rated Output Voltage	120/240 V AC (single/split phase)
Load Capacity (motors)	6 HP
Rated Frequency	50/60 Hz
Output Wave	Pure sine wave
Switching Time	10 ms
Parallel Capacity	Up to 6 units (3+ units in parallel can form 3-phase)
Battery Type	Lithium-ion / Lead-acid / User-defined
Rated Battery Voltage	48V
Voltage Range	40–60 VDC
Max Solar Charging Current	200A
Max Grid / Generator Charging Current	120A
Max Hybrid Charge Current	200A
No. of MPPT	1 + 1
Max Input Power	5,000W + 5,500W
Max Input Current	22A + 22A
Max Open Circuit Voltage	550 VDC + 550 VDC
MPPT Voltage Range	125–450 VDC
Input Voltage Range	65–140 V AC
Input Frequency Range	50/60 Hz
Bypass Overload Current	63A
AC Inputs	1 (Grid or Generator)
Max Efficiency	99.9%
MPPT Tracking Efficiency	92%
Communication	RS485 / CAN / USB / Dry contact
Integrated Circuit Breaker	Utility / Load / Battery / PV
Overload Protection	102–110% load: off after 5 min 110–125% load: off after 10 s >125% load: off after 5 s
Protection Features	PV input current limiting, PV over-voltage, PV night reverse current, AC over/under voltage, battery over/under voltage, battery over-current, AC short-circuit, heat sink over-temp, inverter overload

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
