BigBattery 36V 2X RAPTOR 2 Lithium Battery KIT – 7.68kWh High-Performance LiFePO₄ Power
Maximize your range, power, and performance with the BigBattery 36V 2X RAPTOR 2 Lithium Battery KIT, delivering an impressive 7.68kWh of reliable LiFePO₄ energy. Whether you're powering a golf cart, utility vehicle, industrial machine, or pallet jack, this dual-battery system is the ultimate upgrade from outdated lead-acid setups—providing more energy, faster acceleration, and longer runtimes in a lightweight, compact design.
Each RAPTOR 2 battery is built with Tier 1 lithium iron phosphate (LiFePO₄) cells, the safest and most stable chemistry on the market. Paired with an advanced Battery Management System (BMS) and automatic cell balancing, this system ensures long-lasting performance and full protection from over-voltage, under-voltage, over-current, and temperature extremes. Plus, the IP65-rated casing offers superior resistance to water, dust, and vibration—perfect for work and play in tough environments.
Stay fully informed with the included Battery Capacity Meter (SOC) and RS485 communication protocols, providing real-time monitoring at a glance. This complete kit also includes a 36V 25A lithium charger and parallel busbar, making it a true plug-and-play solution that installs easily in most battery trays without modification.
Key Features:
-
Total Capacity: 7.68kWh (2 × 3.84kWh RAPTOR 2 units)
-
Voltage: 36V nominal
-
Chemistry: Lithium Iron Phosphate (LiFePO₄)
-
BMS: Advanced protection with auto cell balancing
-
Cycle Life: 4,000+ cycles at 80% depth of discharge
-
Enclosure: IP65-rated, vibration- and water-resistant
-
Communication: RS485 Protocol + LED State of Charge (SOC) Indicator
-
Form Factor: Compact & lightweight – drop-in ready
Ideal For 36V Applications:
-
Golf Carts & Neighborhood EVs
-
Utility Carts & LSVs
-
Forklifts & Pallet Jacks
-
Scissor Lifts & Industrial Equipment
-
Lead-Acid Battery Replacements
-
Emergency & Mobile Backup Systems
Benefits:
-
Double the power for longer drive times and greater range
-
Lightweight lithium reduces overall vehicle weight
-
Faster charging with included high-efficiency 25A charger
-
Real-time battery monitoring with SOC meter
-
Maintenance-free, plug-and-play installation
-
Long-lasting, safe, and eco-friendly battery chemistry

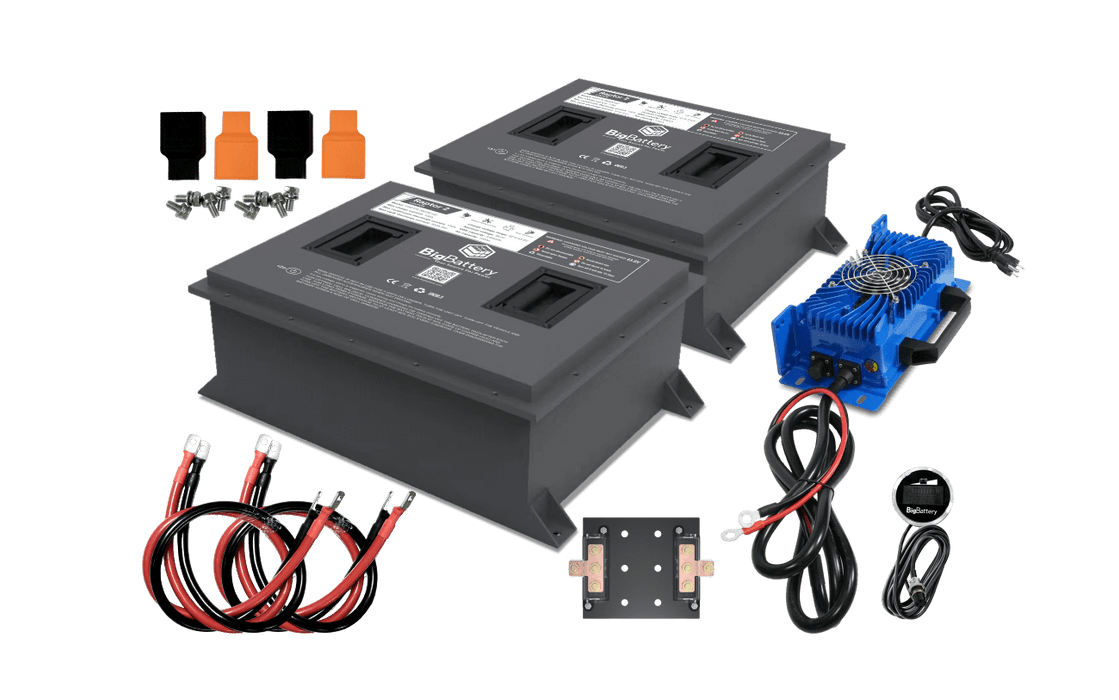

What’s Included:
-

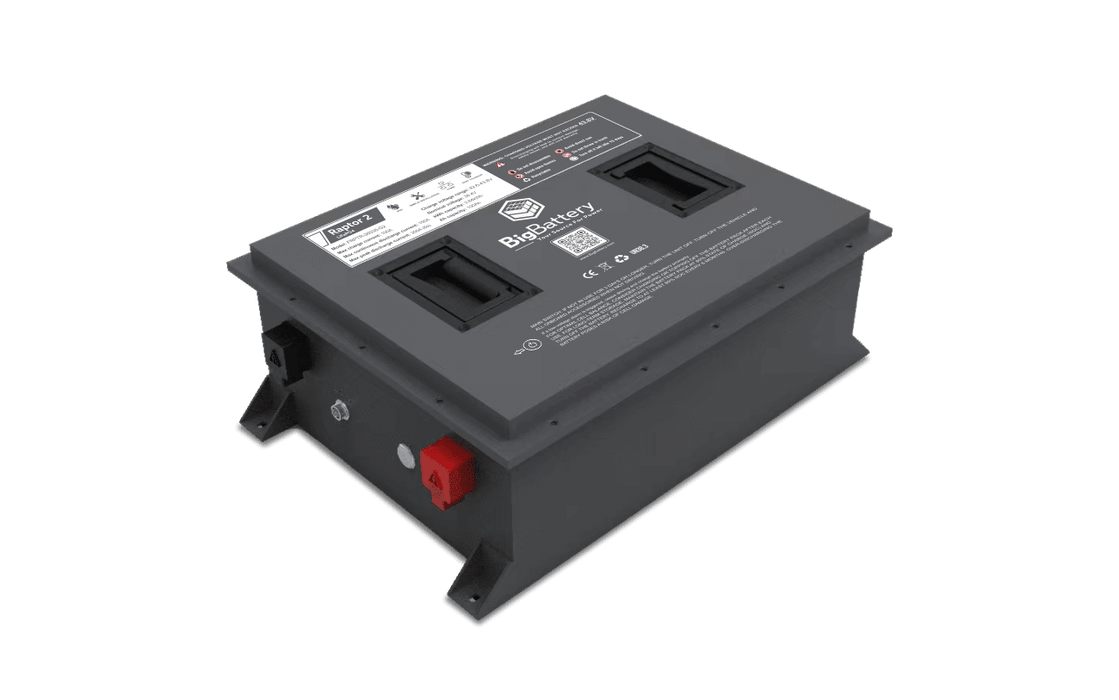

2 × 36V RAPTOR 2 – 3.84kWh LiFePO₄ Batteries (FRPTR-36038-G2)
-

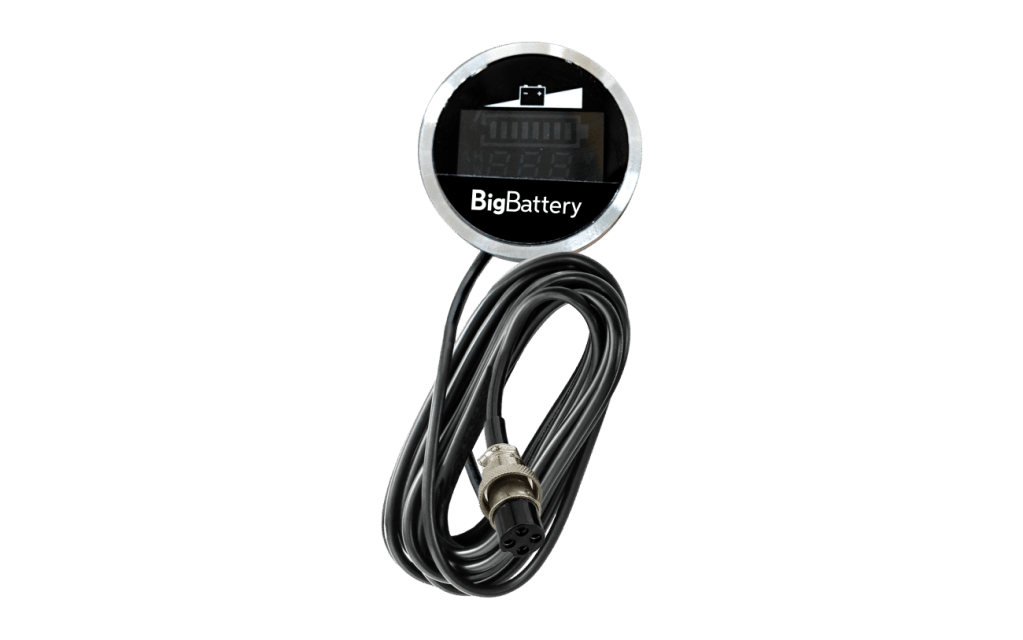

1 × RAPTOR 2 Battery Capacity Meter – MTR106
-
1 × 36V 25A Lithium Charger – 43.2V DC w/ Ring Terminals (PWS052)
-

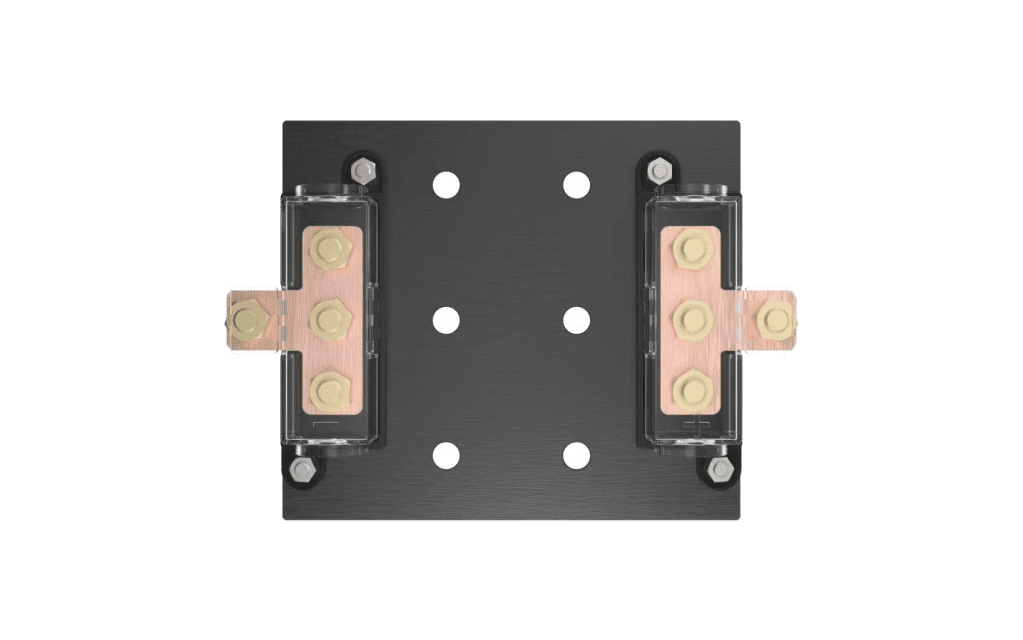

1 × Parallel Busbar – CNT015
Specifications
Product Specifications
| SKU: |
FRPTR-36038-G2 |
| GTIN-12 (U.P.C.): |
850061252395 |
| System Voltage: |
36V |
| Nominal Voltage: |
38.4V |
| Chemistry: |
LiFePO4 |
| kWh Capacity: |
3.84kWh |
| Ah Capacity: |
100Ah |
| Charging Voltage Range: |
41 – 43.8V |
| Max Charge Voltage: |
44V |
| Operating Voltage Range: |
36 – 43.8V |
| Suggested Low Voltage Cutoff: |
36 – 38.1V |
| BMS Cutoff Range: |
31.5 – 35.25V |
| Cell Configuration: |
12S |
| Max Continuous Discharge Current: |
150A |
| Max Continuous Power: |
3840W |
| Max Discharge Peak Current: |
300A (Max 5 seconds) |
| Max Charge Current: |
100A |
| Charge Temperature Range: |
32°F – 113°F (0°C – 45°C) |
| Discharge Temperature Range: |
-4°F – 131°F (-20°C – 55°C) |
| Optimal Discharge Temperature Range: |
59°F – 95°F (15°C – 35°C) |
| Storage Temperature Range: |
23°F – 95°F (-5°C – 35°C) (Max 3 months, SoC >50%) |
| Weight: |
79.3 lb (36 kg) |
| Depth: |
15.3 in (387 mm) |
| Width: |
18.3 in (465 mm) |
| Height: |
7.4 in (188 mm) |
| Protection Rating: |
IP65 / NEMA 4X |
| Communications: |
RS485 |
| Spec Sheet: |
Spec Sheet |
| User Manual: |
User Manual |
| UN38.3 Certificate: |
UN38.3 Certificate |
