SunGoldPower Solar Inverter Charger | 3000W 24V DC–120V AC | MPPT 120–400V

Reliable Off-Grid & Hybrid Power with Advanced MPPT Technology

The SunGoldPower SPH302480A is a 3000W 24V solar inverter charger engineered for homes, RVs, cabins, and off-grid systems. This all-in-one unit combines a pure sine wave inverter, high-efficiency MPPT solar charger, and AC battery charger to deliver clean, consistent power from solar panels, the utility grid, or a generator. Designed for flexible energy management, it ensures your devices and appliances remain powered in all conditions, making it perfect for off-grid living, hybrid solar systems, and emergency backup power.

Key Features

3000W Pure Sine Wave Inverter: Provides stable, clean AC power, safe for sensitive electronics, household appliances, and off-grid equipment.
80A MPPT Solar Charger: Maximizes solar input efficiency with 120–400V PV range, ensuring fast, optimized charging of 24V battery banks.

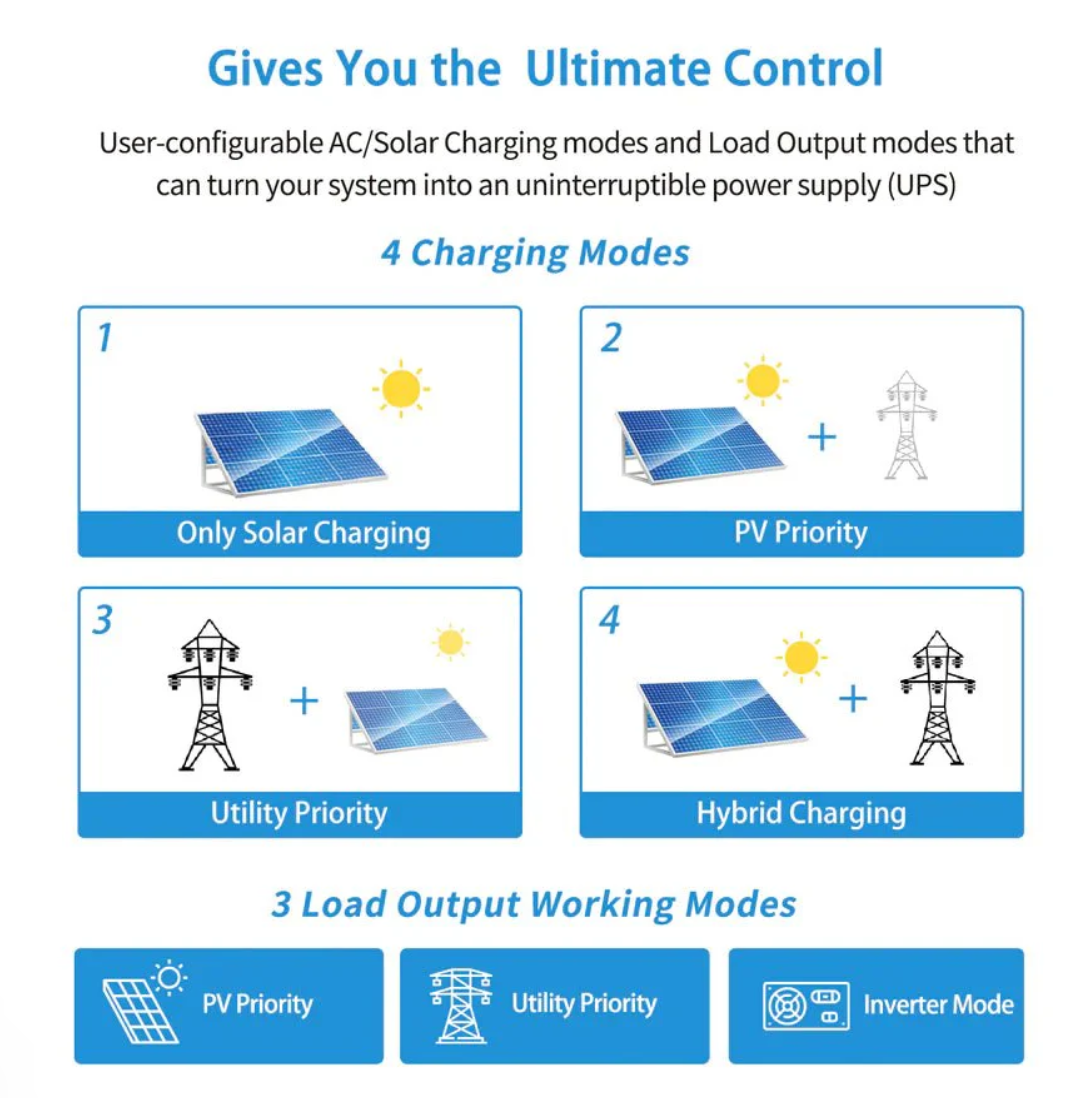

40A AC Battery Charger: Recharges batteries efficiently from grid or generator, maintaining backup readiness. Four intelligent charging modes:
- AC Priority – Grid or generator power first
- Solar Priority – Solar panels prioritized over AC
- Only Solar – Operates solely on solar energy
- Mains & Solar Hybrid – Optimized simultaneous input from both sources
Uninterruptible Power Supply (UPS) Function: Automatically switches to battery power in under 10 milliseconds during grid or generator outages.

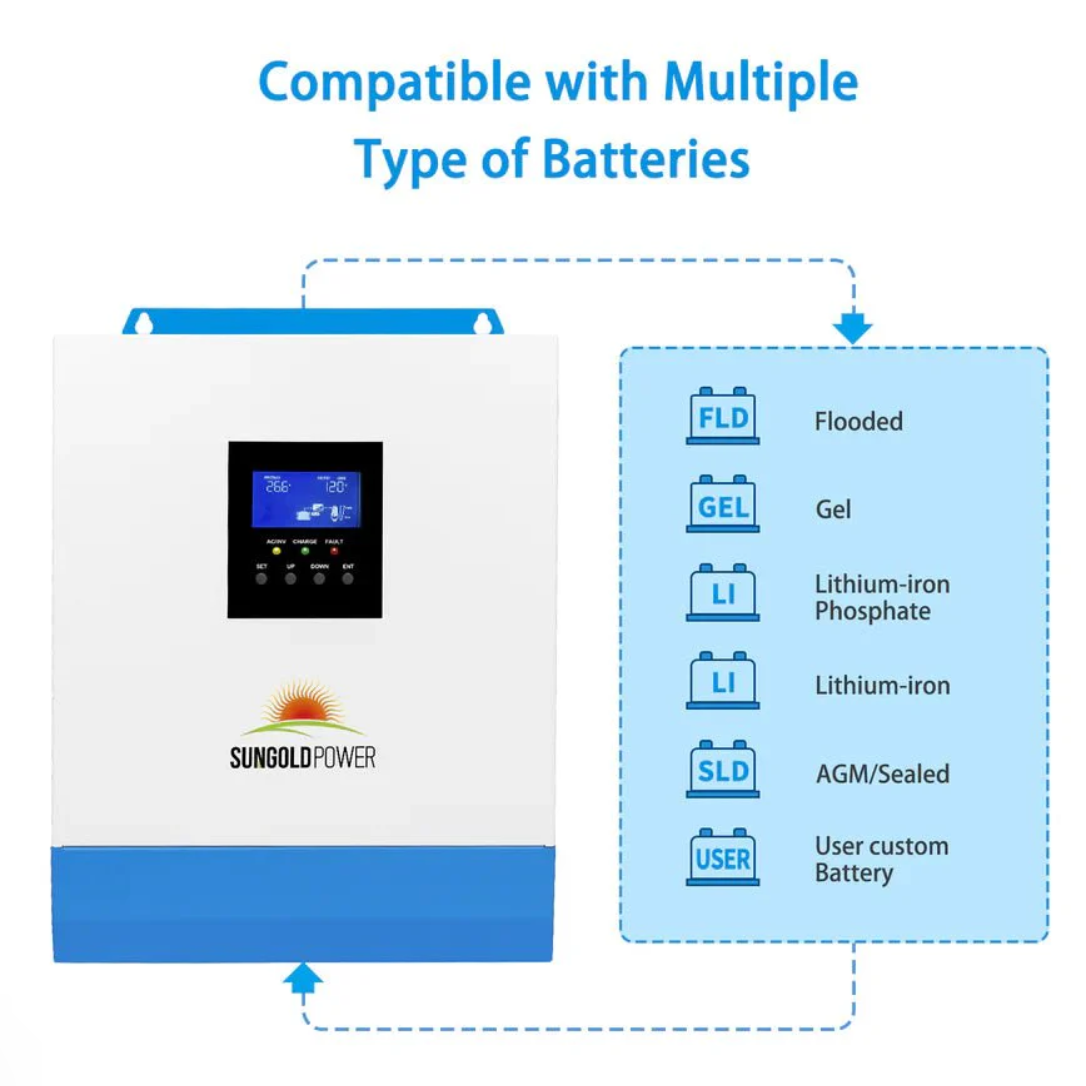

Wide Battery Compatibility: Supports 24V AGM, Sealed, Gel, Flooded, and Lithium batteries, with a custom User Mode for specialized configurations.
Advanced Protection Features: Built-in safeguards protect against short circuits, overload, over/under-voltage, and reverse polarity.

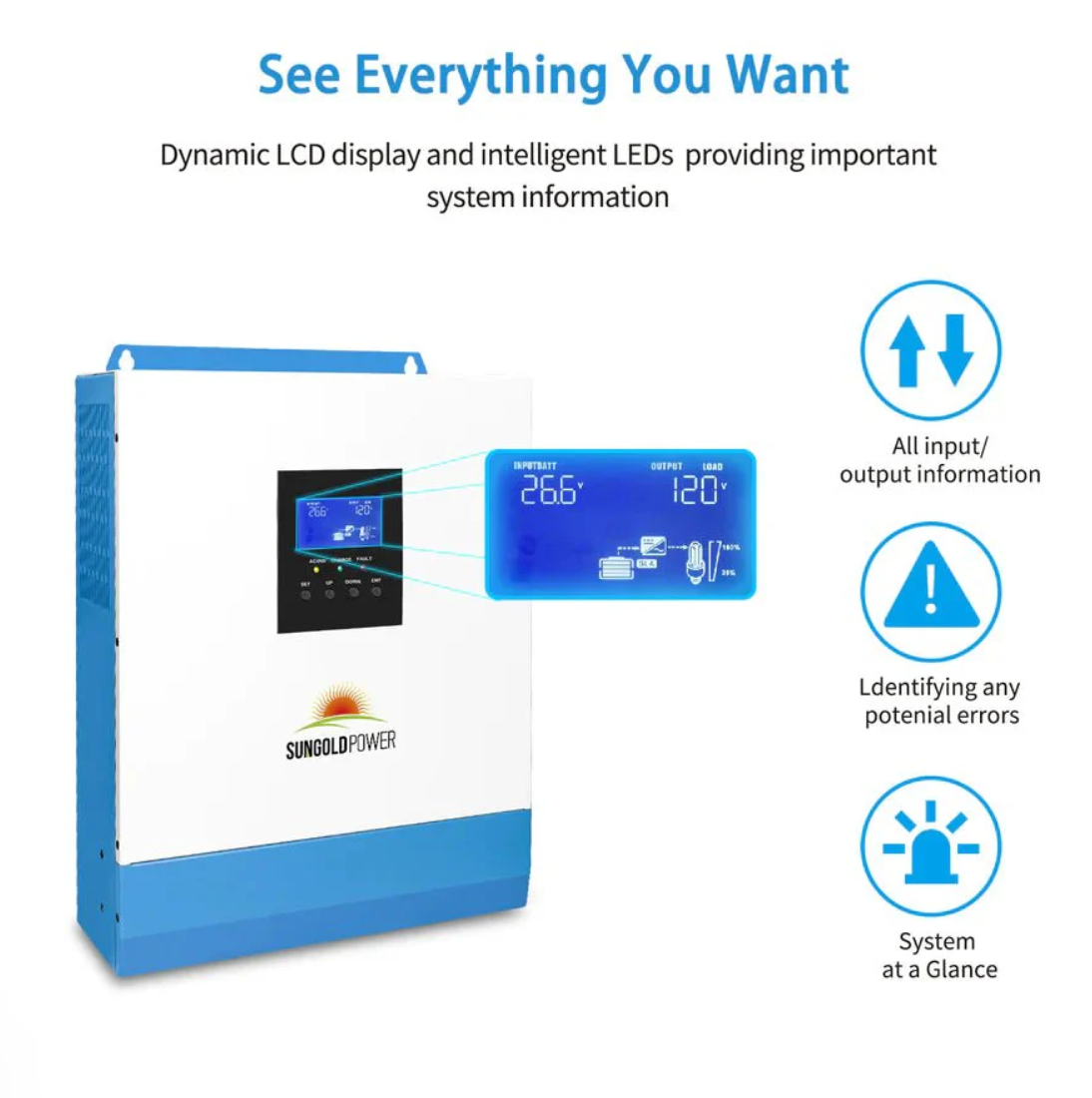

LCD/LED Display: Provides real-time system data including battery levels, charging current, operational mode, and alerts for easy monitoring.

Ideal Applications

Off-grid homes, cabins, and tiny houses
RVs, trailers, and mobile homes
Hybrid solar-grid systems
Backup power for sensitive electronics and appliances
Small workshops or commercial off-grid setups

What’s Included

1 × SunGoldPower SPH302480A 3000W 24V Solar Inverter Charger
1 × User Manual (English)

Manuals:

SunGoldPower 3000W 24V Solar Inverter Charger AC input 120V/AC output 120V [PV120-450V / MPPT120-400V] Installation Guide & Owner Manual (PDF)

Specifications

Parameter	Specification
Model
Model Number	SPH302480A
Main Features
Solar Charge Controller	Built-in 80A MPPT
Maximum PV Input Power	4,000 W
AC Charger	40 A Smart AC Charger
Design	High-frequency, transformer-less, compact
AC Output Waveform	Pure Sine Wave
AC Output Voltage	120 VAC
Output Frequency	50 Hz / 60 Hz (selectable)
Monitoring (Optional)	WiFi / GPRS (extra cost)
Protection	Overload, short circuit, over-discharge
Generator Support	Auto-start generator (dry contact)
Inverter Mode
Output Waveform	Pure Sine Wave
Peak Power	6,000 VA
AC Output	120 VAC, 50 Hz / 60 Hz
Battery Voltage	24 VDC (minimum start-up 22 V)
Bypass Breaker Current	40 A
Idle Power Consumption	50 W
Power Saver Mode Idle	25 W
MPPT Solar Charging
Maximum PV Input Power	4,000 W
PV Charging Current	0–80 A
Max PV Open-Circuit Voltage	450 VDC
PV Operating Voltage Range	120–450 VDC
MPPT Voltage Range	120–400 VDC
Recommended Wire Size	8 AWG
AC Charging Mode
Rated AC Input	110 VAC, 50 Hz / 60 Hz
Input Voltage Range	90–140 VAC
Conversion Time	10 ms
Battery Type	Lead-acid & Lithium
Maximum Charging Current	40 A
Charging Voltage Range	20–33 VDC
Short-Circuit Protection	Circuit breakers & fuses
Overcharge Protection	Alarm and automatic shutdown after 1 min
Mechanical & Environmental

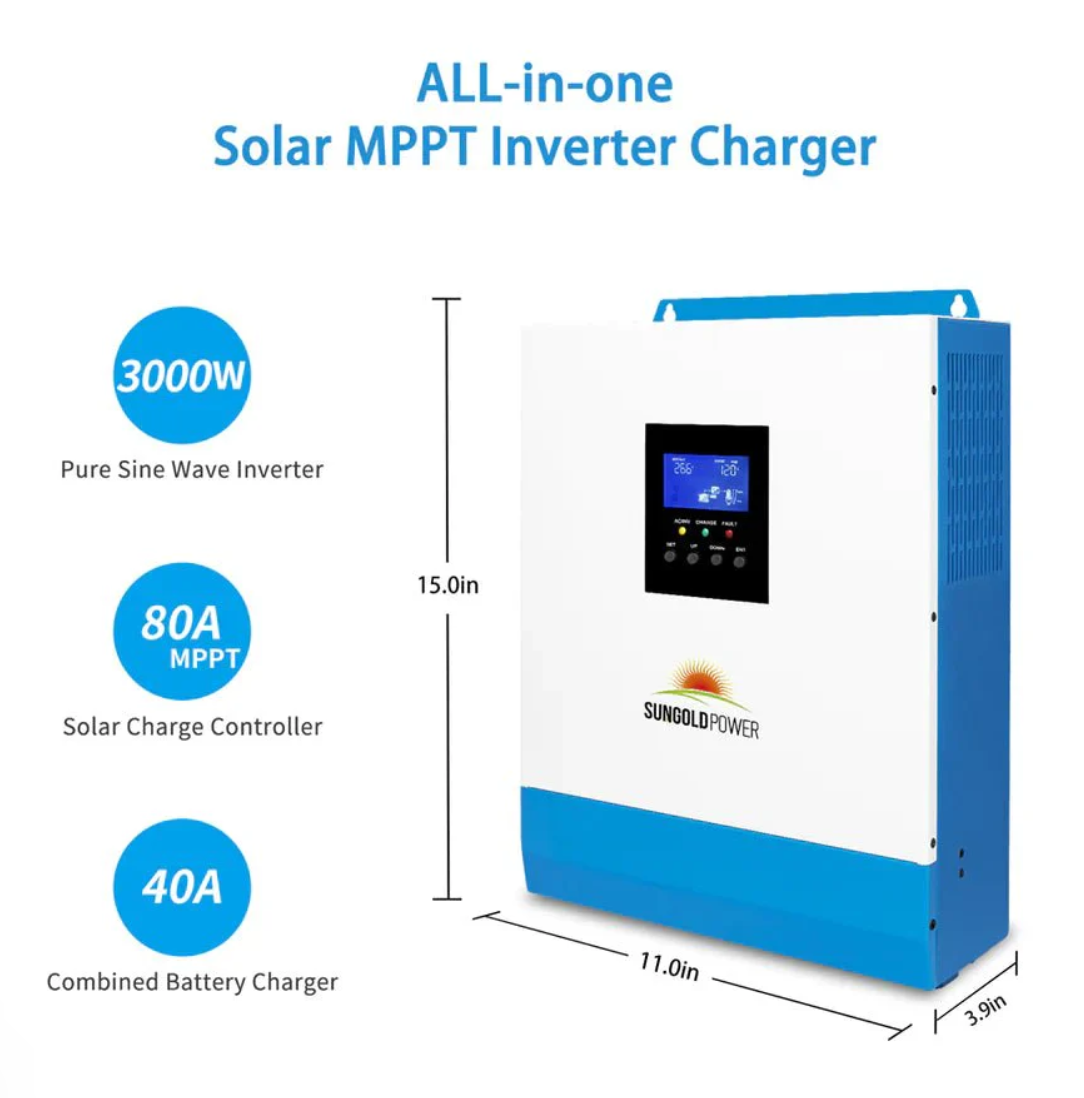

Dimensions (L × W × D)	15.0 × 11.0 × 4.0 in
Net Weight	16.8 lb
Noise Level	≤60 dB
Operating Temperature	5°F–131°F (-15°C–55°C)
Cooling	Active cooling fan

Understanding Your Power Needs

Power Calculation Guide

Sizing Metric	Formula & Example
Energy Consumption (Wh)	Formula: Watts × Hours Example: 60W × 4 hrs = 240 Wh
Battery Capacity (Ah)	Formula: Watt-hours ÷ System Voltage (V) Example: 240 Wh ÷ 12V = 20 Ah
Inverter Size (W)	Formula: Total Watts × 1.25 (safety margin) Example: 300W × 1.25 = 375W → Use 400W inverter
Total Load Power (W)	Formula: Sum of all appliance watts used simultaneously Example: Light (10W) + Fan (75W) = 85W
Runtime (hrs) of Battery	Formula: (Battery Ah × Voltage) ÷ Total Load (W) Example: (100Ah × 12V) ÷ 240W = 5 hrs

Find Your Power Match

Need / Application	System Recommendation
Basic lighting + phone charging	Recommended Battery: 50Ah – 100Ah (12V) Inverter Size: 100W – 200W Notes: For small backup setups
Home office (laptop, fan, TV)	Recommended Battery: 150Ah – 200Ah (12V or 24V) Inverter Size: 500W – 1000W Notes: For moderate usage with 4–6 hours of backup
Home backup (fridge, lights)	Recommended Battery: 200Ah+ (24V or 48V recommended) Inverter Size: 1000W – 1500W Notes: Ideal for longer backups or heavier loads
Business / shop power backup	Recommended Battery: 300Ah+ (48V system) Inverter Size: 2000W – 3000W Notes: Suitable for commercial setups or extended power outages
